Torque Specifications
WARNING: This page is about a different variant/trim than selected.
TORQUE SPECIFICATIONS
| Application |
Ft. Lbs. (N.m) |
| A/C Compressor Bracket Bolts |
17 (23) |
| Alternator Belt Adjustment Bolt |
17 (23) |
| Alternator Mount Bolt |
33 (45) |
| Camshaft Sprocket Bolts |
27 (37) |
| Connecting Rod Nuts |
24 (32) |
| Crankshaft Pulley Bolt |
133 (180) |

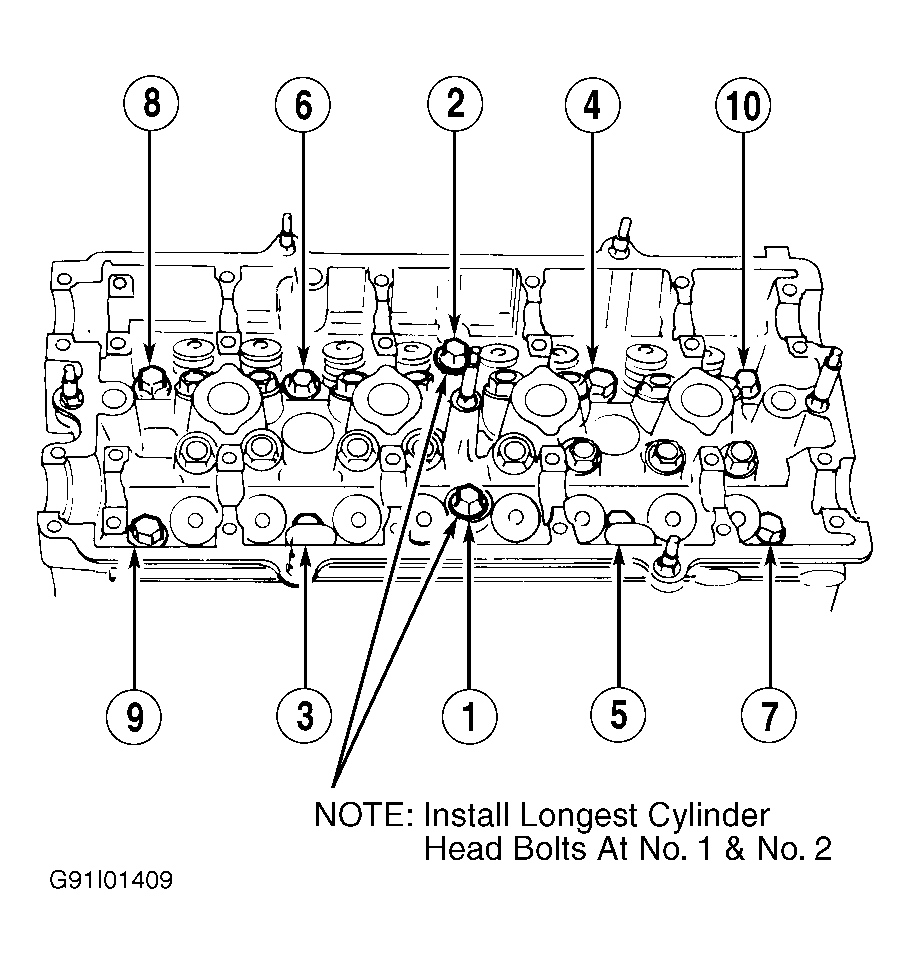

| Cylinder Head Bolts |
63 (85) |
| Distributor Mount Bolts |
16 (22) |
| Engine Block-To-Transaxle |
| Housing Bolts |
47 (64) |
| Engine Mount Bolts |
|
| Exhaust Manifold Nuts |
23 (31) |
| Exhaust Pipe Flange Nuts |
40 (54) |
| Flexplate (A/T) |
55 (75) |
| Flywheel Bolts (M/T) |
77 (105) |
| Intake Manifold Nuts |
17 (23) |
| Main Bearing Cap Bolts |
58 (78) |
| Oil Pump Bolts |
| 6-mm Bolts |
|
| 8-mm Bolts |
17 (23) |
| Power Steering Mount Bolt |
17 (23) |
| Rocker Arm Lock Nuts |
18 (24) |
| Rocker Arm Pivot Bolt |
46 (62) |
| Shift Lever Torque Rod Bolt |
16 (22) |
| Timing Belt Tension Adjuster Bolt |
40 (54) |
| INCH Lbs. (N.m) |
| Camshaft Bearing Bolt |
88 (10) |
| Crankshaft Rear Seal Cover Bolts |
98 (11) |
| Fuel Service Bolt |
106 (12) |
| Oil Pan Bolts |
106 (12) |
| Oil Pump Screen Nuts |
98 (11) |
| Timing Belt Cover Bolts |
106 (12) |
| Valve Cover Nuts |
88 (10) |
| Water Pump Bolt |
106 (12) |
