Control Units
CONTROL UNITS LOCATION
| Component | Location | |
|---|---|---|
| ABS Control Unit | Behind right rear seat. See Figure . | |
| Climate Control Unit | In center of dash, integral of A/C control panel. | |

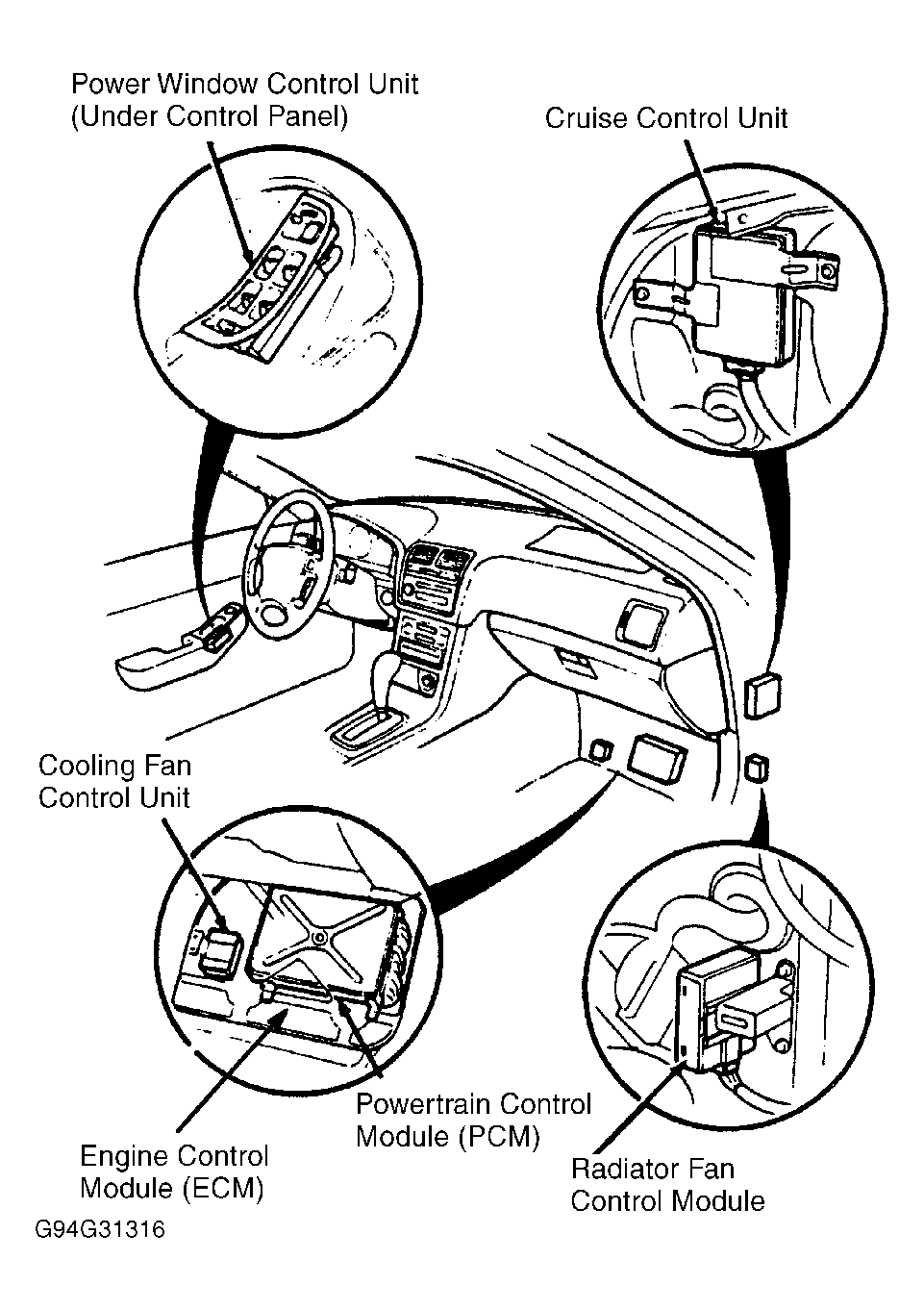

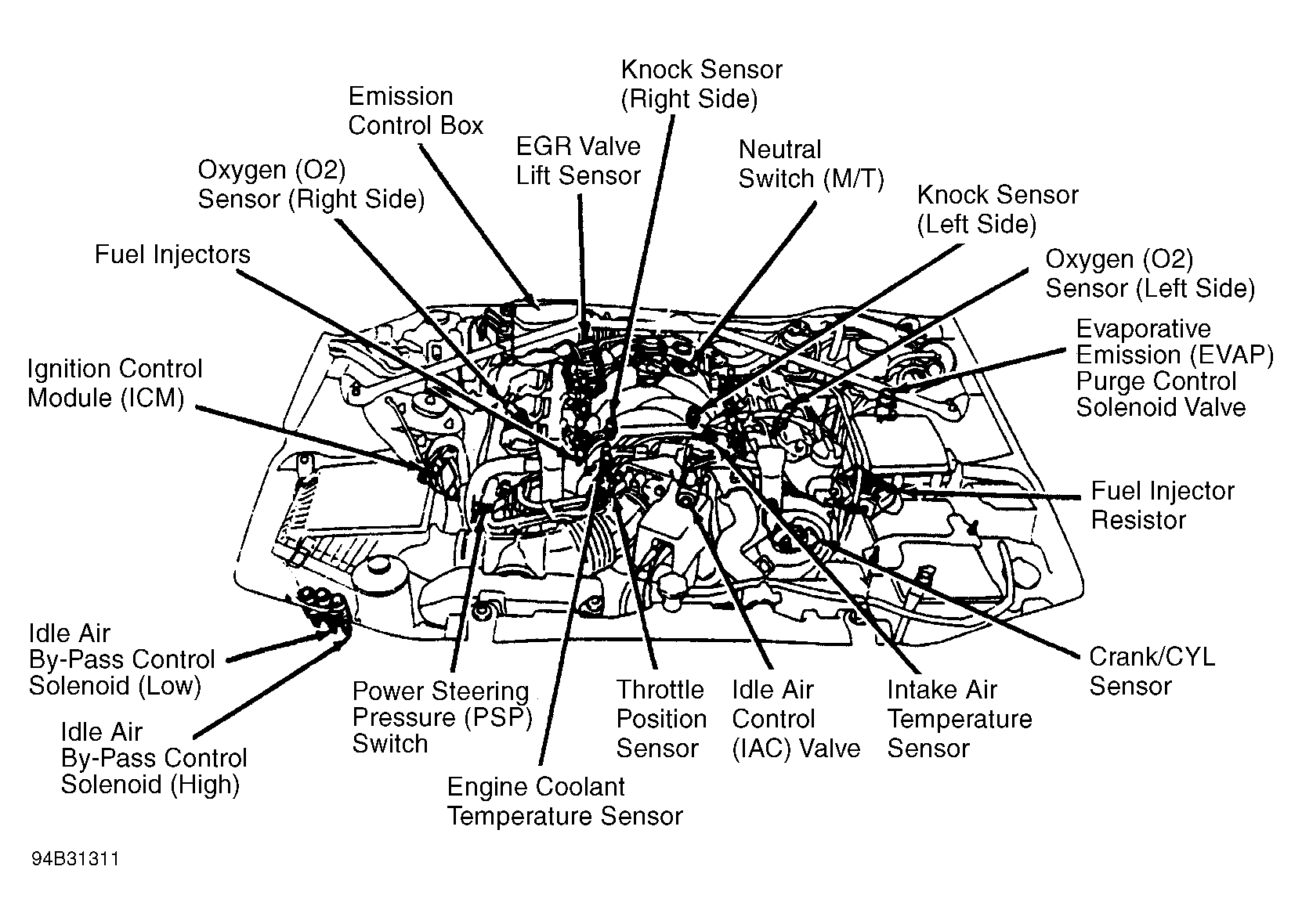

| Cooling Fan Control Unit | Under carpeting and cover, next to PCM. See Figure . | |
| Cruise Control Unit | Behind right side kick panel. See Figure . | |
| Dash Light Brightness Control Unit | Behind center of dash. See Figure . | |
| Daytime Running Light (DRL) Control Unit (Canada) | Behind dash, right of steering column. See Figure . | |
| Ignition Control Module (ICM) | ||

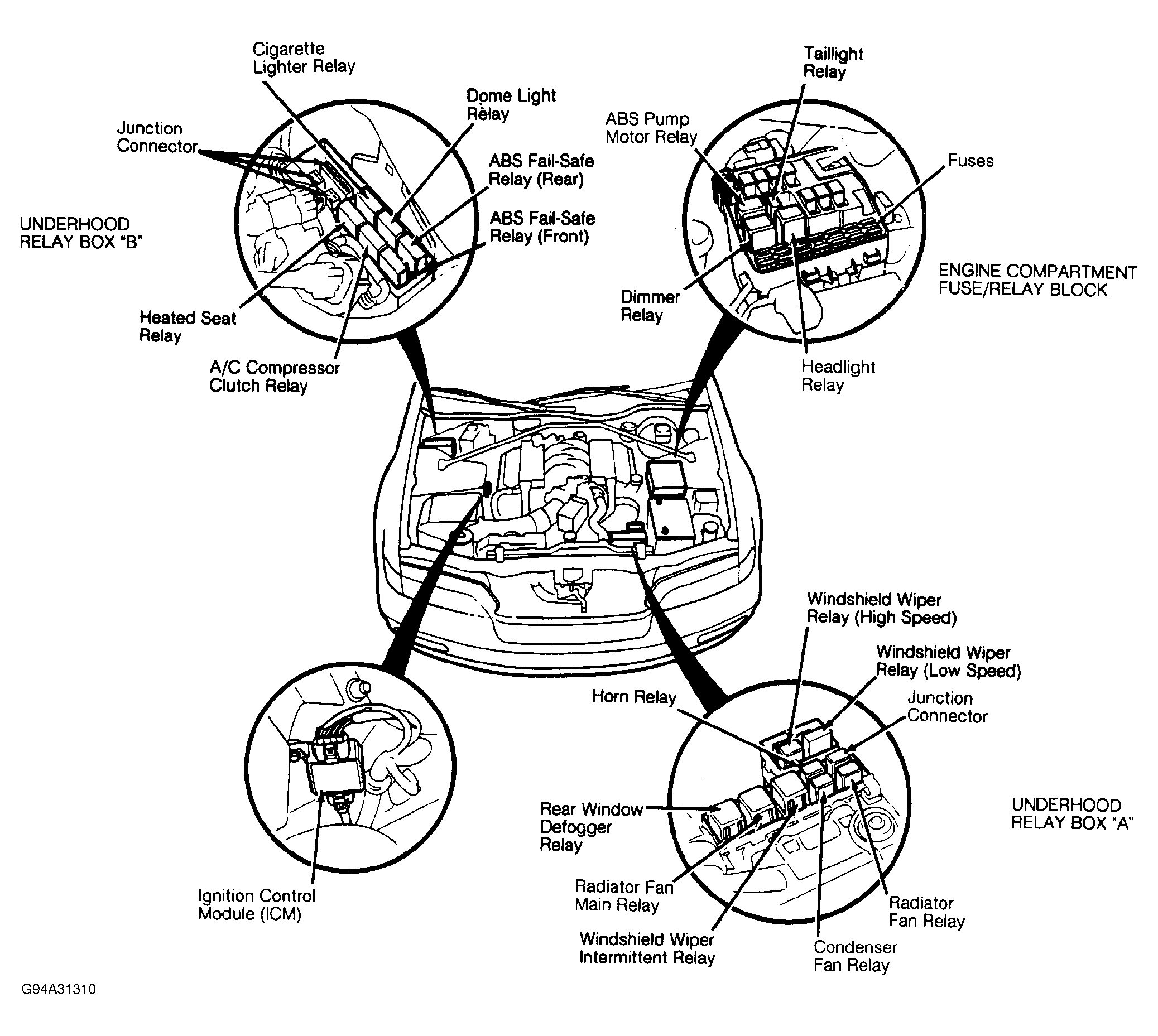

| View of Relays | On inner right fender panel, on strut tower. See Figure . | |
| Engine Compartment | On inner right fender panel, on strut tower. See Figure . | |
| Integrated Control Unit | Mounted behind passenger compartment fuse/relay block. See Figure . | |
| Interlock Control Unit (A/T) | Behind left side of dash. See Figure . | |
| Keyless Entry Control Unit | On left lower dash panel. | |
| Lights-On Chime Module | Above left side of steering column. | |

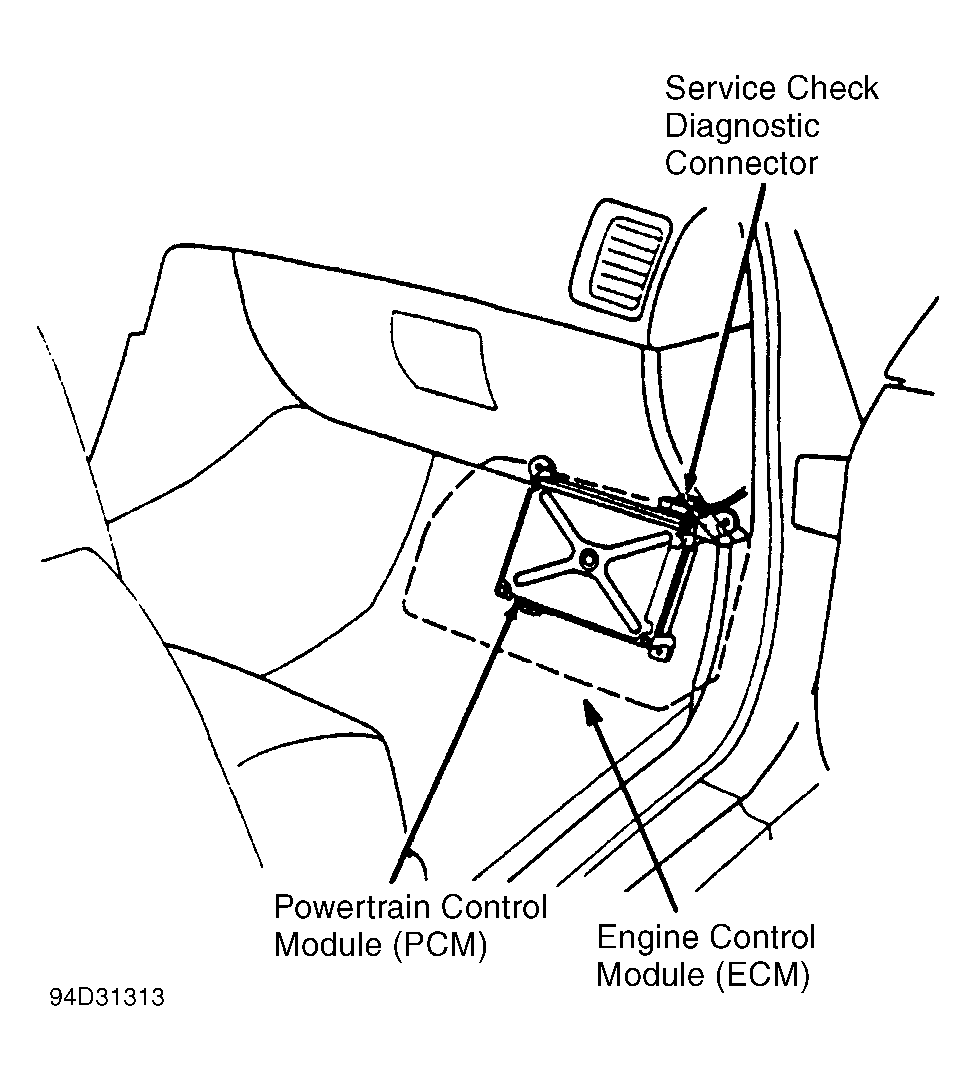

| Powertrain Control Module (PCM) | ||
| Floor of Passenger Compartment | Under carpeting and cover, in passenger's footwell. See Figure . | |
| View of Ctrl Units & Modules | Under carpeting and cover, in passenger's footwell. See Figure . | |
| Power Door Lock Control Unit | Behind left side of dash, to right of steering column. See Figure . | |
| Power Window Control Unit | Built-in to driver-side window control panel. See Figure . | |
| Power Seat Control Unit | Under driver's seat. | |
| Radiator Fan Control Module | Behind right kick panel. See Figure . | |
| Seat Heater Control Unit | Under passenger's seat. | |

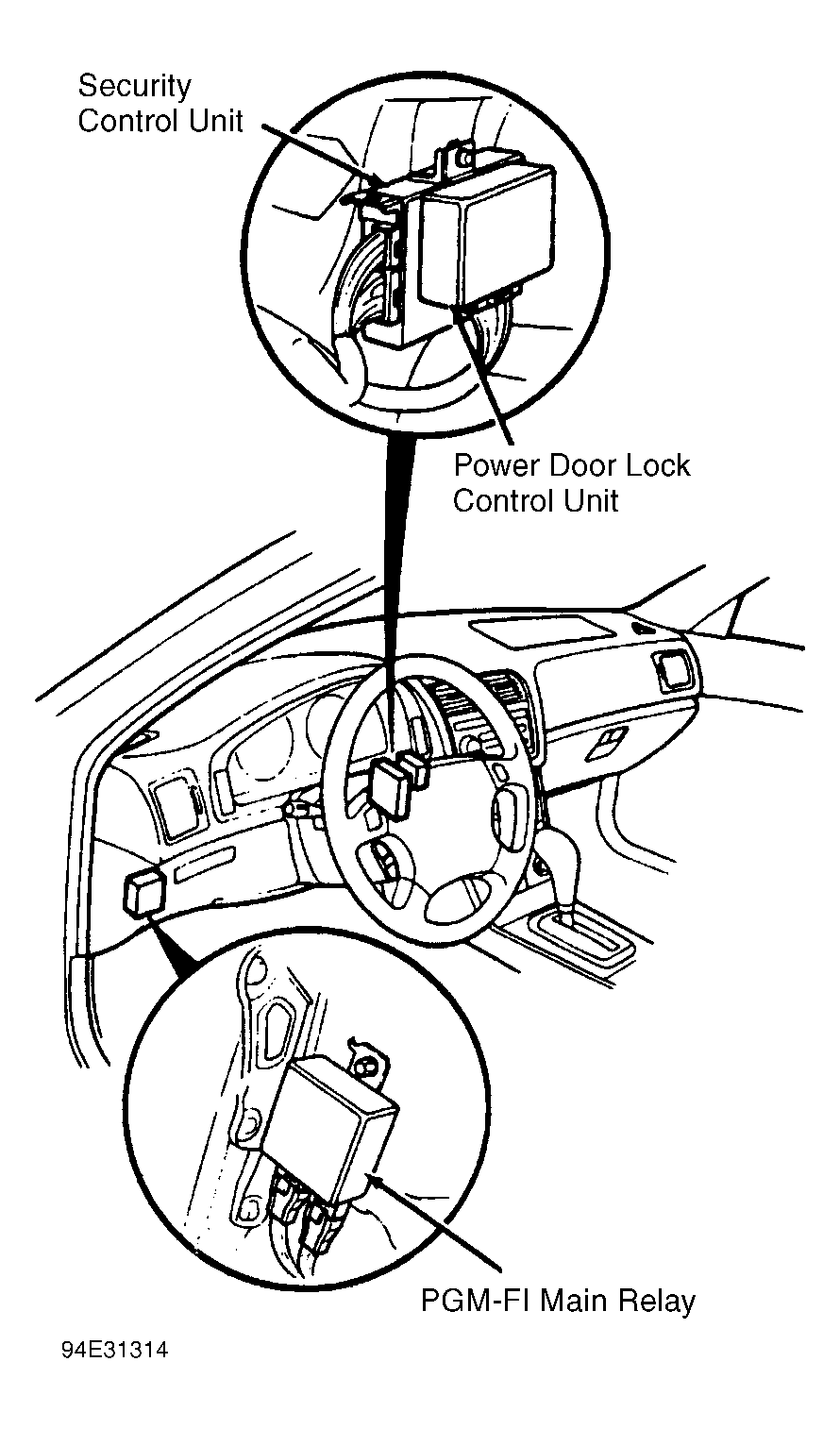

| Security Control Unit | Behind left side of dash, to right of steering column. See Figure . | |

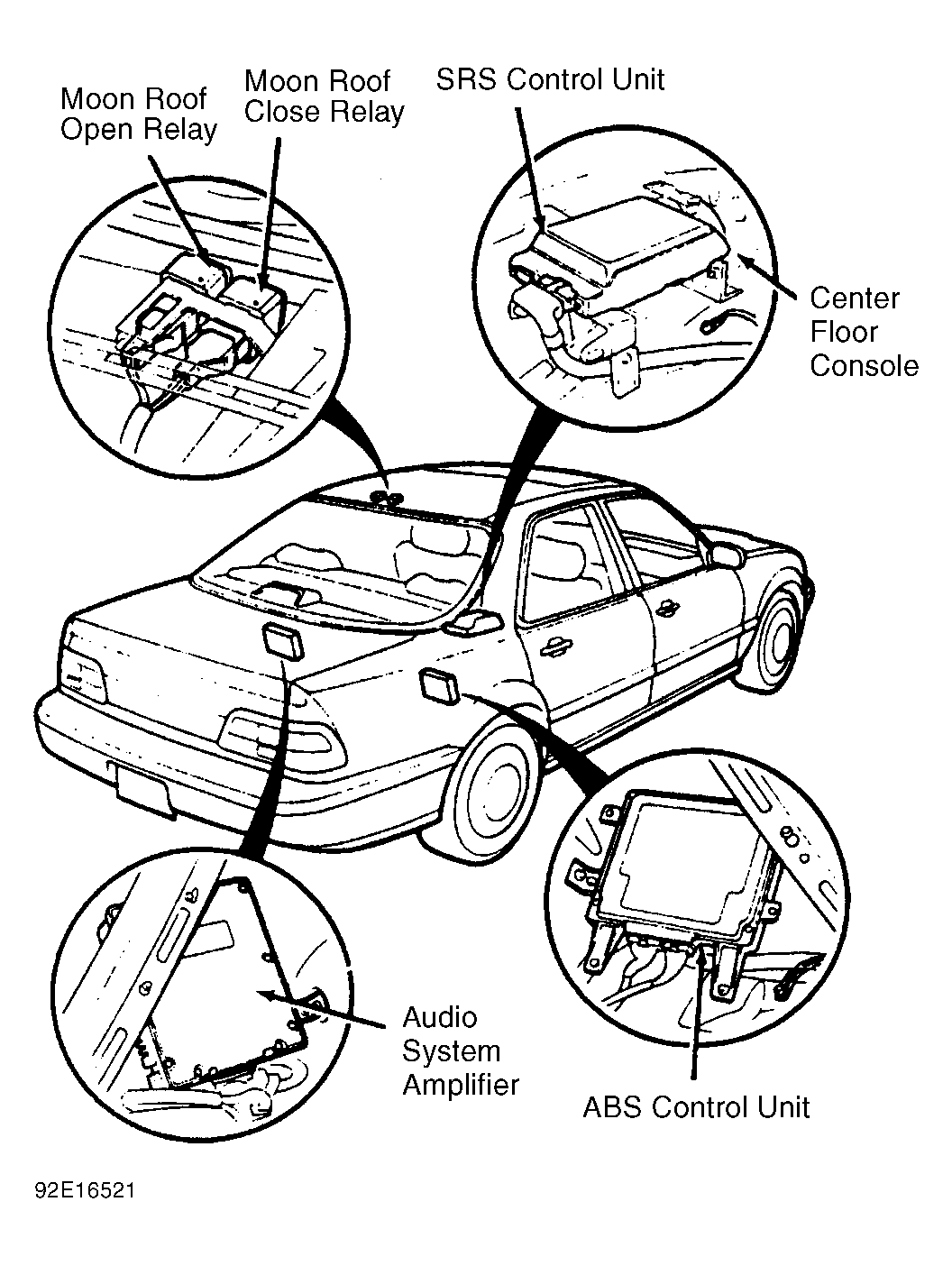

| SRS Control Unit | Under center console. See Figure . | |
