Control Units
CONTROL UNITS LOCATION
| Component | Location | |
|---|---|---|

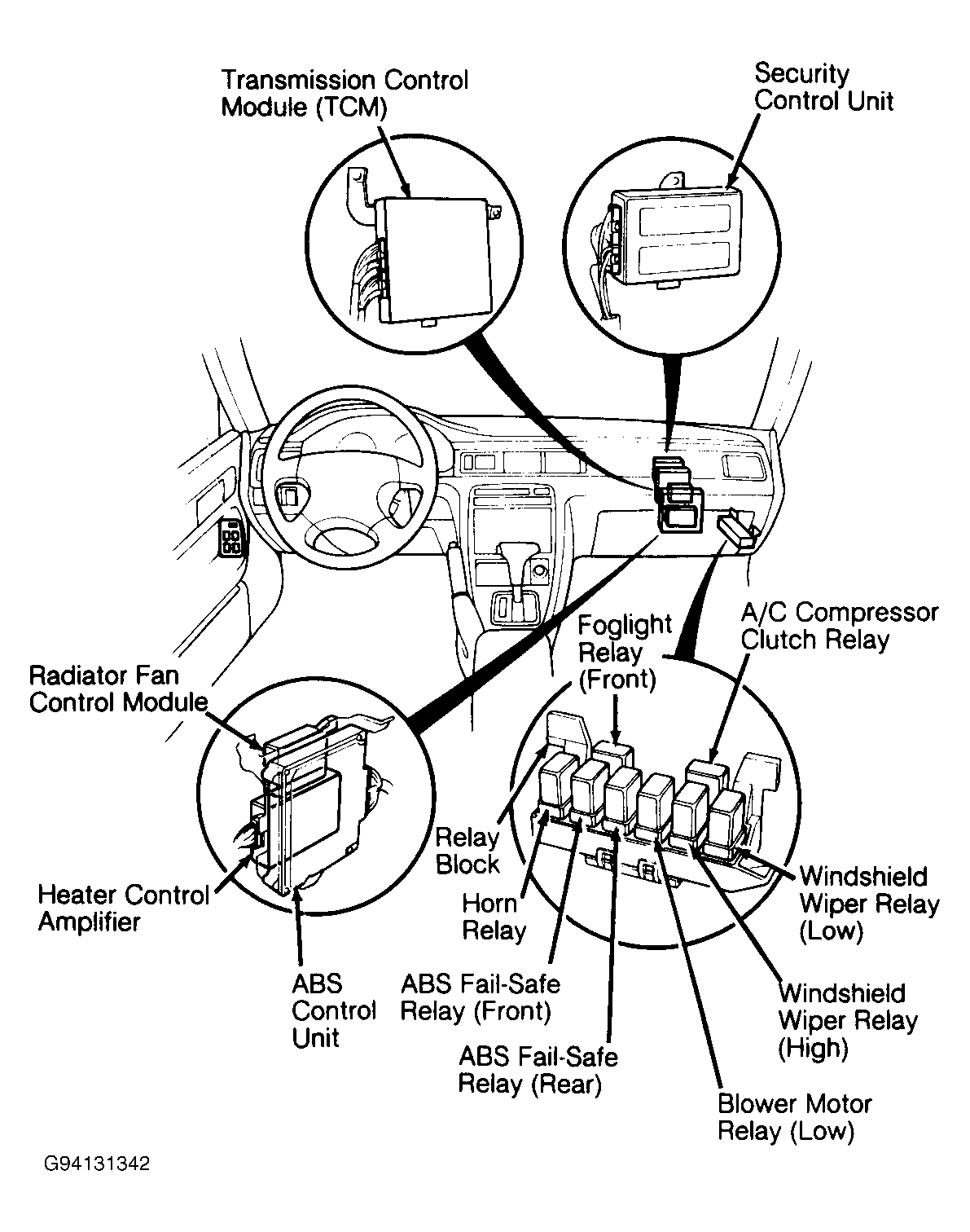

| ABS Control Unit | Behind right side of dash. See Figure . | |
| Cellular Phone Control Unit | On underside of center console. | |

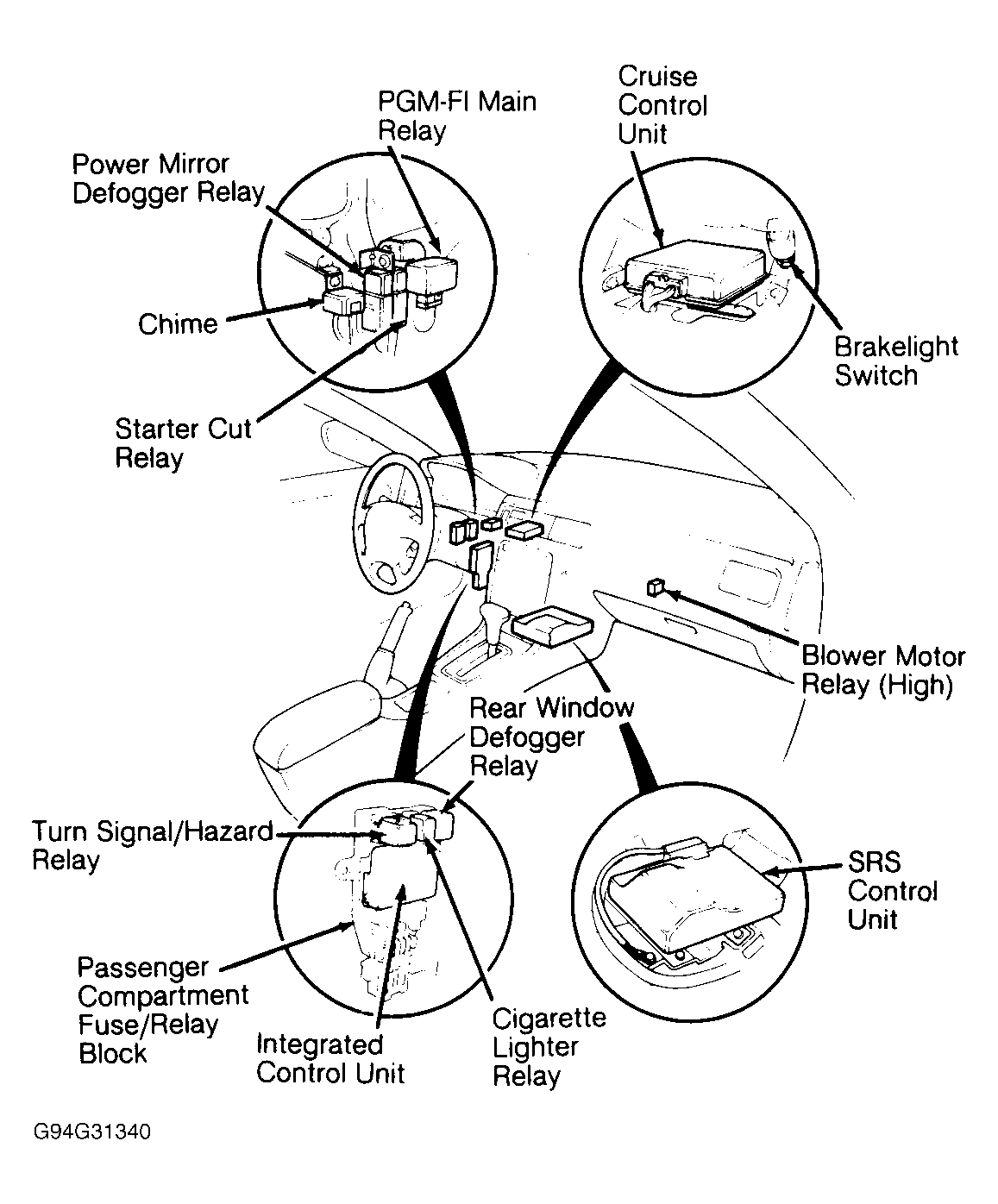

| Cruise Control Unit | Behind left side of dash, near brake pedal support. See Figure . | |
| Daytime Running Lights (DRL) Control Unit (Canada) | Behind right side of dash. | |

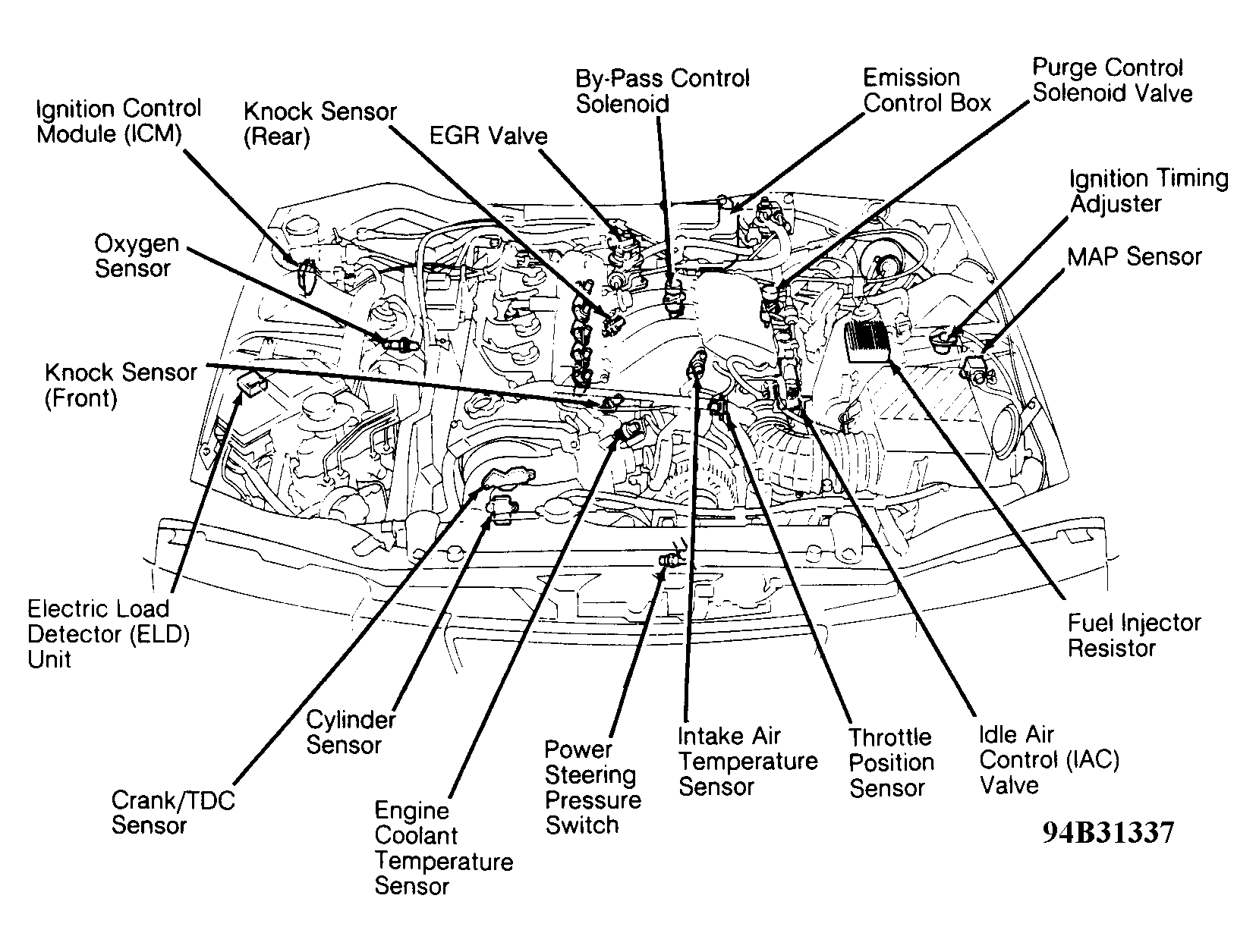

| Electric Load Detector (ELD) Unit | In engine compartment fuse/relay block. See Figure . | |
| Engine Control Module (ECM) | Under carpeting and cover, in passenger's footwell. | |
| Ignition Control Module (ICM) | ||

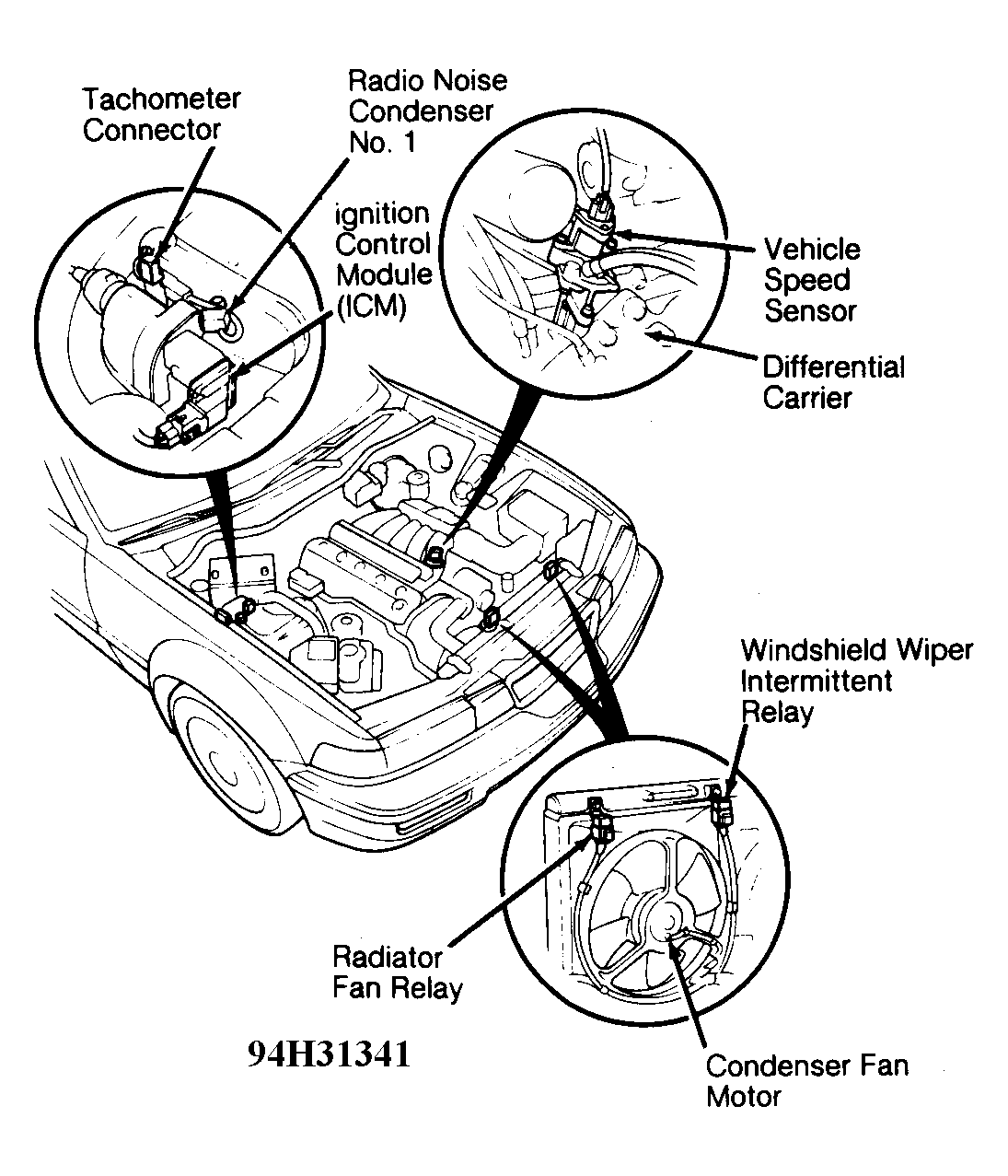

| View of Eng. Compartment | In right rear corner of enginecompartment, near battery. See Figure . | |
| Bird's Eye View | In right rear corner of enginecompartment, near battery. See Figure . | |
| Integrated Control Unit | In passenger compartment fuse/relay block. See Figure . | |
| Interlock Control Unit (A/T) | Behind right side of dash. | |
| Keyless Entry Control Unit | Behind right side of dash. | |
| Power Door Lock Control Unit | Behind right side of dash. | |
| Radiator Fan Control Module | Behind right side of dash. See Figure . | |
| Security Control Unit | Behind right side of dash. See Figure . | |
| SRS Control Unit | Under center console. See Figure . | |
| Transmission Control Module (TCM) | Behind right side of dash. See Figure . | |
