Home >> Acura >> 1994 >> Vigor LS, Automatic >> Repair and Diagnosis >> Brakes >> Traction Control >> Anti-Lock Brake System >> Bleeding Brake System >> Relieving System Pressure

Relieving System Pressure

  1. Drain brake fluid from master cylinder and modulator reservoir. Remove Red cap from maintenance bleeder screw. See Fig 1 .
  2. Using ABS "T" Wrench (07HAA-SG00100 or 07HAA-SG00101), loosen maintenance bleeder screw 1/4 turn to release high pressure fluid into reservoir. Turn "T" wrench one complete turn to relieve remaining accumulator line pressure. Tighten bleeder screw, and install Red cap.

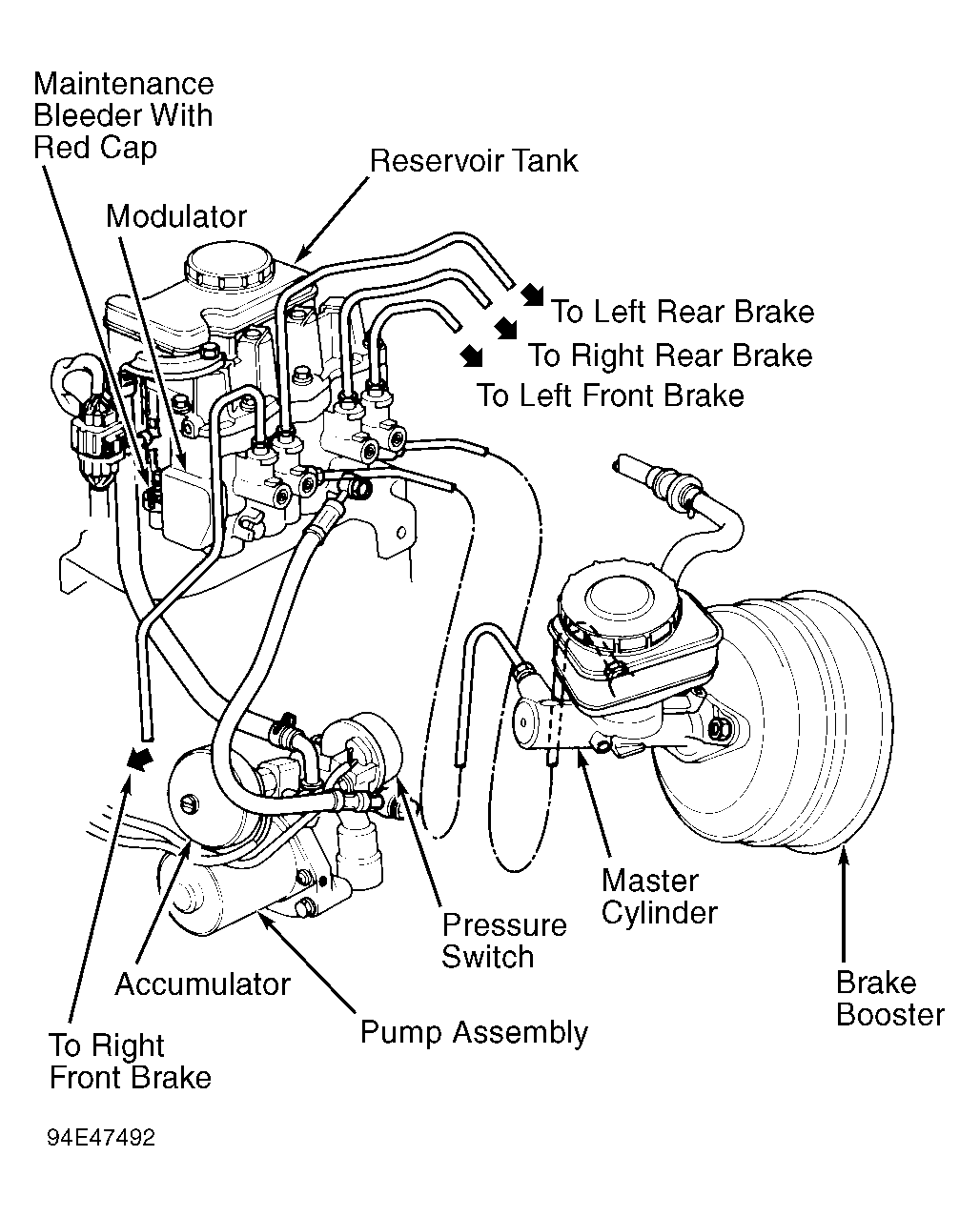

Fig 1: Locating Maintenance Bleeder Screw (Typical)
G94E47492Courtesy of AMERICAN HONDA MOTOR CO., INC.
