Component Locations

COMPONENT LOCATIONS (2.2CL)

Component	Location
Door Switch	Near Respective Door Striker, On Door Pillar
Driver's Seat Belt Switch	Inside Driver's Seat Belt Buckle
Engine Oil Pressure Switch	On Center Rear Of Engine, Above Oil Filter
Integrated Control Unit	On Rear Of Underdash Fuse/Relay Box. See Fig 2
Underdash Fuse/Relay Box	On left kick panel. See Fig 2
Underhood Fuse/Relay Box	On Right Side Of Engine Compartment. See Fig 1
G402	On Base Of Right Windshield Pillar. See Fig 4.
G403	Upper Right Kick Panel Area. See Fig 4.
G404	On Right Side Of Drivers Footwell. See Fig 4.
G501	Below Drivers Seat. See Fig 5.

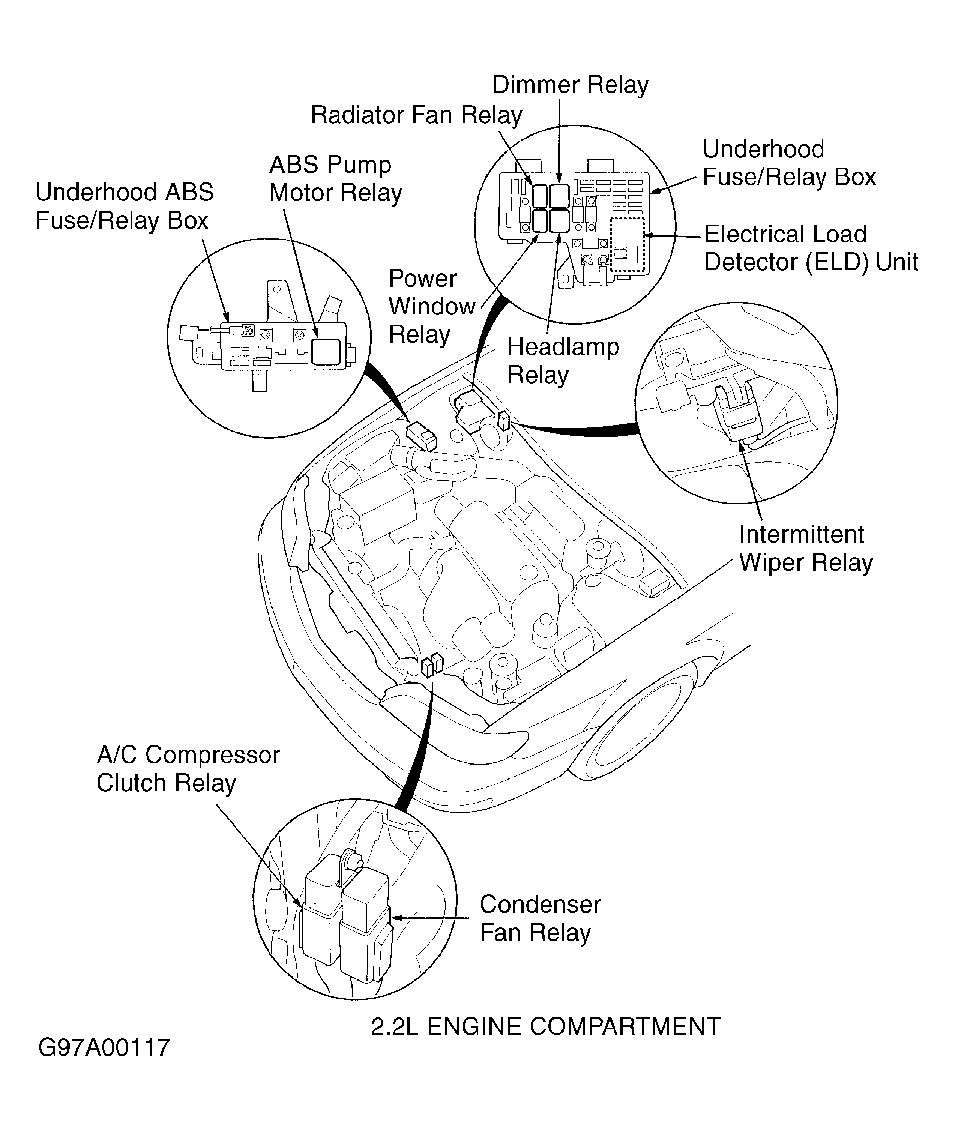

Fig 1: Locating Underhood Fuse/Relay Box (2.2CL)

G97A00117

Courtesy of AMERICAN HONDA MOTOR CO., INC.

COMPONENT LOCATIONS (3.0CL)

Component	Location
Door Switch	Near Respective Door Striker, On Door Pillar
Driver's Seat Belt Switch	Inside Driver's Seat Belt Buckle
Engine Oil Pressure Switch	On Lower Right Rear Of Engine
Integrated Control Unit	On Rear Of Underdash Fuse/Relay Box. See Fig 2
Underdash Fuse/Relay Box	On Left Kick Panel. See Fig 2
Underhood Fuse/Relay Box	On Right Side Of Engine Compartment. See Fig 3
G402	On Base Of Right Windshield Pillar. See Fig 4.
G403	Upper Right Kick Panel Area. See Fig 4.
G404	On Right Side Of Drivers Footwell. See Fig 4.
G501	Below Drivers Seat. See Fig 5.

Fig 2: Locating Integrated Control Unit & Underdash Fuse/Relay Box

G97C00119

Courtesy of AMERICAN HONDA MOTOR CO., INC.

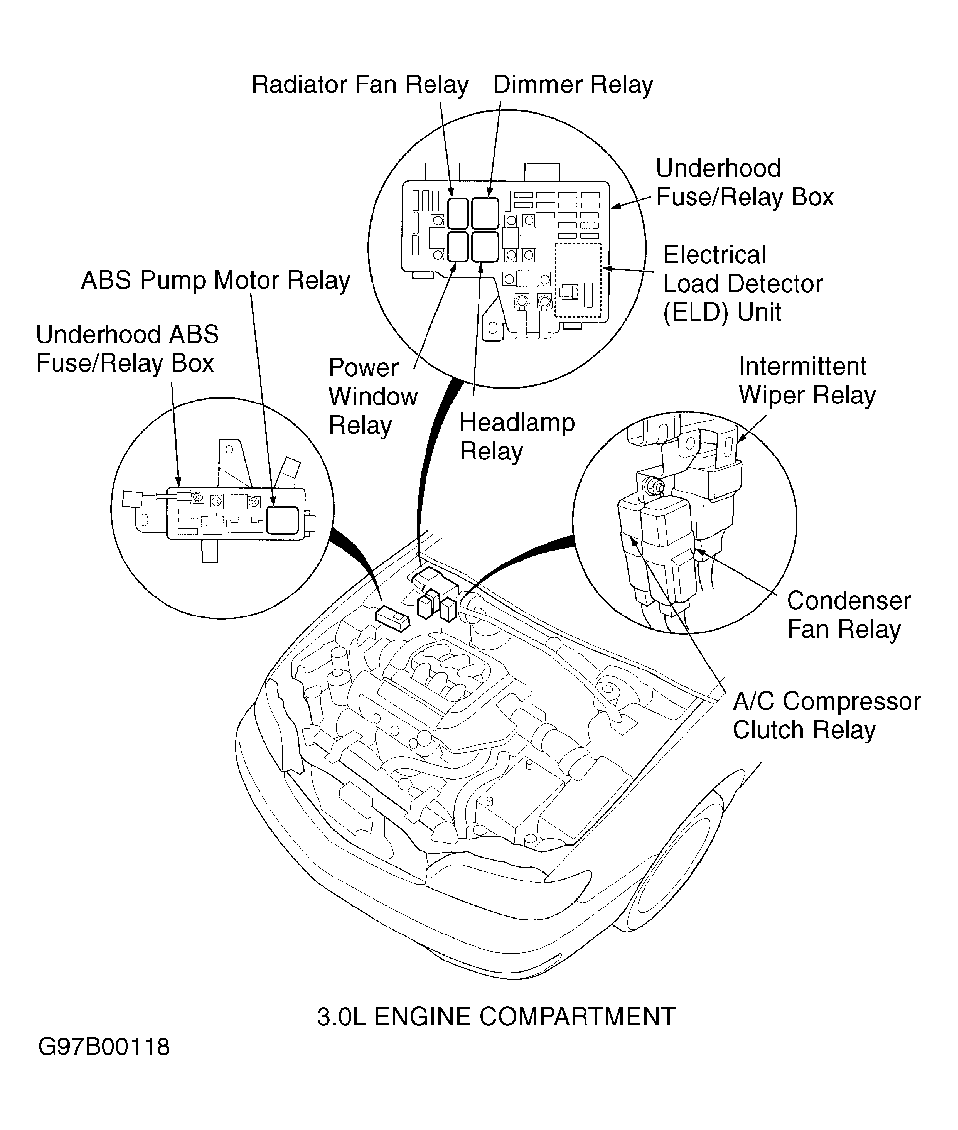

Fig 3: Locating Underhood Fuse/Relay Box (3.0CL)

G97B00118

Courtesy of AMERICAN HONDA MOTOR CO., INC.

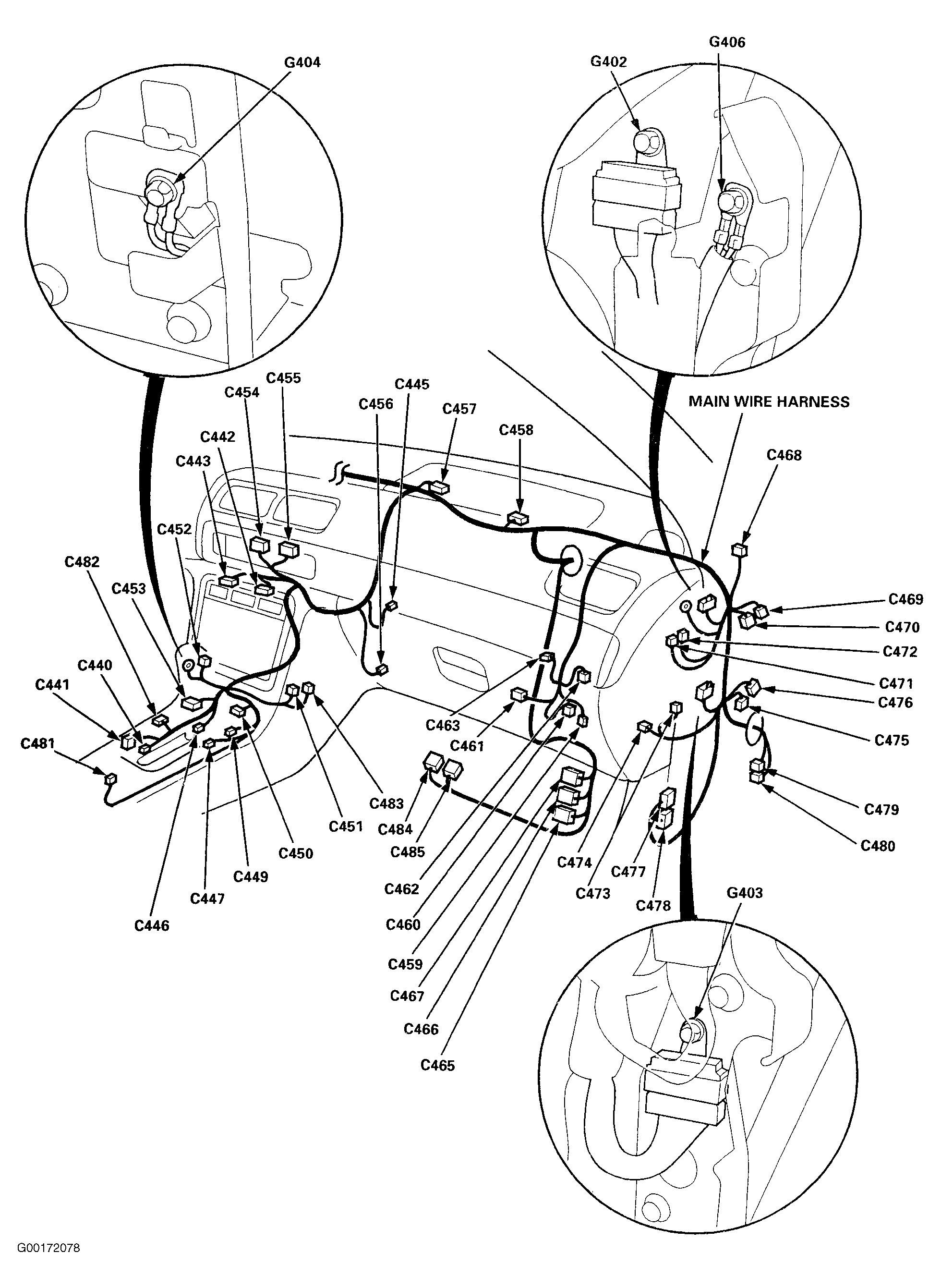

Fig 4: Locating Grounds G402, G403 & G404

G00172078

Courtesy of AMERICAN HONDA MOTOR CO., INC.

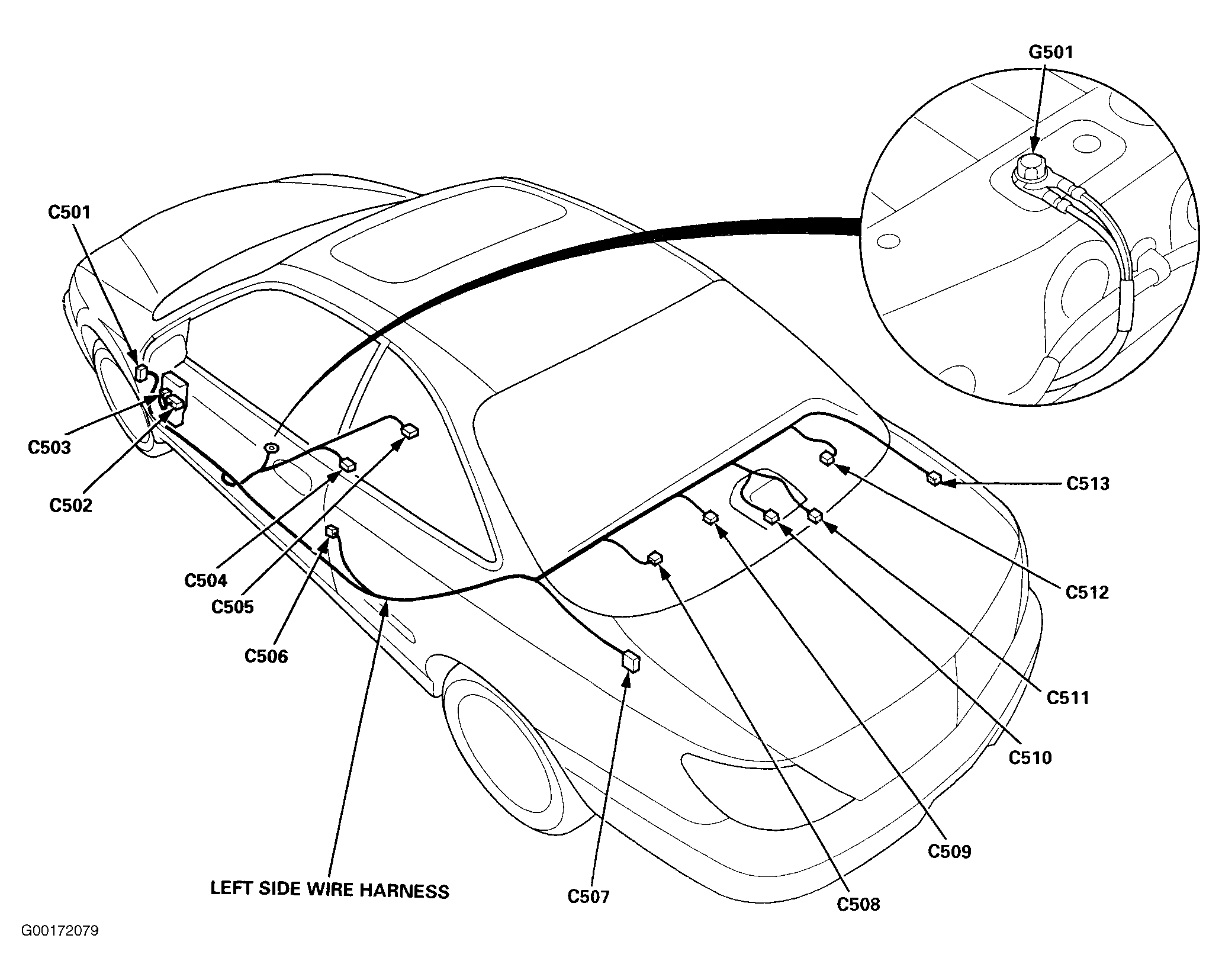

Fig 5: Locating Grounds G501

G00172079

Courtesy of AMERICAN HONDA MOTOR CO., INC.
