Function Test: Notes

  1. Remove the driver's door switch trim (see FRONT DOOR PANEL REMOVAL/INSTALLATION ).

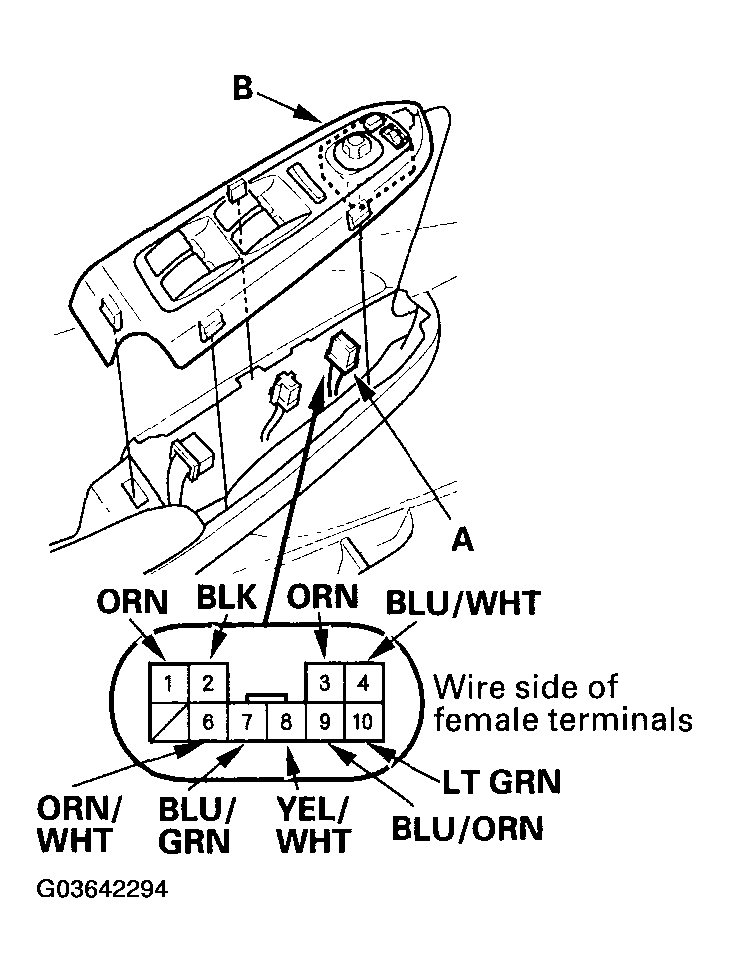

    Fig 1: Removing Driver's Door Switch Trim
    G03642294Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Disconnect the TOP connector (A) from the power mirror switch (B), and inspect the terminals. If OK, go to step 3.
  3. Choose the appropriate test based on the symptom:
    • Both mirrors don't work, go to step 4.
    • Left mirror doesn't work, go to LEFT MIRROR  .
    • Right mirror doesn't work, go to RIGHT MIRROR  .
    • Defoggers don't work, go to DEFOGGER  .
