Control Units
CONTROL UNITS
| Component | Component Location |
|---|---|
| Anti-Theft Control Module | Under right side of rear seat. |

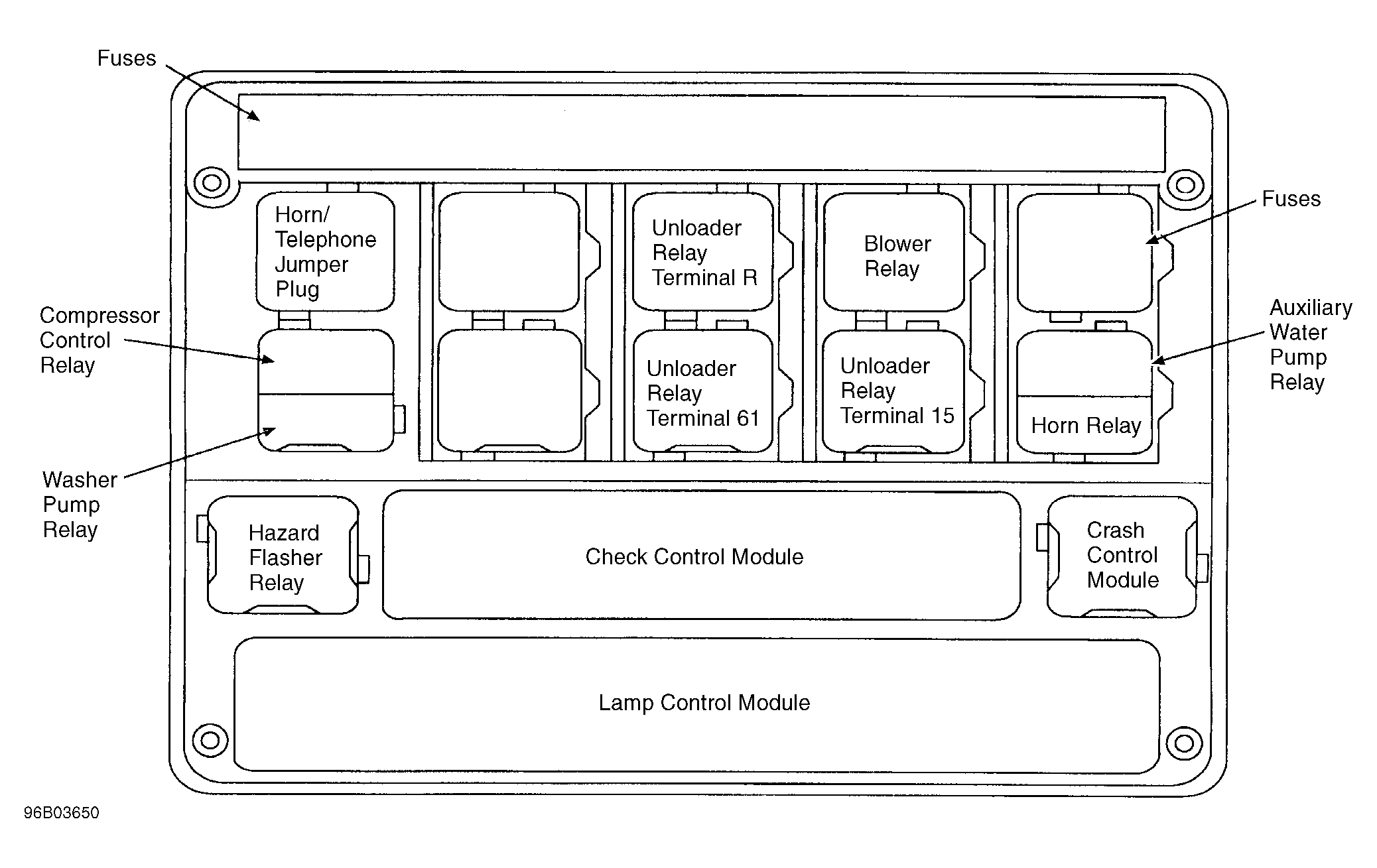

| Check Control Module | In front power distribution box. See Figure . |
| Chime Module | Left footwell. |
| Crash Control Module | In front power distribution box. See Figure . |
| Cruise Control Module | Below left side of dash. |

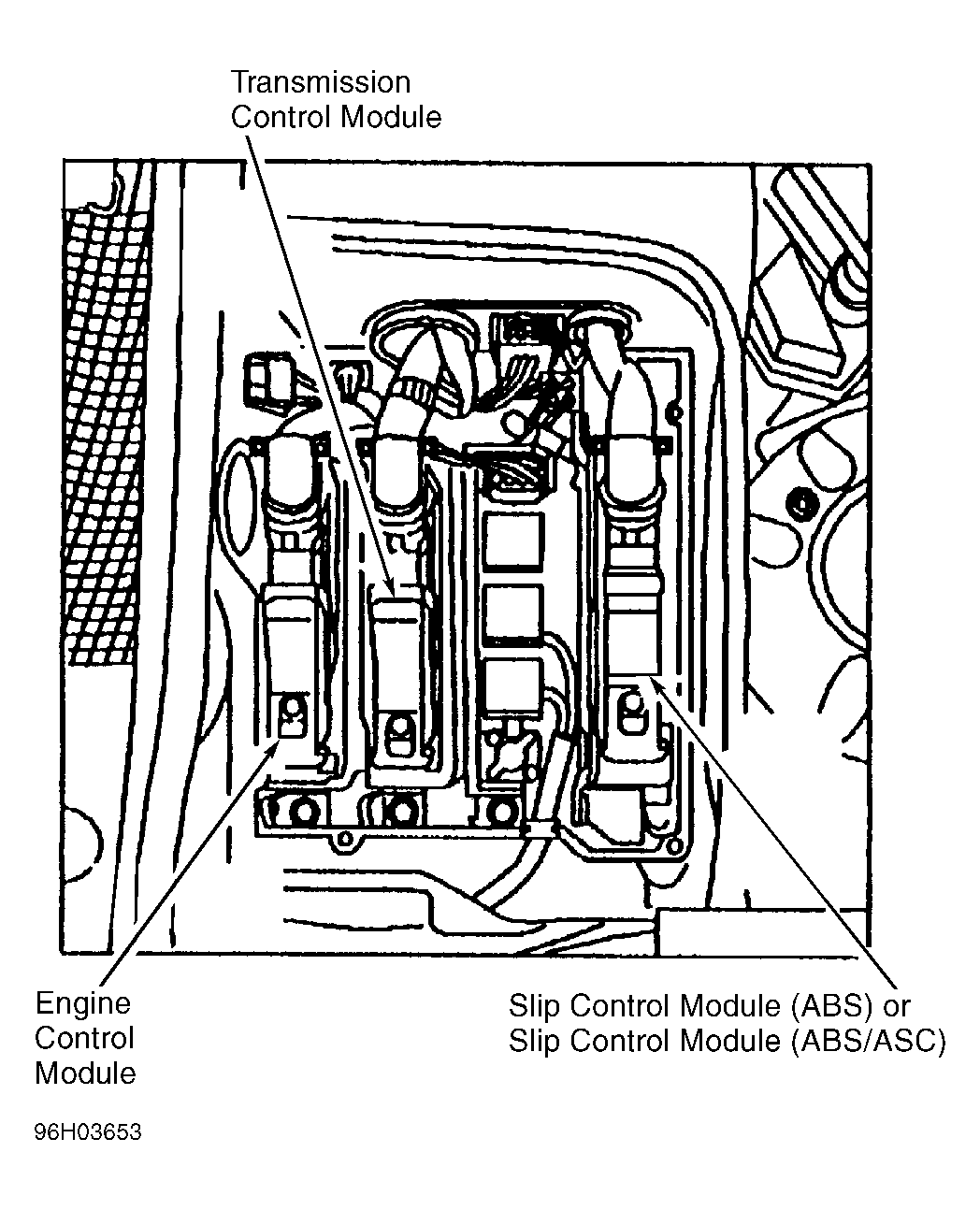

| Engine Control Module | In E-box, behind right front shock tower. See Figure . |

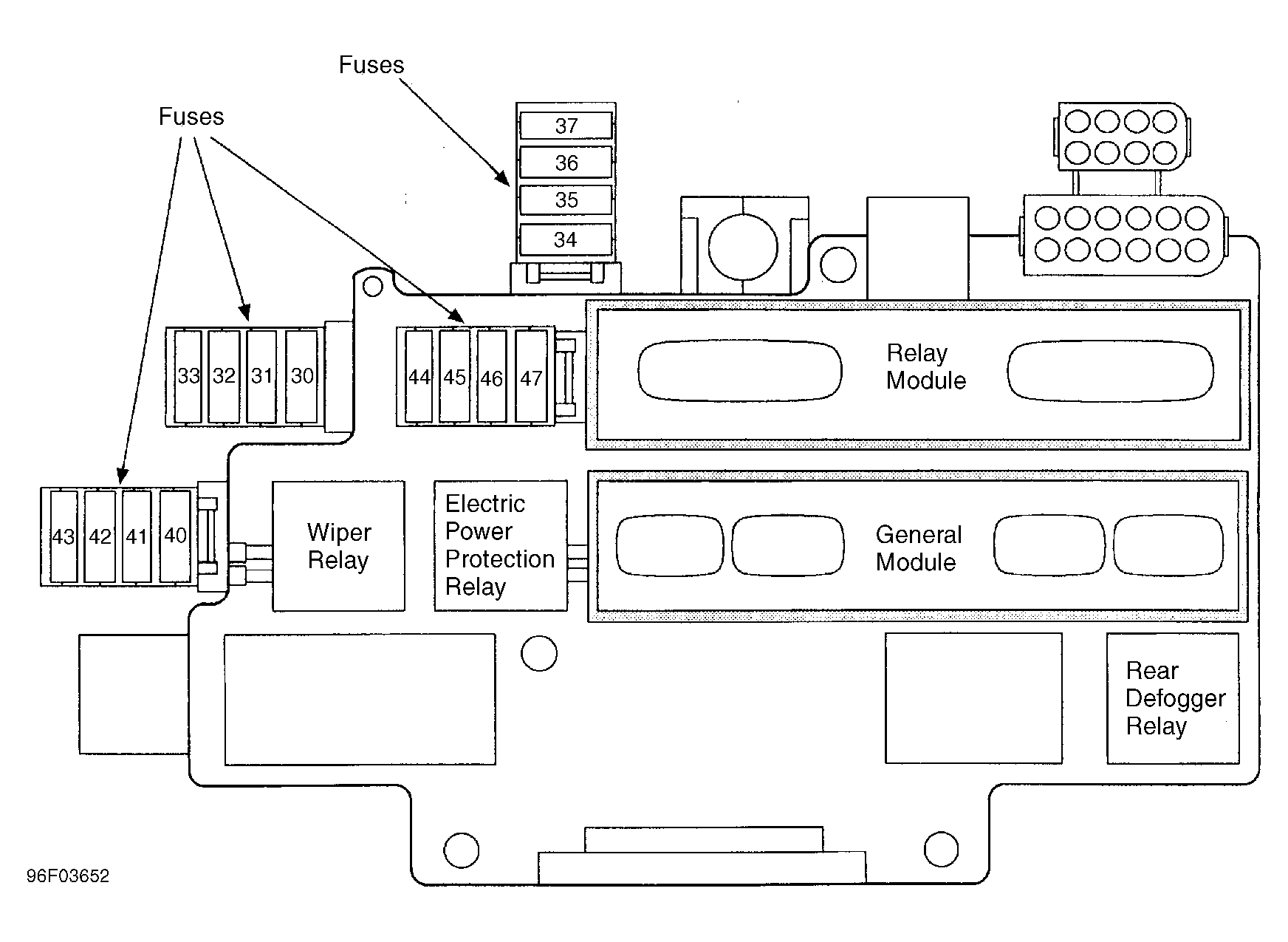

| General Module | In rear power distribution box. See Figure . |

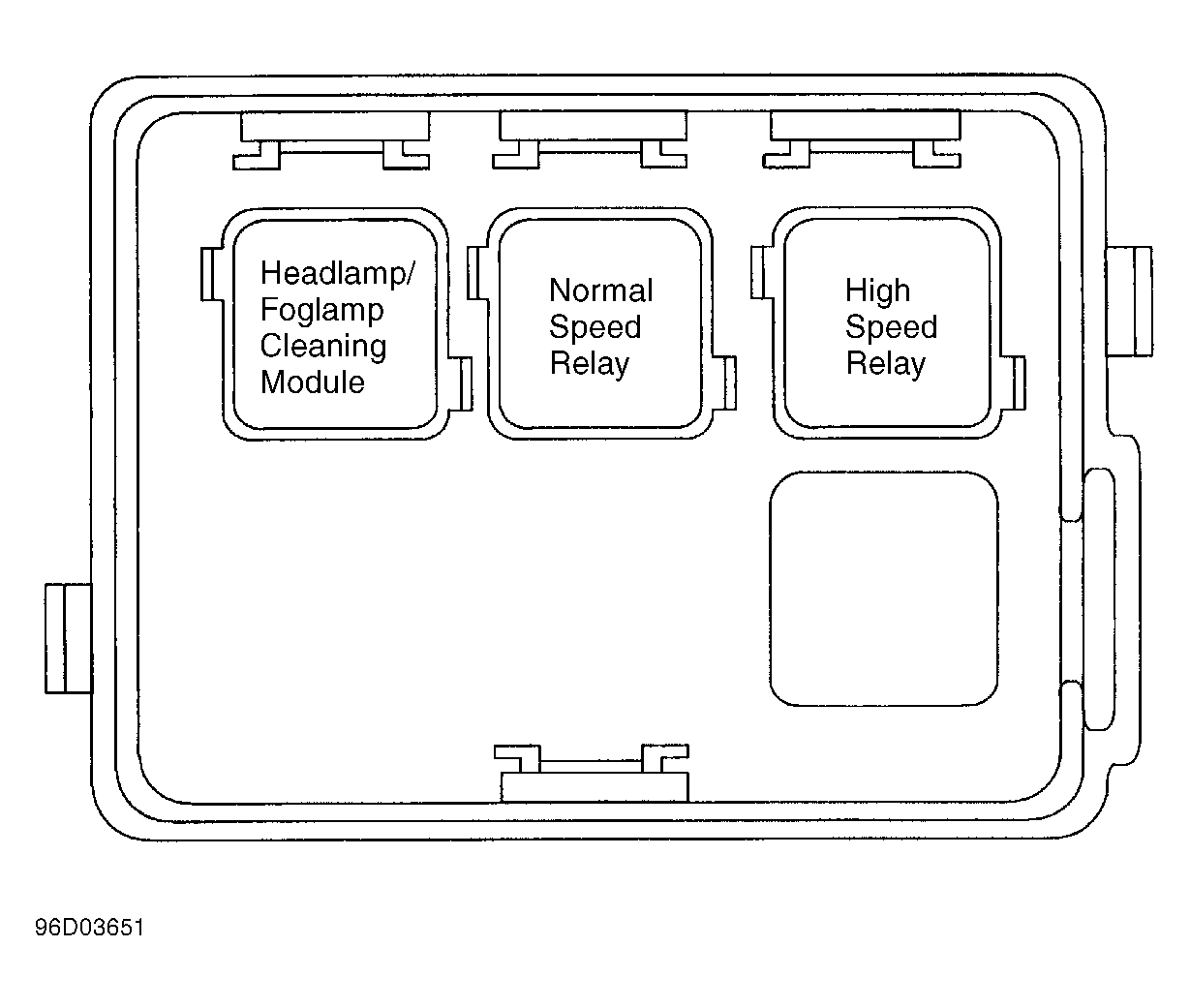

| Headlamp/Foglamp Cleaning Module | In auxiliary relay box. See Figure . |
| Integrated Climate Regulation Control Module | Left side of right footwell. |
| Lamp Control Module | In front power distribution box. See Figure . |
| Rear Lid/Rear Window Servo Opening Module | Right side of luggage compartment. |
| Rear Wiper/Washer Interval Control Unit | On right side of luggage compartment. |
| Relay Module | In rear power distribution box. See Figure . |
| Seat/Mirror Memory Control Module | Under left front seat. |
| Slip Control Module (ABS) | In E-box, behind right front shock tower. See Figure . |
| Slip Control Module (ABS/ASC) | In E-box, behind right front shock tower. See Figure . |
| Supplemental Restraint System Control Module | Under rear seat. |
| Transmission Control Module | In E-box, behind right front shock tower. See Figure . |
| Wheel Camber Control Module | Below right rear of vehicle, near differential. |
