Steering Column: Disassembly

  1. Remove steering column. See STEERING COLUMN .
  2. Remove ring antenna. See RING ANTENNA OF ELECTRONIC IMMOBILIZER .

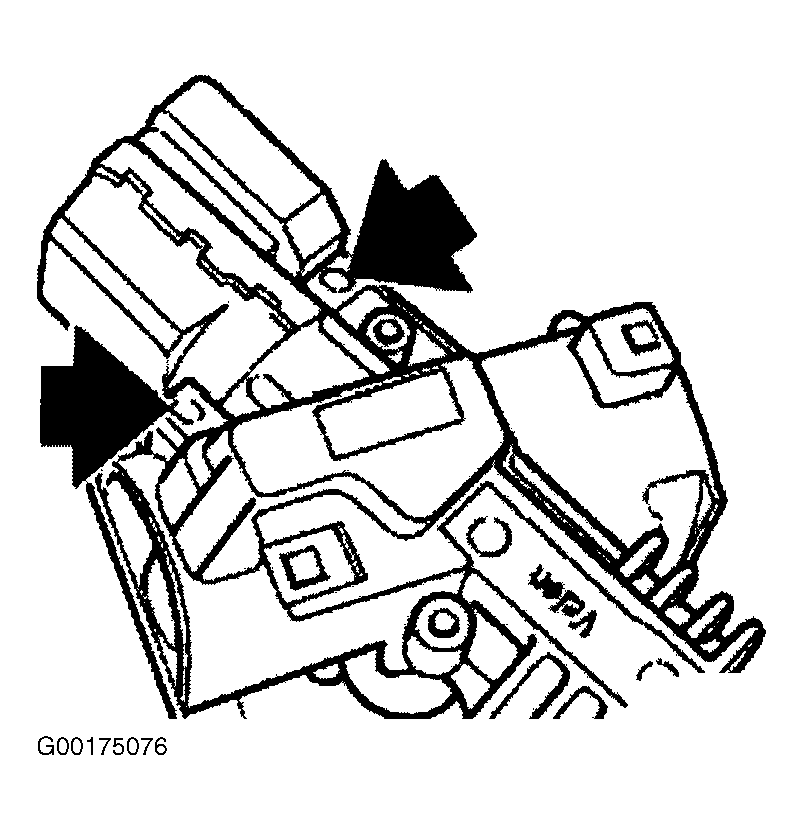

  3. Remove protective paint and unfasten grub screws. Remove ignition starter switch. See Figure.
  4. Lift out snap ring (1) and take off with sleeve (2). See Fig 1.

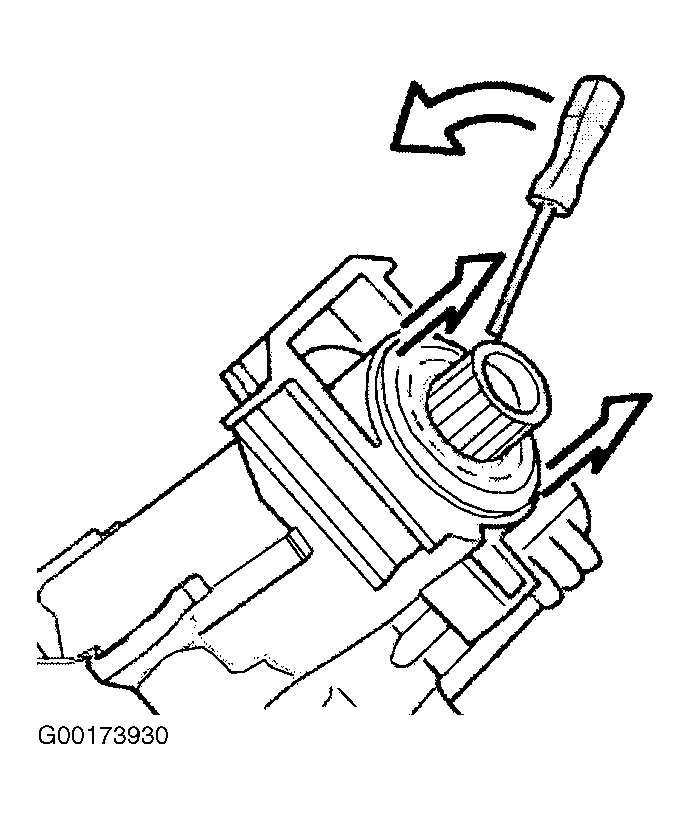

  5. Lift out and remove steering spindle bearing. Take out bearing inner sleeve. See Figure.
  6. Remove shear-off screws with tool, e.g. chisel. See Fig 2.
  7. Remove lock cylinder. See STEERING WHEEL LOCK CYLINDER .
  8. Remove steering angle sensor (1) from steering spindle. See Figure.
  9. Lift out snap ring (1). Remove end collar (2) and spring (3). Remove steering spindle and pull out steering column tube. See Fig 3.
  10. Knock lower steering spindle bearing out of outer tube.
  11. Unfasten screws. Twist connector to remove from bracket. Remove gearbox motor. See Fig 4.
  12. Remove shaft. See Fig 5.
  13. Disconnect torsion springs (8) from both sides. Slacken nut (1). Remove axial grooved ball bearing (2) and clamping disc (3). Remove retainer (4). See Fig 6.
  14. Press clamping fixture (9) out of adjusting lever (5) with special tool (32 1 200) and insert (32 1 204). Grip drive of special tool with open-end wrench. See Fig 7.

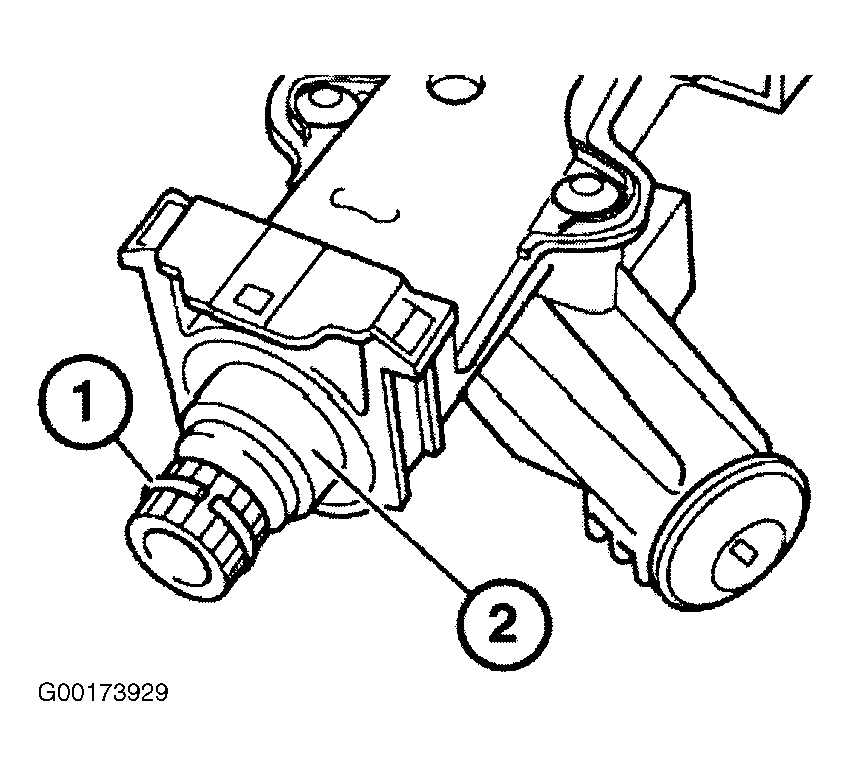

Fig 1: Removing Snap Ring & Sleeve
G00173929Courtesy of BMW OF NORTH AMERICA, INC.
Fig 2: Locating Shear-Off Screws
G00173931Courtesy of BMW OF NORTH AMERICA, INC.

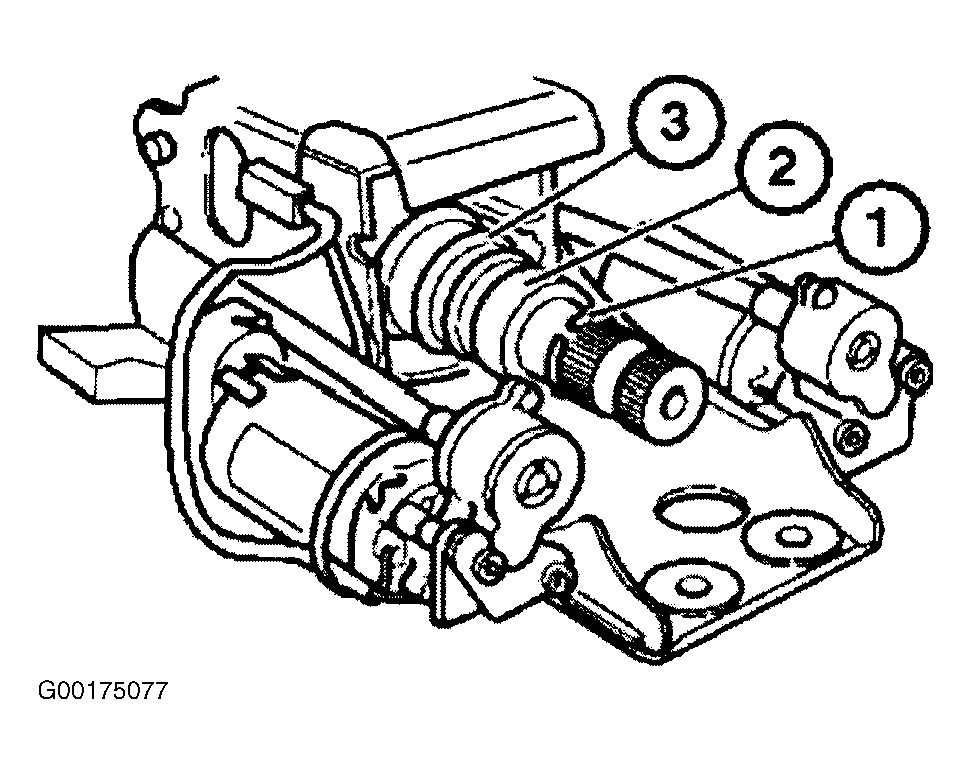

Fig 3: Removing Steering Spindle
G00175077Courtesy of BMW OF NORTH AMERICA, INC.

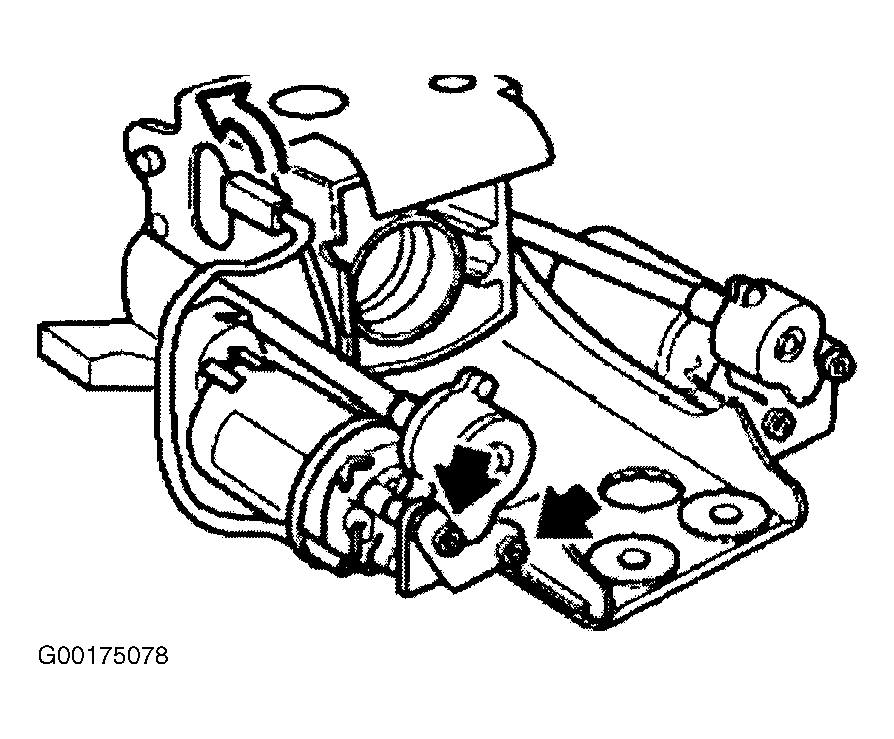

Fig 4: Removing Gearbox Motor
G00175078Courtesy of BMW OF NORTH AMERICA, INC.
Fig 5: Removing Shaft
G00175079Courtesy of BMW OF NORTH AMERICA, INC.
Fig 6: Identifying Clamping Fixture
G00175080Courtesy of BMW OF NORTH AMERICA, INC.

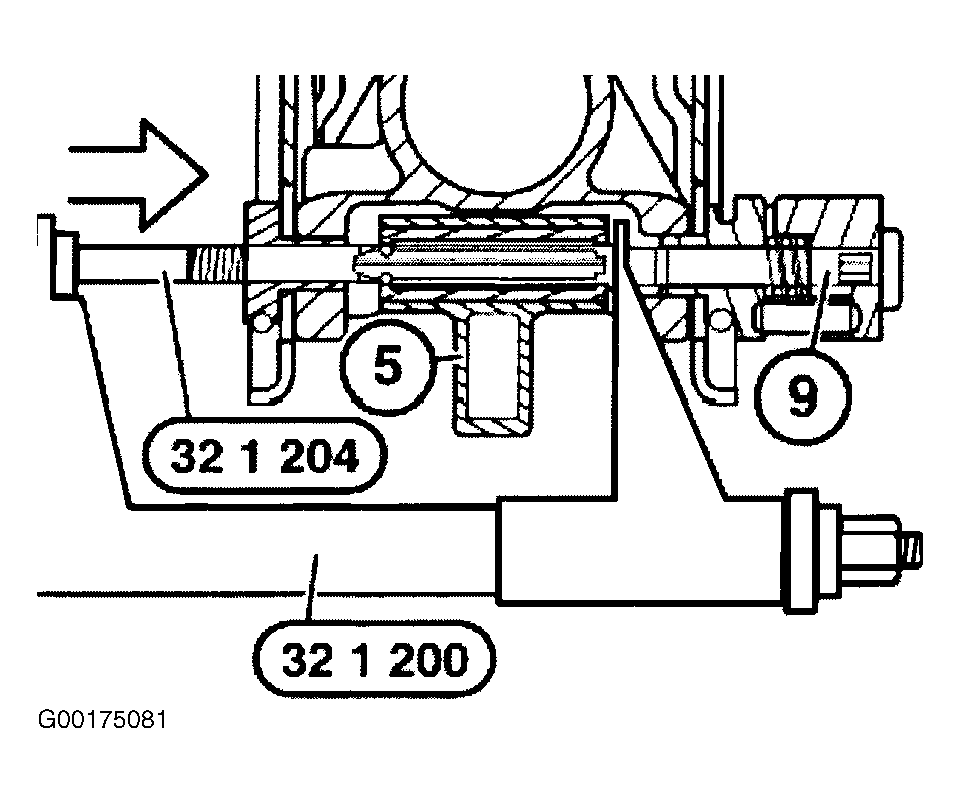

Fig 7: Pressing Out Clamping Fixture
G00175081Courtesy of BMW OF NORTH AMERICA, INC.
