Toe-In Adjustment: Rear

CAUTION: If the disk collar nut is tightened down more than 10 times during adjustment, it must be replaced. The self-locking effect becomes too slight.
  1. Unfasten screws and remove trim. See Fig 1.
  2. Before adjusting, replace disk collar nut (1) and ensure eccentric washer (2) is correctly located. See Fig 2. Tighten disk collar nut to specification. See TORQUE SPECIFICATIONS .
  3. Unfasten disk collar nut 1/2 to 1 complete turn.
  4. Adjust toe-in using the eccentric screw. See Fig 3. Adjust precisely to specification. See WHEEL ALIGNMENT SPECIFICATIONS .
  5. Ensure that eccentric washer (2) is correctly located. See Fig 2. Tighten down disk collar nut (1) to specification. See TORQUE SPECIFICATIONS .

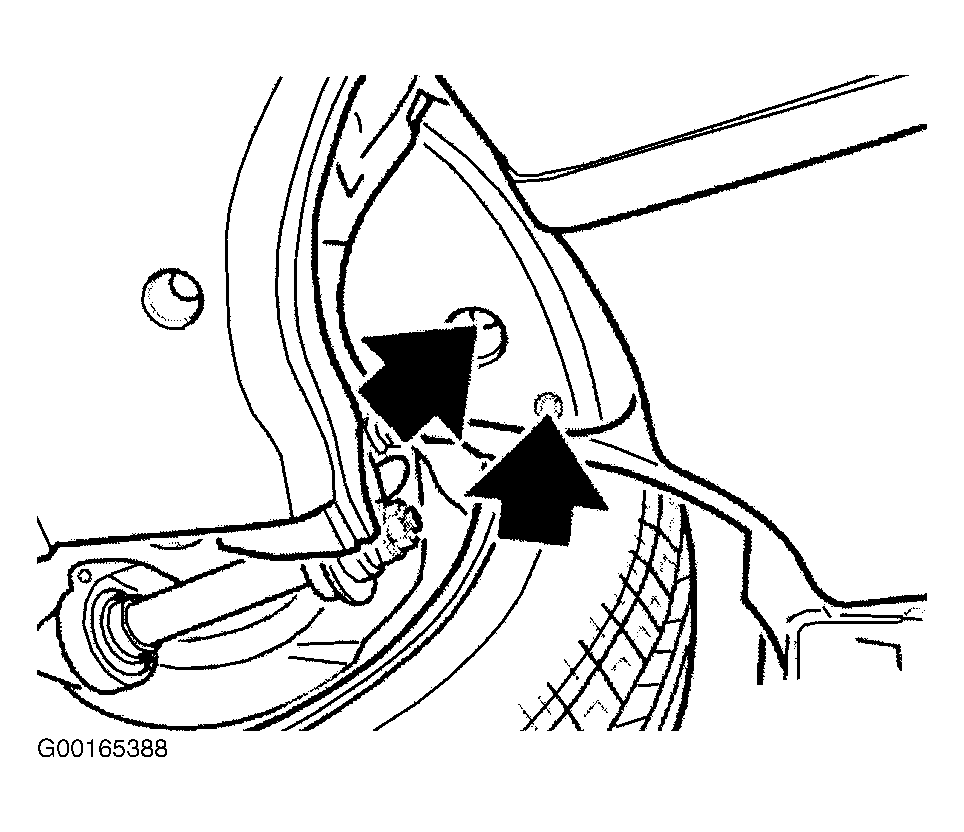

Fig 1: Removing Trim
G00165388Courtesy of BMW OF NORTH AMERICA, INC.

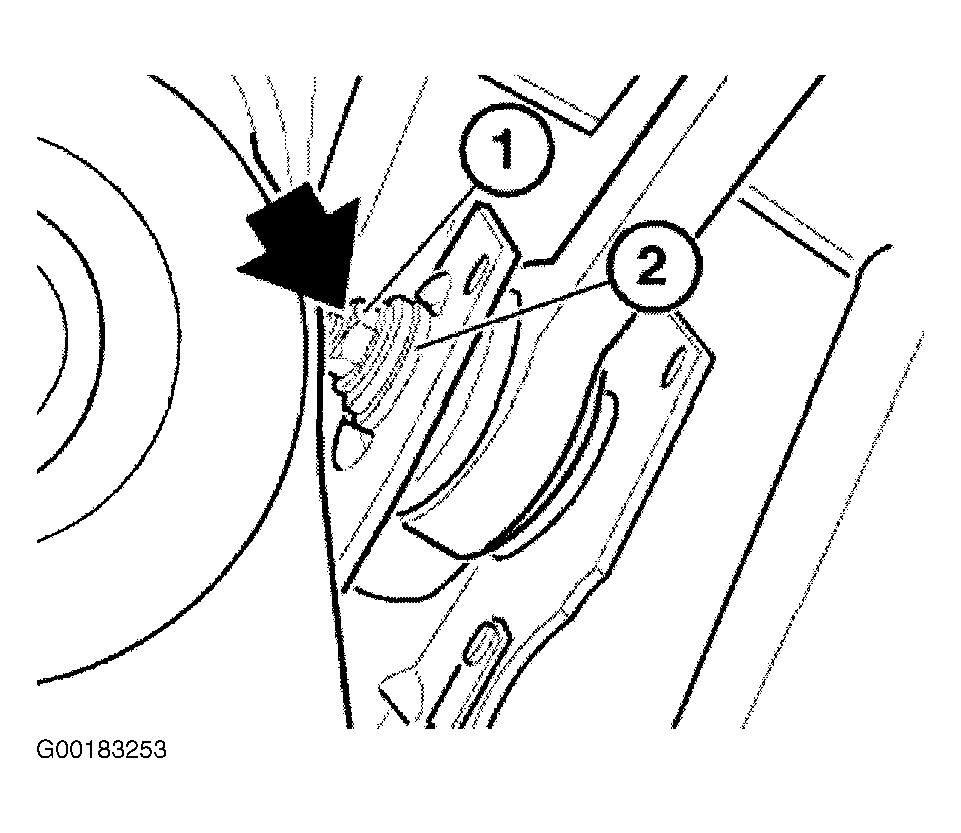

Fig 2: Locating Disk Collar Nut
G00183253Courtesy of BMW OF NORTH AMERICA, INC.

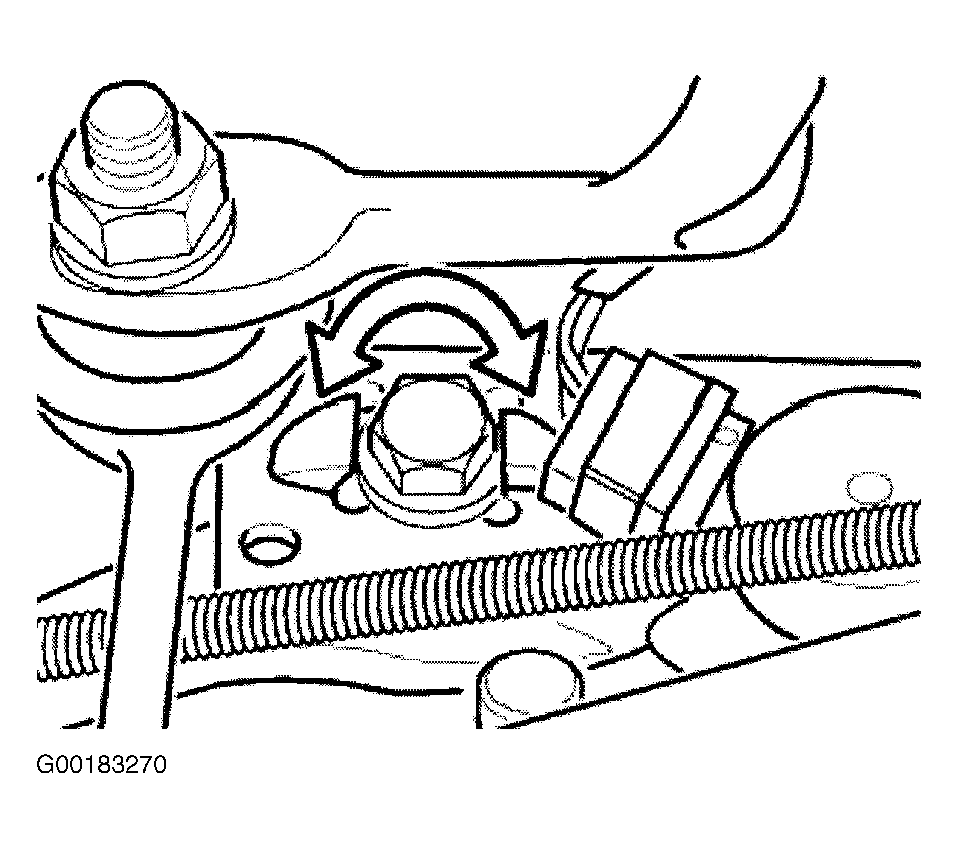

Fig 3: Adjusting Toe-In
G00183270Courtesy of BMW OF NORTH AMERICA, INC.
