Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|

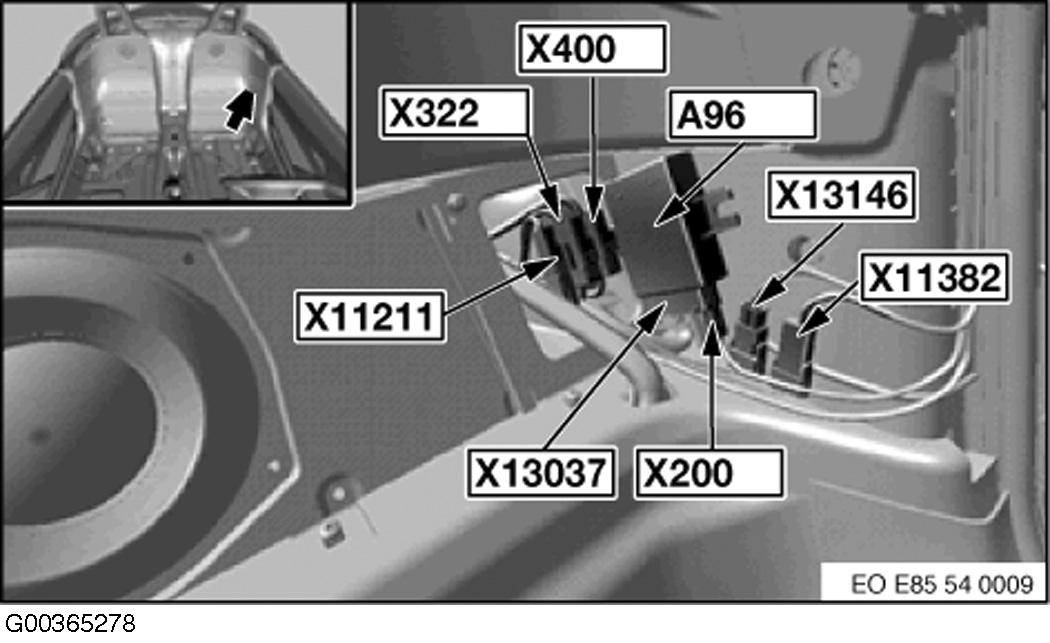

| Convertible Top Module (A96) | Left rear of passenger compartment. See Figure. |

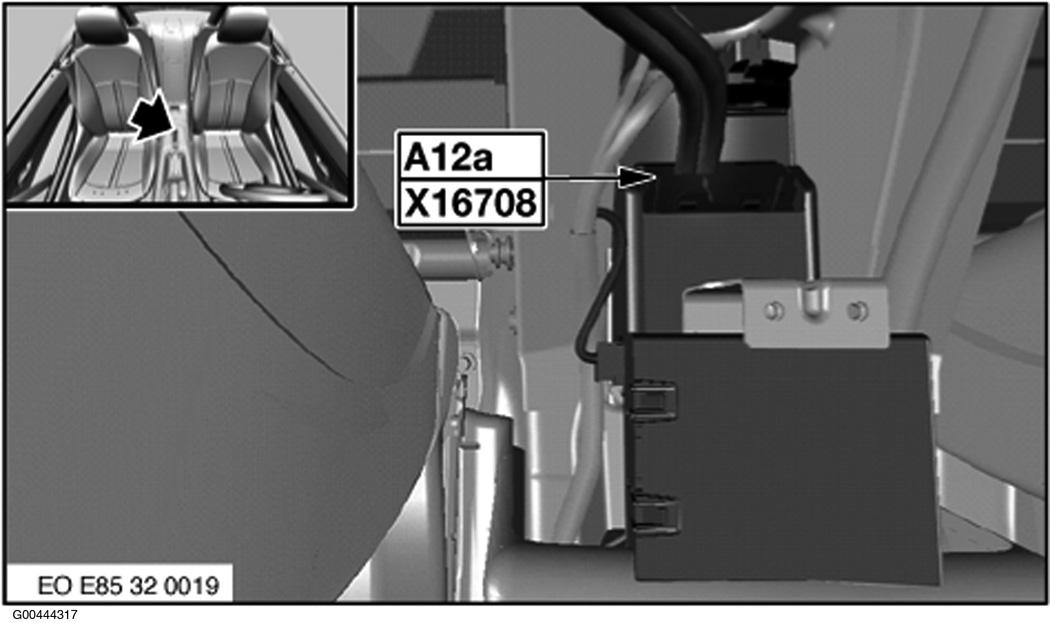

| Crash Safety Module (A12a) | Rear of center console. See Figure. |

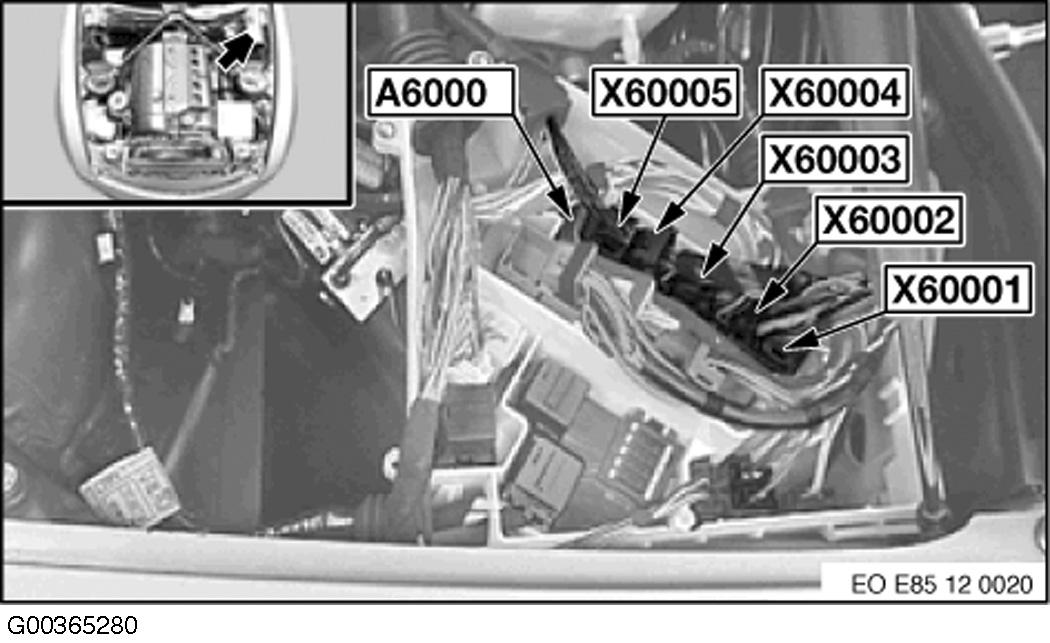

| Digital Motor Electronics (DME) Control Module (A6000) | Left rear of engine compartment. See Figure. |

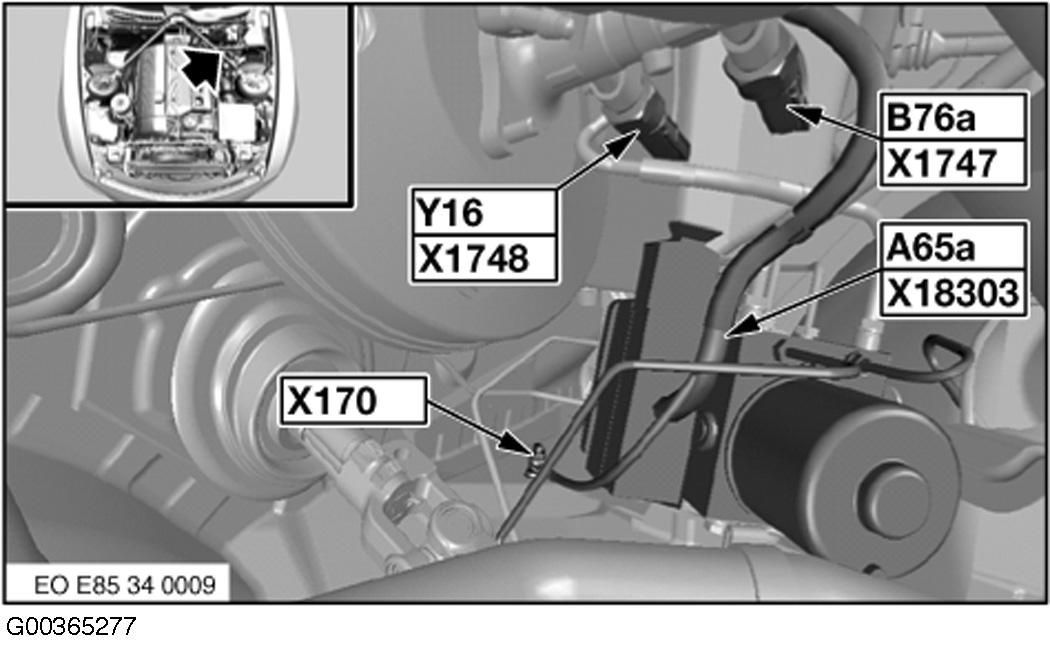

| Dynamic Stability Control (A65a) | Left rear of engine compartment. See Figure. |

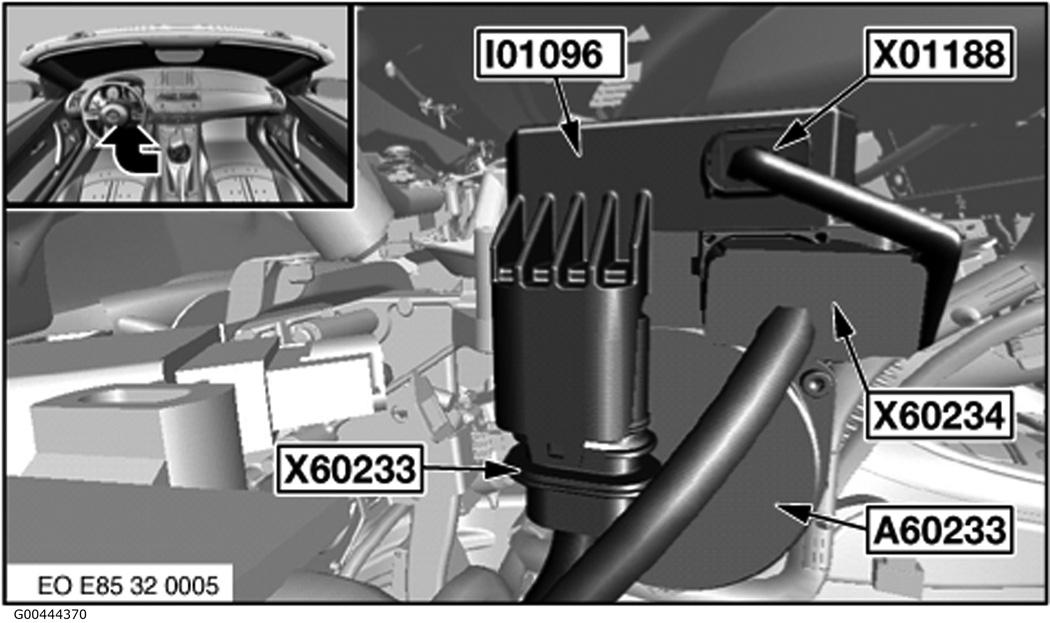

| Electrical Power Steering (EPS) (A60233) | Under left side of dash. See Figure. |

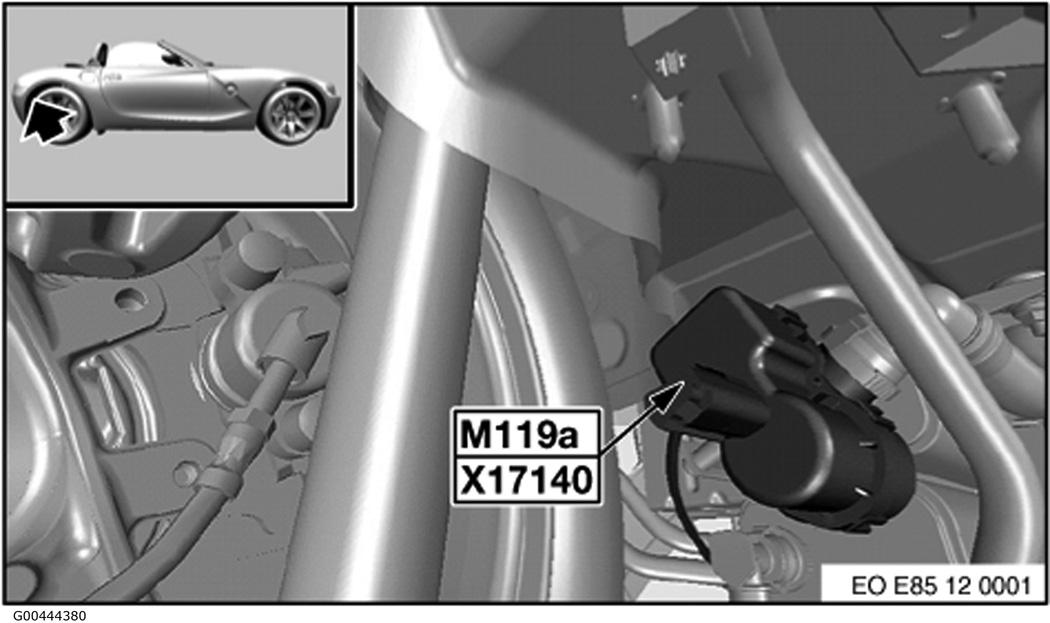

| Fuel Tank Leakage Diagnostic Module (M119a) | Behind right rear wheel. See Figure. |

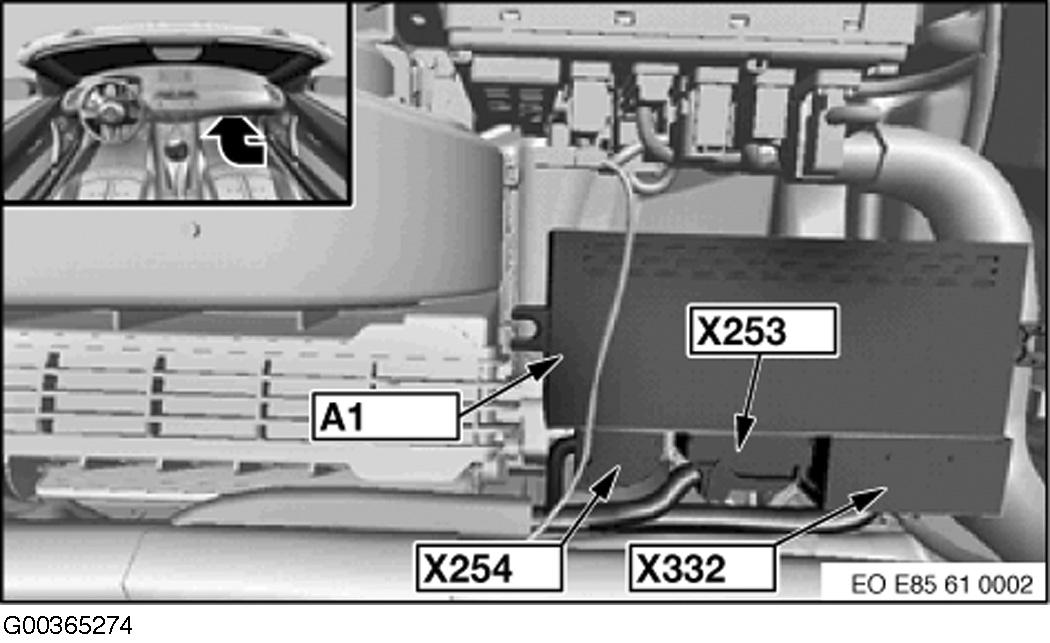

| General Module Control Unit (A1) | Right side of dash. See Figure. |

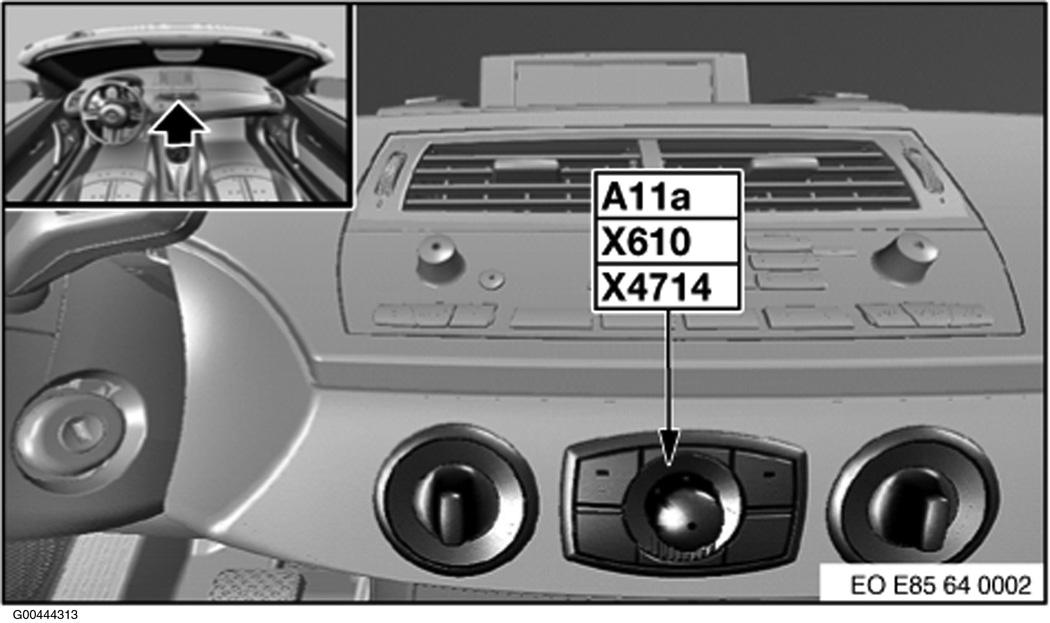

| Heating/Air Conditioning System (A11a) | Center of dash. See Figure. |

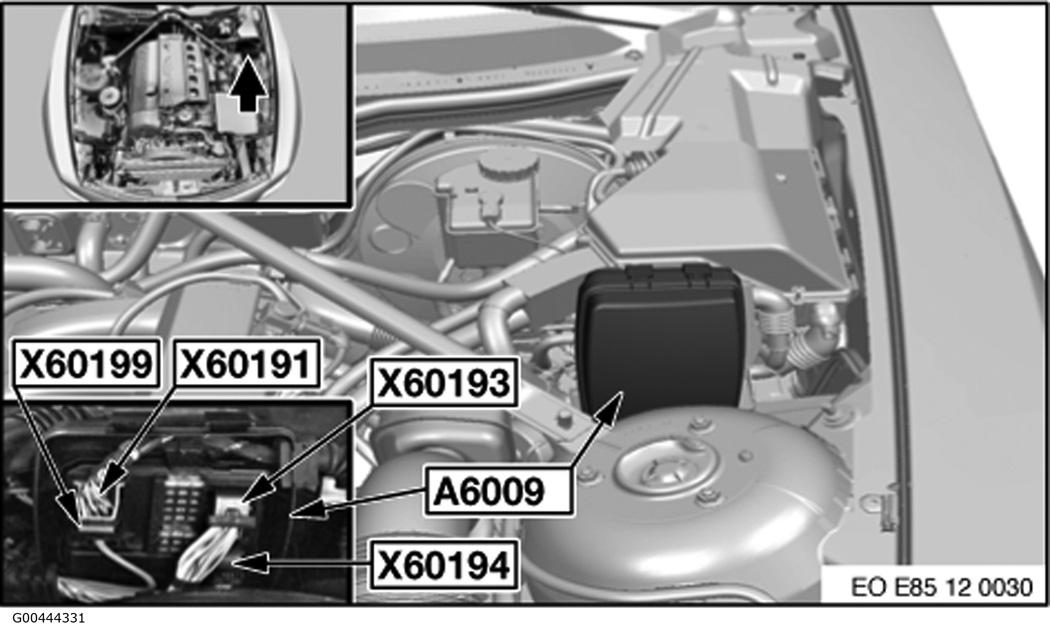

| Integrated Supply Module (A6009) | Left rear of engine compartment. See Figure. |

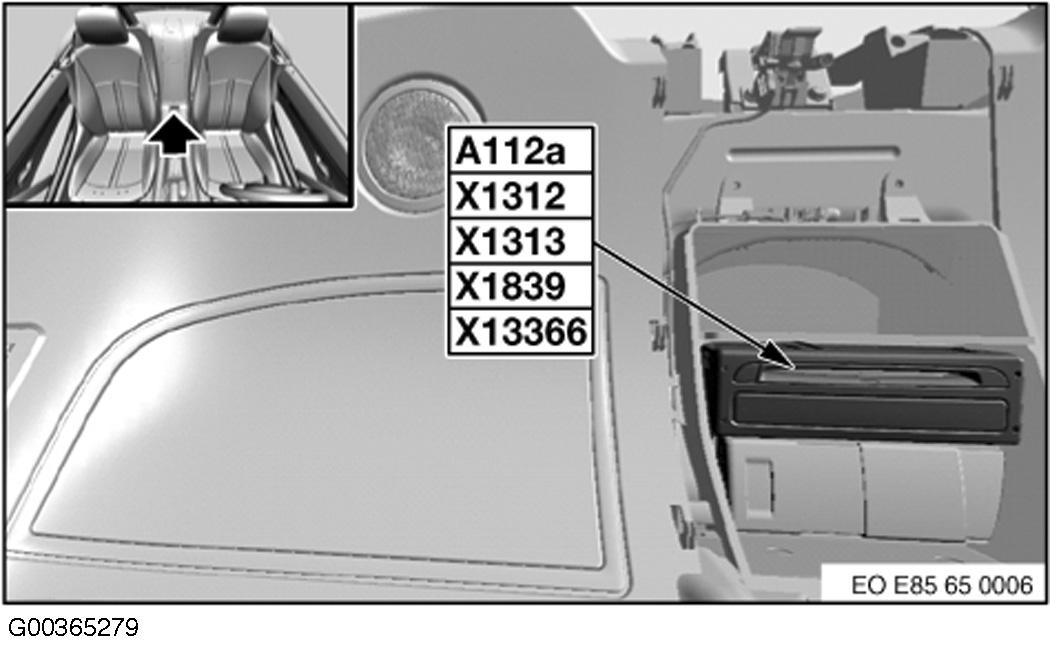

| Navigation System (A112a) | Rear center console. See Figure. |

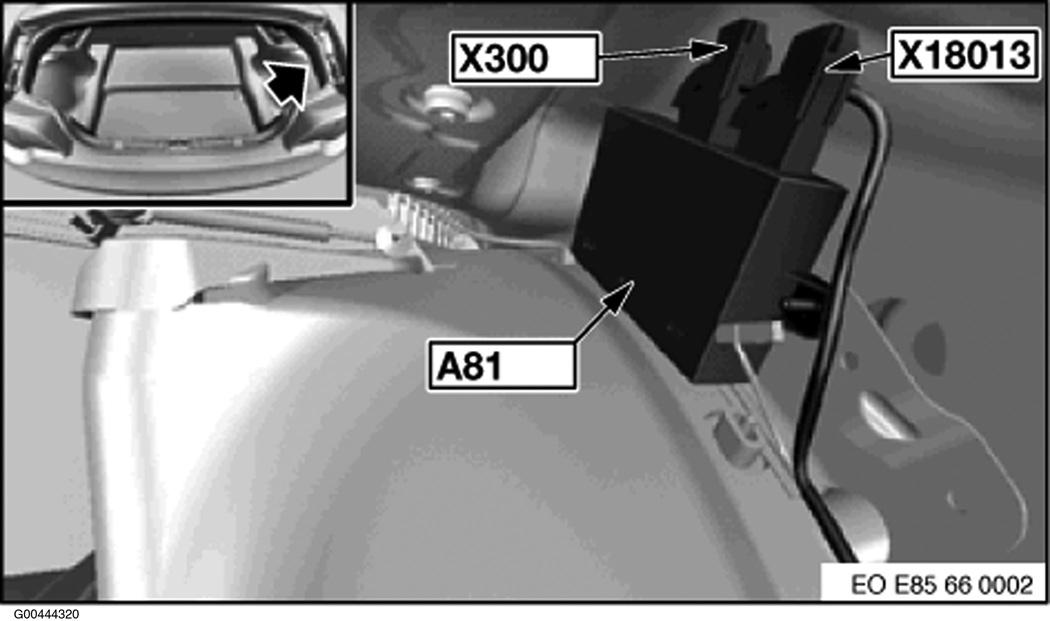

| Park Distance Control (PDC) (A81a) | Right side of rear compartment. See Figure. |

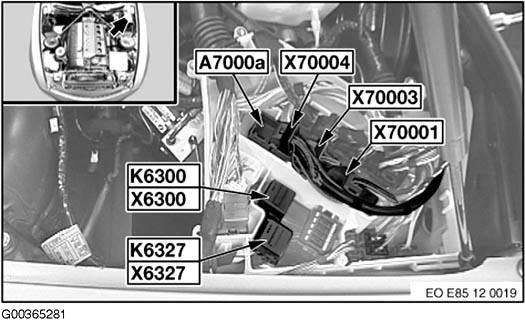

| Transmission Control (A7000a) | Left rear of engine compartment. See Figure. |

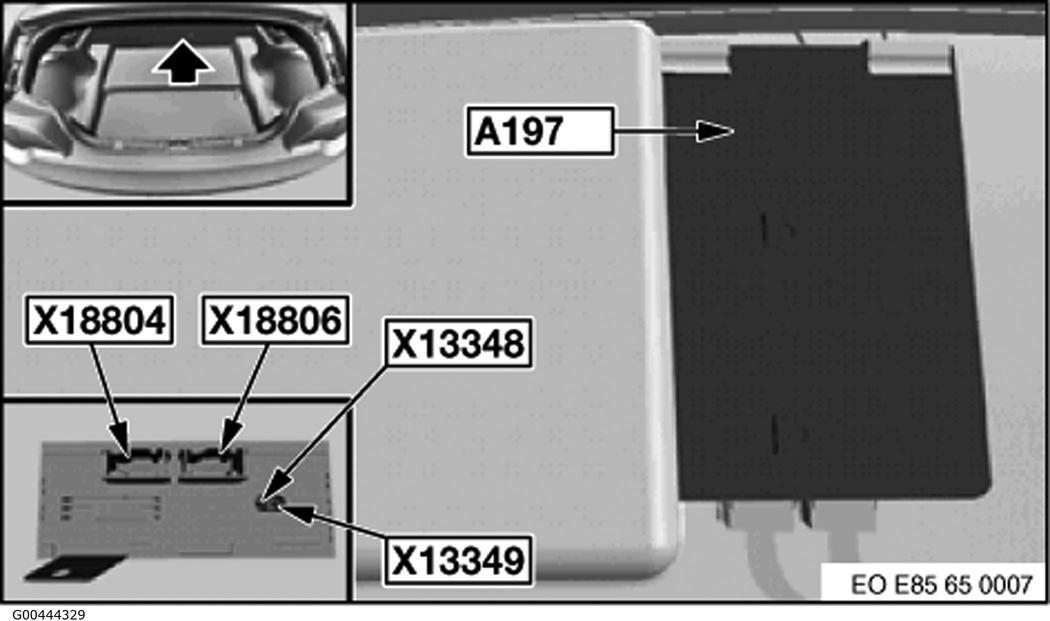

| Video Module (A197) | Rear center of rear compartment. See Figure. |
