Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|

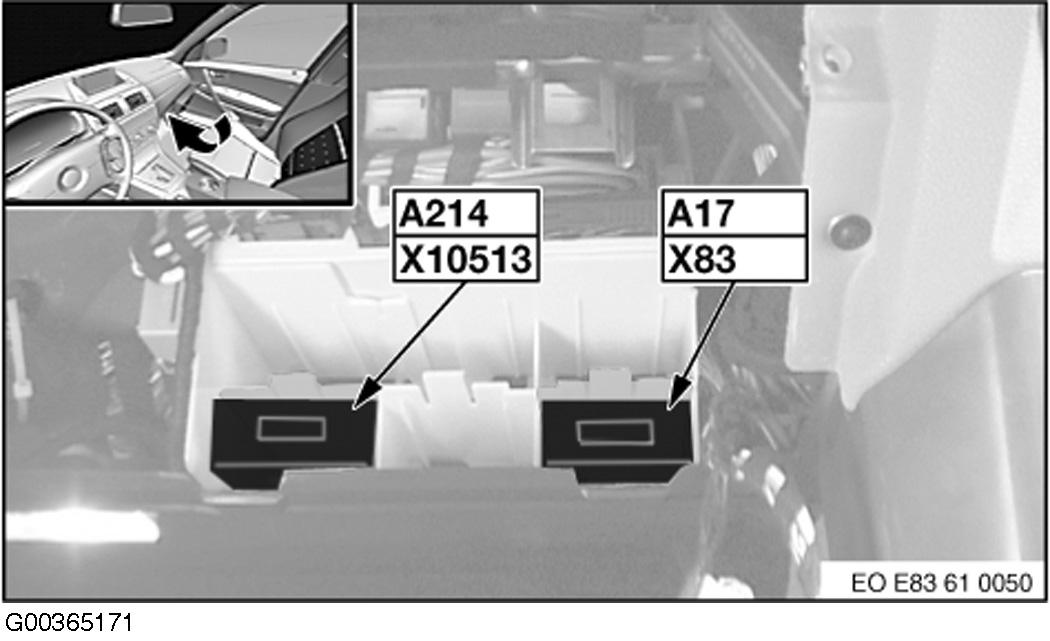

| Adaptive Directional Headlight (A214) | Under right side of dash. See Figure. |

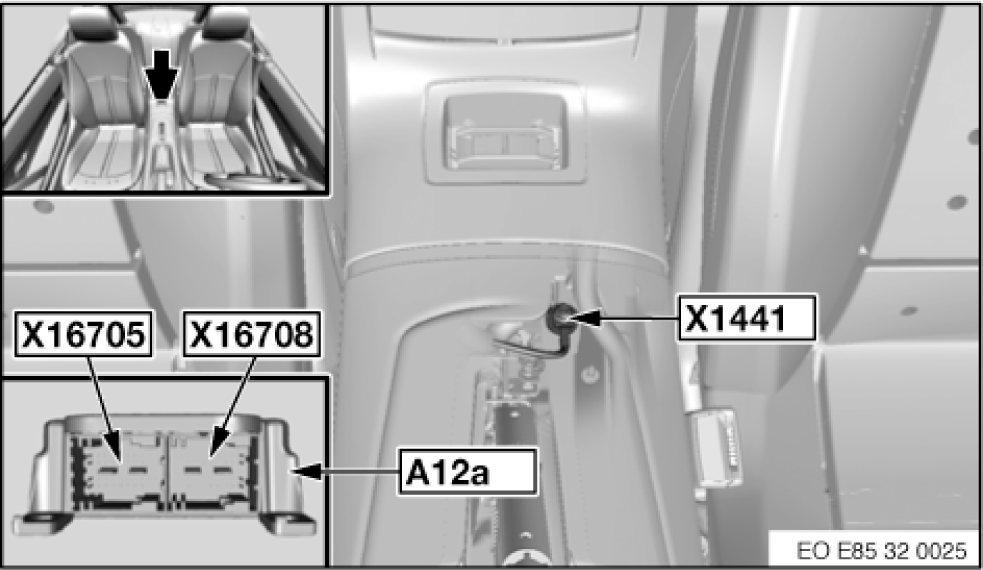

| Crash Safety Module (A12a) | Under center console. See Figure. |

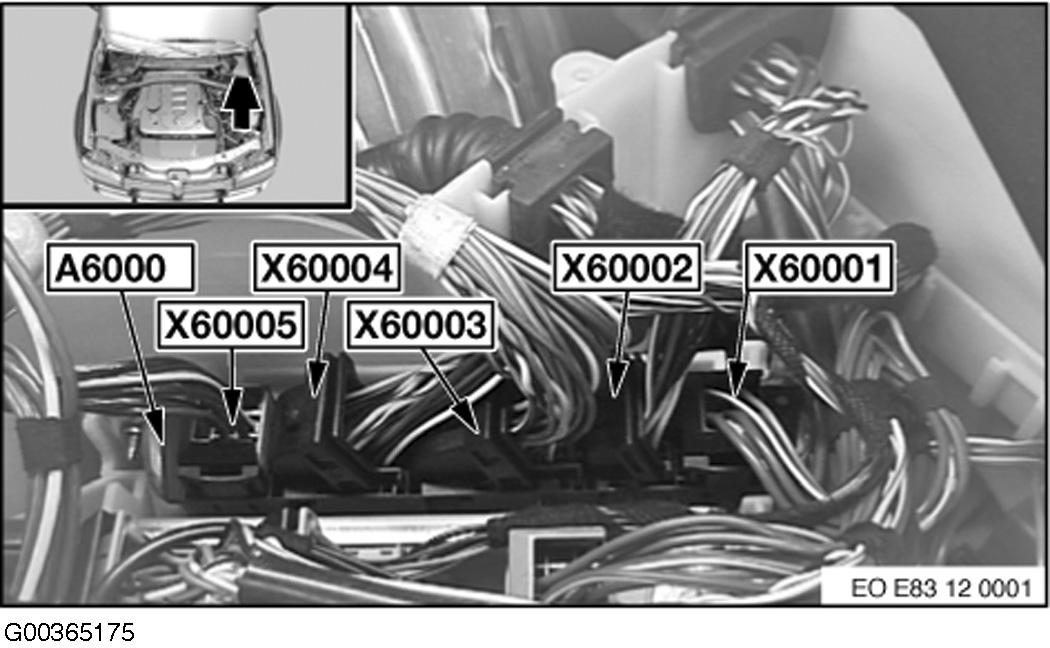

| Digital Motor Electronics (DME) Control Module (A6000) | Left rear of engine compartment. See Figure. |

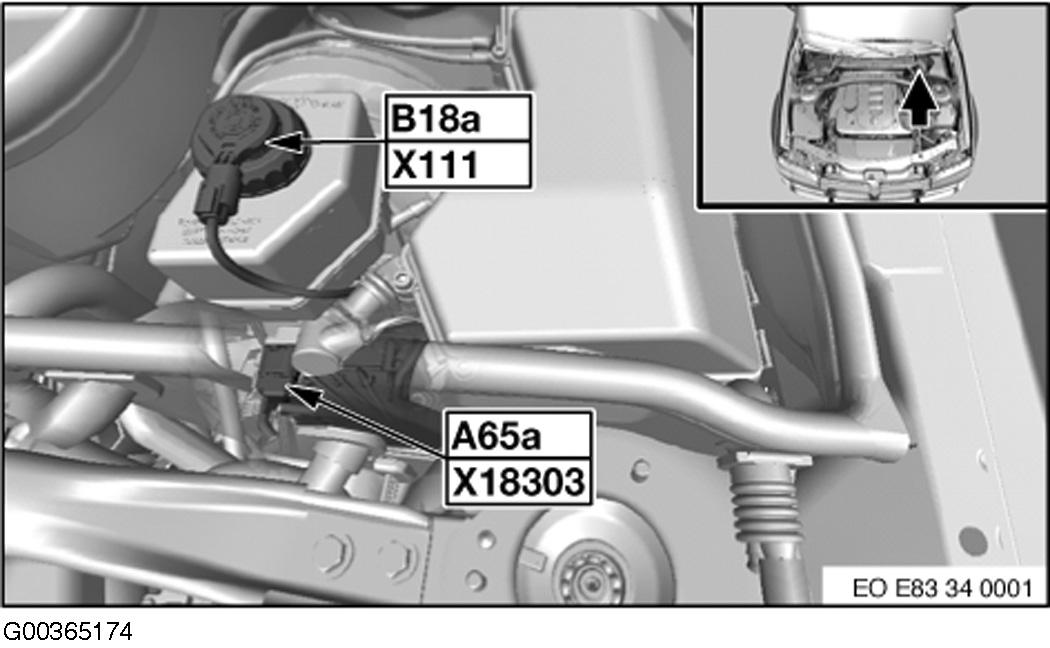

| Dynamic Stability Control (A65a) | Left rear of engine compartment. See Figure. |

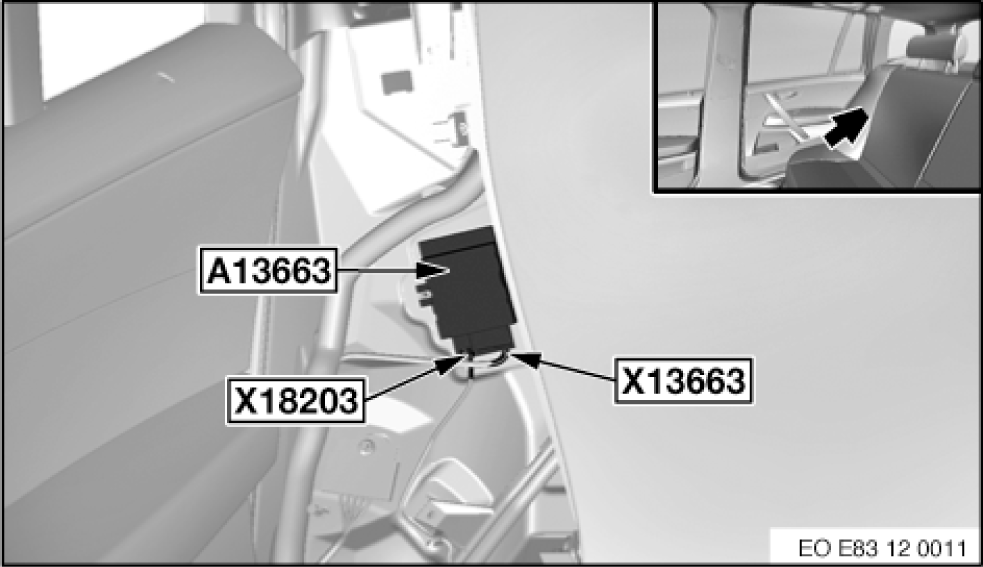

| Fuel-Pump Control (EKPS) (A13663) | Right "C" pillar. See Figure. |

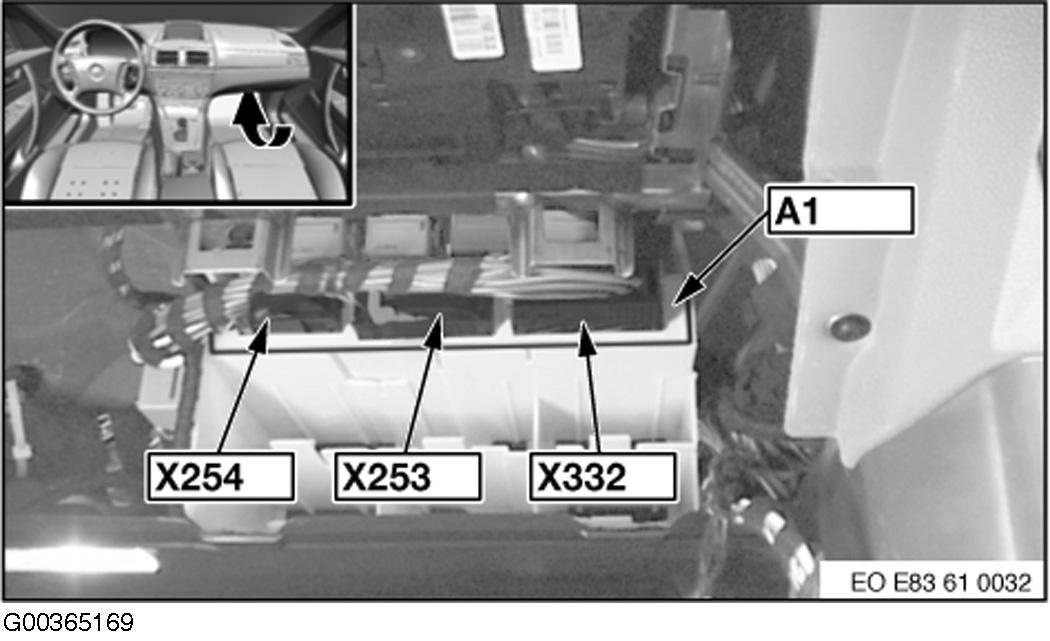

| General Module Control Unit (A1) | Right side of dash. See Figure. |

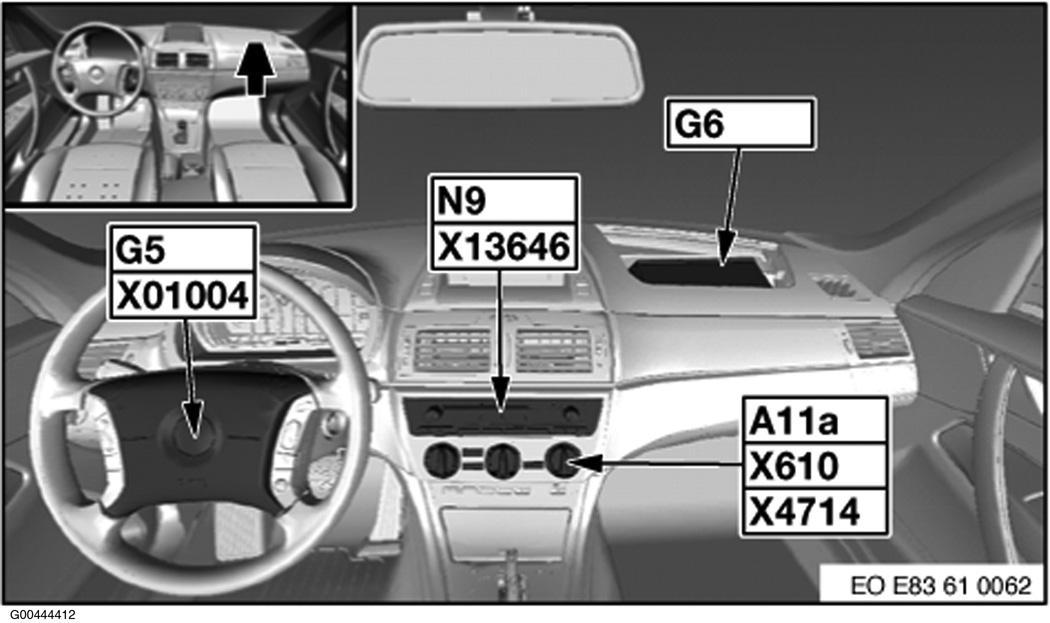

| Heating/Air Conditioning System (A11a) | Center of dash. See Figure. |

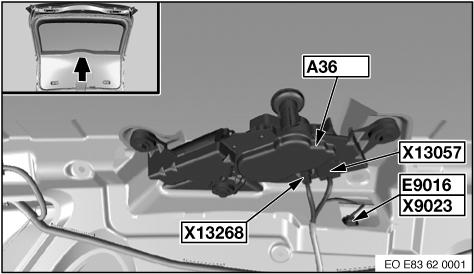

| Intermittent Wipe/Wash Control Module (Rear) (A36) | Liftgate. See Figure. |

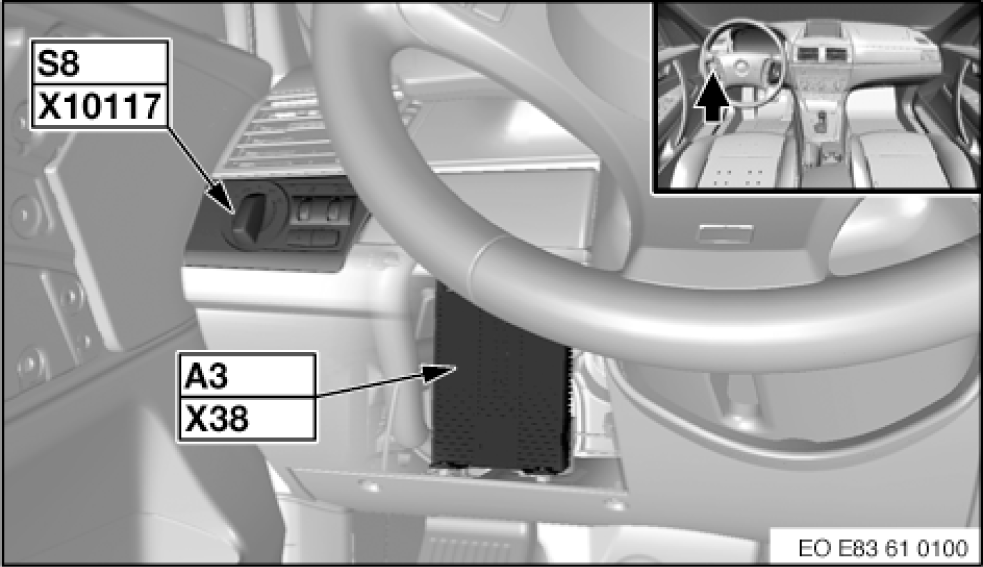

| Lights Module (A3) | Left side of dash. See Figure. |

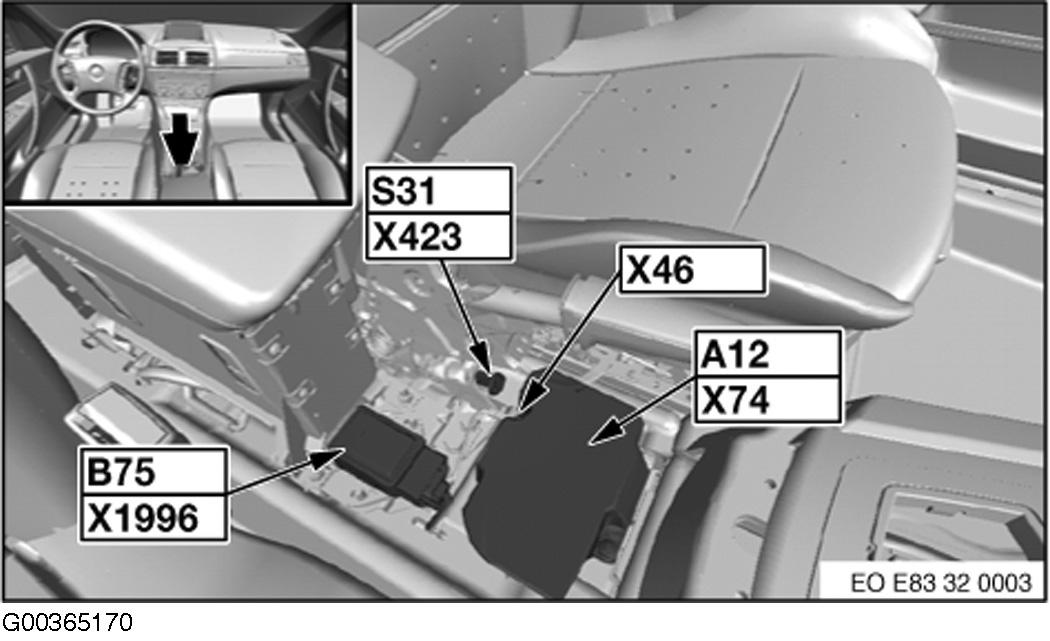

| Multiple Restraint System Control Module (A12) | Center console. See Figure. |

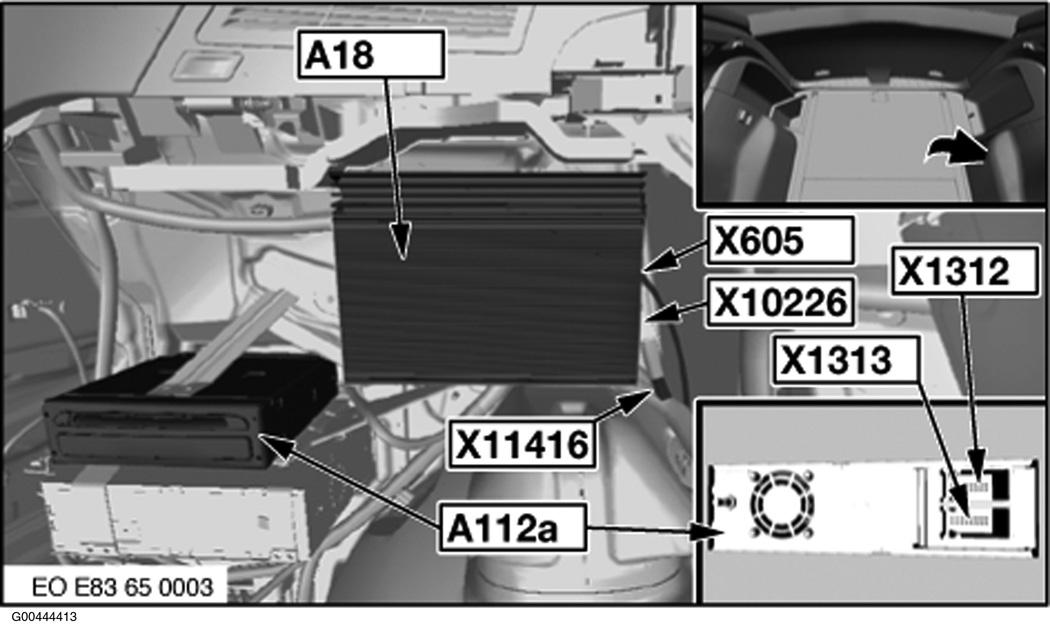

| Navigation System (A112a) | Left side of rear compartment. See Figure. |

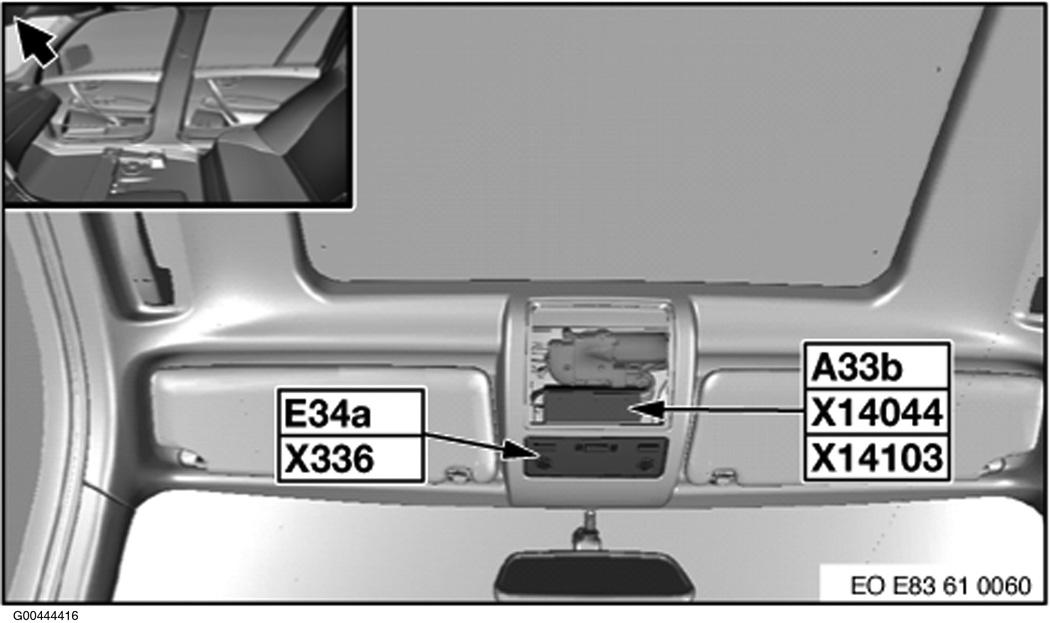

| Panorama Glass Sunroof Module (A33b) | In overhead console. See Figure. |
| Park Distance Control (PDC) (A81a) | Center of rear compartment floor board. See Figure. |
| Servotronic (A17) | Right side of dash. See Figure. |

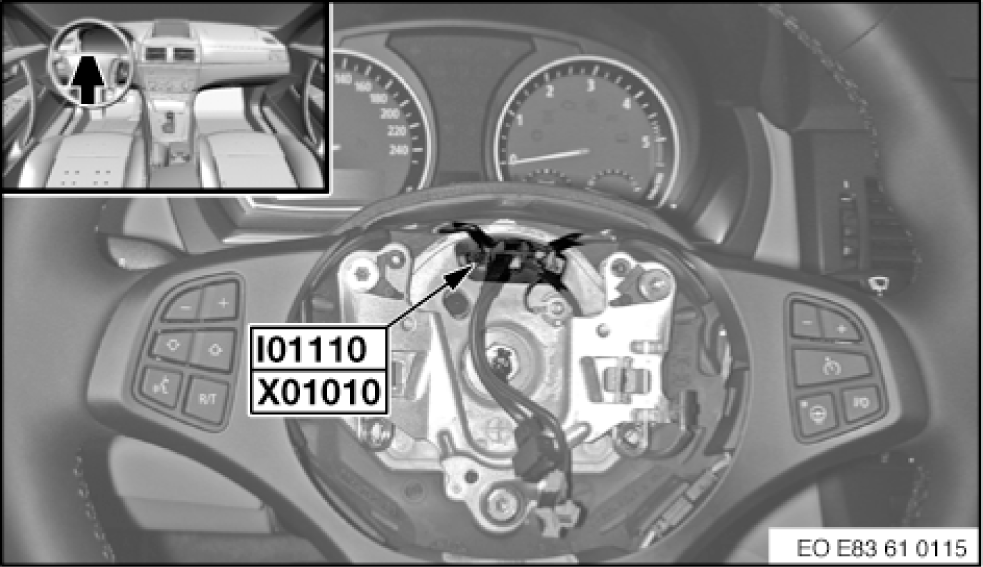

| Steering Wheel Heating Control Unit (I01110) | Center of steering wheel. See Figure. |

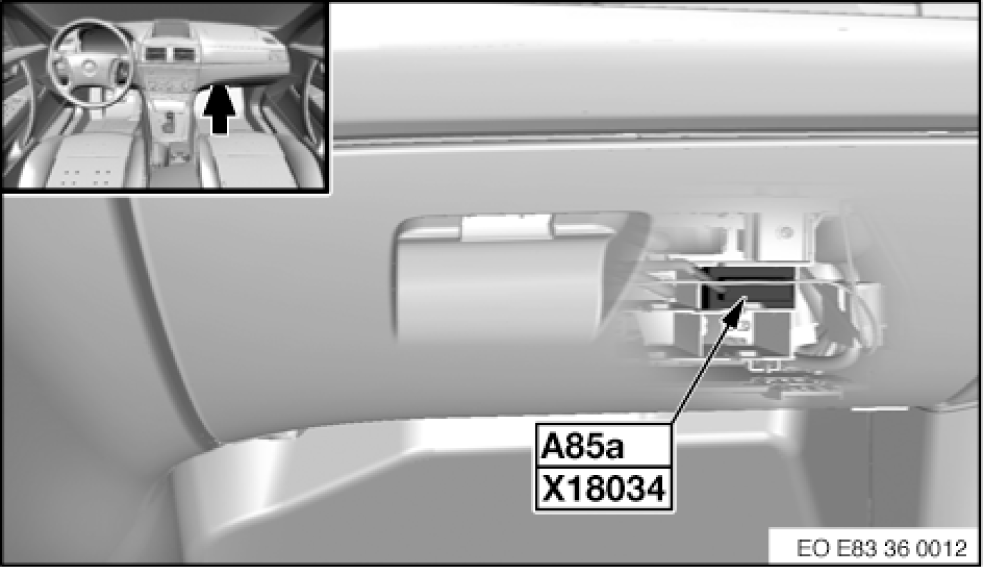

| Tire-Pressure Control (RDC) (A85a) | Right side of dash. See Figure. |

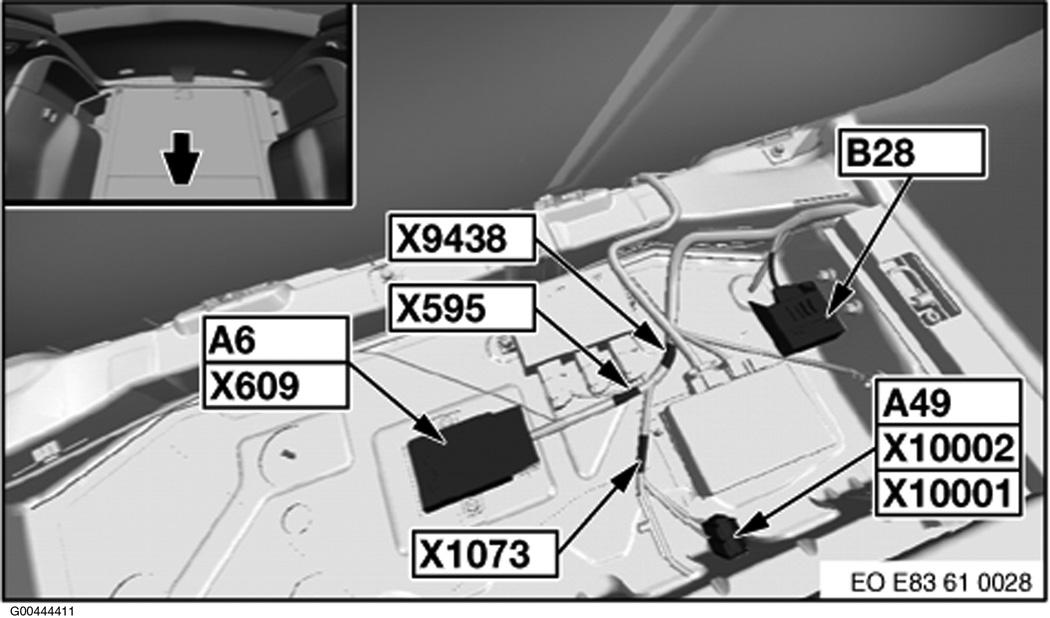

| Trailer Module (A6) | Center of rear compartment floor board. See Figure. |
| Transfer Box Control Module (A70006) | Center of rear compartment floor board. See Figure. |

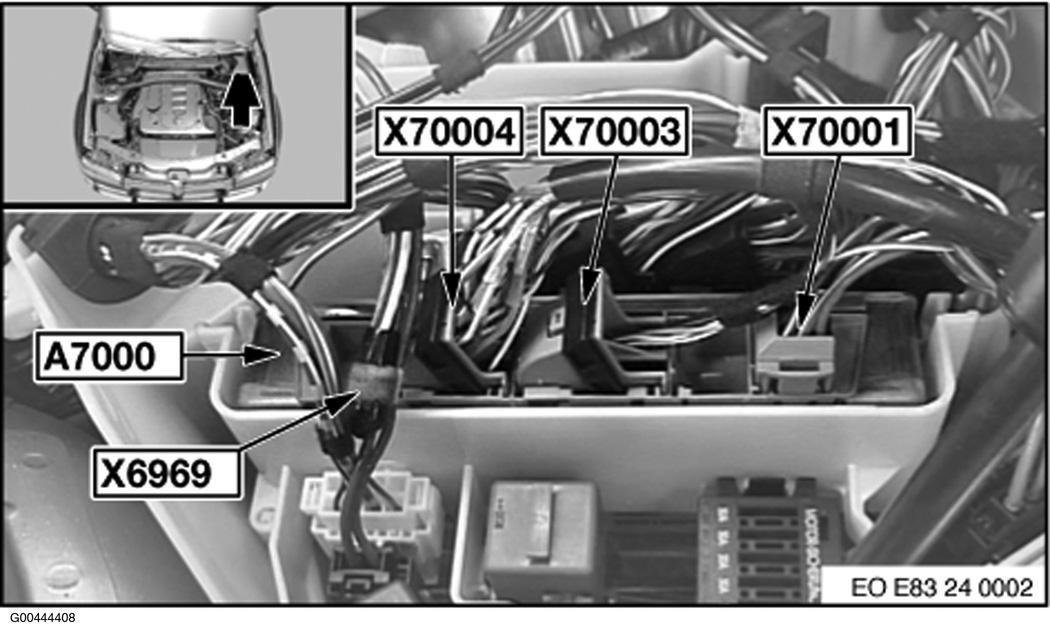

| Transmission Control (A7000) | Left rear of engine compartment. See Figure. |

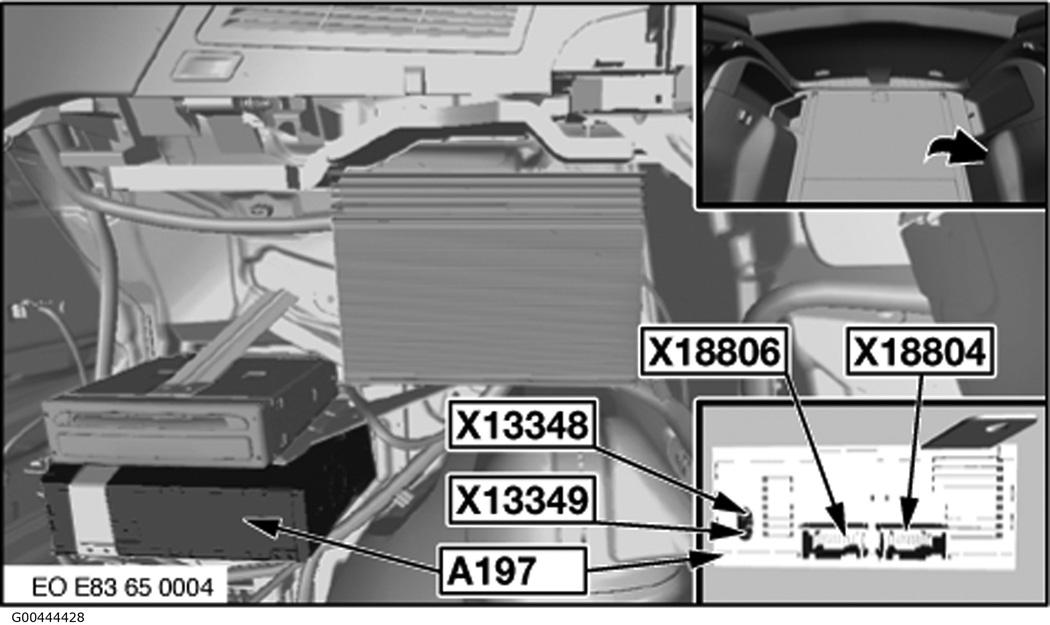

| Video Module (A197) | Left side of rear compartment. See Figure. |

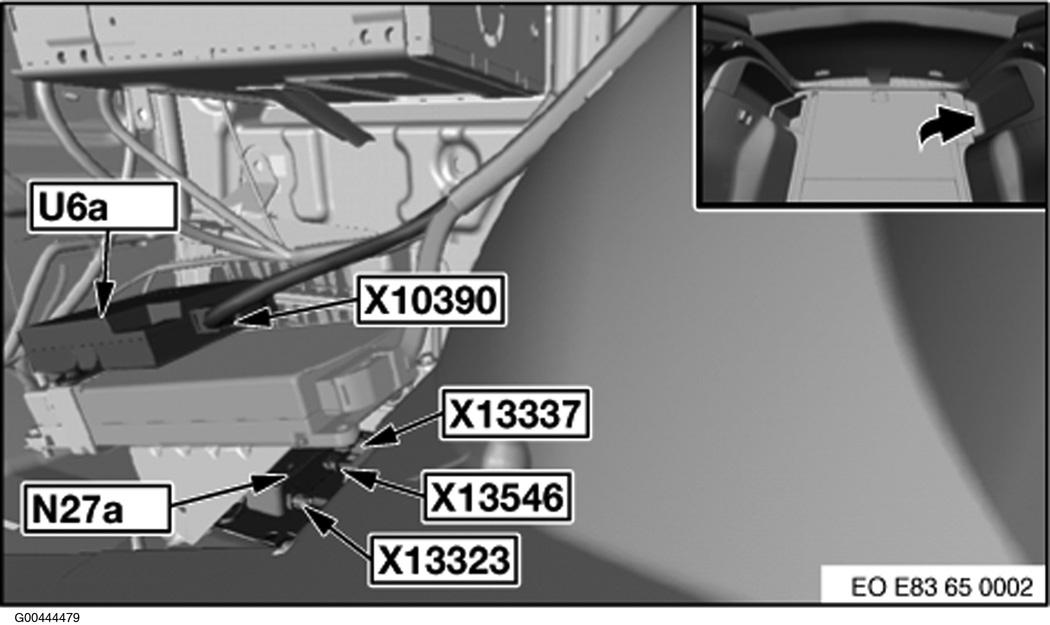

| Voice Control System (U6a) | Left side of rear compartment. See Figure. |
