Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|

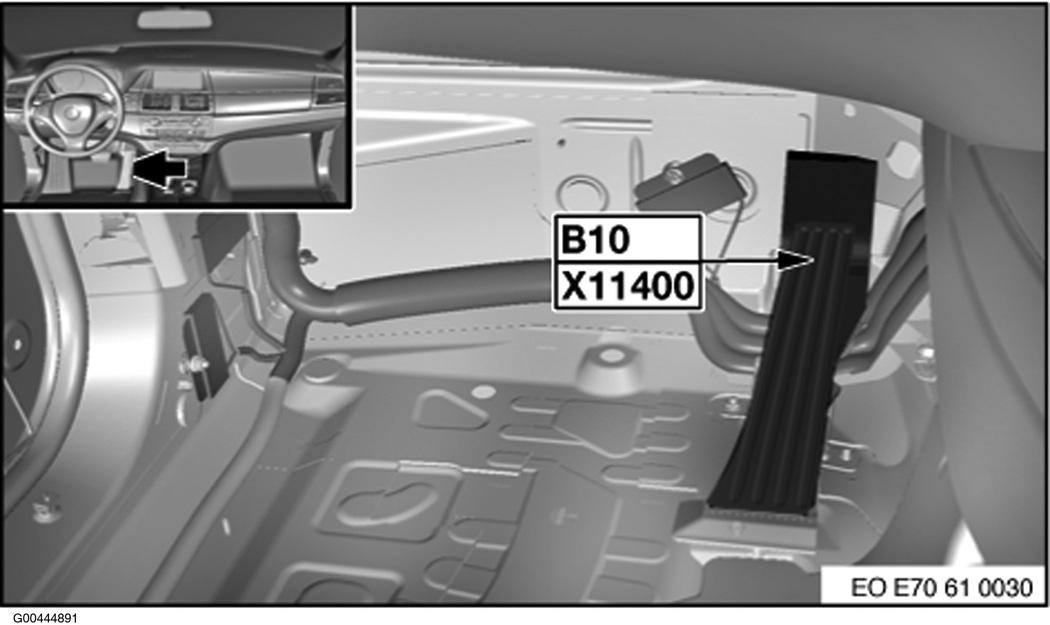

| Acceleration Pedal Module (B10) | Part of acceleration pedal assembly. See Figure. |

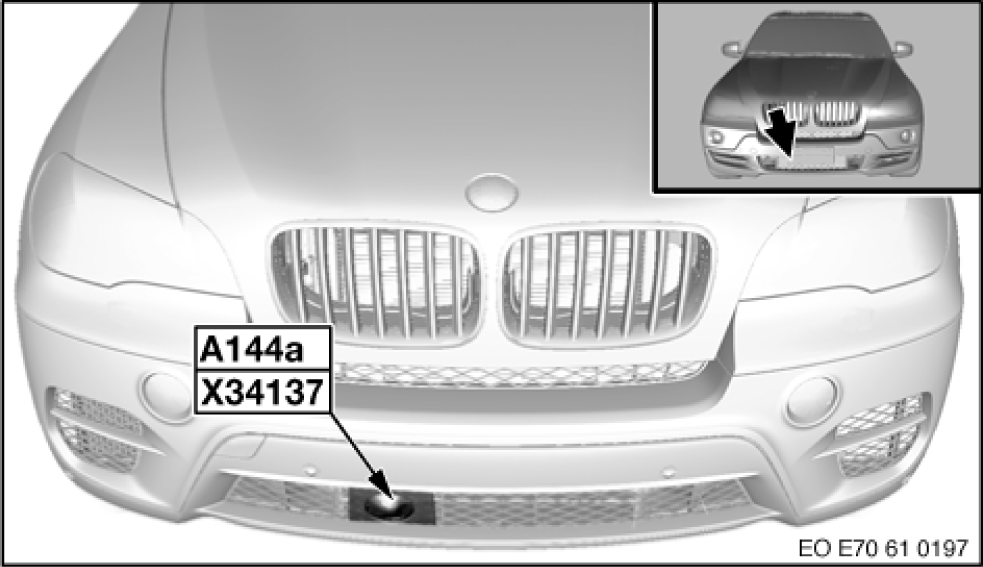

| Active Cruise Control (A144a) | Behind right side of front bumper. See Figure. |

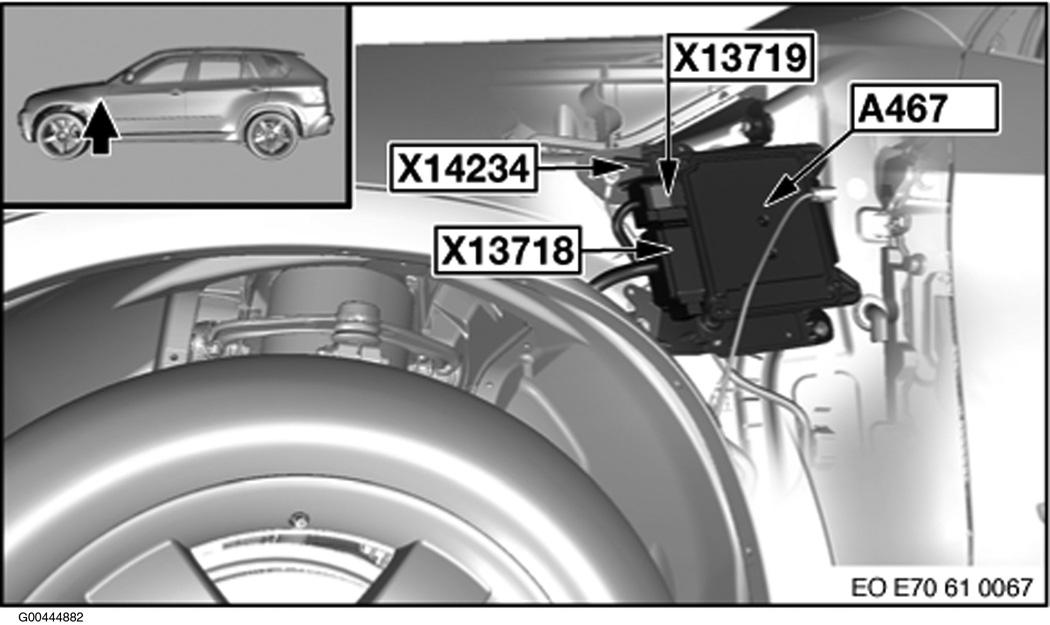

| Active Steering (A467) | Behind left front wheel. See Figure. |

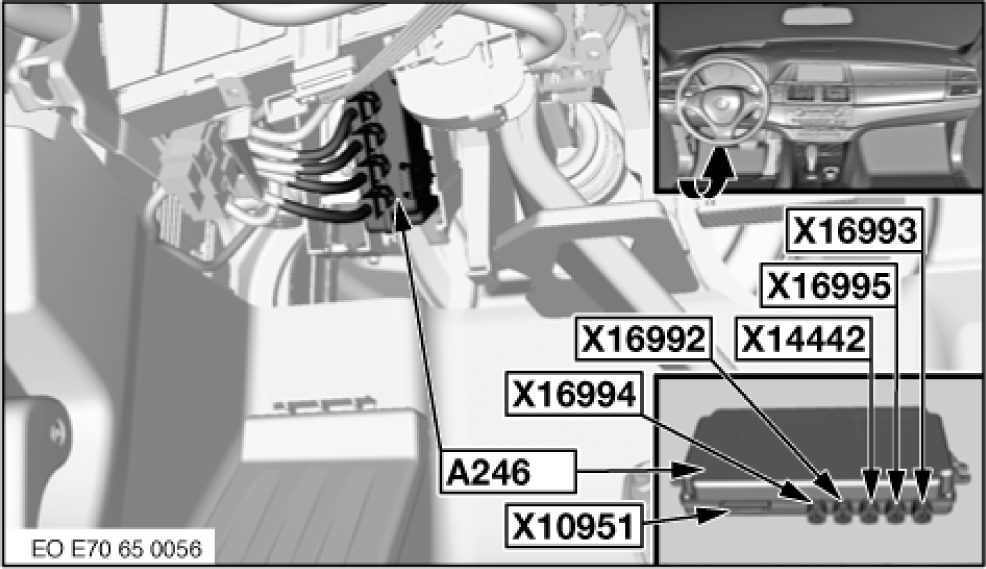

| All-Round Vision Camera (A246) | Under left side of dash. See Figure. |

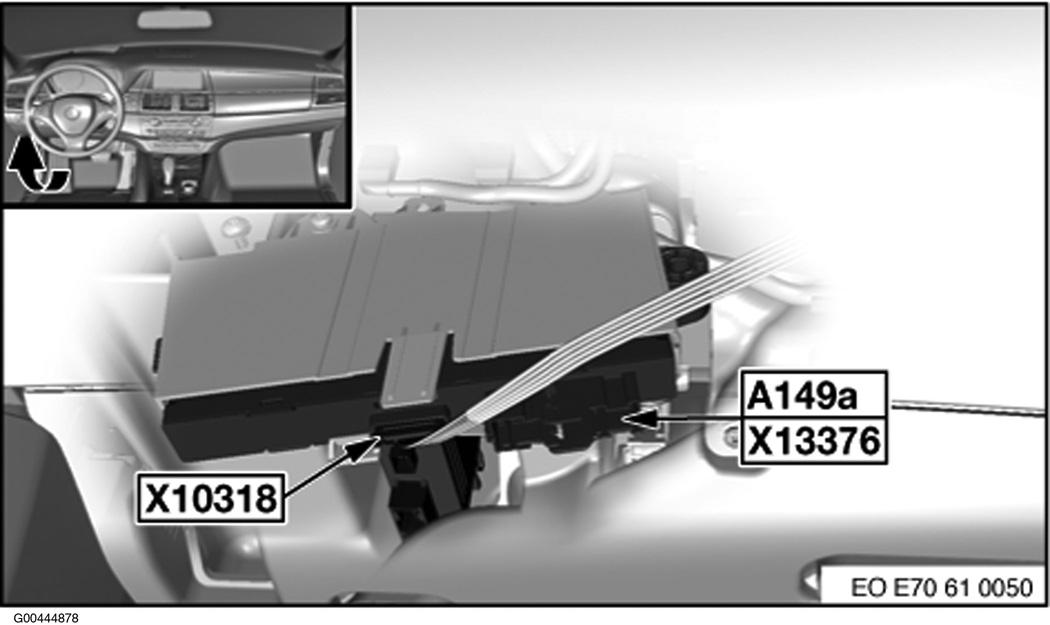

| Car Access System (A149a) | Under left side of dash. See Figure. |
| Charge-Air Pressure Controller 1 (3.0L Diesel) (B2353) | Right side of engine. See Figure. |
| Comfort Access Control Module (A215) | Right side of rear compartment. See Figure. |

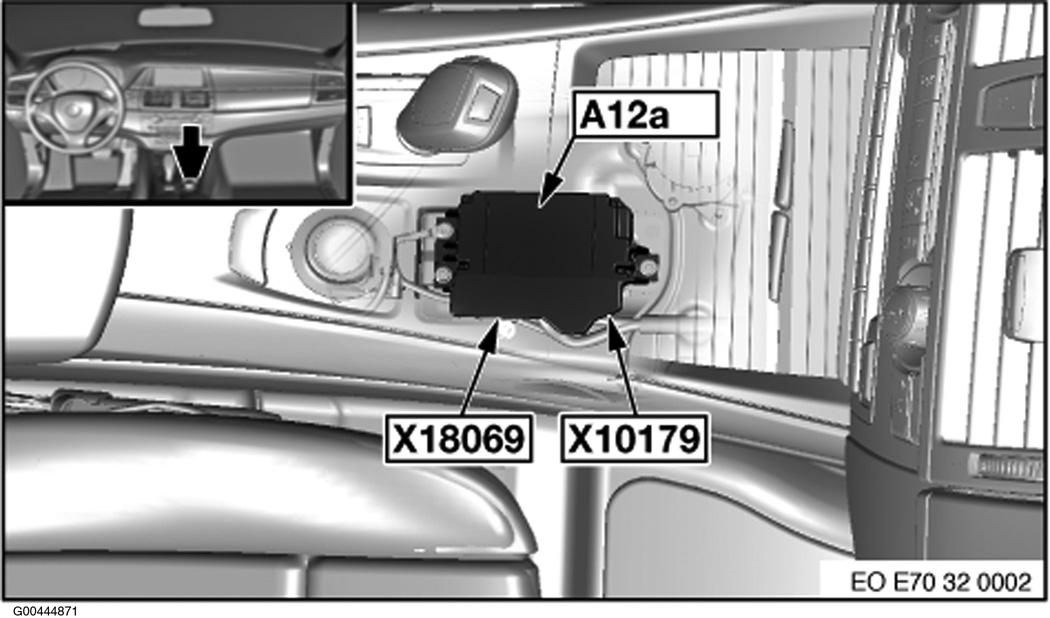

| Crash Safety Module (A12a) | Right side of shifter assembly. See Figure. |

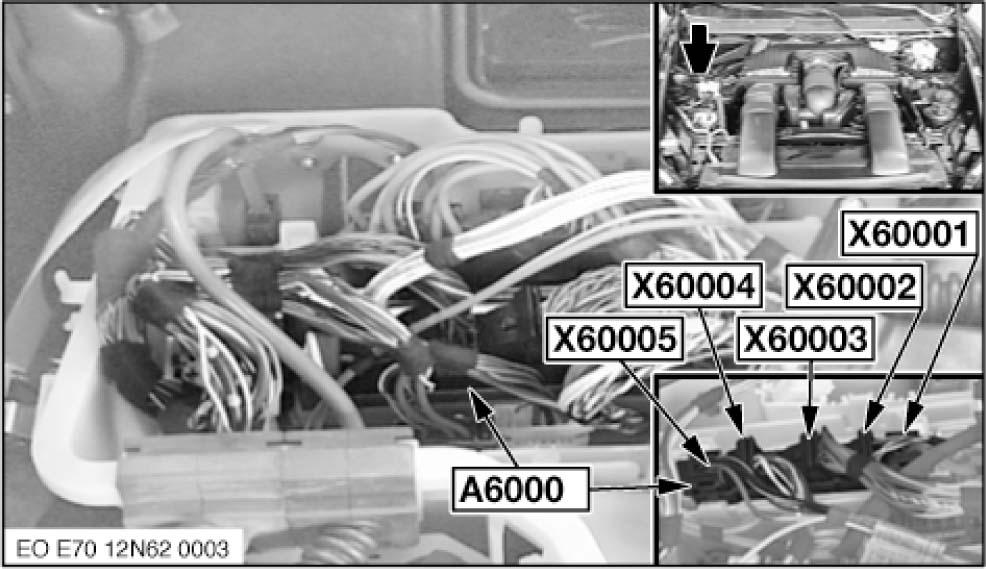

| DME Control Unit (A6000) | Right rear of engine compartment. See Figure. |

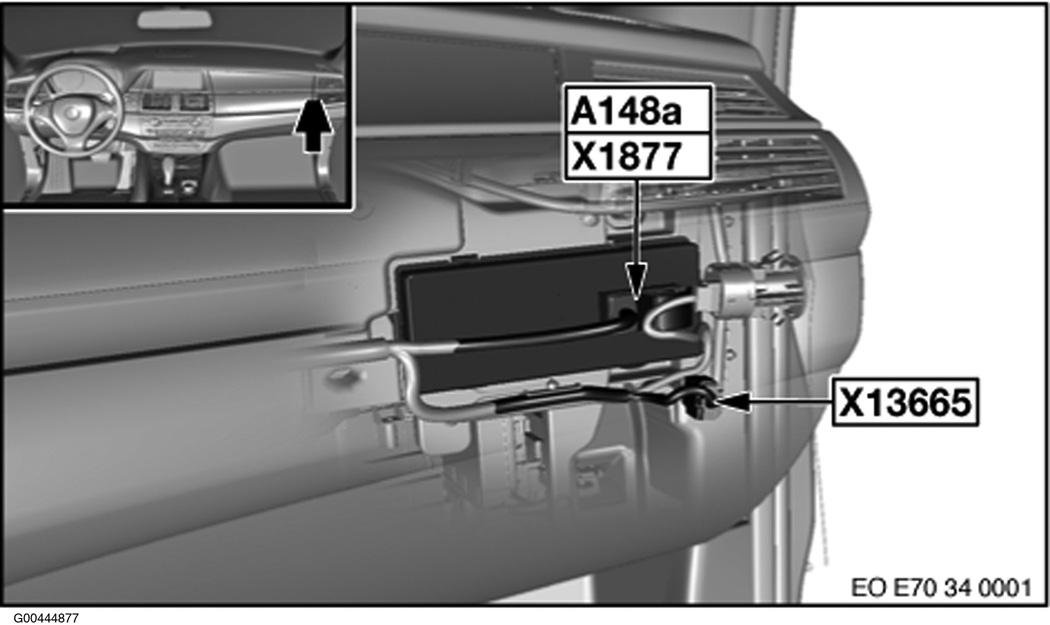

| Dynamic Drive (A148a) | Right side of dash. See Figure. |

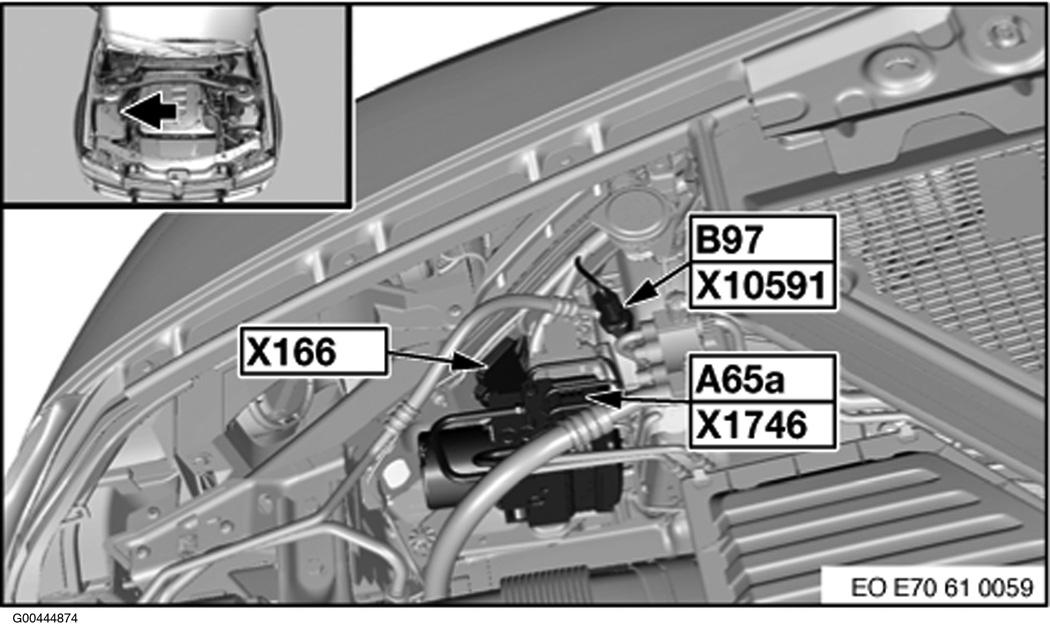

| Dynamic Stability Control (DSC) (A65a) | Right side of engine compartment. See Figure. |
| Electrically Operated Towing Hitch (A195a) | Left side of engine compartment. See Figure. |
| Electronic Ride Height Control (A118a) | Right side of rear compartment. See Figure. |

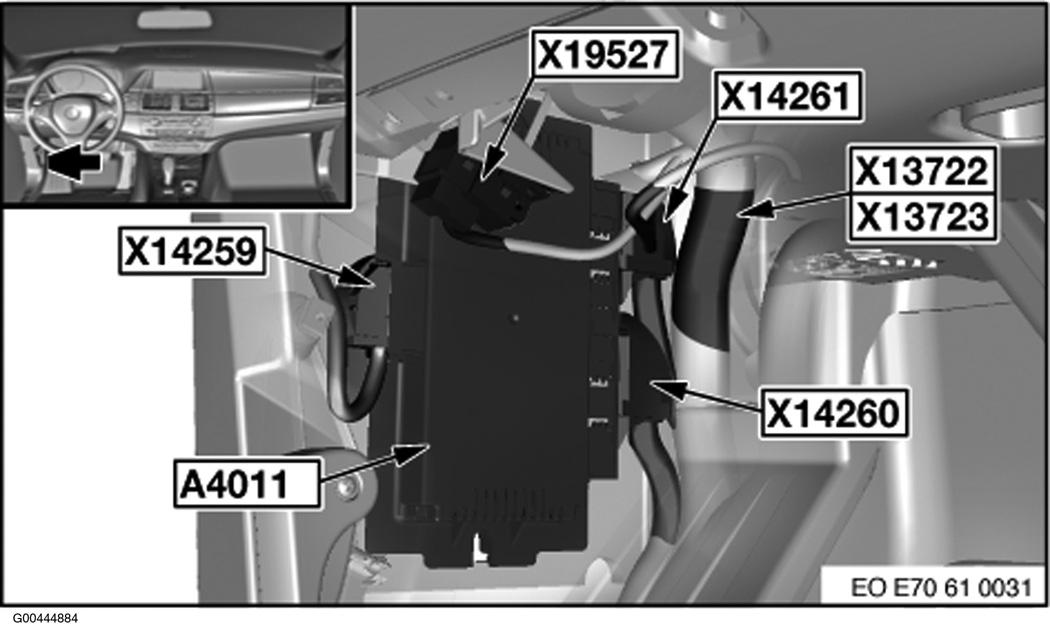

| Footwell Module (A4011) | Left side of left footwell. See Figure. |

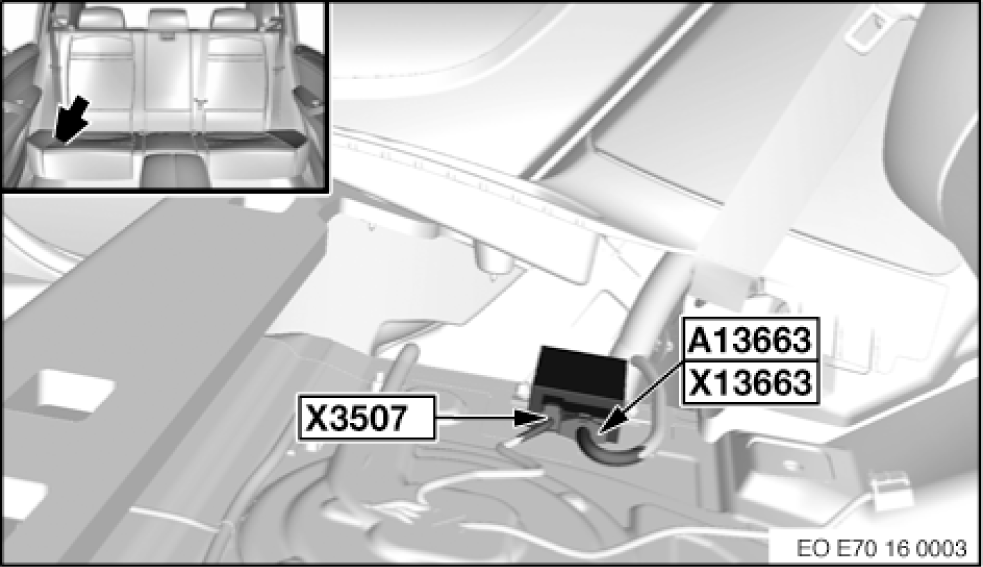

| Fuel-Pump Control (EKPS) (A13663) | Under right rear seat. See Figure. |

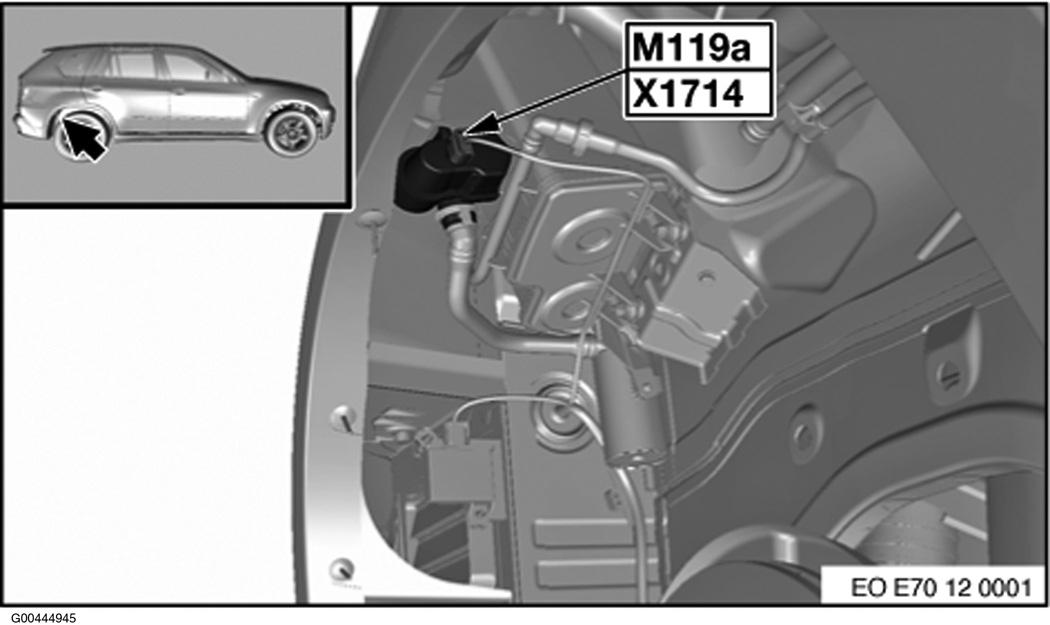

| Fuel Tank Leakage Diagnostic Module (M119a) | Behind right rear wheel. See Figure. |

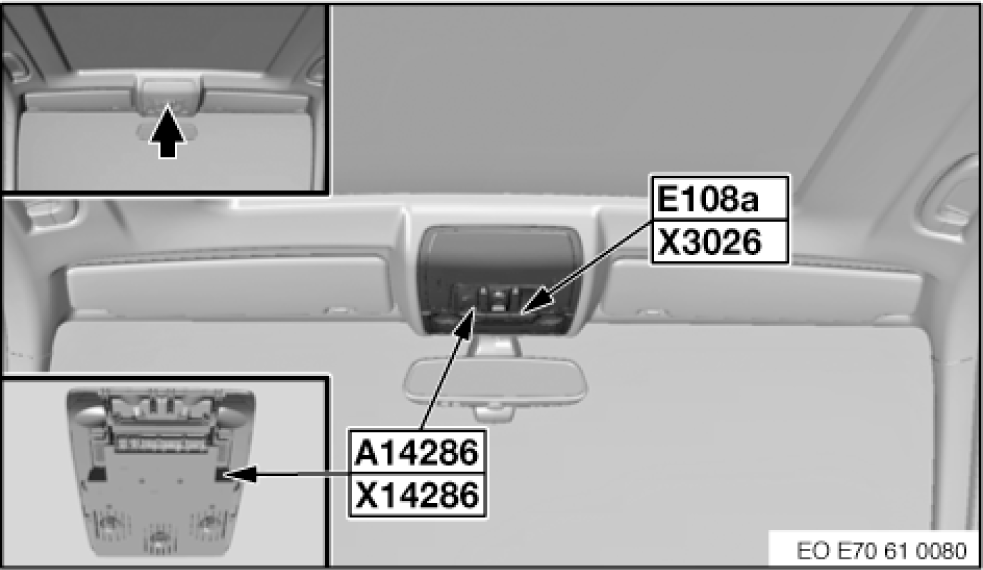

| Function Center - Roof (A14286) | In front roof console. See Figure. |
| Hot-Film Air Mass Meter (3.0L Diesel) (B6207) | Front of engine. See Figure. |

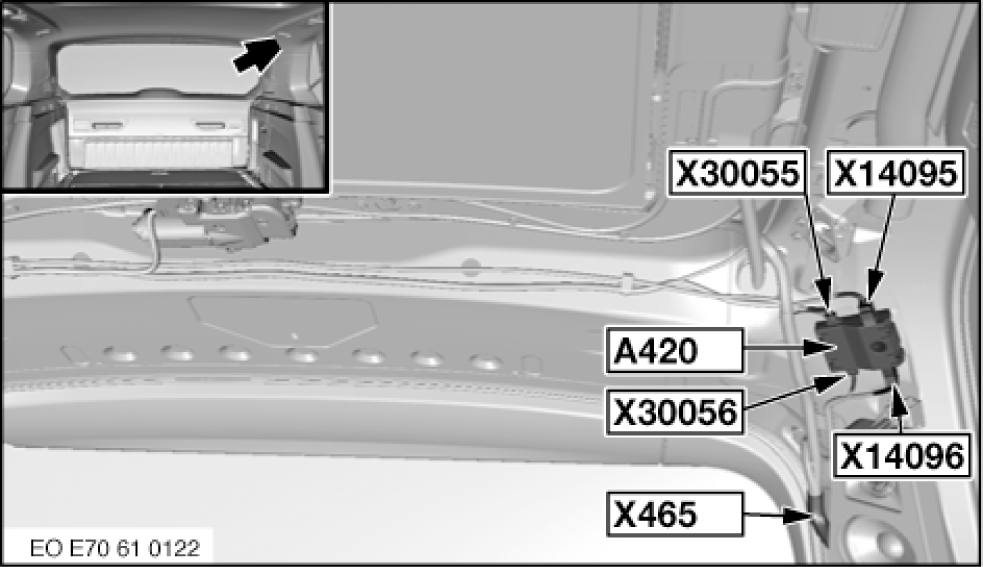

| Lockout Circuit (A420) | Top of left "D" pillar. See Figure. |
| Longitudinal Dynamics Management (A14282) | Under left side of dash. See Figure. |

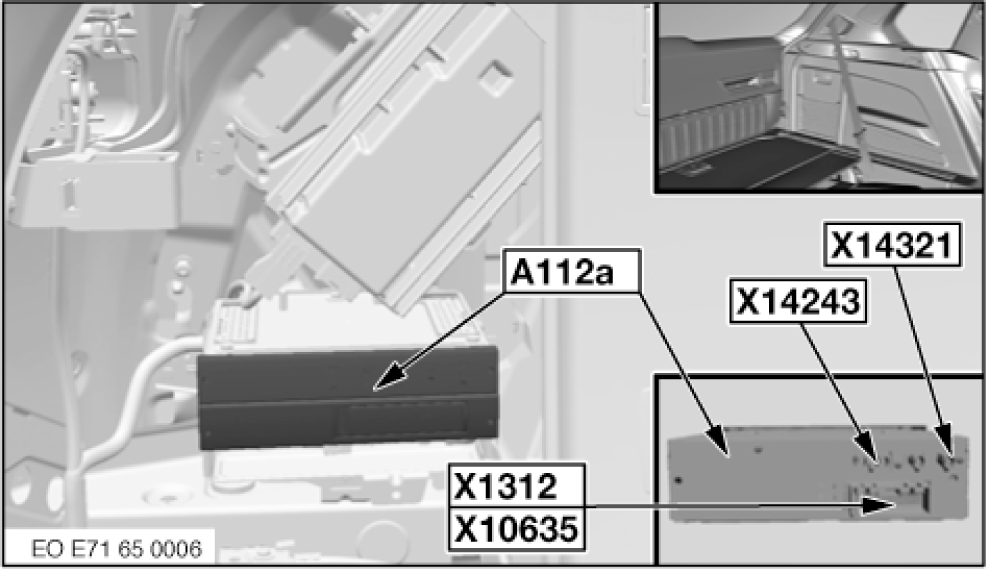

| Navigation System (A112a) | Behind left rear quarterpanel. See Figure. |
| Park Distance Control (PDC) (A81a) | Right side of rear compartment. See Figure. |

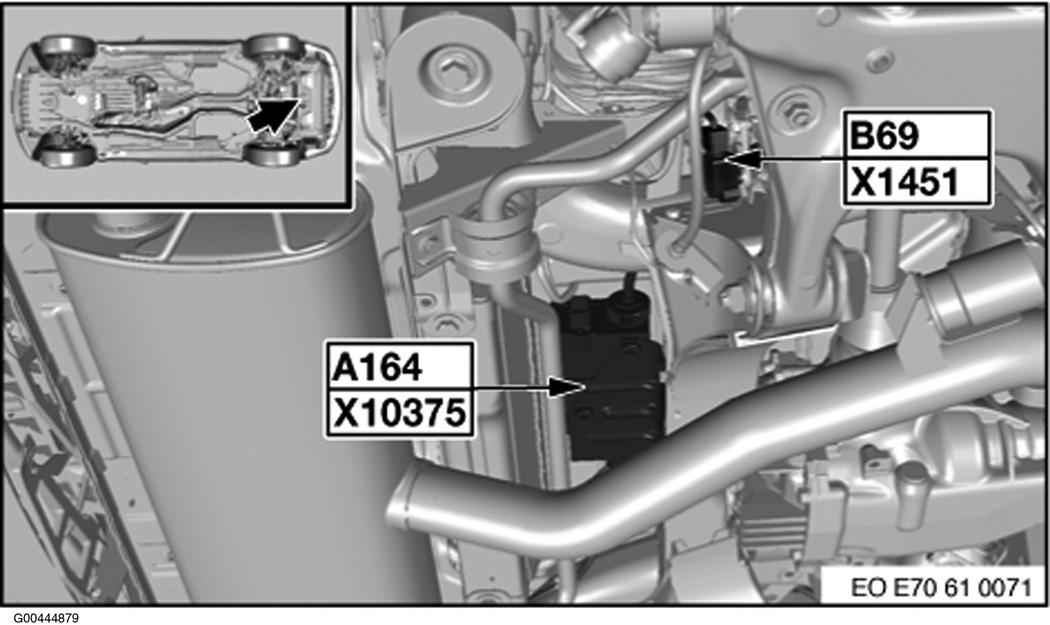

| Parking Brake Control Module (PBR) (A164) | Under front center of vehicle. See Figure. |
| Preheating Control Module (3.0L Diesel) (A2402) | Left front of engine. See Figure. |
| Rear-Lid Lift (A204a) | Behind left rear quarterpanel. See Figure. |

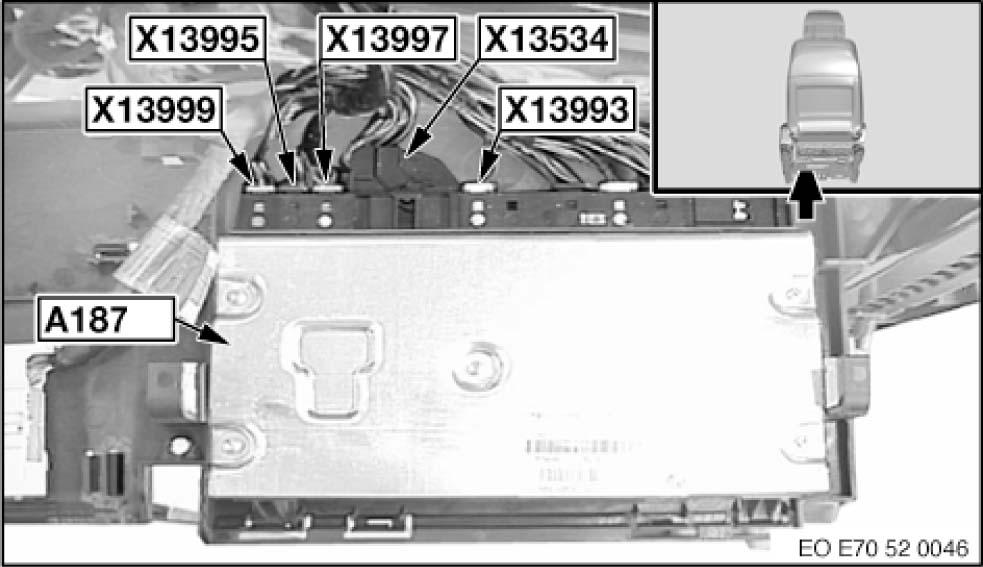

| Seat Module - Driver (A187) | Under driver's seat. See Figure. |

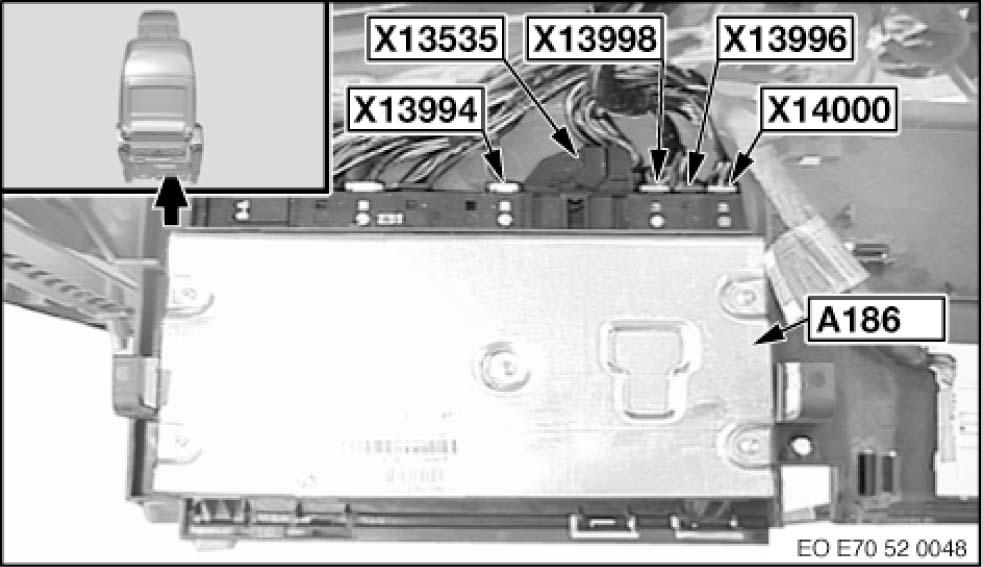

| Seat Module - Passenger (A186) | Under front passenger's seat. See Figure. |

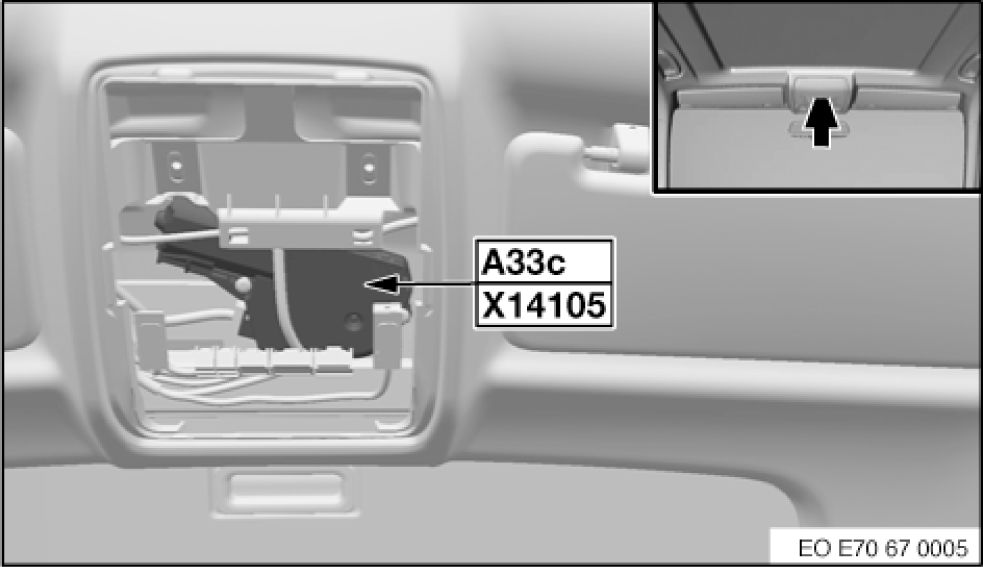

| Slide/Tilt Sunroof Drive (A33c) | In roof console. See Figure. |

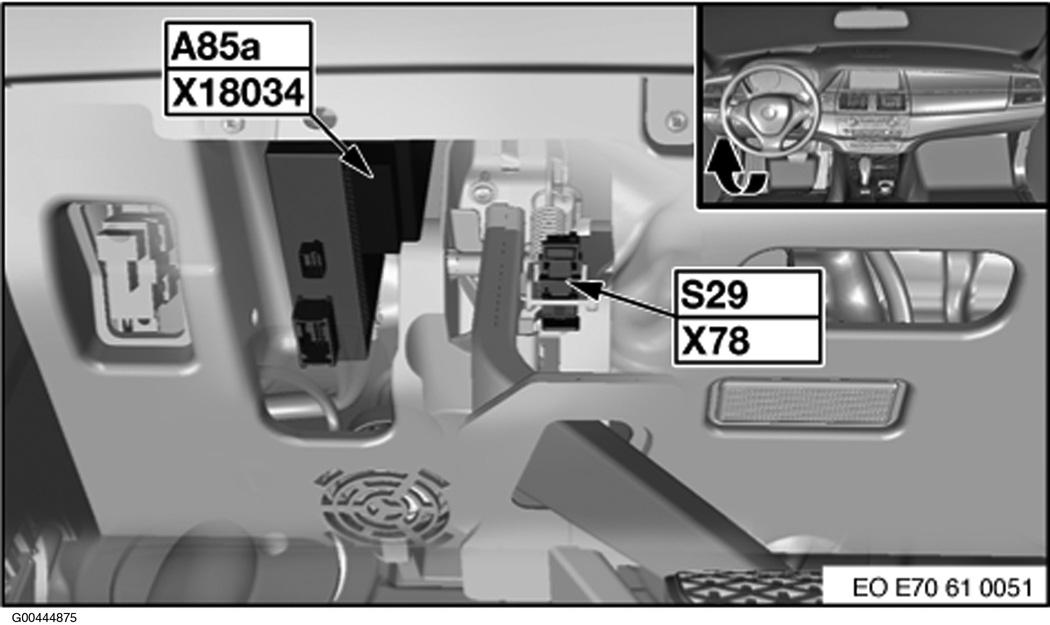

| Tire Pressure Control (RDC) (A85a) | Under left side of dash. See Figure. |

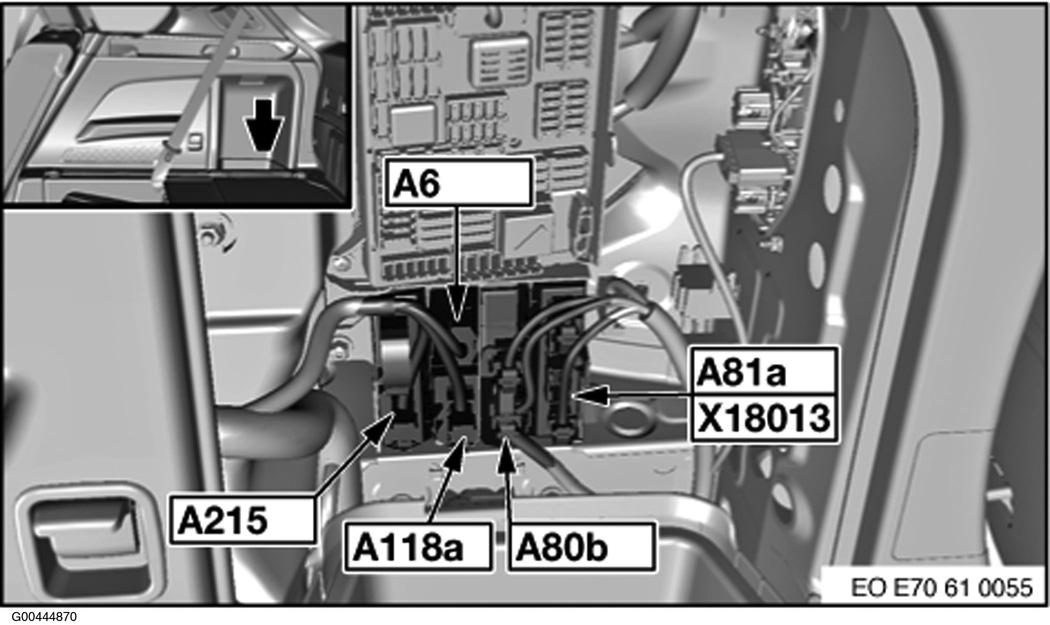

| Trailer Module (A6) | Right side of rear compartment. See Figure. |

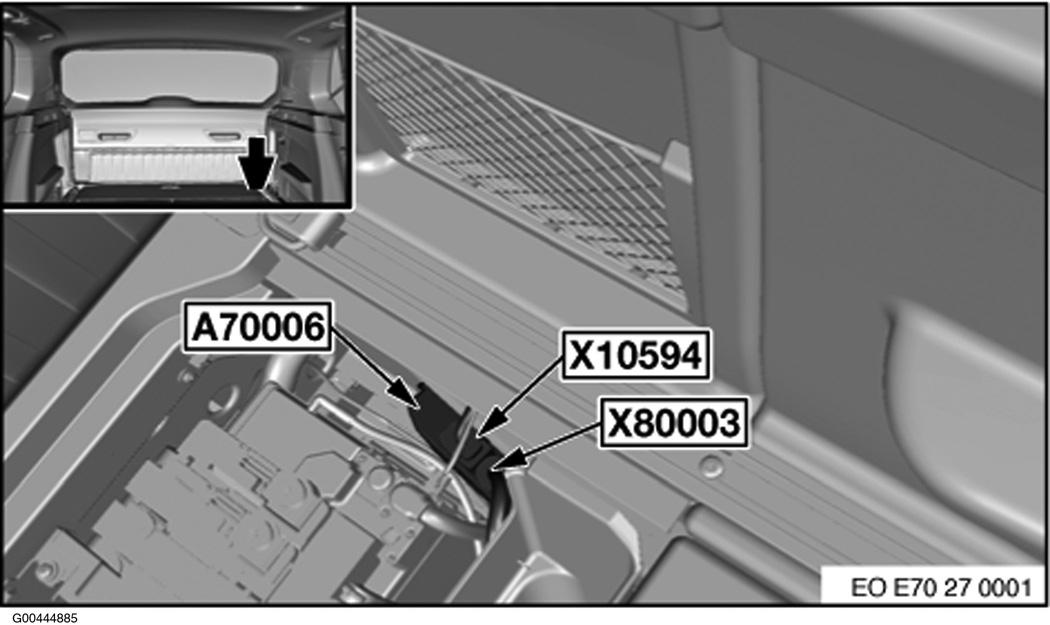

| Transfer Box Control Module (A70006) | Left side of rear compartment. See Figure. |

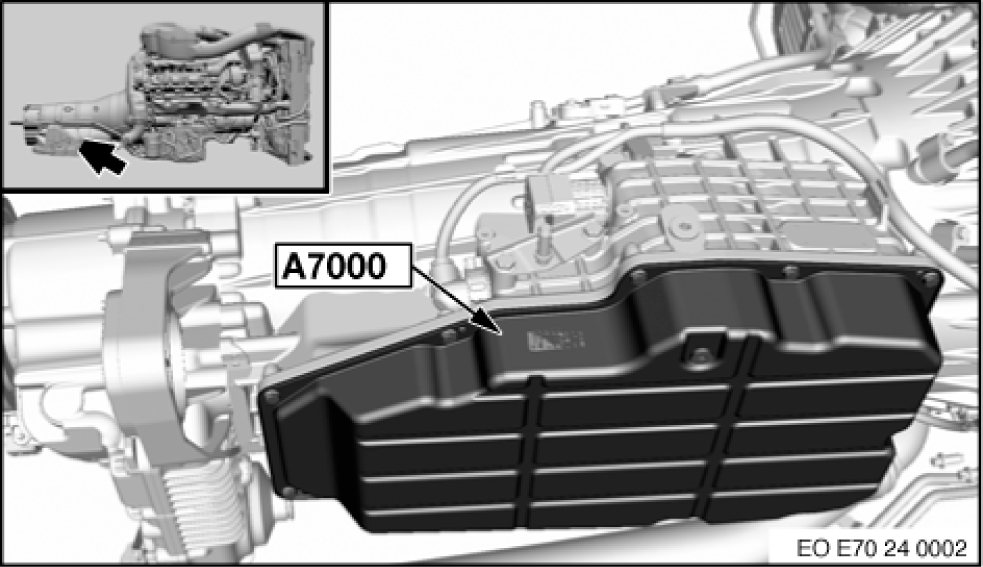

| Transmission Control Unit (A7000) | Bottom of transmission. See Figure. |

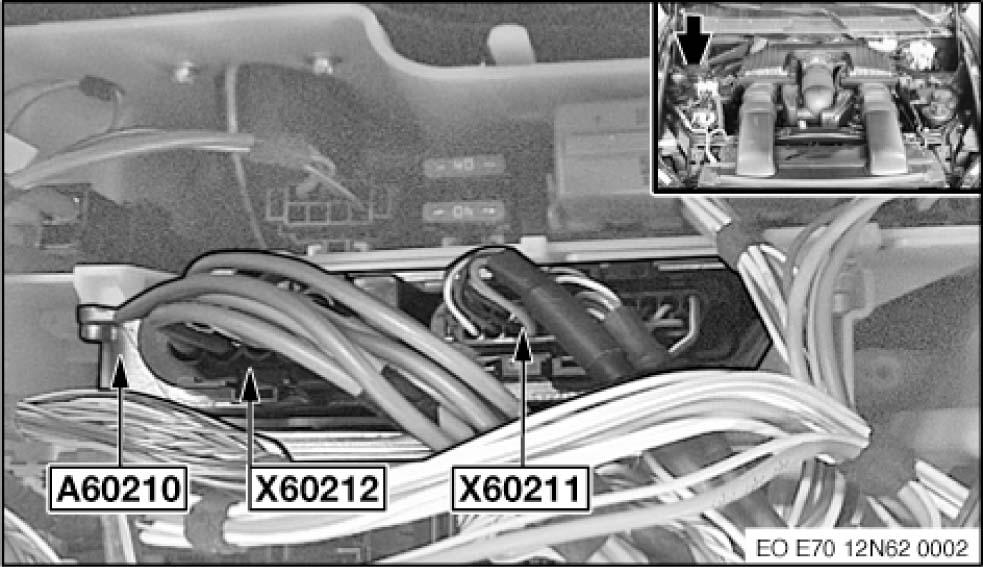

| Variable Valve Gear Control Unit (A60210) | Right rear of engine compartment. See Figure. |
| Vertical Dynamic Management (A80b) | Right side of rear compartment. See Figure. |

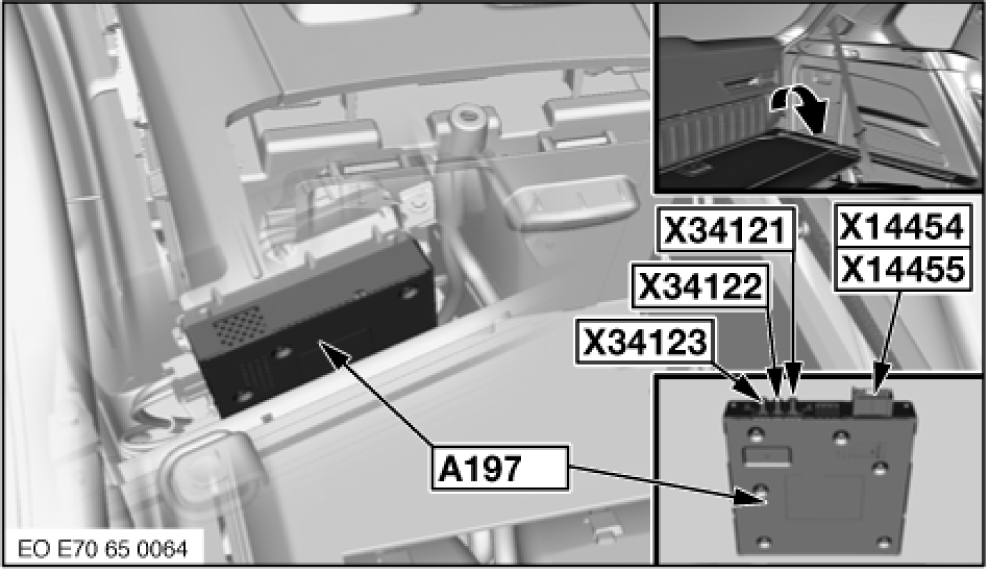

| Video Module (A197) | Behind left quarterpanel. See Figure. |
