Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| Automatic Door Lock Module | Under right front seat. |

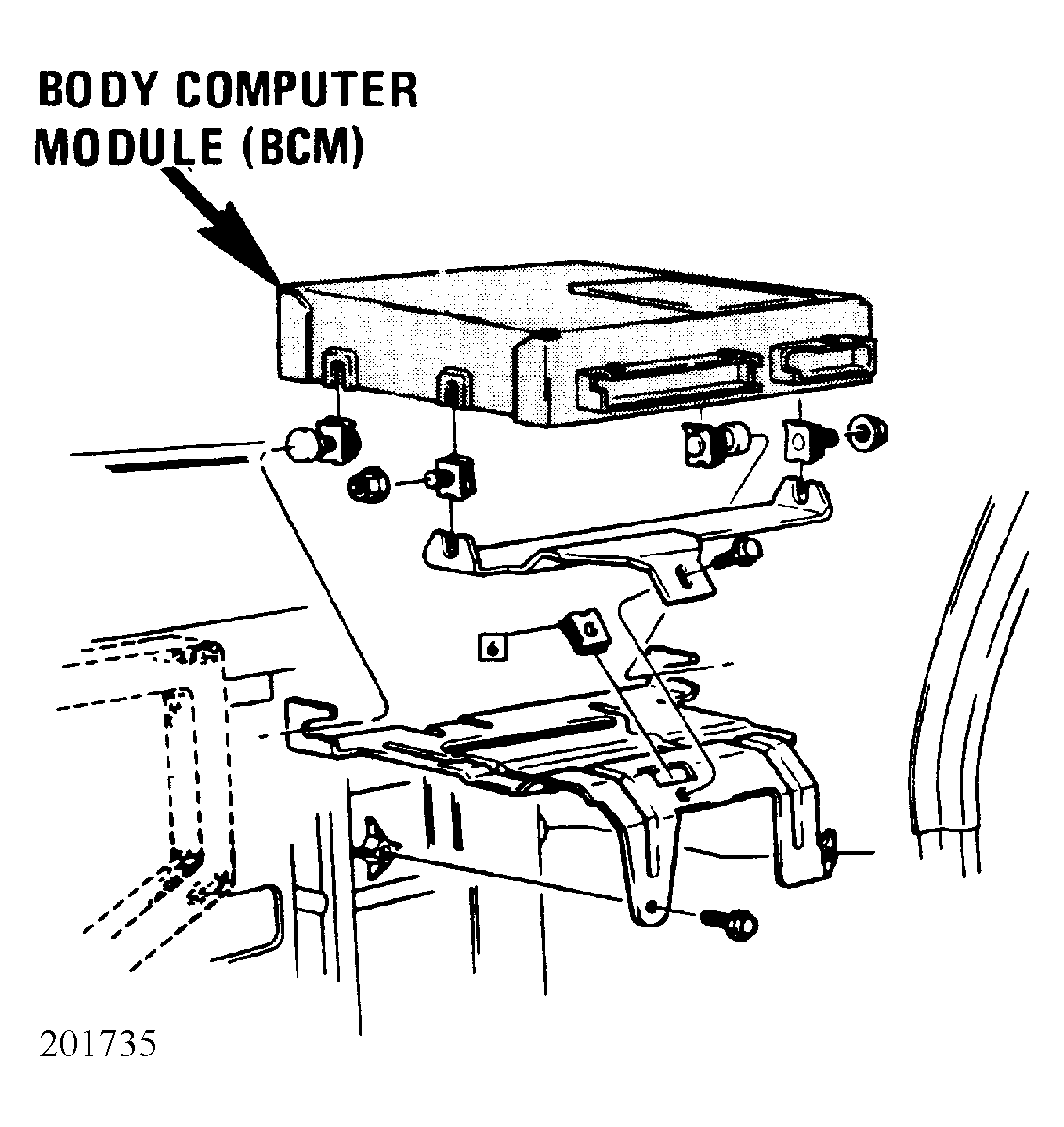

| Body Computer Module (Riviera) | Behind right side of Instrument Panel. See Figure. |
| Body Computer Module (Toronado) | Under right side of dash. See Figure. |

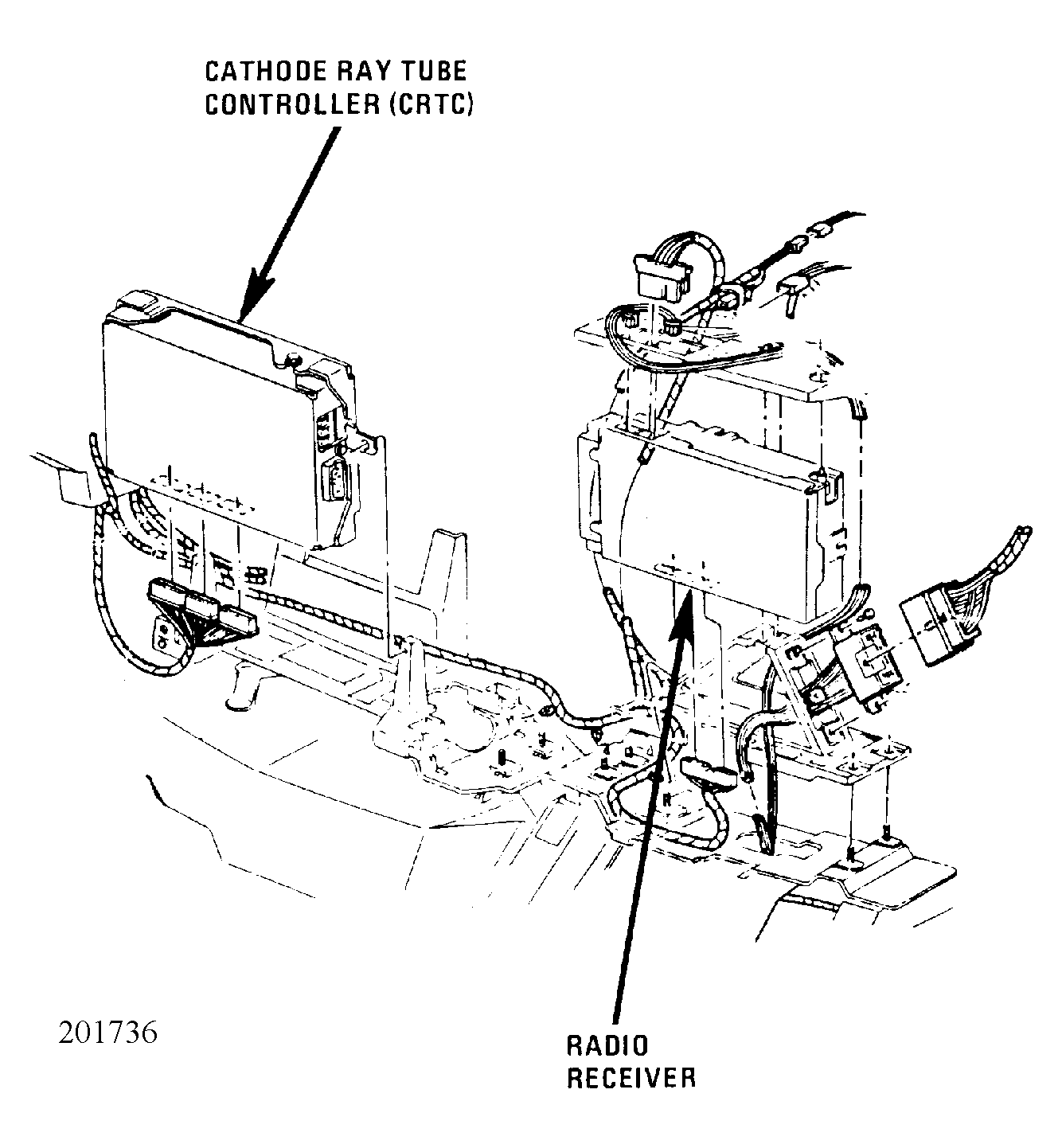

| Cathode Ray Tube Controller (Riviera) | In console between front seats. See Figure. |
| Voice/Chime Module | Under left side of dash, above the parking brake. |
| C(3)I Module | On top rear of engine. See Figure. |
| Console Accy. Switch Module | At front of console. See Figure. |

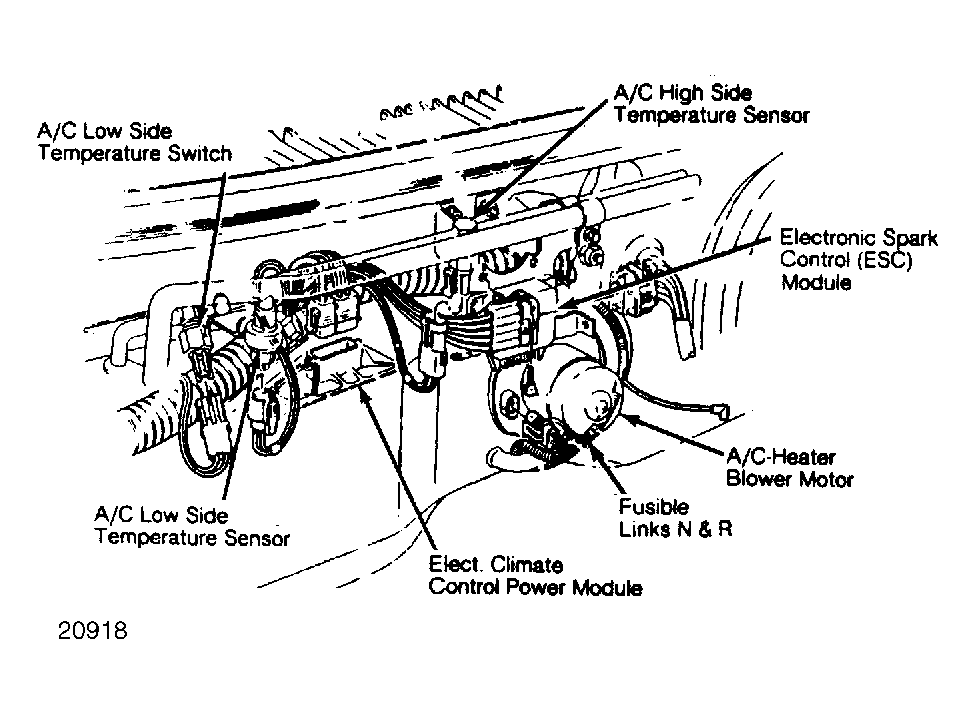

| Electronic Climate Control Power Module | In plenum on center of firewall, in engine compartment. See Figure. |
| Electronic Climate Control Programmer | Under right side of dash, on right side of plenum. |
| Electronic Control Module (ECM) | Behind right kick panel. |
| Electronic Spark Control (ESC) Module | At center of firewall in engine compartment. See Figure. |
| Hazard/Turn Signal Module (Riviera) | On bracket under left side of dash, near steering column. See Figure. |
| Keyless Entry Module | Under rear package shelf in trunk. |
| Lamp Monitor Module | Under left side of dash, near parking brake. See Figure. |
| Sun Roof Timer Module | In right side of windshield header. |
| Theft Deterrent Module | Under left side of dash, to left of steering column. See Figure. |
| Wiper/Washer Motor Module | On left side of firewall, in engine compartment. |
