Control Units
CONTROL UNITS
| Component | Component Location |
|---|---|

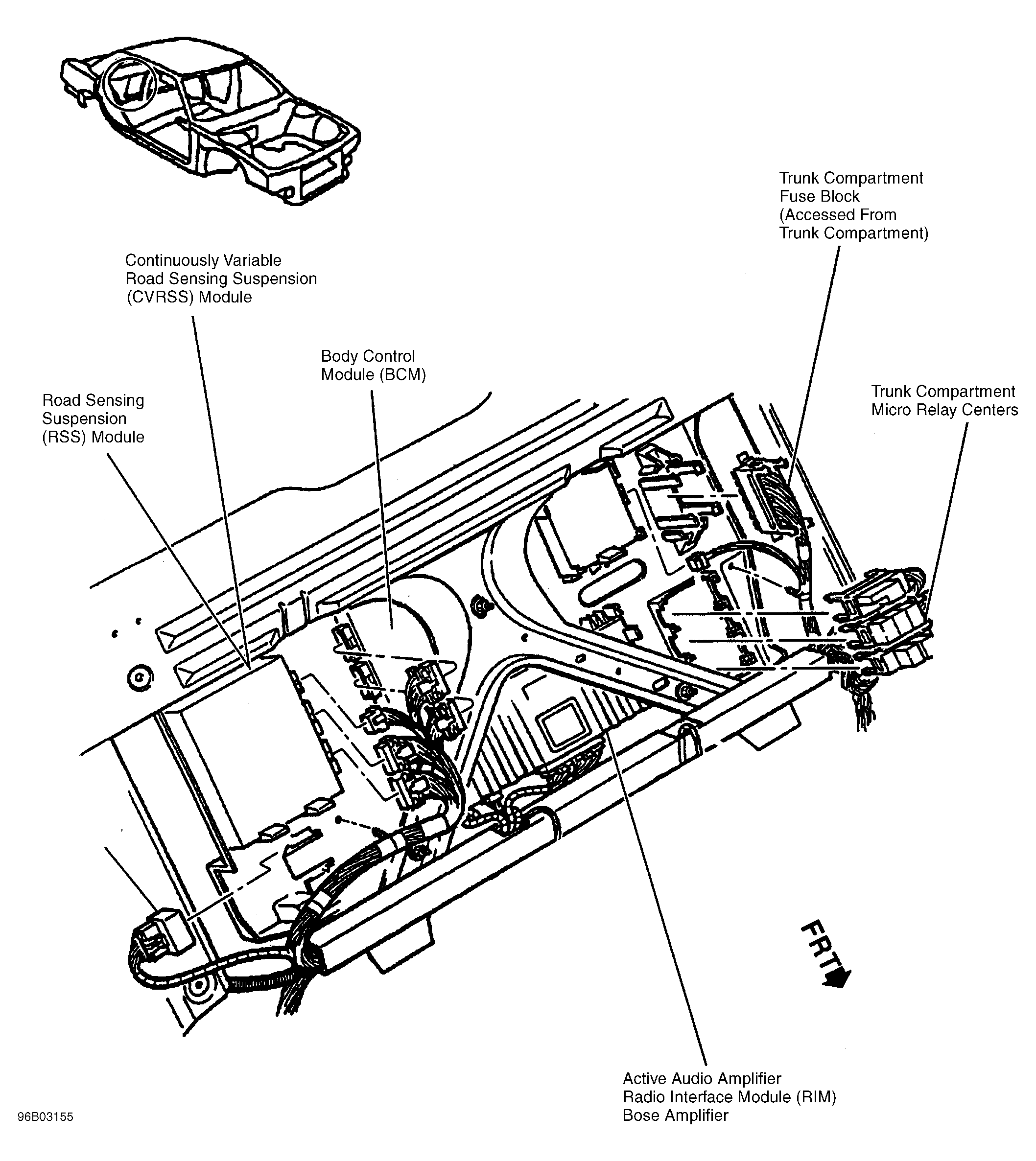

| Active Audio Amplifier | Front of trunk, attached to electronics bay. See Figure. |
| Astro Roof Control Module | Under front of headliner, on right side of astro roof headliner. |
| Bose Amplifier | Front of trunk, attached to electronics bay. See Figure. |
| Body Control Module (BCM) | Front of trunk, attached to electronics bay. See Figure. |
| Catalytic Converter Temperature Alarm Module | Under right side of dash, above kick panel. |
| Cellular Telephone Module | Right side of trunk, near power antenna. |
| Continuously Variable Road Sensing Suspension (CVRSS) Module | Front of trunk. See Figure. |
| Cruise Control Module | Left rear of engine compartment, on strut tower. |
| Driver Inflator Module | On center of steering wheel. |
| Electronic Brake & Traction Control Module (EBTCM) | Left front corner of engine compartment, on brake pressure monitor valve. |
| Headlamp Washer Module | Taped in body harness, approximately 18 cm from SDM connector breakout. |
| Heated Windshield Control Module | Behind left side of dash, above brake pedal. |
| Heated Windshield Power (HWP) Module | Forward of right wheelhouse, behind front fender. |
| Heater & A/C Programmer | Behind right side of dash, behind glove box. |
| Ignition Control Module (ICM) | On top of engine, on valve cover. See Figure. |
| Memory Seat Module | Under driver's seat. |
| Inflator Module (Passenger) | On top right of dash, above glove box. |

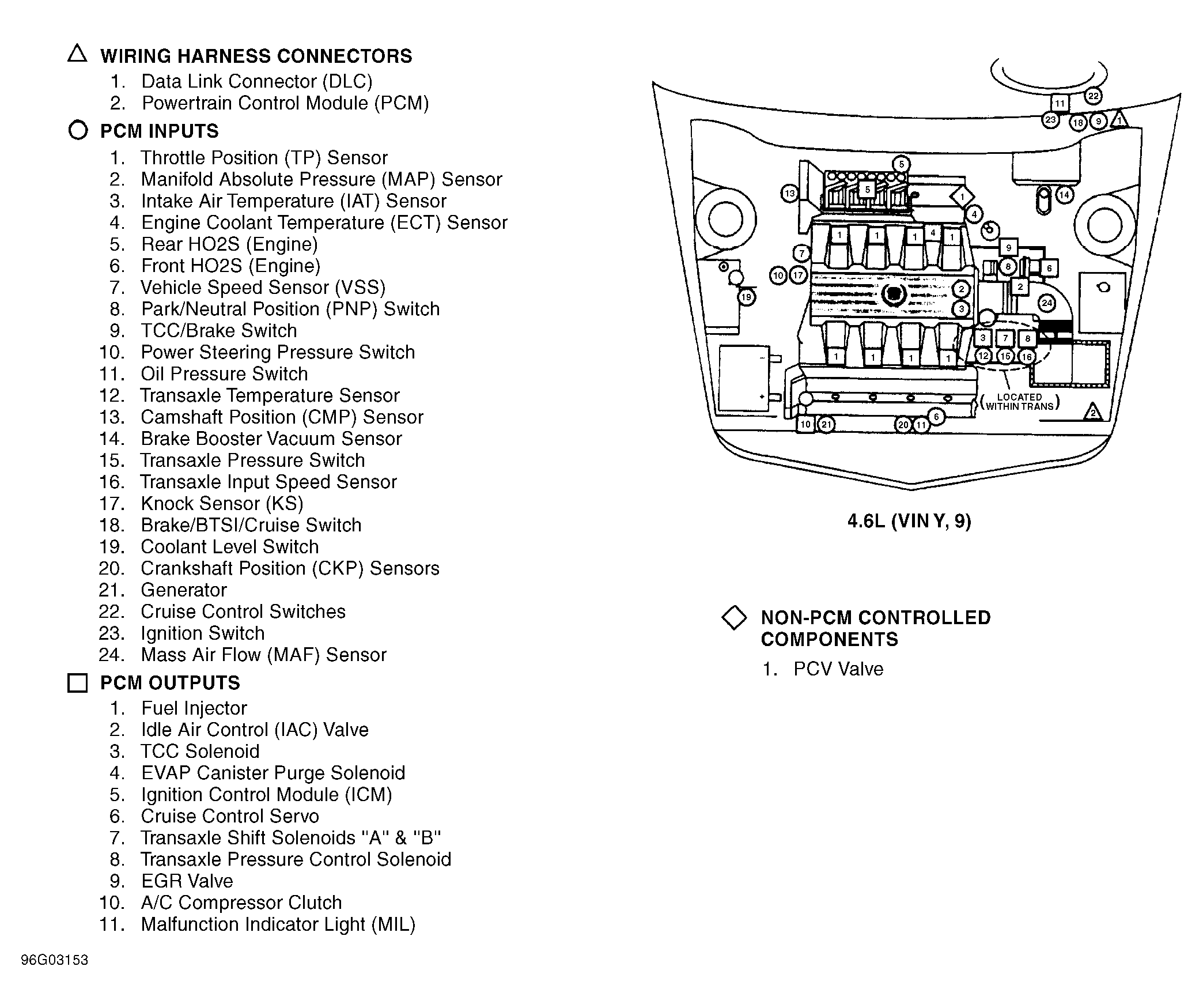

| Powertrain Control Module (PCM) | Left front of engine compartment, under air cleaner housing. See Figure. |
| Radio Interface Module (RIM) | Front of trunk, attached to electronics bay. See Figure. |
| Rain Sense Module | Forward of inside rearview mirror, attached to windshield. |
| Road Sensing Suspension (RSS) Module | On right side of luggage compartment, on seat back. See Figure. |
| Sensing & Diagnostic Module (SDM) | Under driver's seat. |
| Sun Roof Control Module | On right side of windshield header. |
| Turn/Flasher Module | Behind left side of dash, left of steering column. |
| Wiper/Washer Motor Module | On left side of firewall, in engine compartment. |
