Component Locations
NOTE:
Body Control Module (BCM) may also be refered to as Platform Zone Module (PZM).

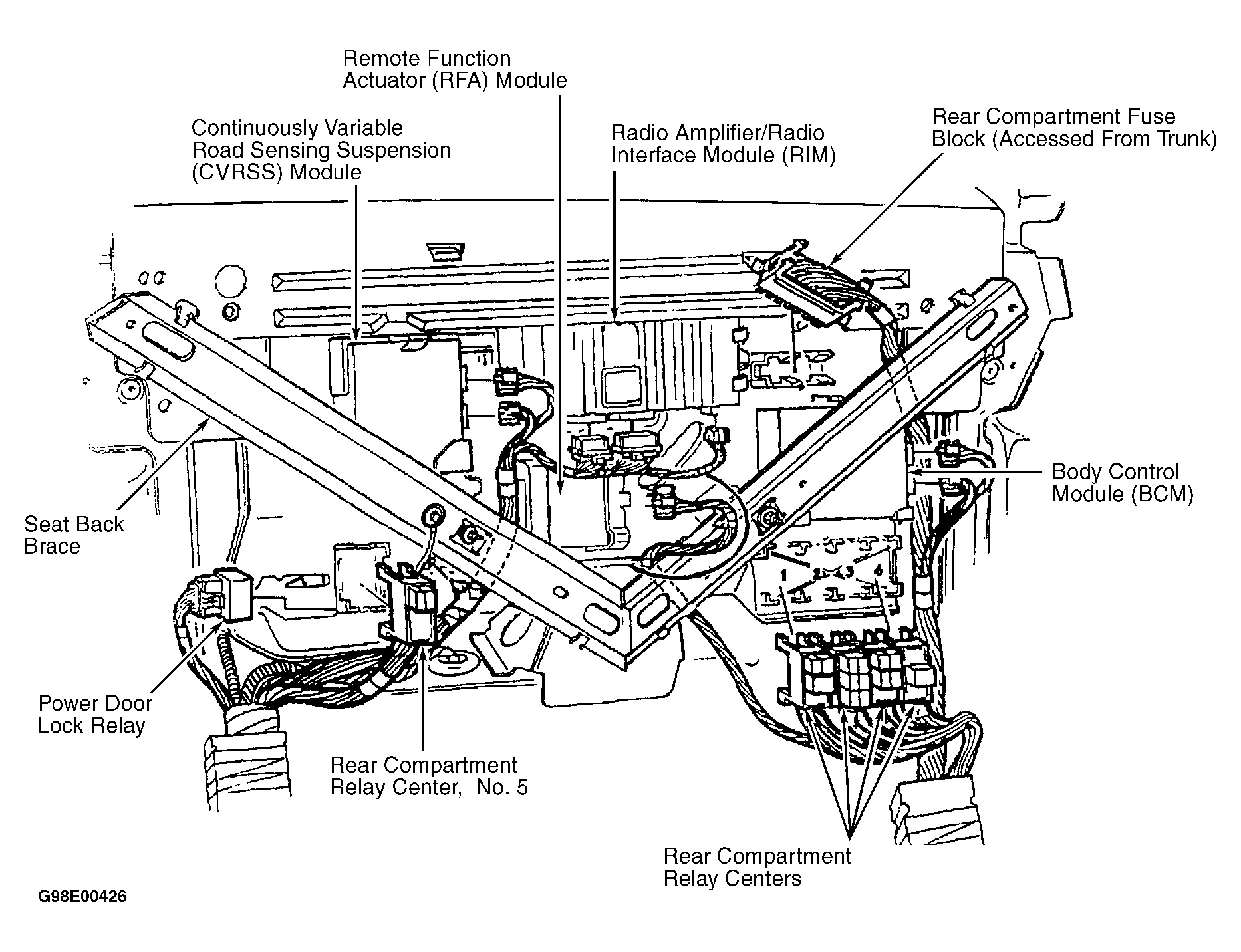

For component locations on electronics bay board, see Figure .
KEYLESS ENTRY COMPONENT LOCATION
| Component | Location |
|---|---|
| Body Control Module (BCM) | Front Of Trunk, Mounted On Electronics Bay Board |
| Data Link Connector | Under Left Side Of Instrument Panel, Near Steering Column |
| Remote Function Actuator (RFA) Module | Front Of Trunk, Mounted On Electronics Bay Board |
| Rear Junction Block | Front Of Trunk, Mounted On Electronics Bay Board |
