| Data Link Connector (DLC) |
Under Left Side Of Instrument Panel, On Hood Release Bracket |
| Ignition Switch |
Under Left Side Of Instrument Panel, Near Base Of Steering Column |
| In-Line Harness Connector C202 |
At Base Of Steering Column |
| Left Underhood Fuse Block |
In Underhood Fuse/Relay Center |
| Powertrain Control Module (PCM) |
Left Front Corner Of Engine Compartment, Under Air Cleaner Housing |
| Right Underhood Fuse Block |
In Underhood Fuse/Relay Center |
| Starter Assembly |
Center Of Engine, Under Intake Manifold |
| Theft Deterrent Relay |
In Underhood Fuse/Relay Center |

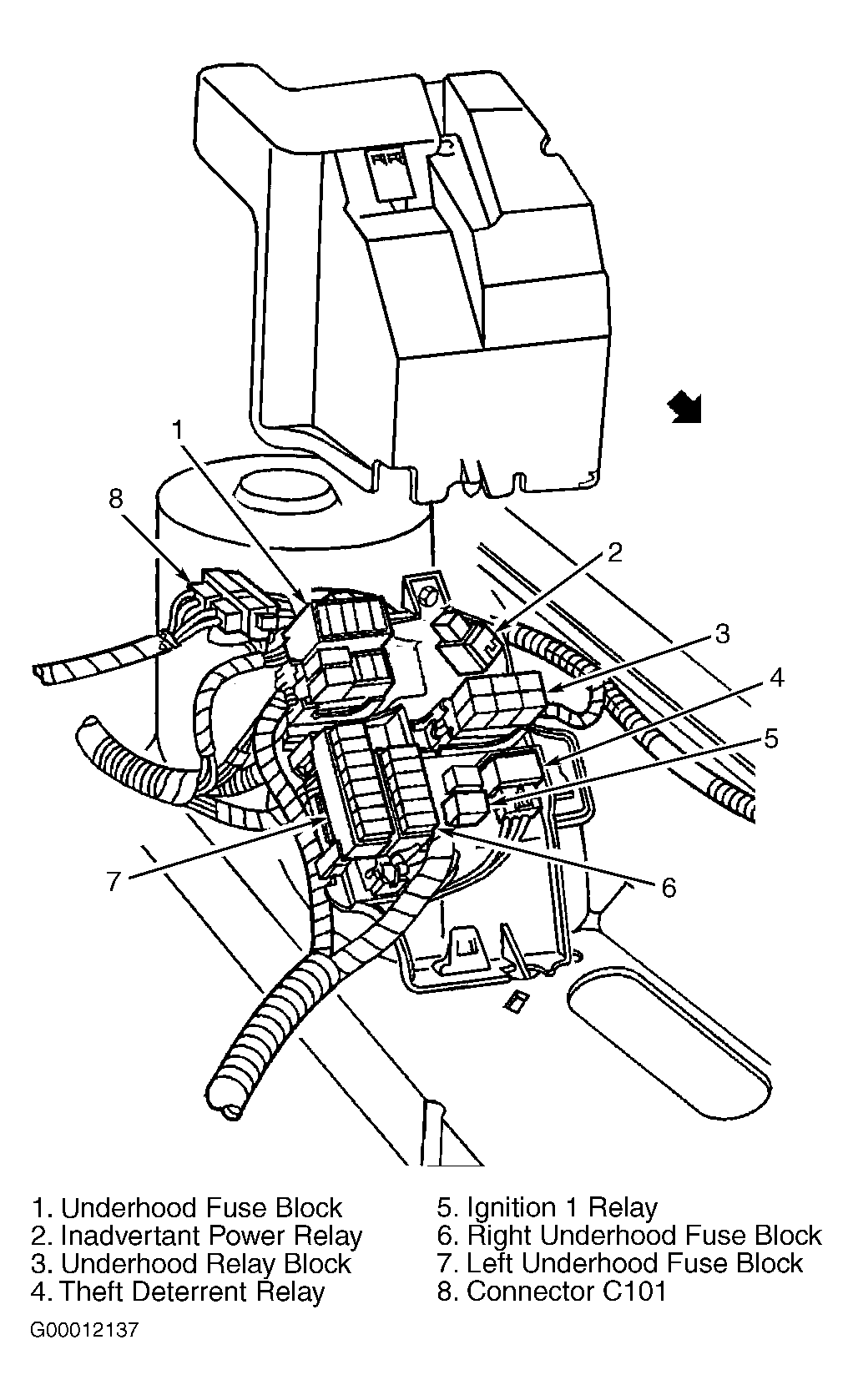

| Underhood Fuse/Relay Center |
Left Side Of Engine Compartment, Mounted To Strut Tower |
