Component Locations

For component locations, refer to illustrations. See Fig 1 .

COMPONENT LOCATIONS

Component	Location
Body Control Module	Behind Rear Seat In Passenger Compartment
Data Link Connector	Below Left Side Of Instrument Panel, On Hood Release Bracket
Remote Control Door Lock Receiver	Behind Rear Seat In Passenger Compartment
Rear Fuse Block	Behind Rear Seat In Passenger Compartment

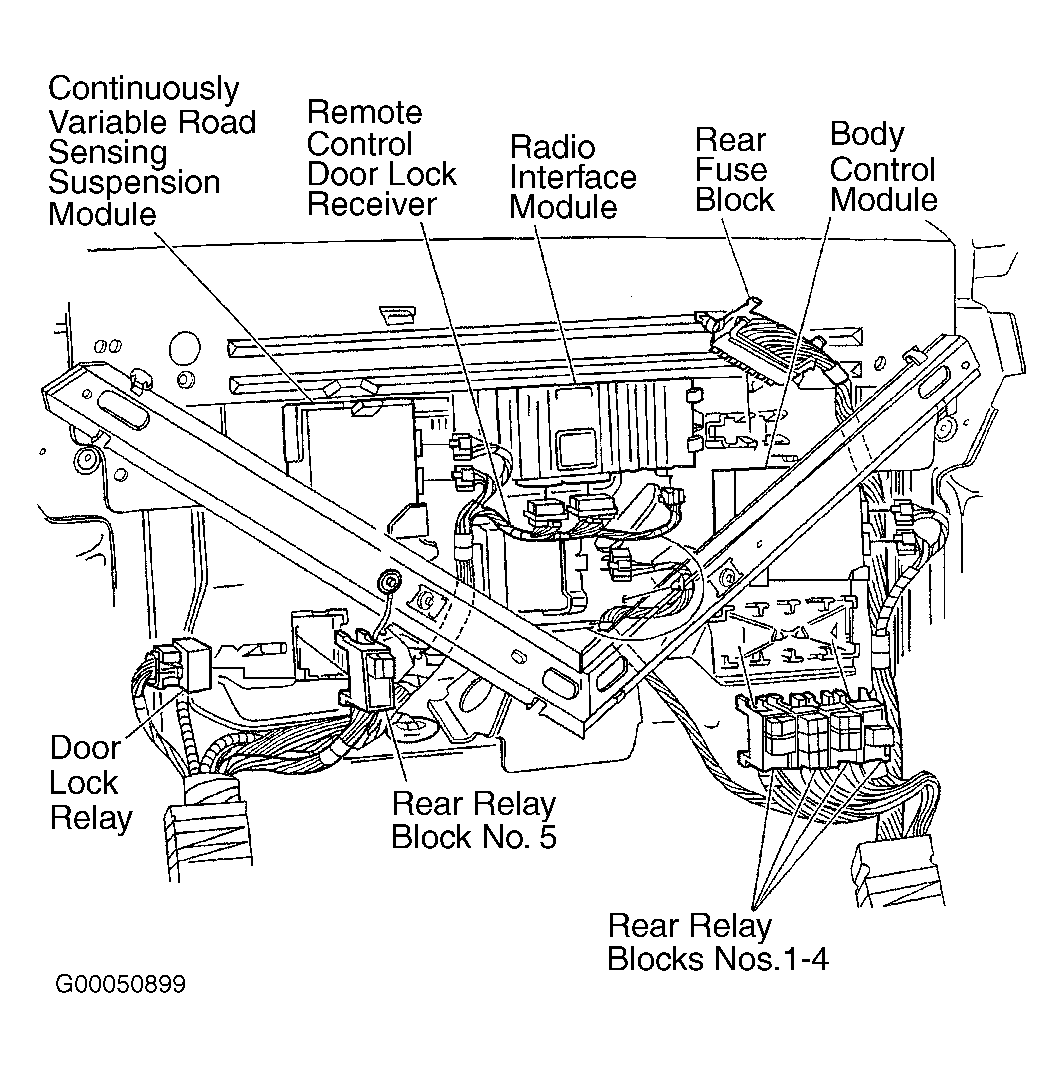

Fig 1: Locating Remote Control Door Lock Receiver

Courtesy of GENERAL MOTORS CORP.
