Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| Blower Motor Resistor Module (Rear) | Under center console, near rear blower motor. |

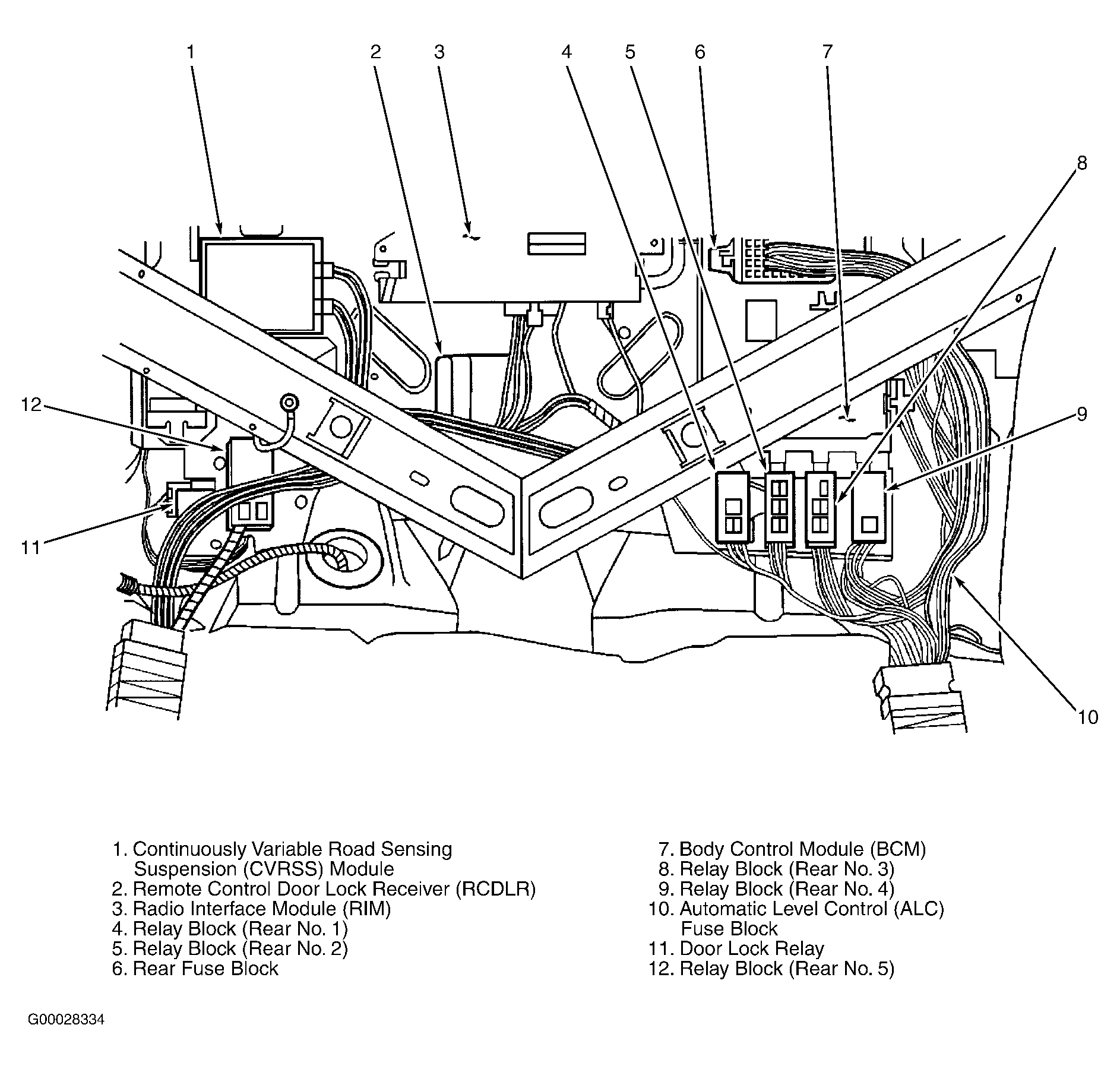

| Body Control Module (BCM) | Behind left side of rear seat back. See Figure . |
| Continuously Variable Road Sensing Suspension (CVRSS) Module | Behind upper right side of rear seat back. See Figure . |
| Cruise Control Module (CCM) | Left rear of engine compartment, on strut tower. |
| Electronic Brake Control Module (EBCM) | Left front corner of engine compartment, on brake pressure modulator valve. |
| Heated Seat Module (Driver) | Under driver's seat, on seat adjuster frame. |
| Heated Seat Module (Front Passenger) | Under right front seat, on seat adjuster frame. |
| HVAC Control Module | Behind center of dash, below radio. |
| HVAC Control Processor | Behind right side of dash, behind glove box. |
| Ignition Control Module (ICM) Bank 1 | On top of right cam cover. |
| Ignition Control Module (ICM) Bank 2 | On top of left cam cover. |
| Inflatable Restraint Sensing & Diagnostic Module (SDM) | Under driver's seat. |
| Memory Mirror Module (MMM) | Under left side of dash, above brake pedal. |
| Memory Seat Module (MSM) | Under driver's seat. |
| Power Sun Roof Express Module | Above headliner, near right sunshade. |
| Powertrain Control Module (PCM) | Left front of engine compartment, under air cleaner housing. |
| Radio Interface Module (RIM) | Behind upper center of rear seat back. See Figure . |
| Remote Control Door Lock Receiver (RCDLR) | Behind center of rear seat back. See Figure . |
| Turn Signal Flasher Module | Behind left side of dash, near left kick panel. |
| Vehicle Communication Unit (VCU) | Behind rear seat back. |
| Vehicle Interface Unit (VIU) | Behind rear seat back. |
| Windshield Wiper/Washer Module | On left side of firewall, in engine compartment. |
