Component Locations

COMPONENT LOCATIONS

Component

Location

Powertrain Control Module (PCM)

On Left Front Corner Of Engine Compartment, Under Air Cleaner Housing

Starter ⁽¹⁾

In Center Of Engine, Below Intake Manifold

Starter Relay ⁽²⁾

On Left Side Of Engine Compartment, Near Right MaxiFuse(R) Block

Starter Solenoid ⁽¹⁾

On Center Of Engine, Below Intake Manifold, On Starter Motor

⁽¹⁾	See Fig 1 .

⁽²⁾	See Fig 2 .

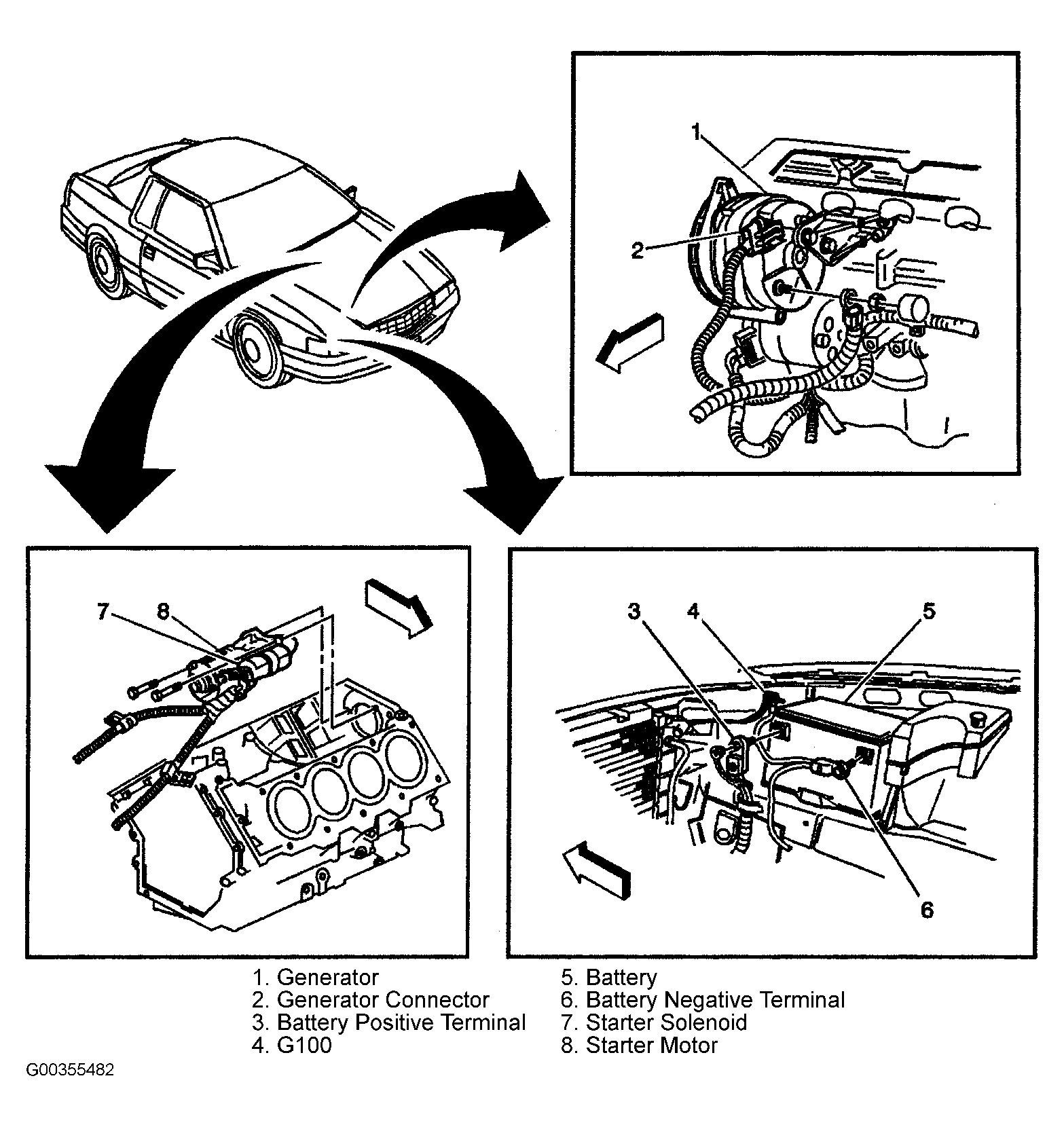

Fig 1: Locating Starter

Courtesy of GENERAL MOTORS CORP.

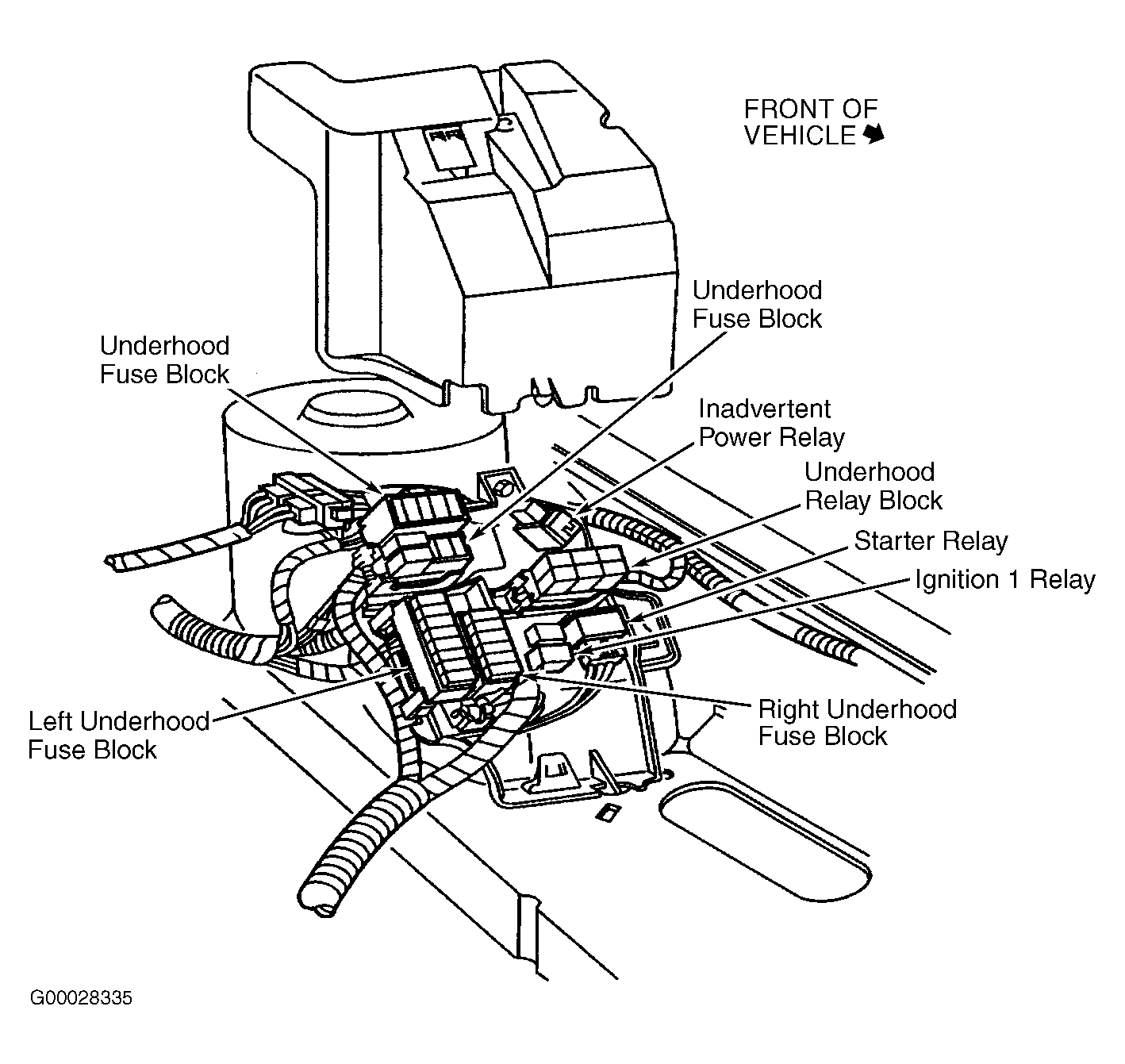

Fig 2: Locating Starter Relay

Courtesy of GENERAL MOTORS CORP.
