Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| Cruise Control Module | Under dashboard on bracket at right of steering column. |

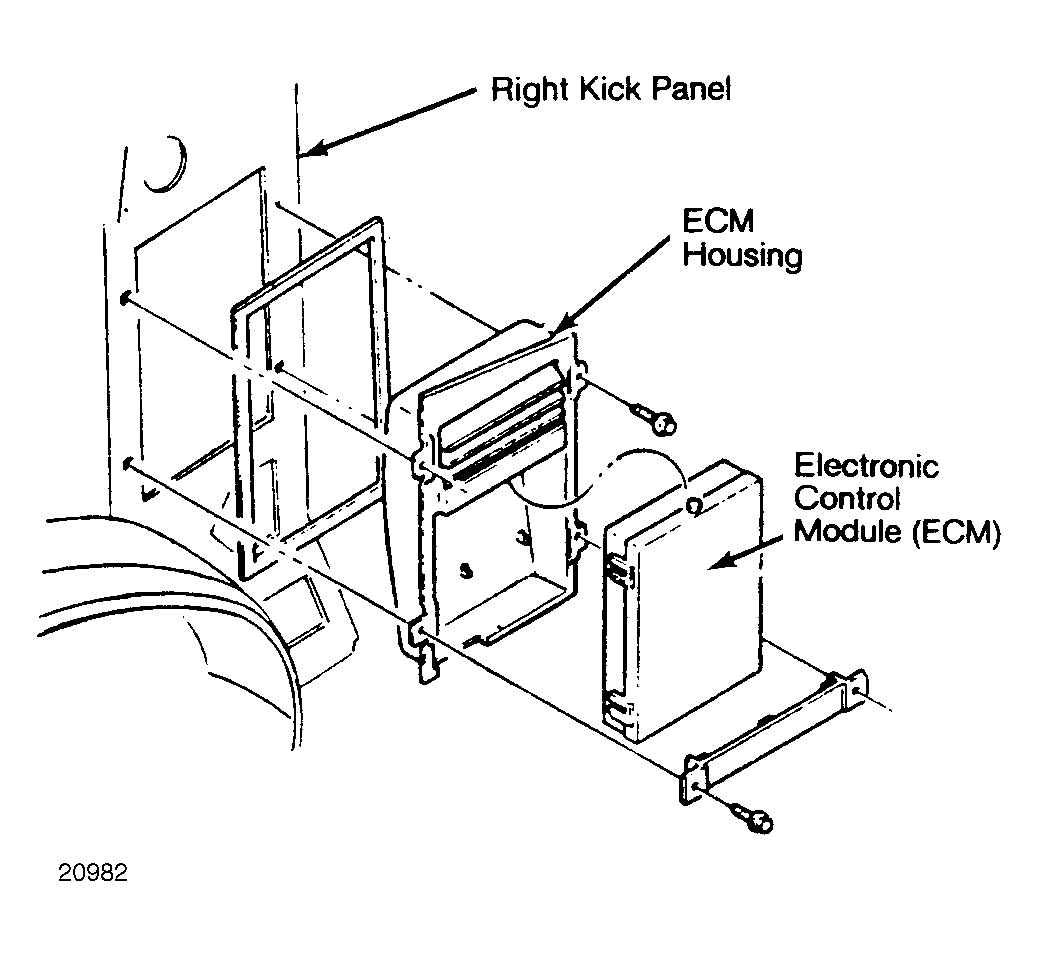

| Electronic Control Module (ECM) | Behind right kick panel. See Figure. |

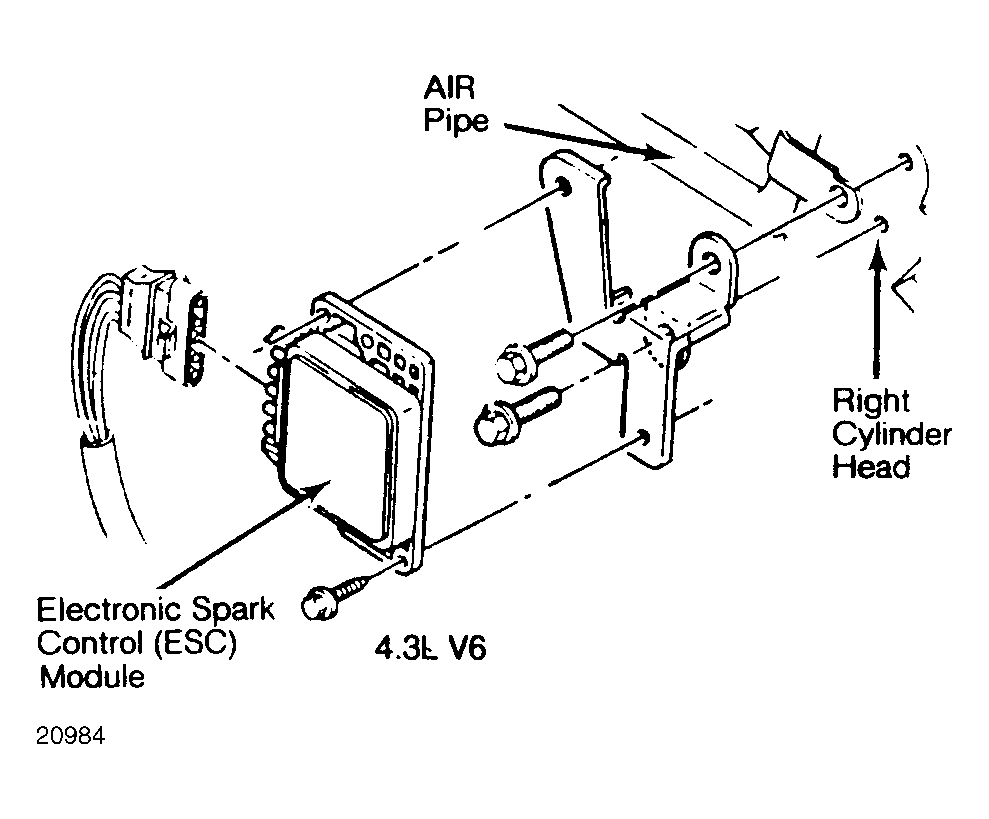

| Elect. Spark Cntrl. (ESC) Module (4.3L) | On bracket at rear of right cylinder head. See Figure. |
| Power Door Lock/Mirror Module | Under left side of dashboard. |
