Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|

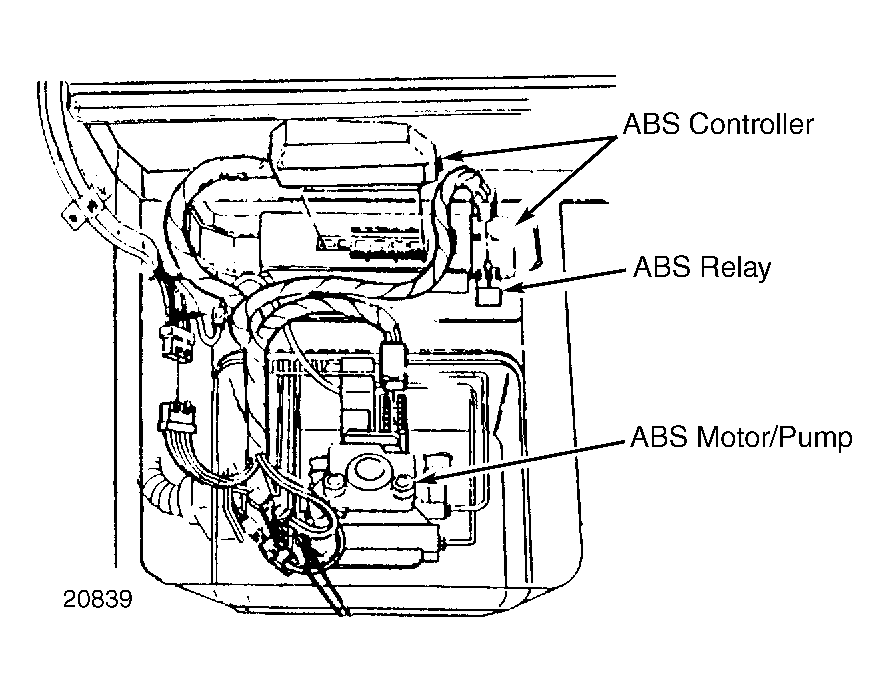

| ABS Controller | In bottom left corner of rear storage compartment. See Figure. |
| ATC Air Door Module | Below right side of dash. |
| ATC Control Unit | Below left side of dash. |

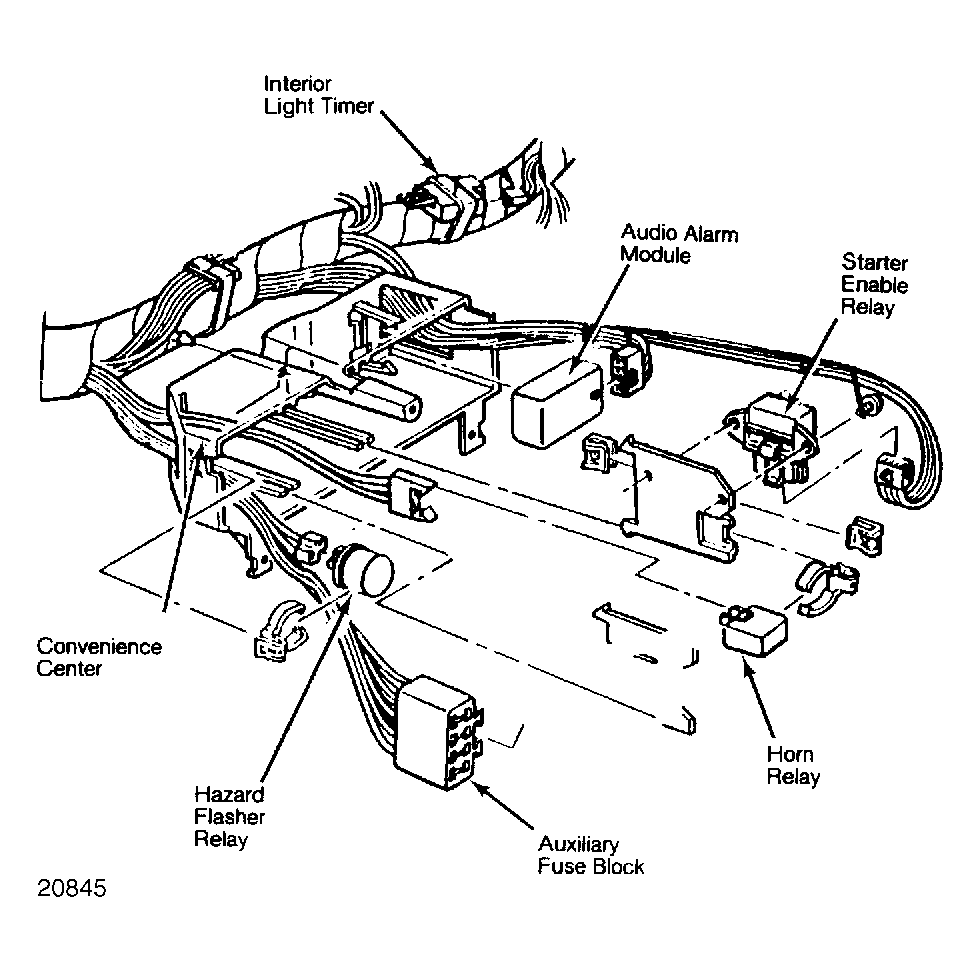

| Audio Alarm Module | In convenience center. See Figure. |
| Blower Control Module | In left side of evaporator housing. |
| Cruise Control Module | Built into LCD instrument cluster. |
| Defroster Control Unit | Behind center of dash. |
| Diode Module | In right rear corner of vehicle. |

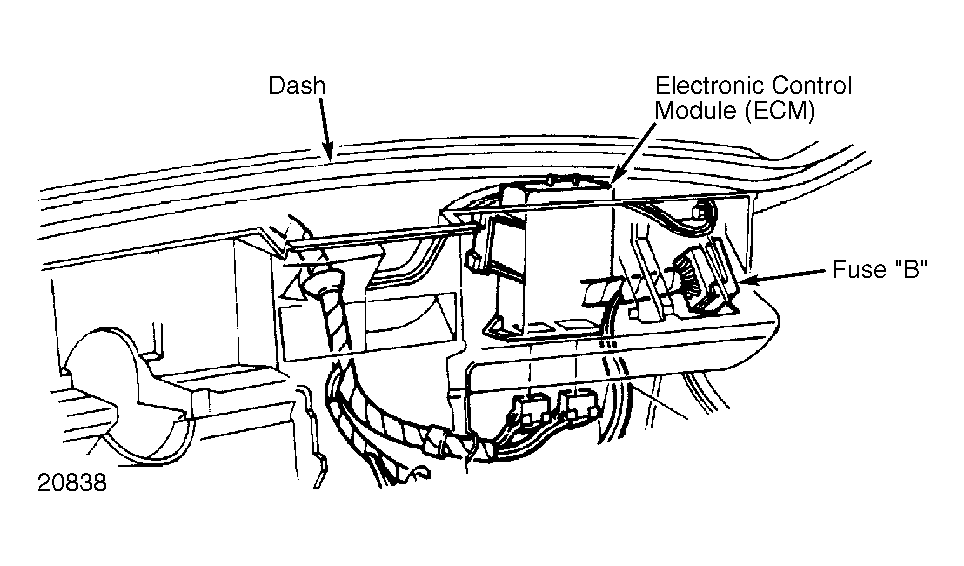

| Electronic Control Module (ECM) | Behind right side of dash. See Figure. |

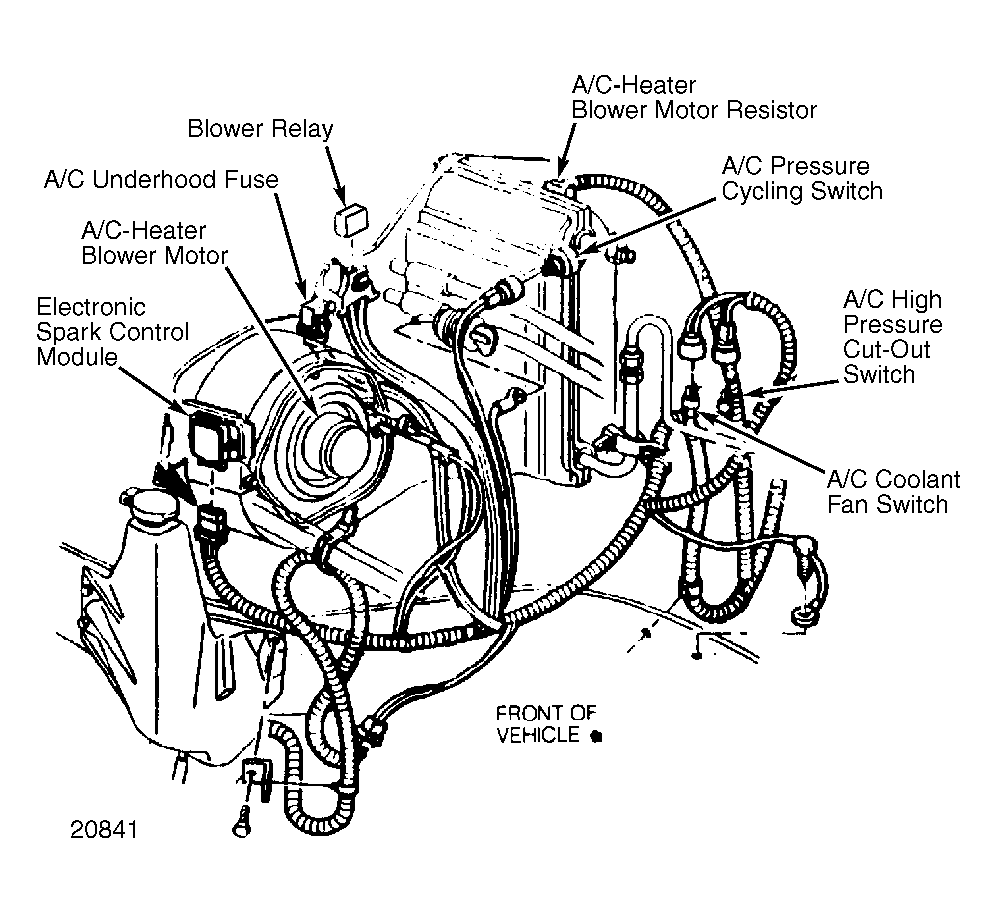

| Electronic Spark Control Module | On right side of A/C-heater blower housing. See Figure. |
| MAF Burn Off Module | Behind right side of dash. |
| Theft Deterrent Control Module | Behind right side of dash. |
| VATS Decoder Module | Below right side of dash, near ECM. |
| Wiper/Washer Motor Module | On left side of firewall. |
