Control Units
CONTROL UNITS LOCATION
| Component | Location | ||
|---|---|---|---|
| Audio Alarm Module | Integral with convenience center. | ||
| Cruise Control Module | Behind bottom center of dash. | ||
| Distributorless Ignition System (DIS) Module | |||
| VIN W | |||

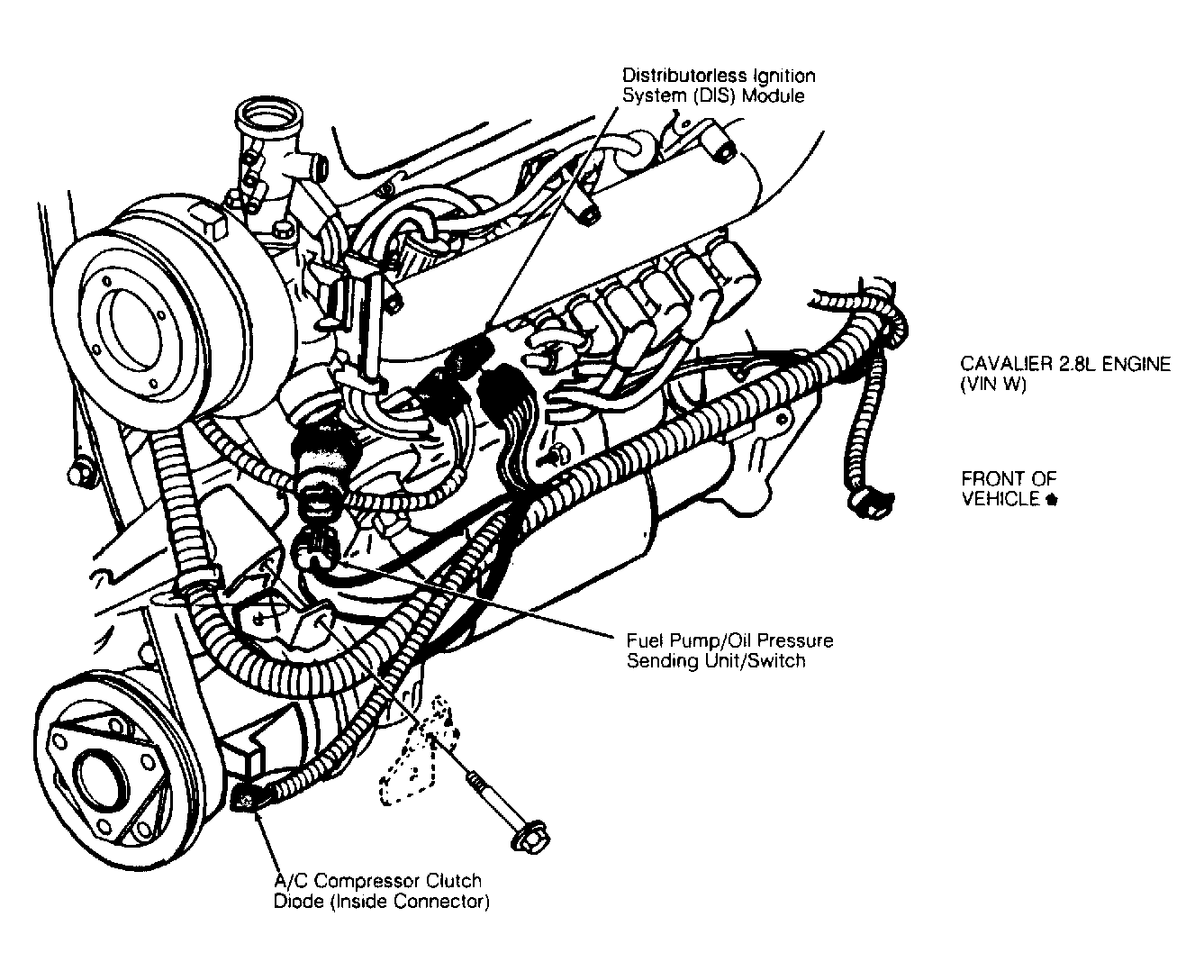

| 2.8L PFI | On left side of engine, below exhaust manifold. See Figure . | ||
| 2.8L TBI | On left side of engine, below exhaust manifold. See Figure . | ||
| VIN 1 | On right side of engine, below intake manifold. See Figure . | ||
| Electronic Control Module (ECM) | |||

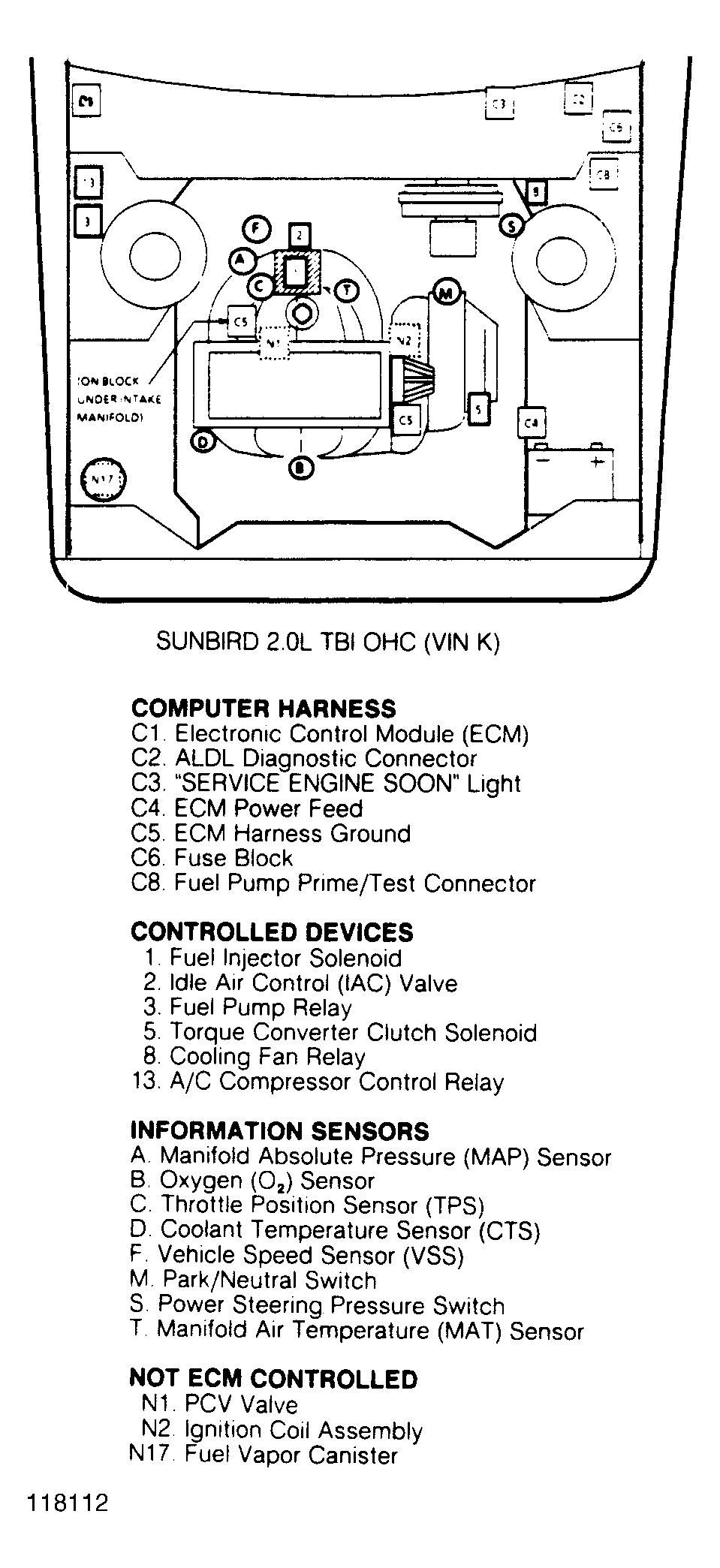

| 2.0L TBI-OHC | Behind right side of dash, near glove box. See Figure . | ||

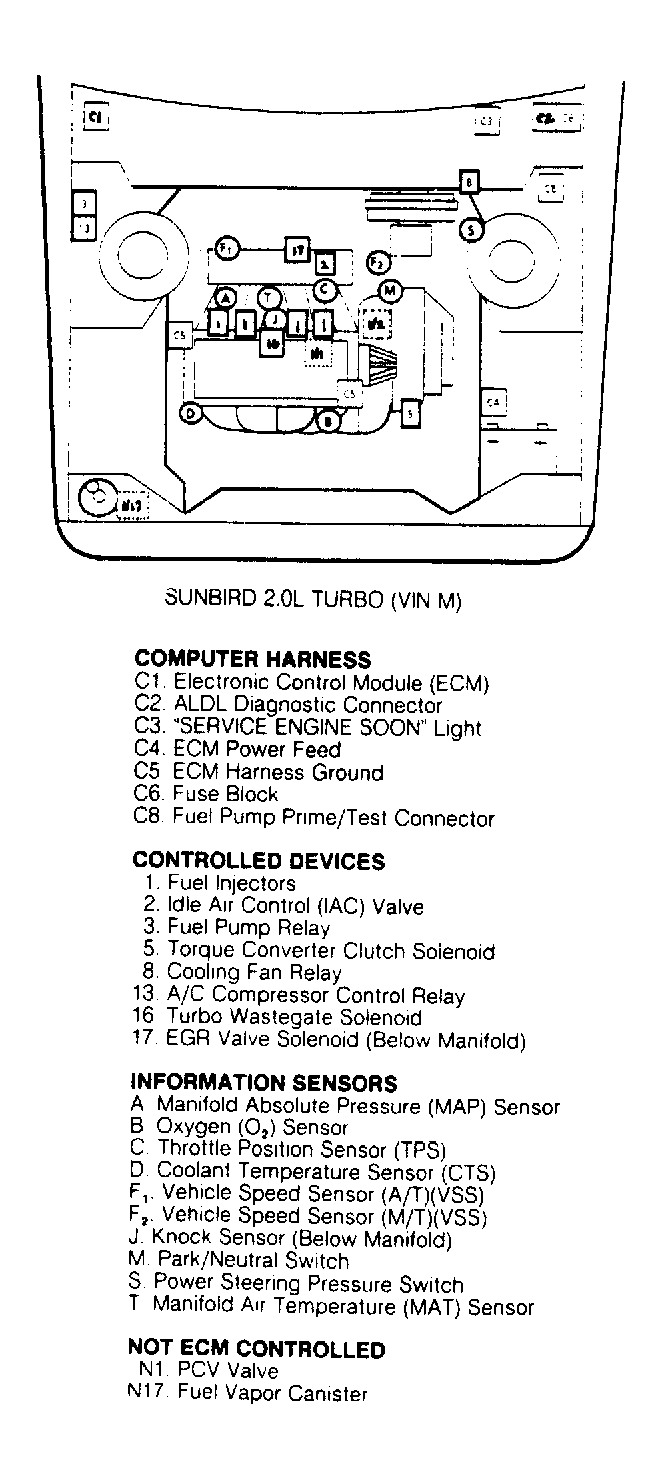

| 2.0L Turbo | Behind right side of dash, near glove box. See Figure . | ||

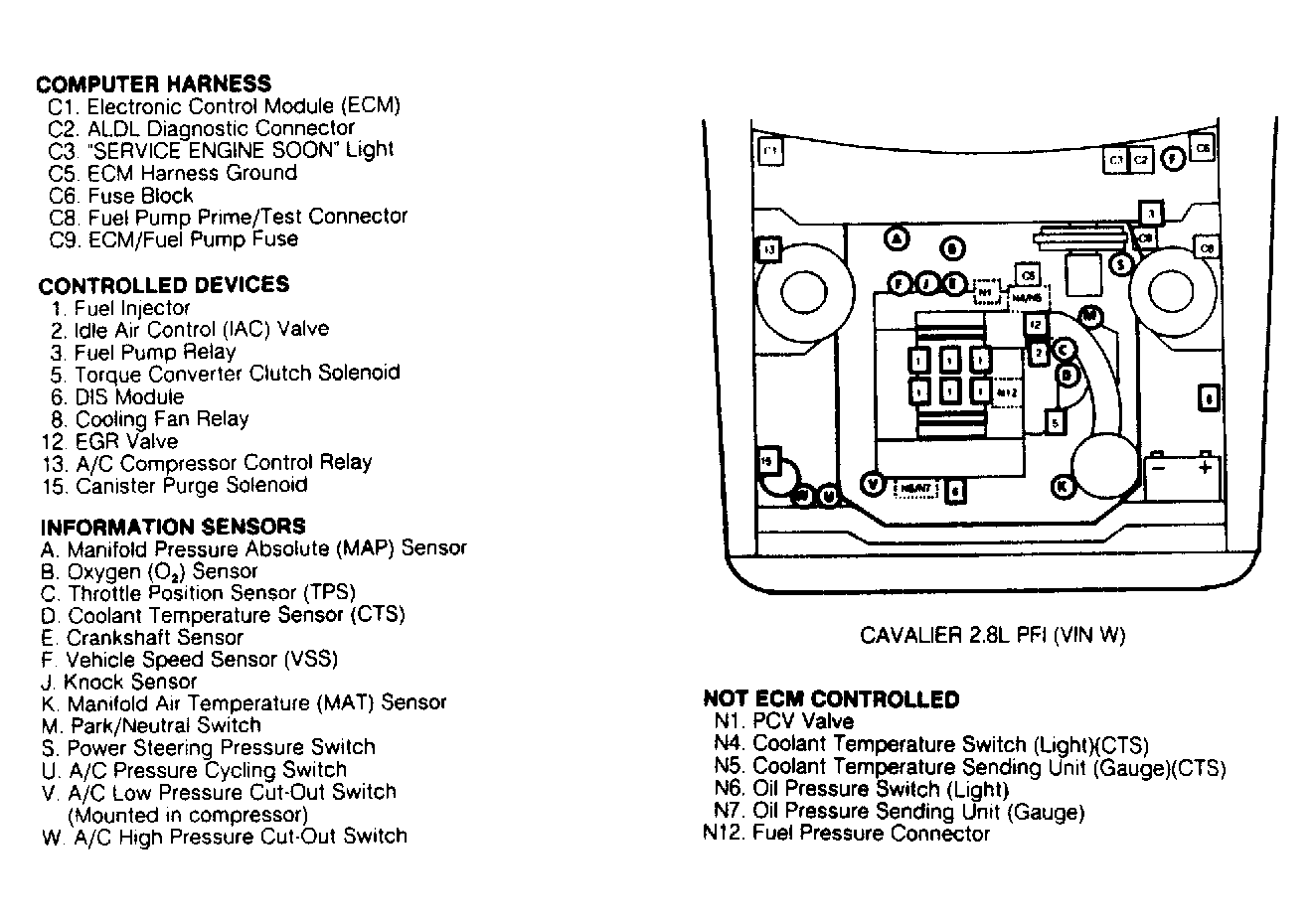

| 2.8L PFI | Behind right side of dash, near glove box. See Figure . | ||

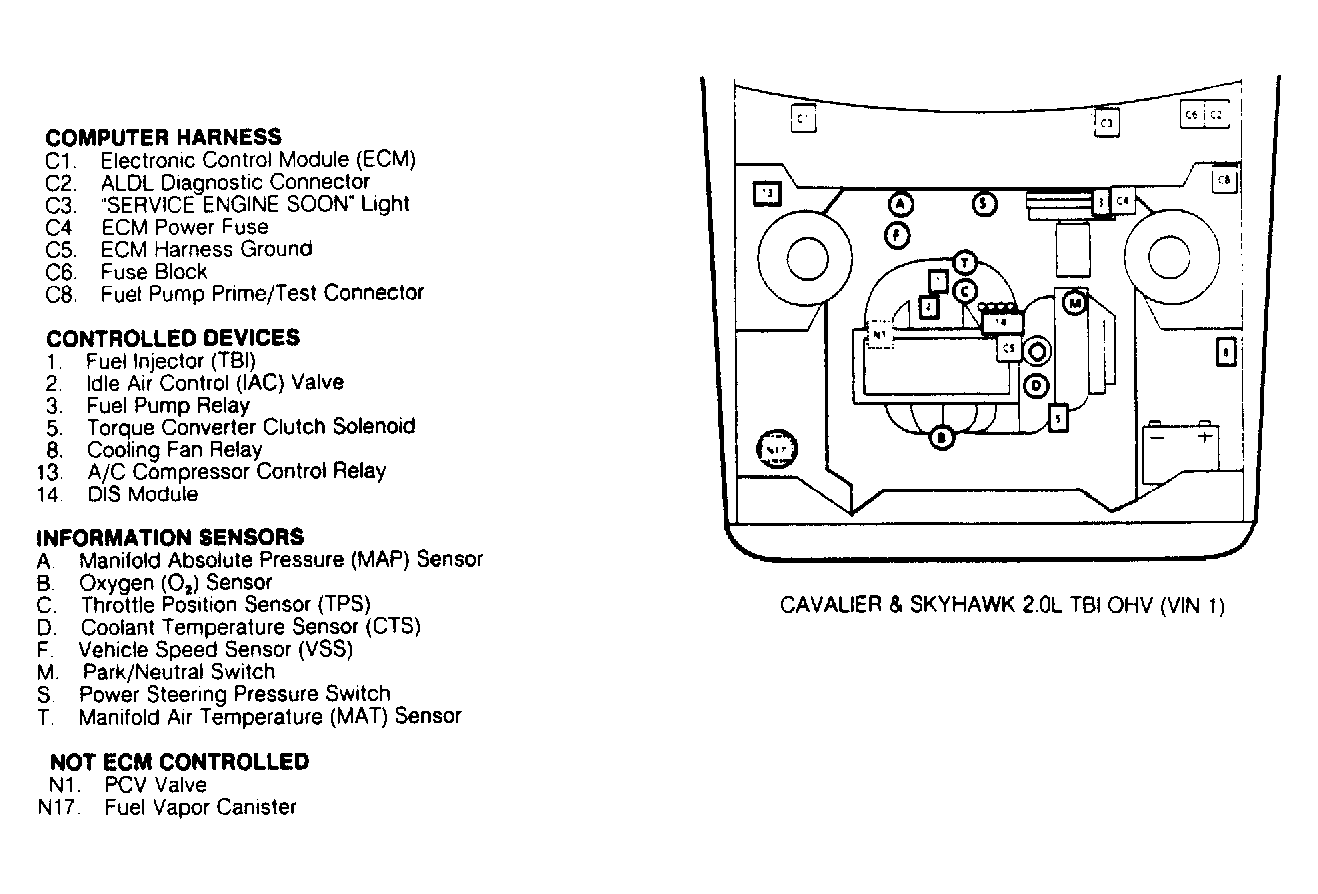

| 2.0L TBI-OHV | Behind right side of dash, near glove box. See Figure . | ||
| Headlight Door Module | On rear of left front strut tower. | ||
| Light Dimmer Module | Behind dash, left of steering column. | ||
