Front Suspension: Description

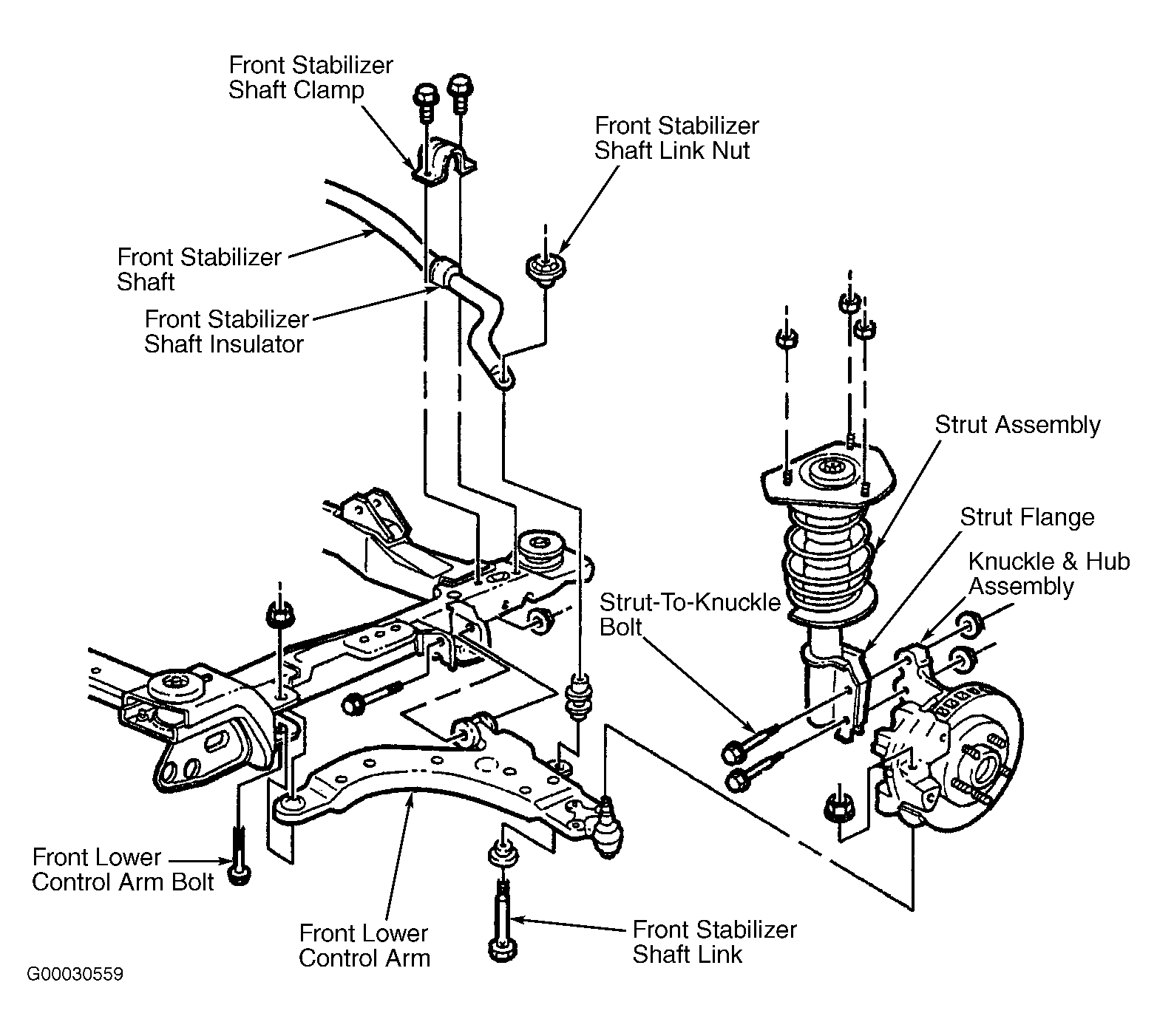

The front suspension is a strut and spring design with stabilizer bar. See Fig 1. Upper end of strut is attached to body with mount and bearing to allow for turning. Lower end of strut is attached to steering knuckle which pivots on lower control arm ball joint. The strut provides shock absorption and structural integrity.
