Starting System: Overhaul

NOTE: Use appropriate illustration for exploded view of starter. See Fig 1 or Fig 2 .
Fig 1: Exploded View Of Mitsubishi Starter (Automatic Transaxle)
G91I01796Courtesy of GENERAL MOTORS CORP.

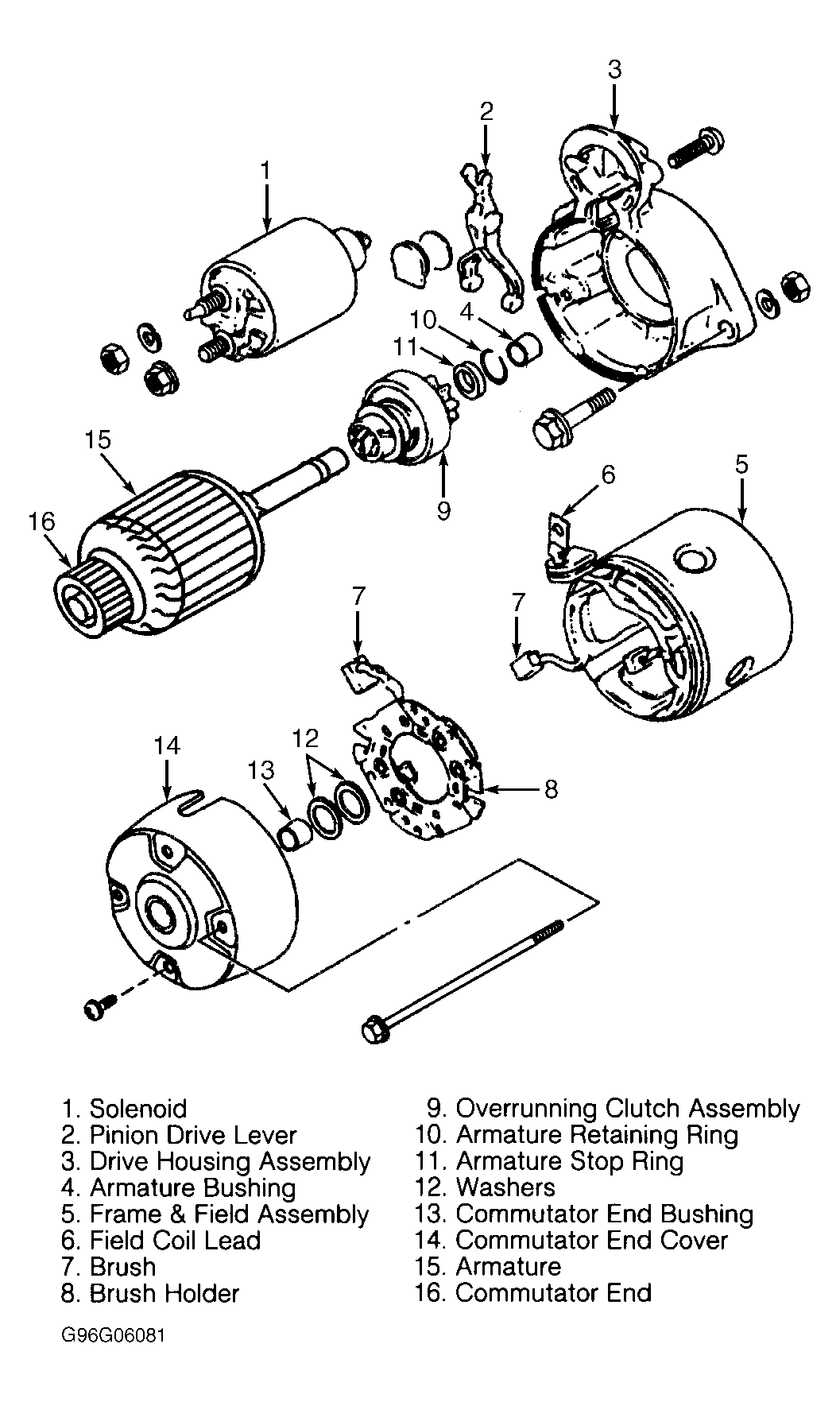

Fig 2: Exploded View Of Nippondenso Direct-Drive Starter (Manual Transaxle)
G96G06081Courtesy of GENERAL MOTORS CORP.
