Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component | Location |
|---|---|
| Convenience Center | Right side of dash, behind glove box. |
| I/P Fuse Block | Behind lower left side of dash. |
| In-Line Fuse A & B | Behind center of dash. |

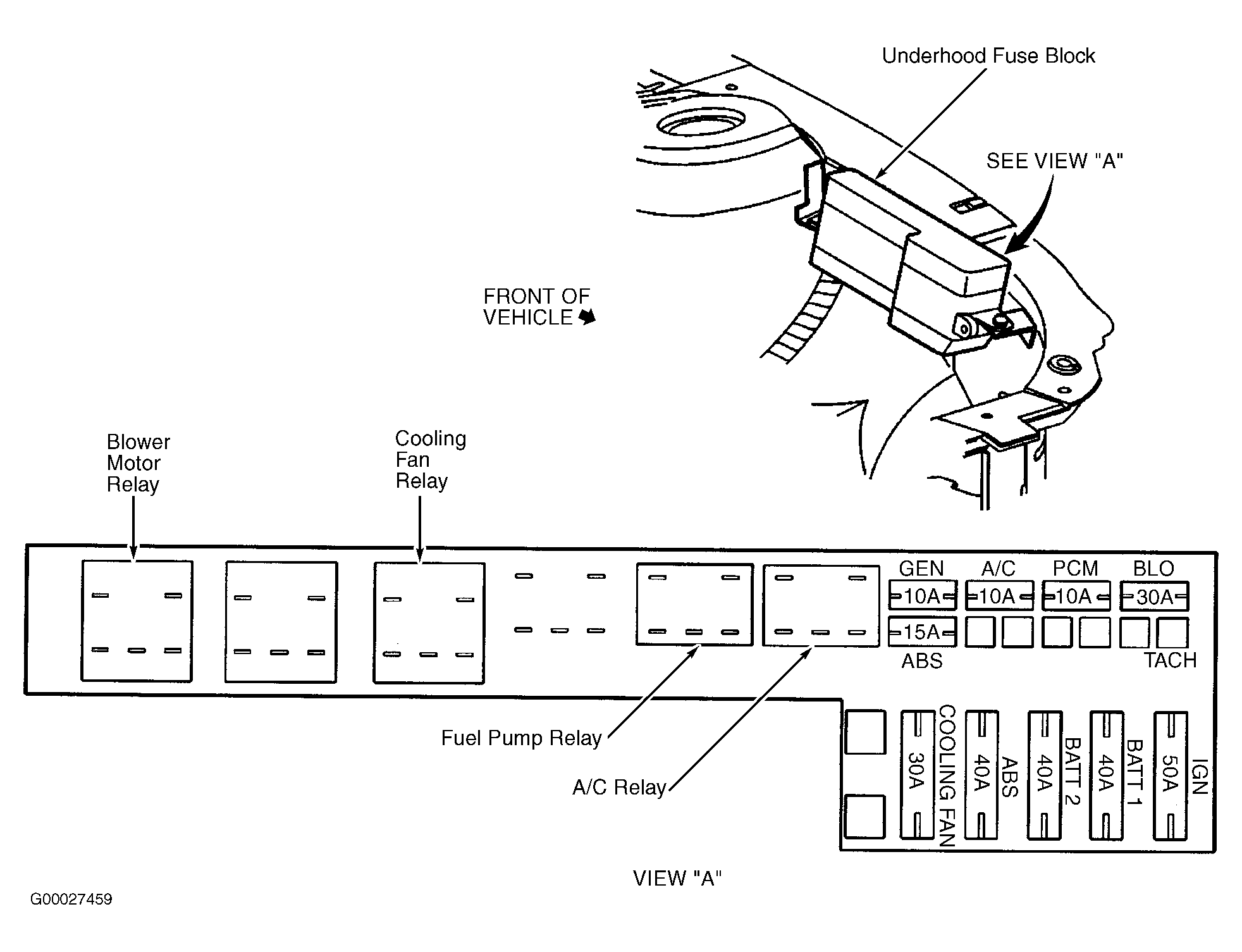

| Underhood Fuse Block | Left front of engine compartment. See Figure. |
