Control Units

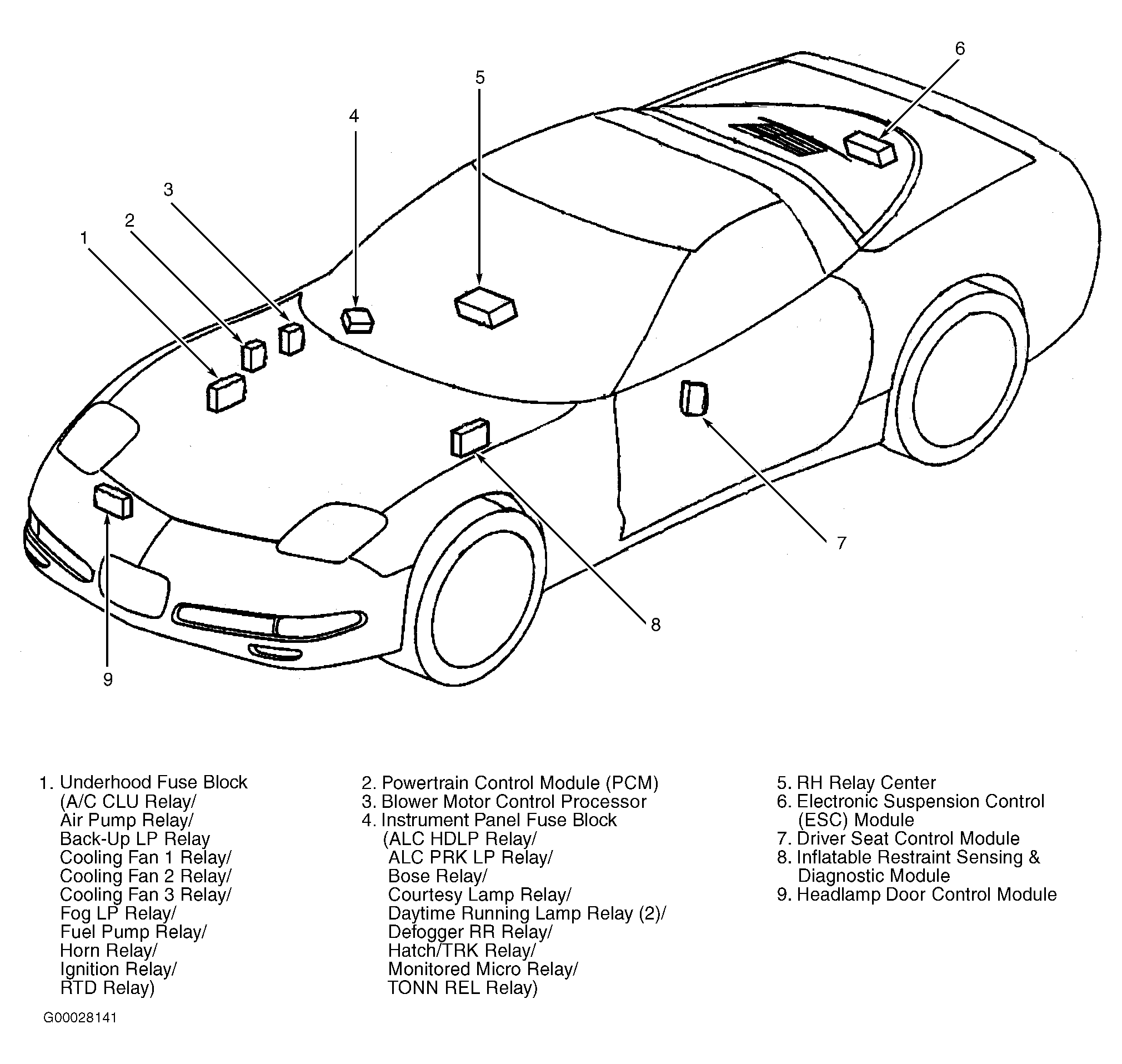

CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| Blower Motor Control Processor | Behind right side of dash. See Figure . |
| Body Control Module (BCM) | Mounted on toe board, in right footwell. |
| Bose Signal Processor | Under left side of dash, above accelerator pedal. |
| Driver Door Module (DDM) | In lower center of respective door. |
| Driver Seat Control Module | On underside of driver's seat. See Figure . |
| Electronic Brake Control Module (EBCM) | At left front side of engine compartment, on frame rail. |
| Electronic Suspension Control (ESC) Module | In rear compartment, inside left storage compartment. See Figure . |
| Headlamp Door Control Module | In lower right front of engine compartment. See Figure . |
| HVAC Control Module | Center of dash, under radio. |

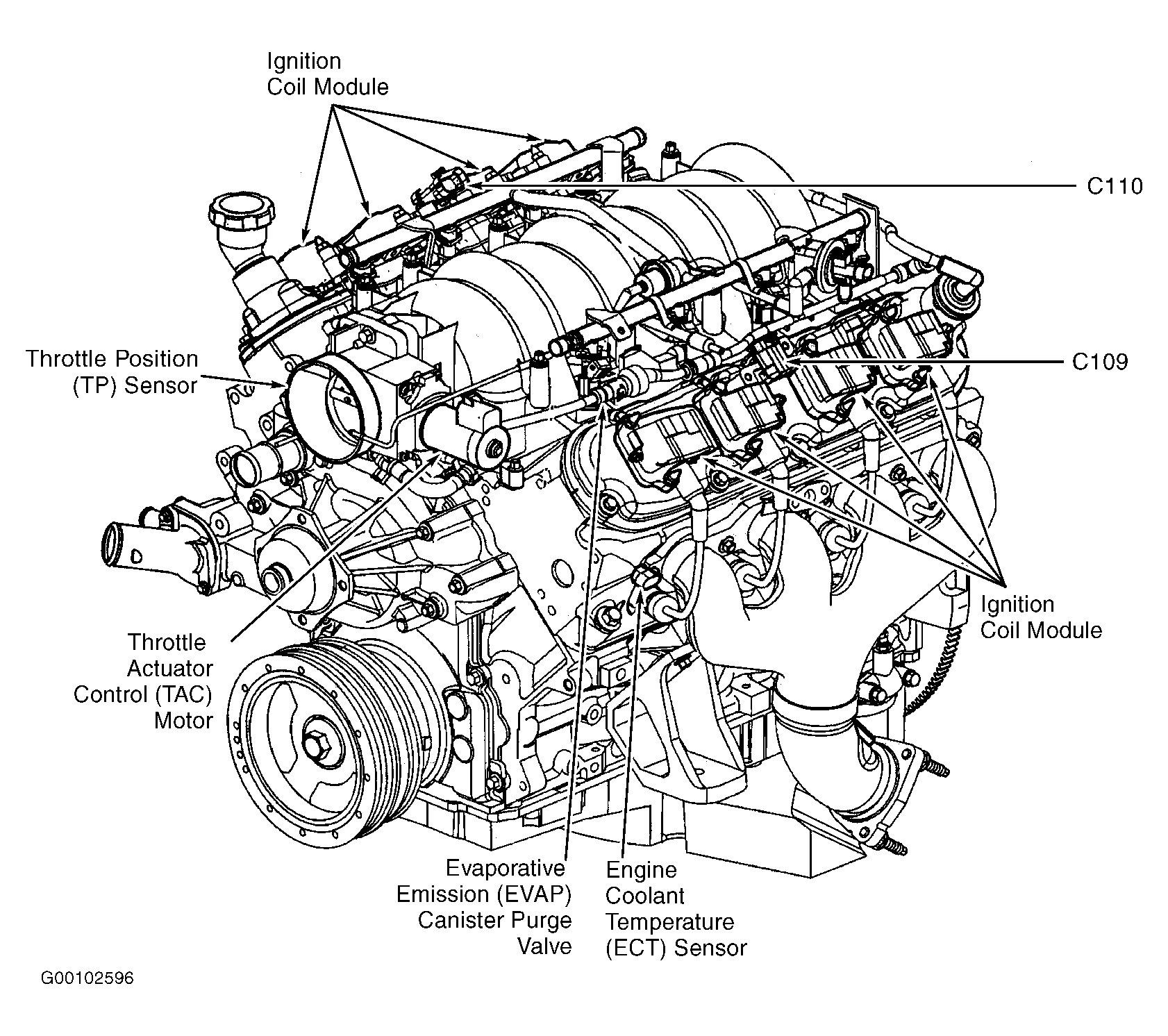

| Ignition Coil Module (8) | On valve covers, at top of respective cylinders. See Figure . |
| Inflatable Restraint dash Module | At right side of dash. |
| Inflatable Restraint Sensing & Diagnostic Module | Below center of dash, under HVAC control head. See Figure . |
| Passenger Door Module (PDM) | Bottom center of door, rear of speaker. |
| Powertrain Control Module (PCM) | Behind right front fender, between wheelhouse & dash panel. See Figure . |
| Radio Antenna Module (Coupe) | Behind lower "B" pillar trim panel. |
| Remote Control Door Lock Receiver | On left side of rear compartment. |
| Throttle Actuator Control (TAC) Module | On PCM, below battery. |
| Vacuum Control Assembly | On right side of HVAC unit, right of blower motor. |
