Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component | Location |
|---|---|
| Air Bag Fuse | In SIR harness. |
| Blower Fuse | Above junction block. |

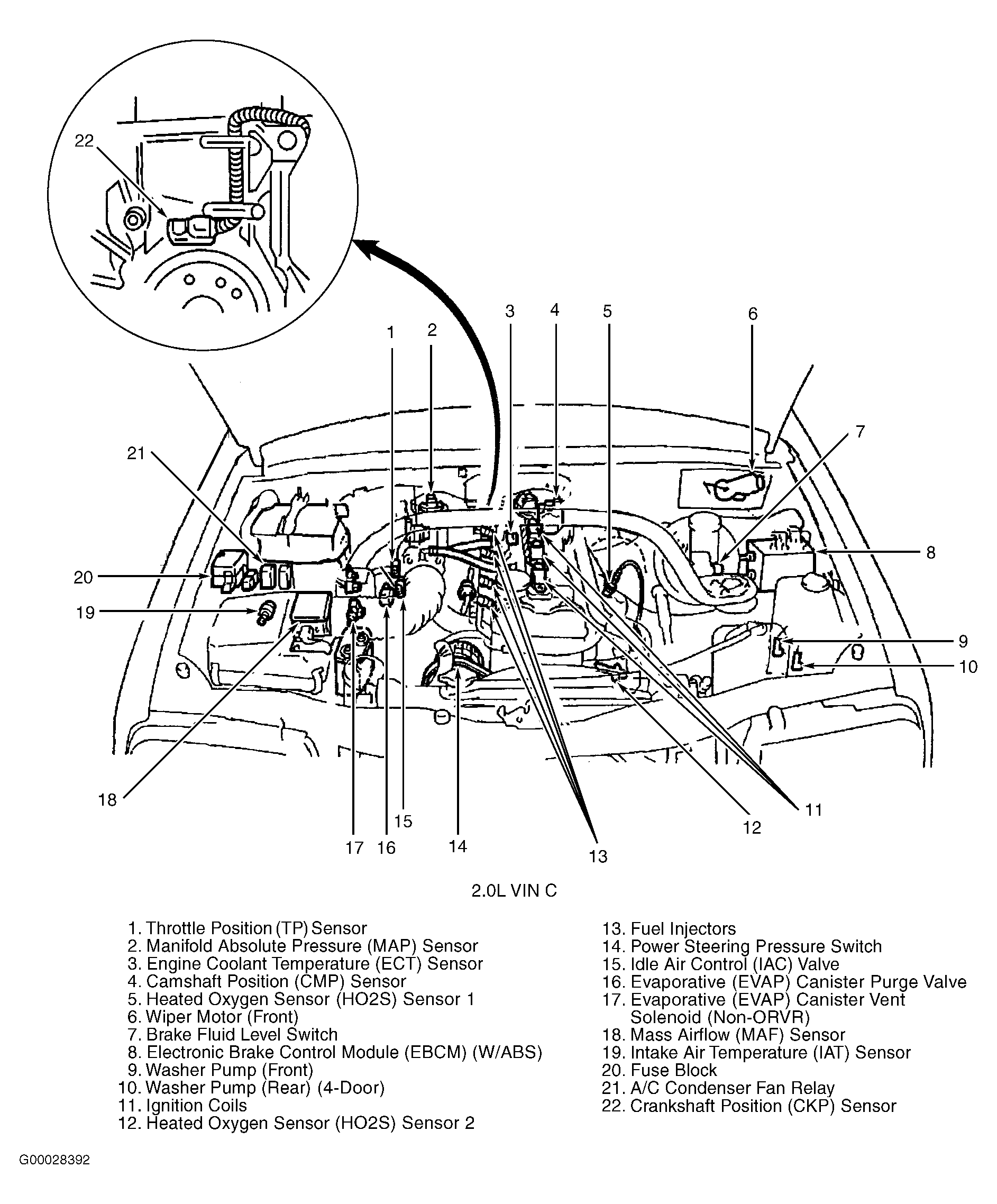

| Fuse Block (2.0L VIN C) | On right side of engine compartment, in front of battery. See Figure . |
| Fuse Block (2.5L VIN 1) | On right side of engine compartment, in front of battery. |

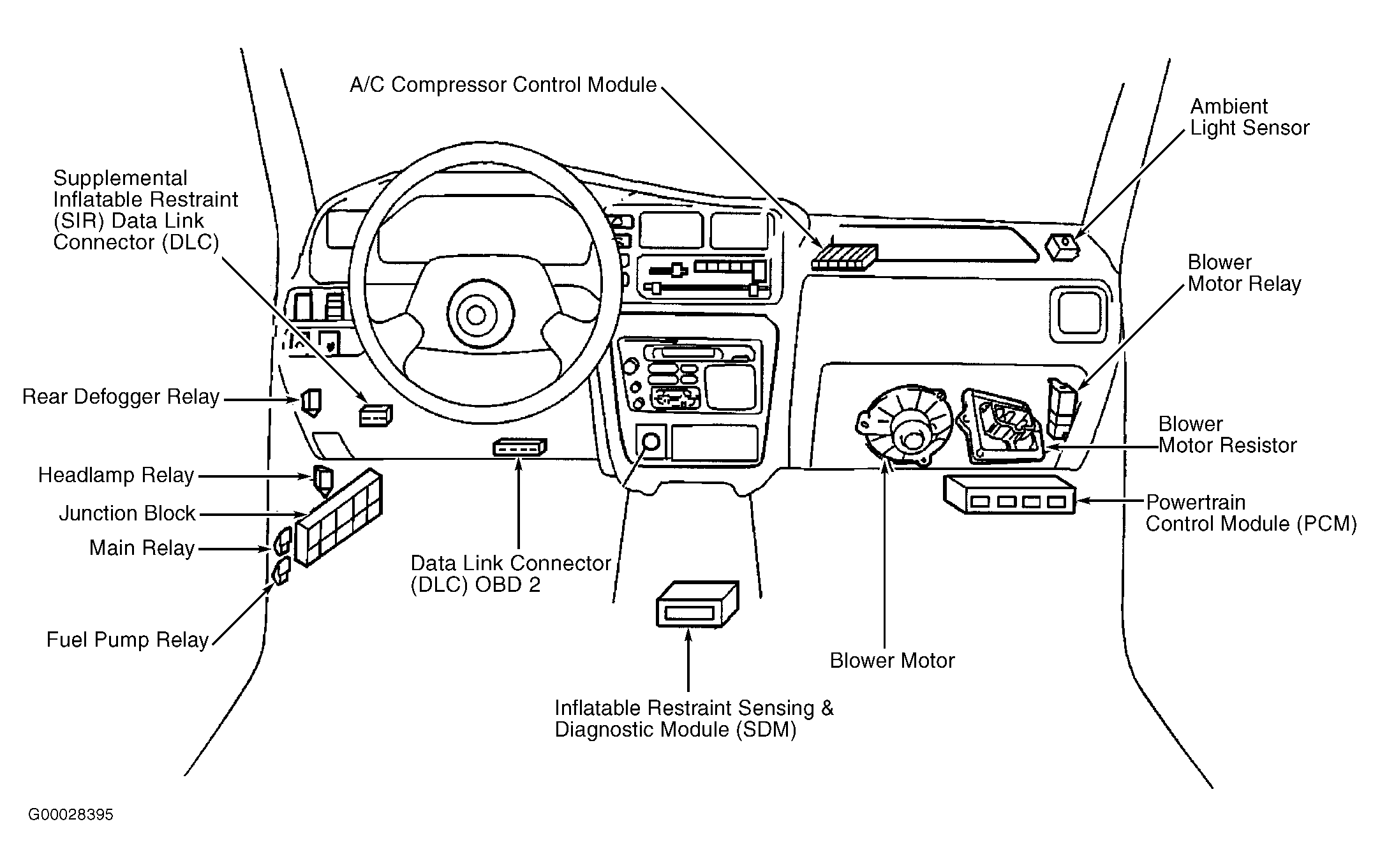

| Junction Block | In left kick panel. See Figure . |
