Removal & Installation: Generator: Installation

  1. Position generator to engine.
  2. Install positive battery lead to generator.
  3. Install generator output BAT terminal nut. Tighten generator output BAT terminal nut to 15 ft. lbs. (20 N.m).
  4. Install protective boot to generator output BAT terminal.
  5. Connect electrical connector to generator.
    6. NOTE: Do not tighten bolts.

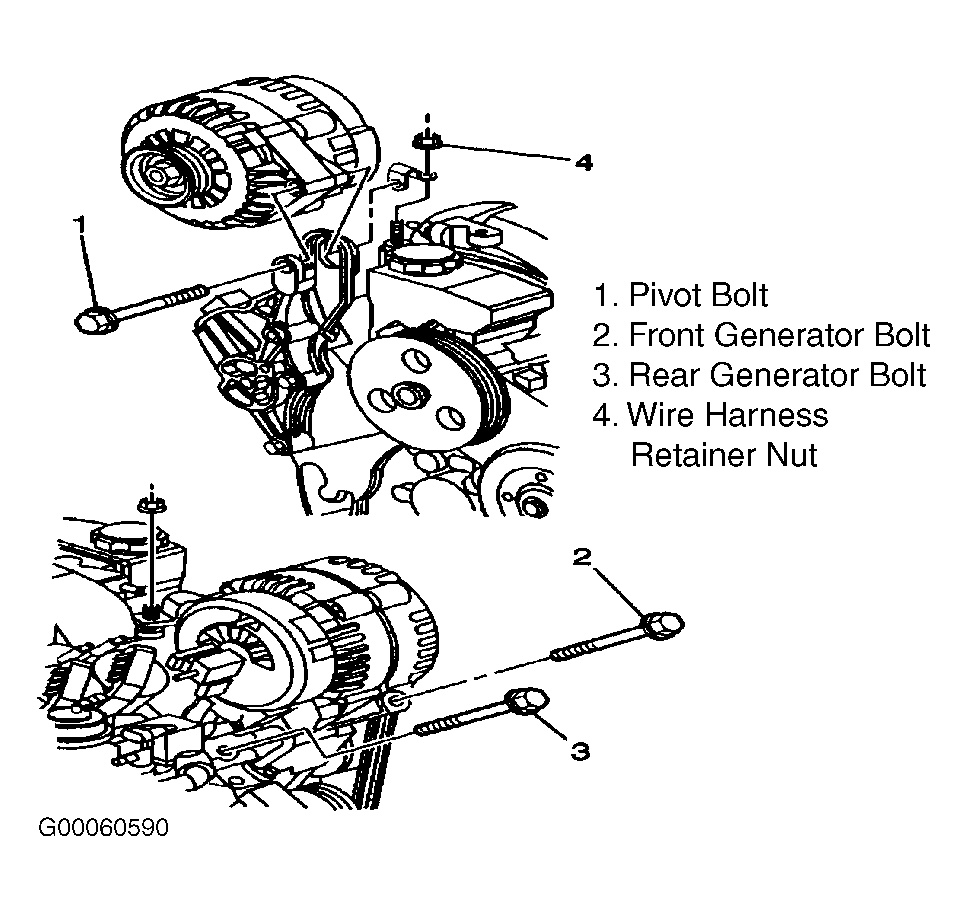

  6. Install generator bolts (2, 3) to generator. See Figure .
    7. NOTE: Do not tighten bolt.
  7. Install generator pivot bolt (1) to generator.
  8. Tighten generator bolts in order described. See TORQUE SPECIFICATIONS  . The following is a mandatory torque sequence:
    • Tighten generator pivot bolt (1).
    • Tighten generator bolt (2).
    • Tighten generator bolt (3).
  9. Install coolant recovery reservoir.
  10. Install drive belt.
  11. Connect negative battery cable.
