Installation Procedure

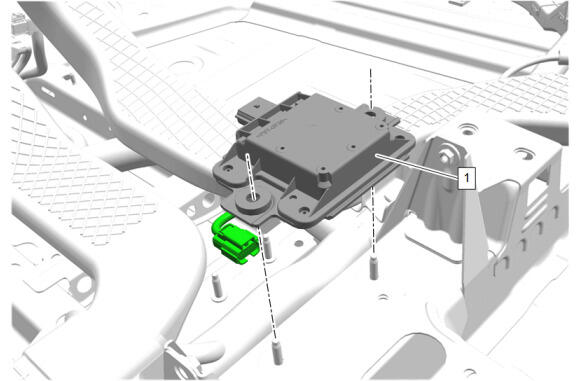

GM6881645Courtesy of GENERAL MOTORS COMPANY
  1. Vehicle Dynamic Sensor (1) » Install

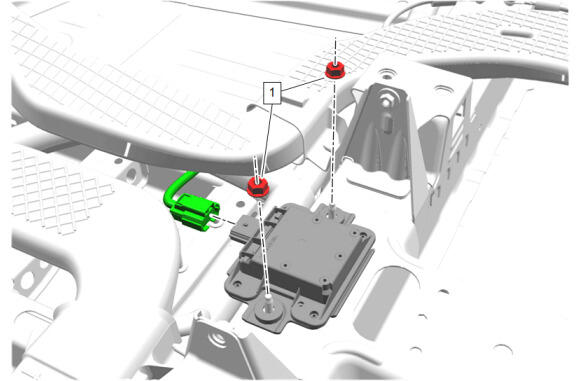

    GM6881644Courtesy of GENERAL MOTORS COMPANY
    CAUTION: Refer to Fastener Caution
  2. Vehicle Dynamic Sensor Nut (1) » Install and tighten [2x] - Fastener Specifications
  3. Connect the electrical connector.

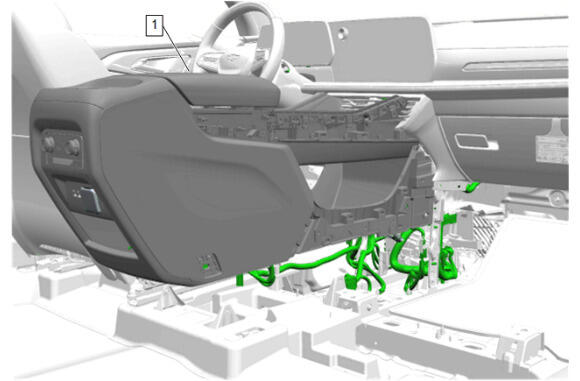

    GM6640384Courtesy of GENERAL MOTORS COMPANY
    NOTE: Some components not shown for graphic clarity.
  4. With the aid of an assistant, position the front floor console (1) into the vehicle. FRONT FLOOR CONSOLE REMOVAL AND INSTALLATION
  5. Perform the vehicle dynamic sensor offset calibration. Vehicle Dynamic Sensor Offset Calibration
