Rear Window

Remove door trim panel. See DOOR TRIM PANEL  under REMOVAL & INSTALLATION. Loosen lower scissor channel mounting bolt. See Fig 2 . Loosen support brace-to-door panel bolt. Loosen scissor channel-to-support brace nut. Position glass in weatherstrips to achieve smooth operation. Tighten scissor channel bolts/nut. Install door trim panel.

Fig 1: Adjusting Front Window

Courtesy of CHRYSLER CORP.

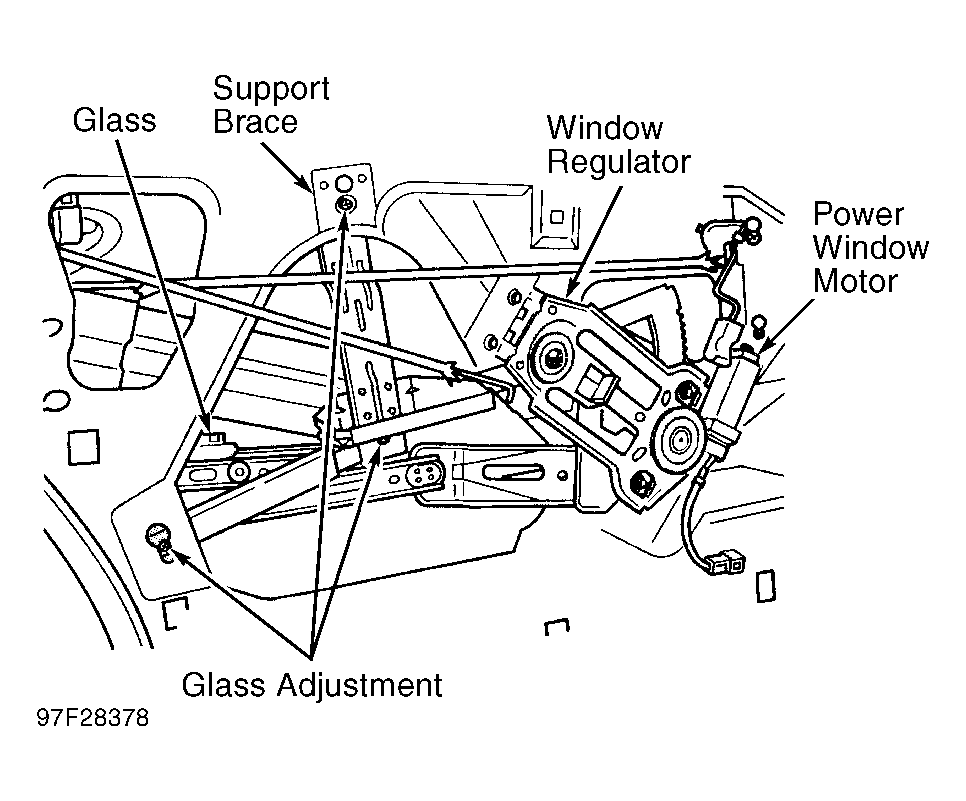

Fig 2: Adjusting Rear Window

Courtesy of CHRYSLER CORP.
