Powertrain Control Module Location

Powertrain Control Module (PCM) is located at driver's side front corner of engine compartment, just below air cleaner assembly. See Fig 1. If replacing the PCM, the PCM must be properly programmed. See POWERTRAIN CONTROL MODULE PROGRAMMING .

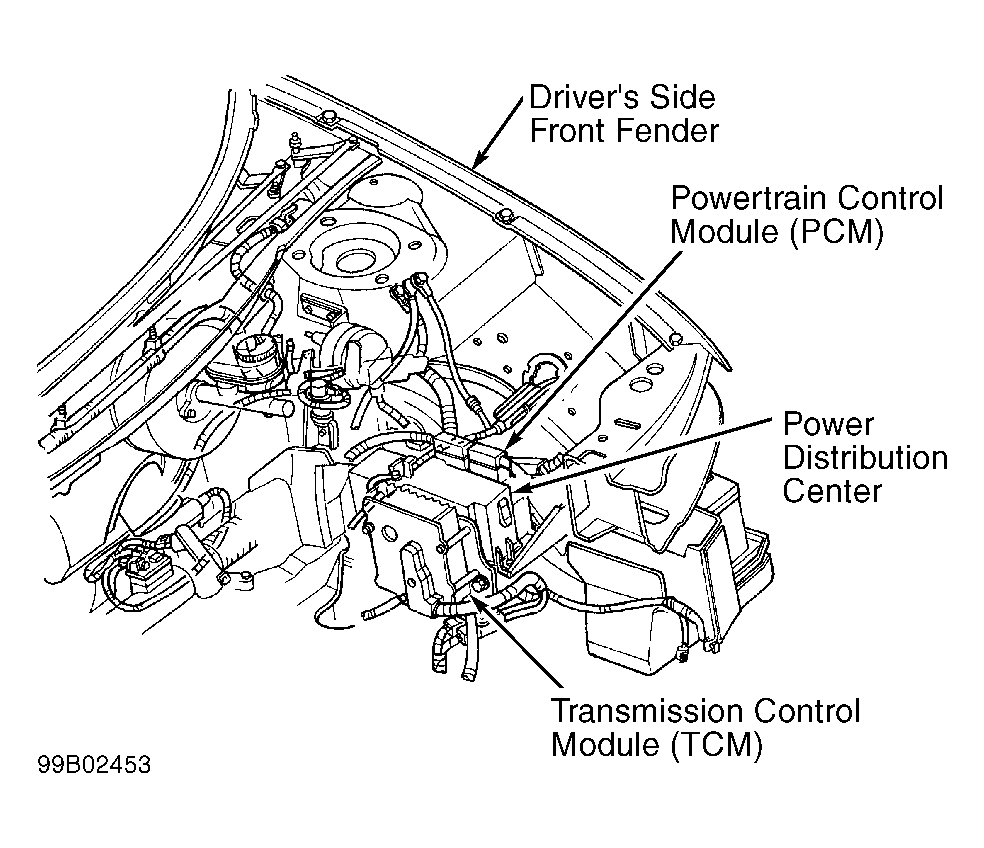

Fig 1: Locating PCM & Transmission Control Module (TCM)

Courtesy of CHRYSLER CORP.
