Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| Air Bag Control Module | Under floor console, near transmission selector. |
| Body Control Module | On junction block, under left side of dash. |
| Controller Anti-Lock Brake | On top of front suspension crossmember. |
| Daytime Running Lamp (DRL) Module | On junction block, under left side of dash. |
| Fuel Pump Module | In fuel tank. |

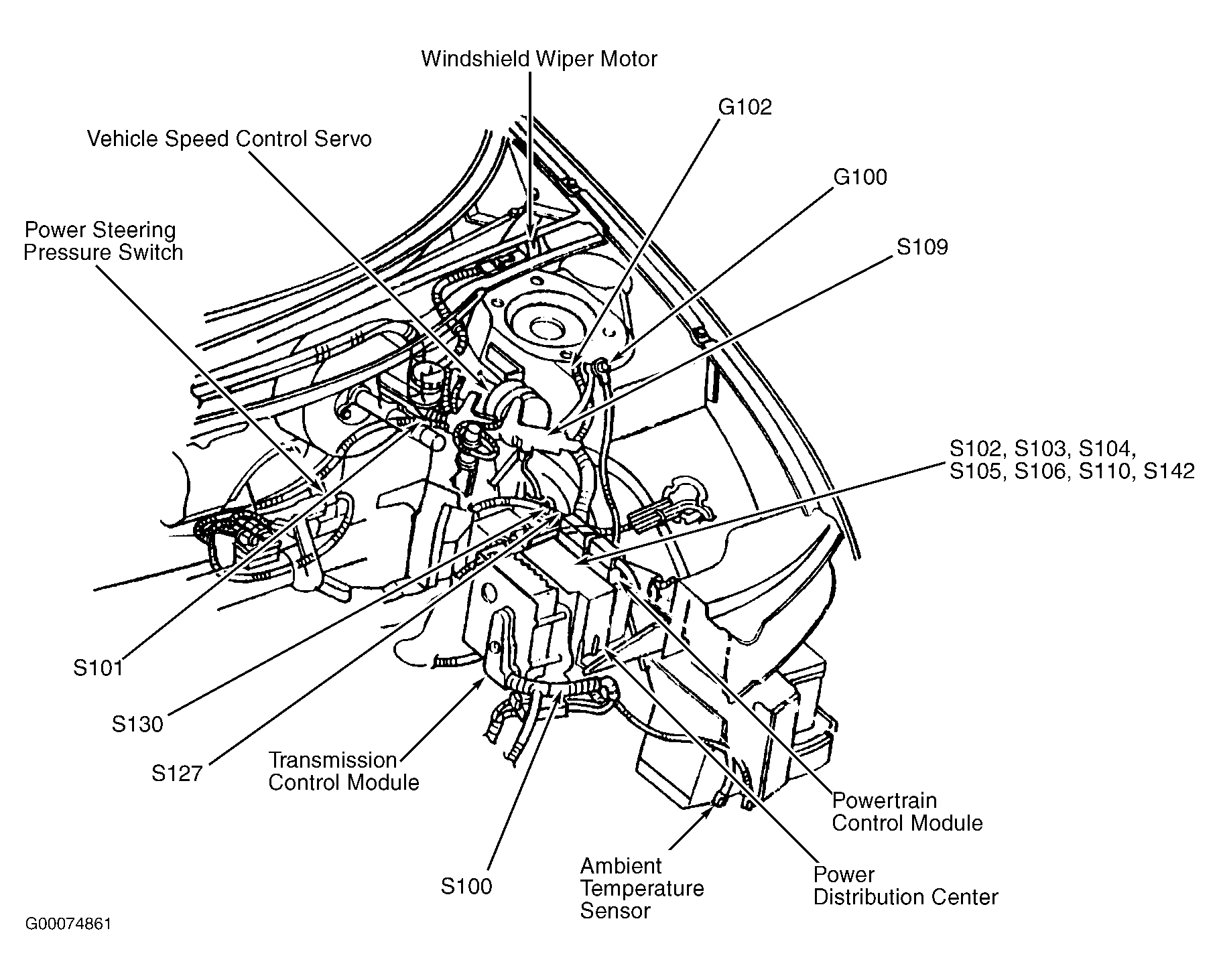

| Powertrain Control Module | Between air cleaner housing & power distribution center. See Figure . |
| Seat Belt Control Module | Under rear of floor console. |
| Sentry Key Immobilizer Module (SKIM) | On steering column, near ignition lock cylinder housing. |
| Transmission Control Module | On left front inner fender. See Figure . |
