Junction Block: Fuses

NOTE: Power Distribution Center (PDC) also contains fuses. See POWER DISTRIBUTION CENTER (PDC) .

The junction block is located behind the end cover at the left side of the instrument panel. See Fig 1 . Pull the cover straight away from the instrument panel for access to the fuse. The location and identification of junction block fuses and relays can be found on the inside of the instrument panel end cover.

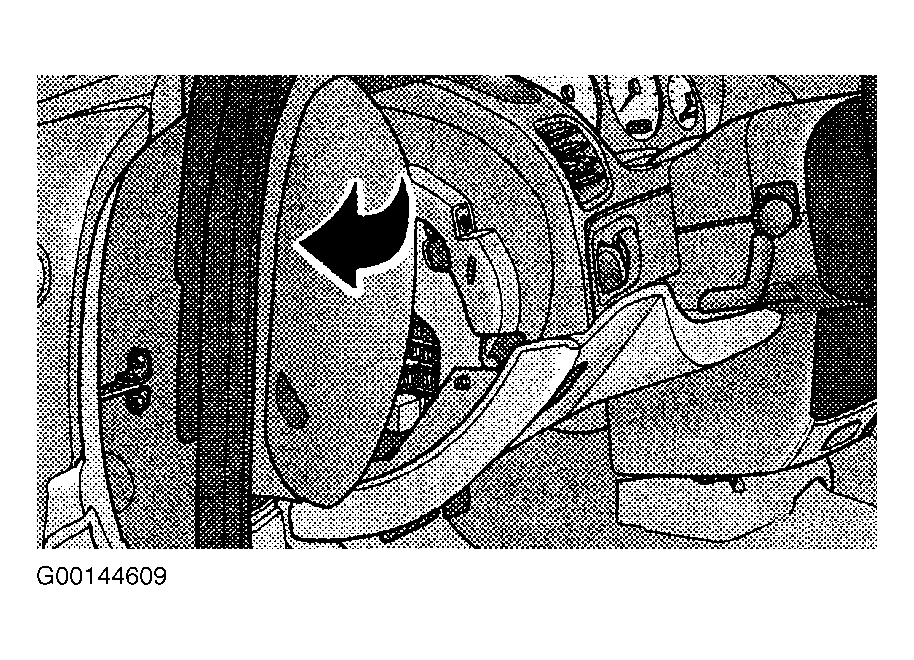

Fig 1: Locating Junction Block

Courtesy of CHRYSLER CORP.

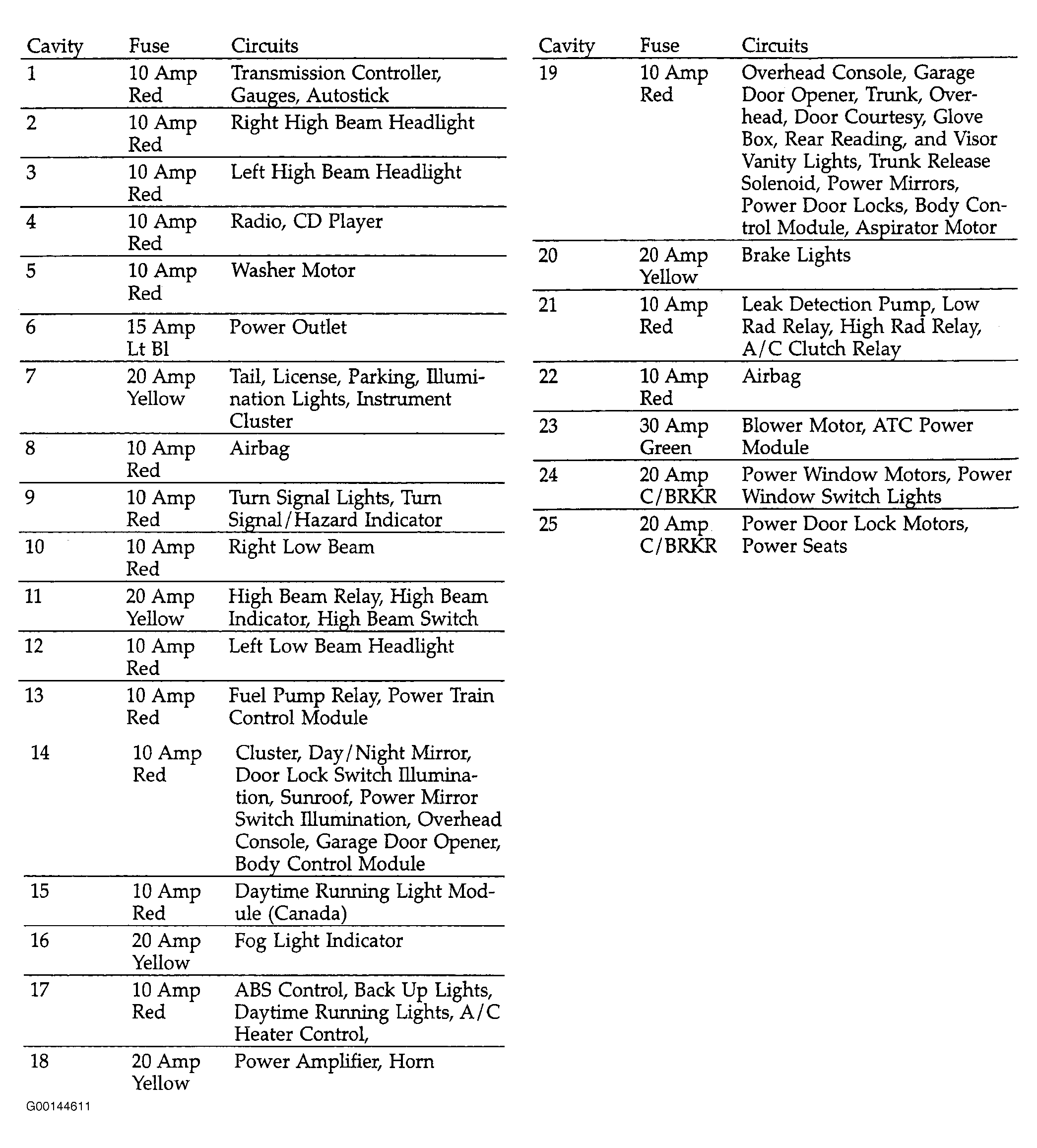

Fig 2: Identifying Interior Fuses

Courtesy of CHRYSLER CORP.
