Ignition Switch: Removal

The ignition switch attaches to the lock cylinder housing on the end opposite the lock cylinder. For ignition switch terminal and circuit identification, refer to the Wiring Diagrams section.

1. Disconnect negative cable from battery.
2. Remove tilt lever attaching screw. Remove lever.
3. Remove upper and lower cover from steering column.
4. Remove Sentry Key Immobilizer Module (SKIM) if equipped. Refer to the Power Door Locks section for removal.
5. Remove multi-function switch.
6. Disconnect electrical connector from ignition switch (Fig 1).

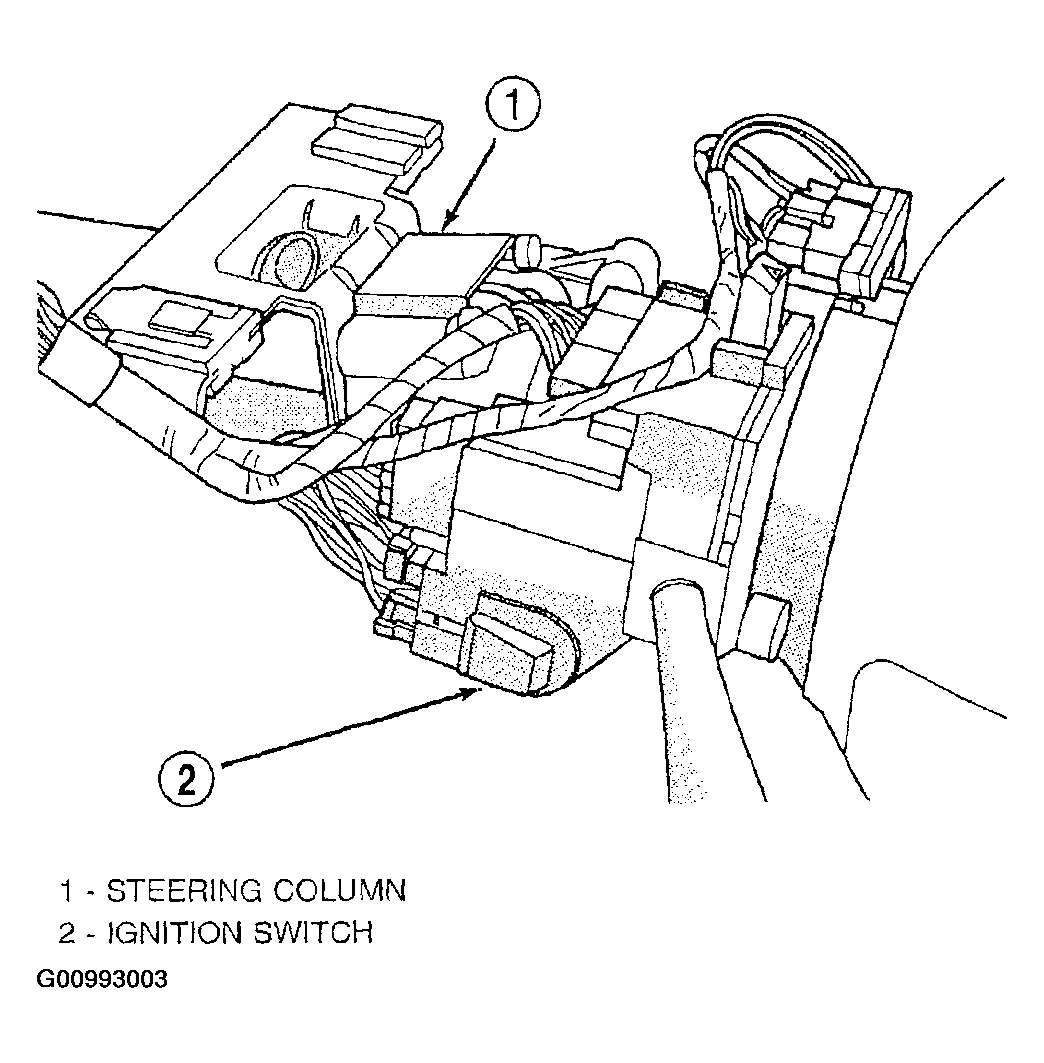

   Fig 1: Removing Ignition Switch

   Courtesy of DAIMLERCHRYSLER CORP.
7. Remove Ignition switch mounting screws. Remove switch.
