Rear Wheel Speed Sensor: Installation

NOTE: Before proceeding with this procedure, refer to CAUTION  .
CAUTION: Failure to install speed sensor cables properly may result in contact with moving parts or an over extension of cables causing an open circuit. Be sure that cables are installed, routed, and clipped properly.

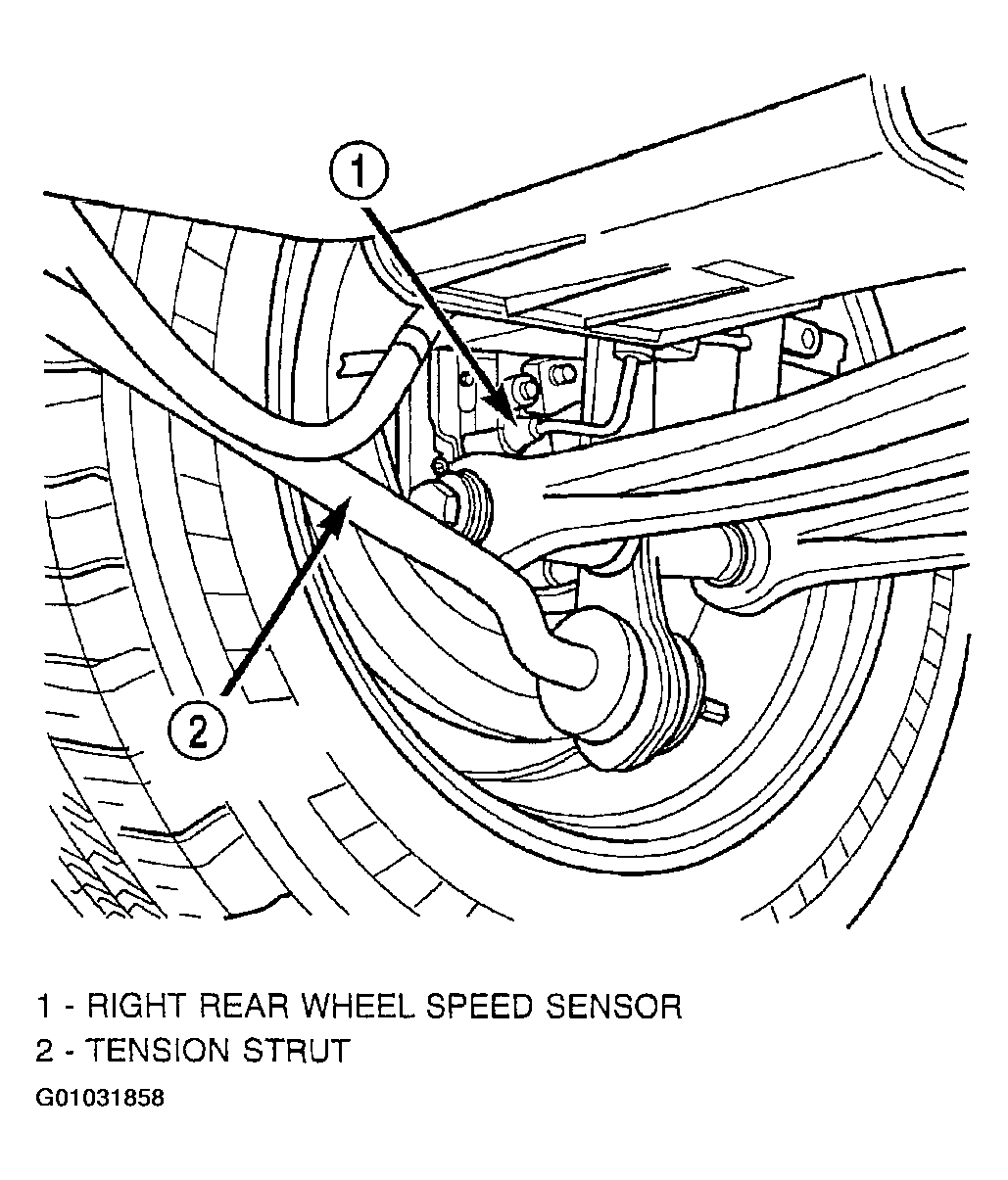

  1. Install the wheel speed sensor head into the disc brake adapter. (Figure ).
  2. Install the wheel speed sensor mounting bolt. Tighten the mounting bolt to 12 N.m (105 in. lbs.).
  3. Install the wheel speed sensor cable routing bracket on the rear strut.
  4. Install wheel speed sensor cable into the routing clips on the rear brake hose and brake tube.

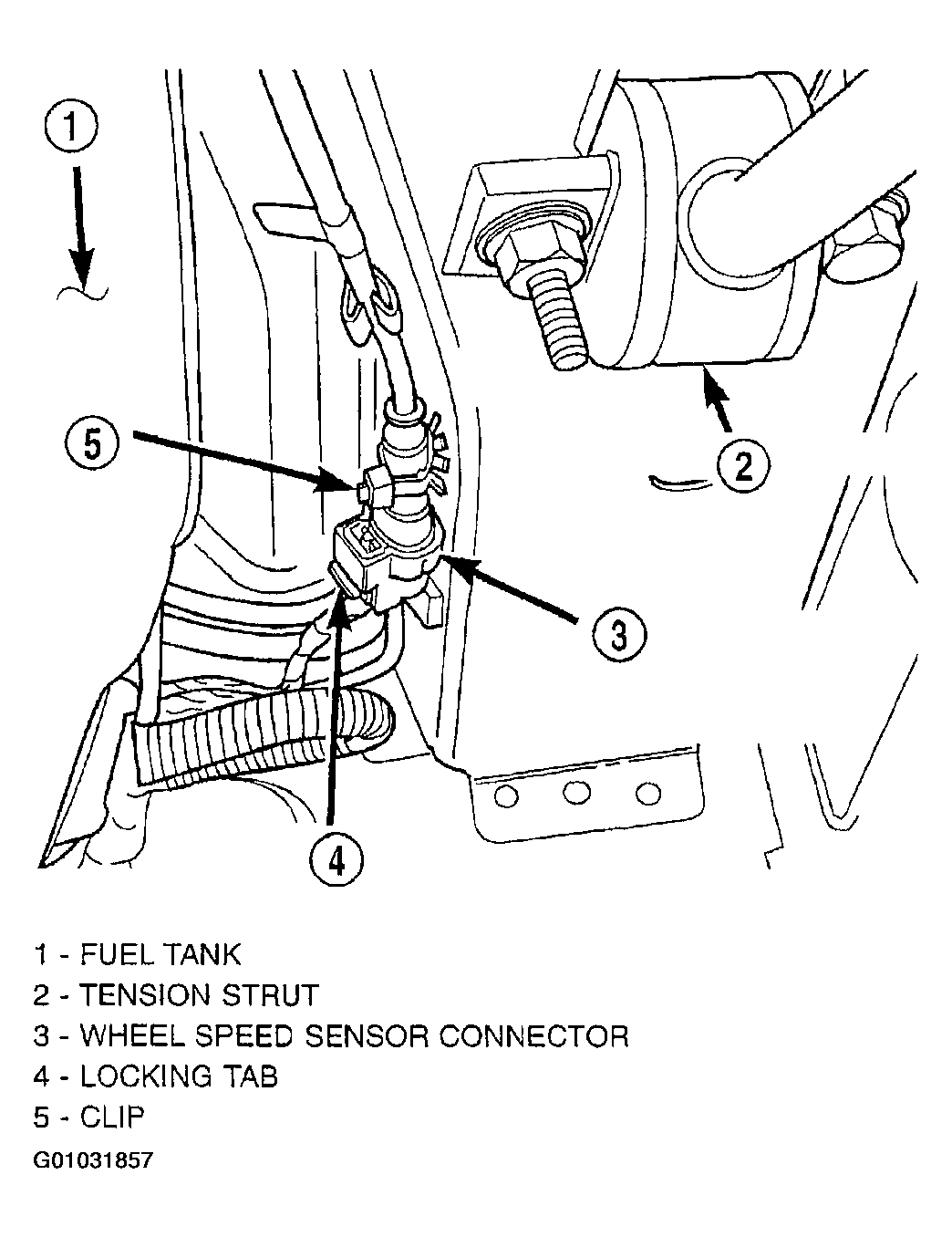

  5. Connect the wheel speed sensor cable connector into vehicle wiring harness. (Figure ). Install the clip attaching the wheel speed sensor cable connector to vehicle's body.
  6. Lower the vehicle.
  7. Road test the vehicle to ensure proper operation of the base brakes and ABS.
