Radiator Fan: Assembly: Fan

There are no repairs to be made to the fan. If the fan is warped, cracked, or otherwise damaged, it must be replaced with only  the recommended part for adequate strength, performance and safety.

1. Install fan on motor shaft.

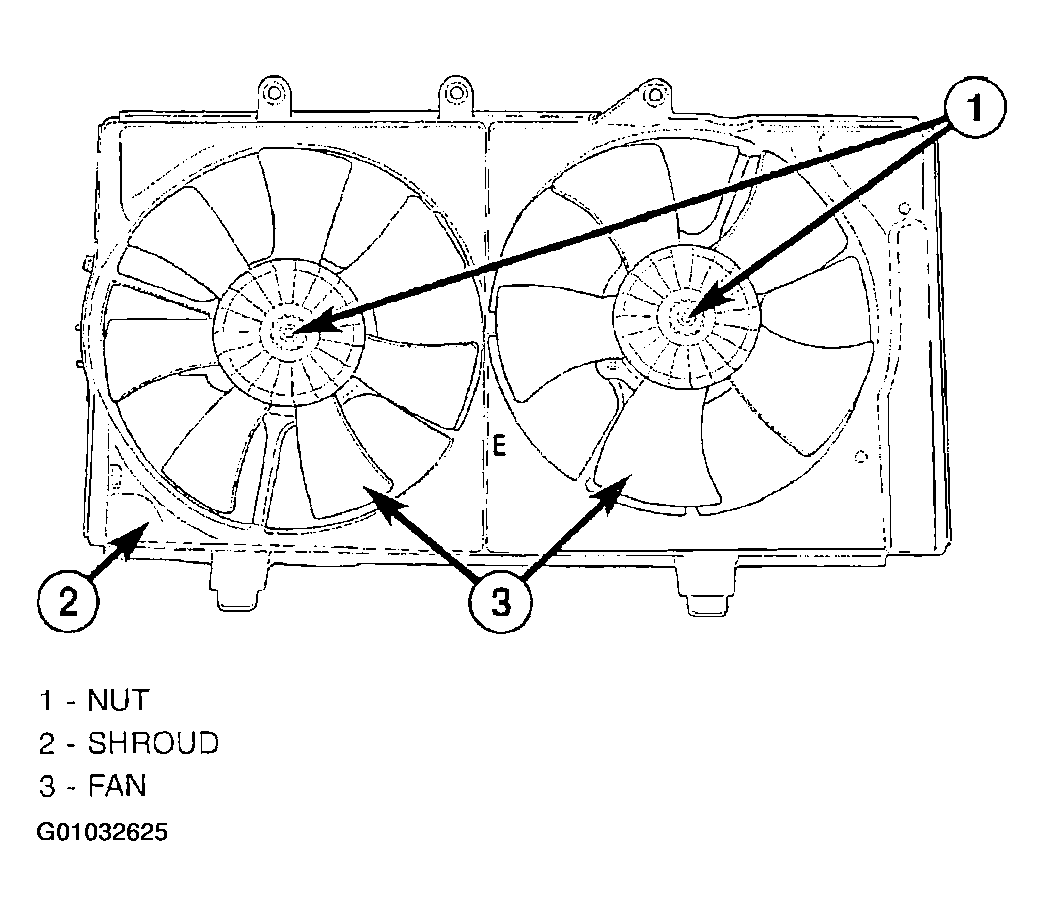

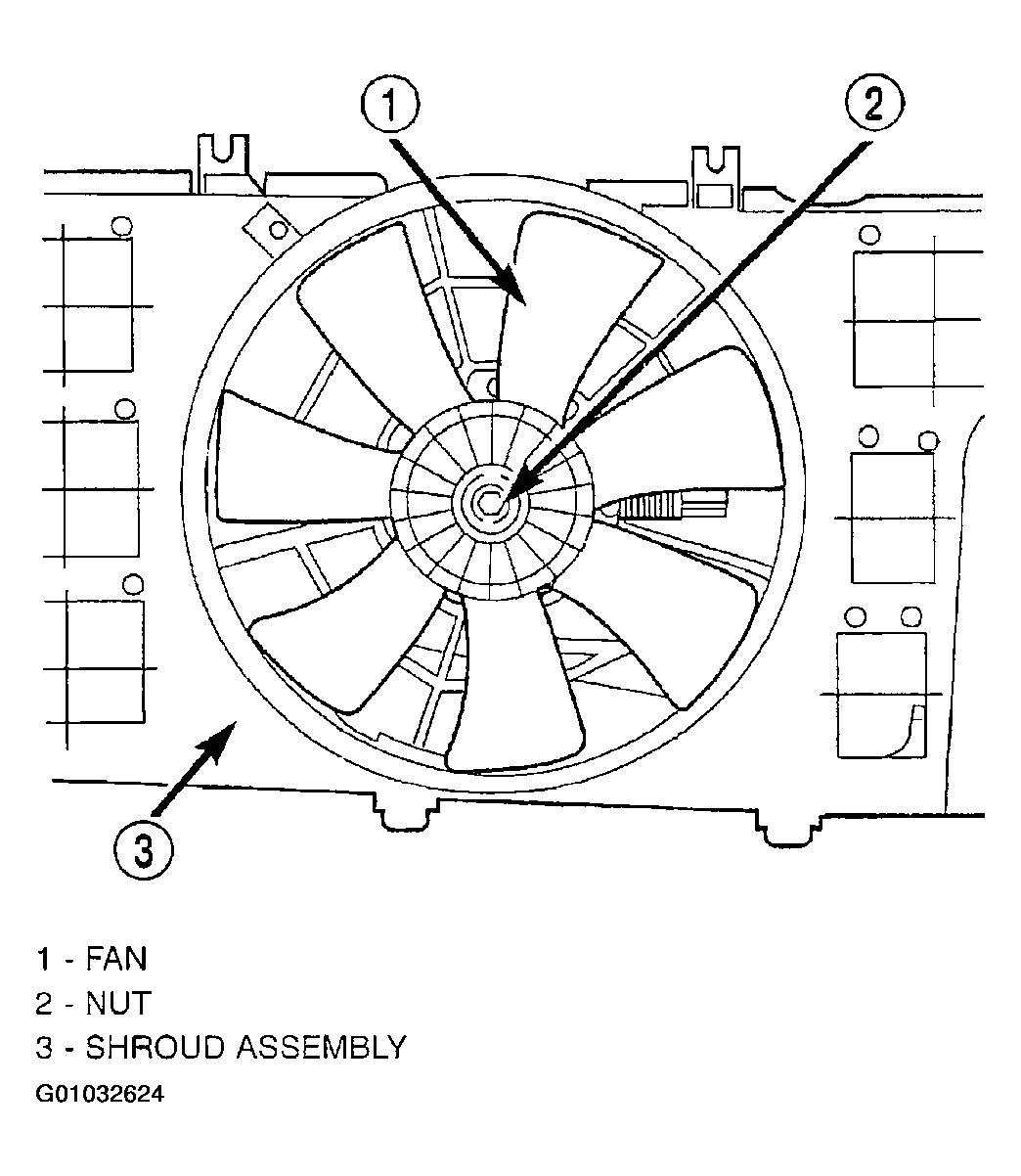

2. Install fan retaining nut and tighten to 6.2 N.m (55 in. lbs.). (Figure or Figure ).
3. Install radiator fan assembly. Refer to INSTALLATION .
