Radiator Fan: Installation

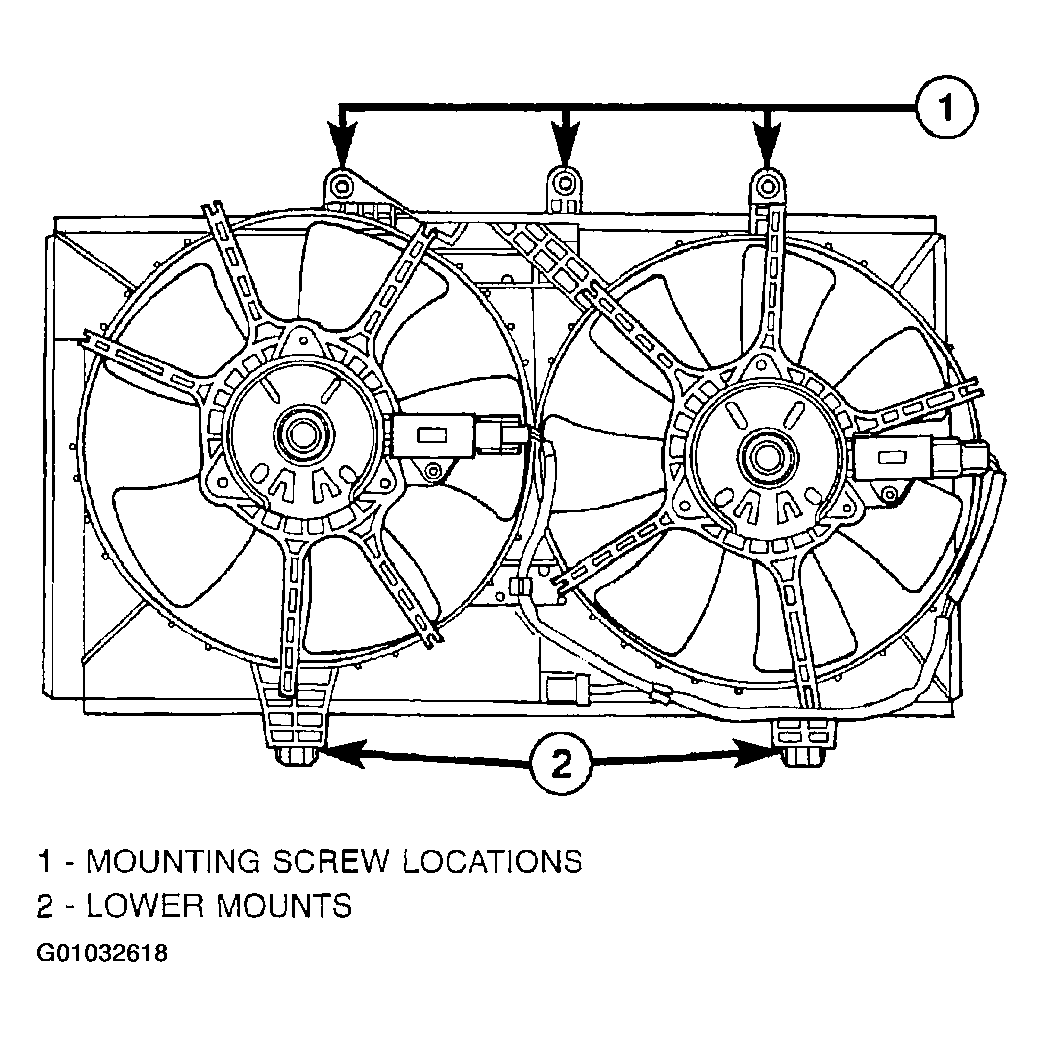

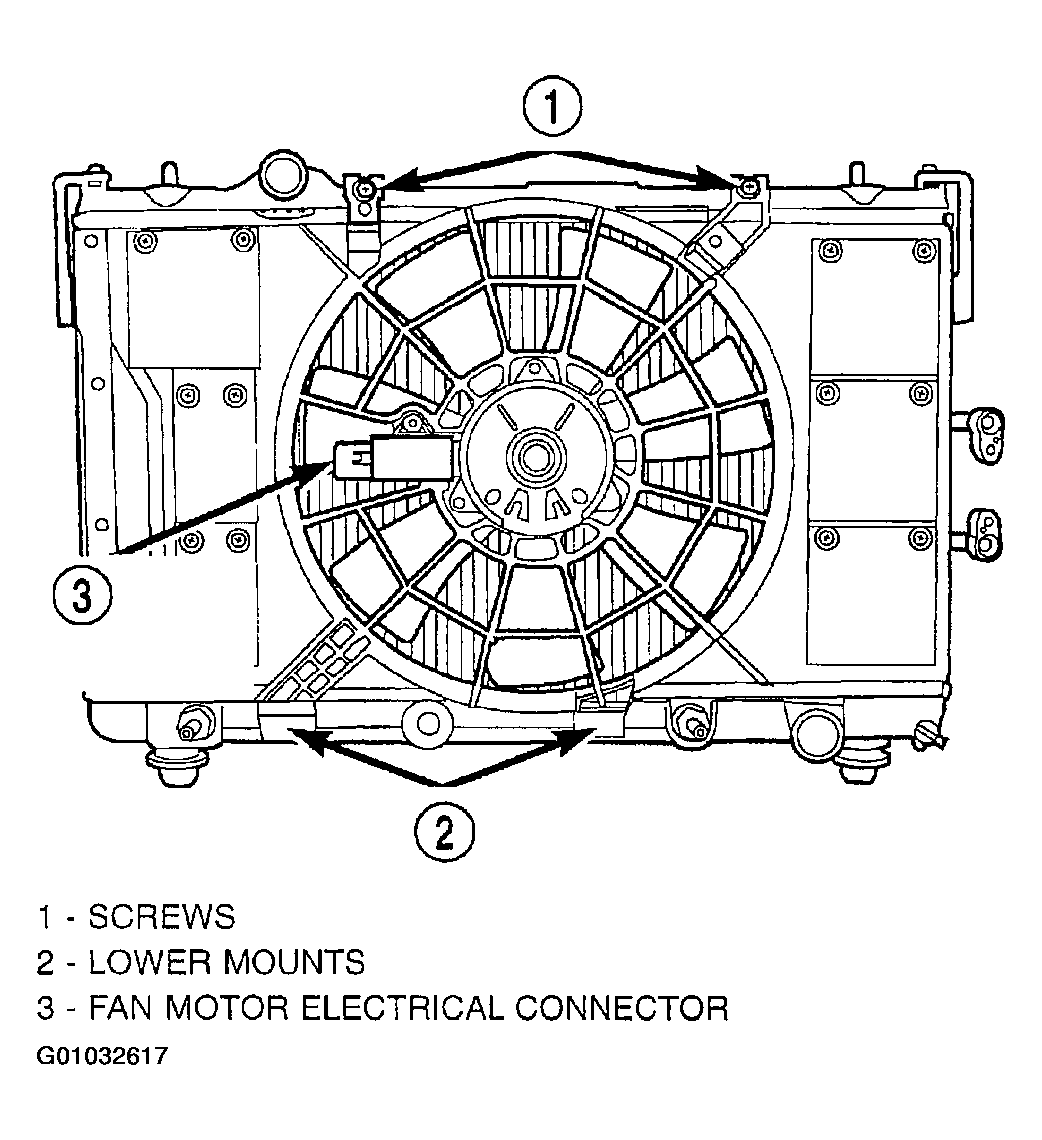

  1. Install radiator fan assembly by lowering into position on radiator. Ensure the fan assembly lower mounts are engaged properly into slots on lower radiator tank. (Figure or Figure ).

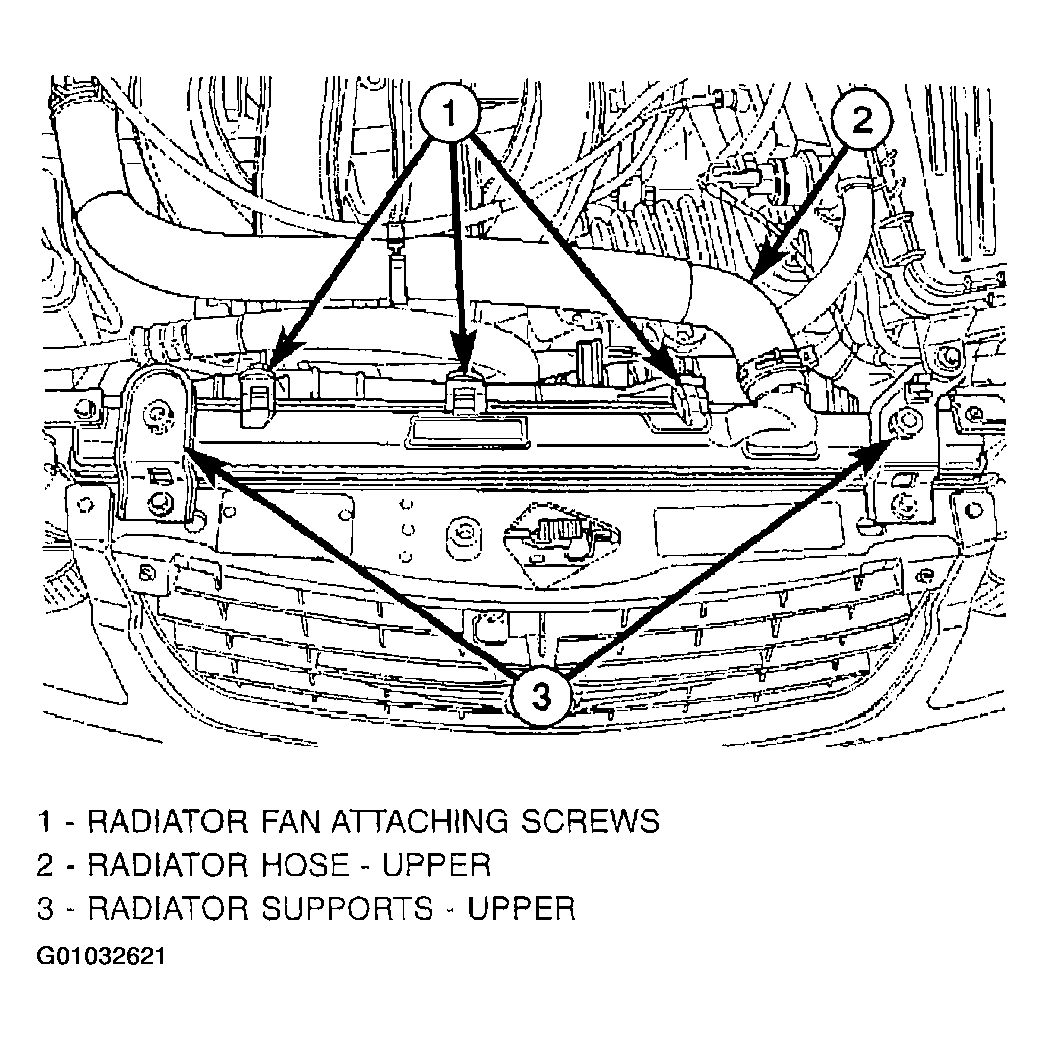

  2. Install the radiator fan assembly retaining screws and tighten to 7.5 N.m (65 in. lbs.). (Figure).
  3. Install radiator upper support mounts and tighten bolts to 10 N.m (90 in. lbs.) (Figure).

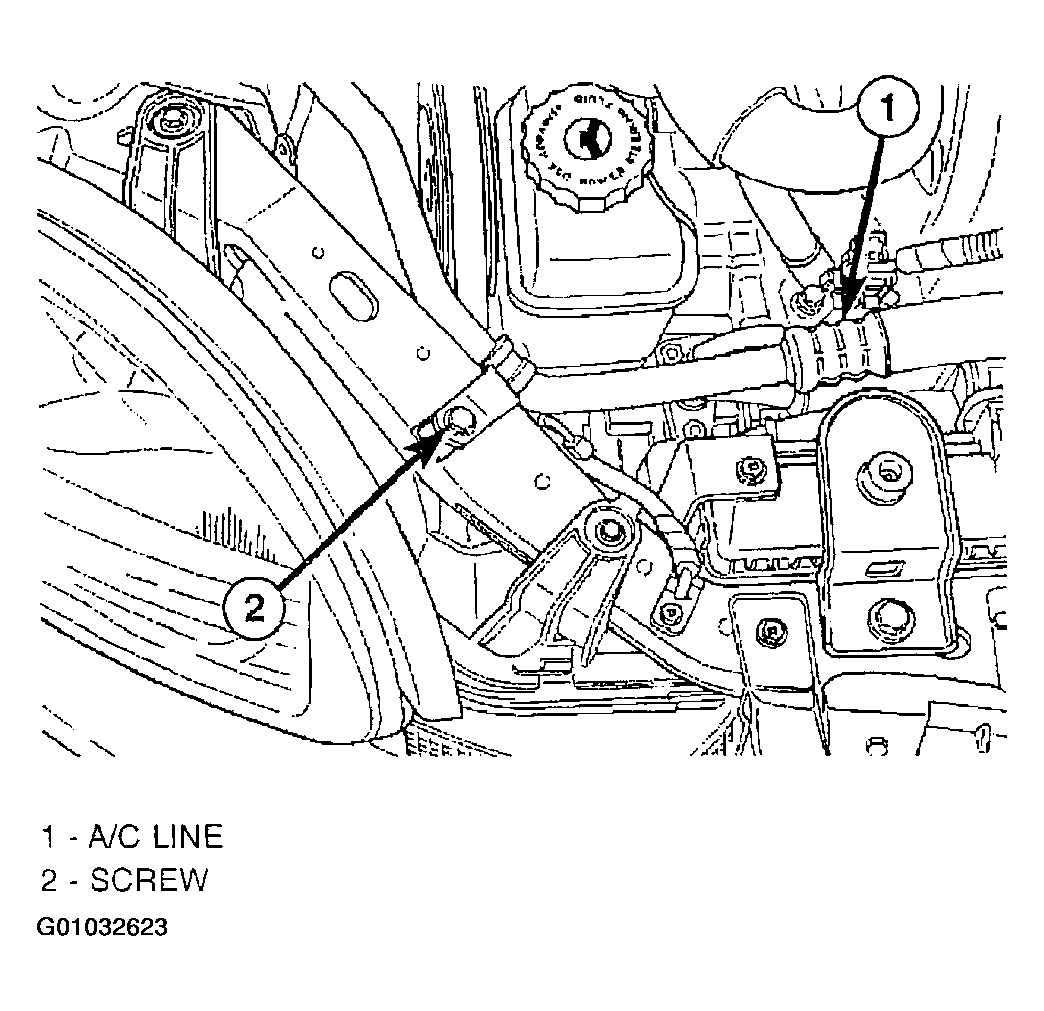

  4. Install air conditioning line support bracket screw. (Figure).
  5. Raise vehicle on hoist.

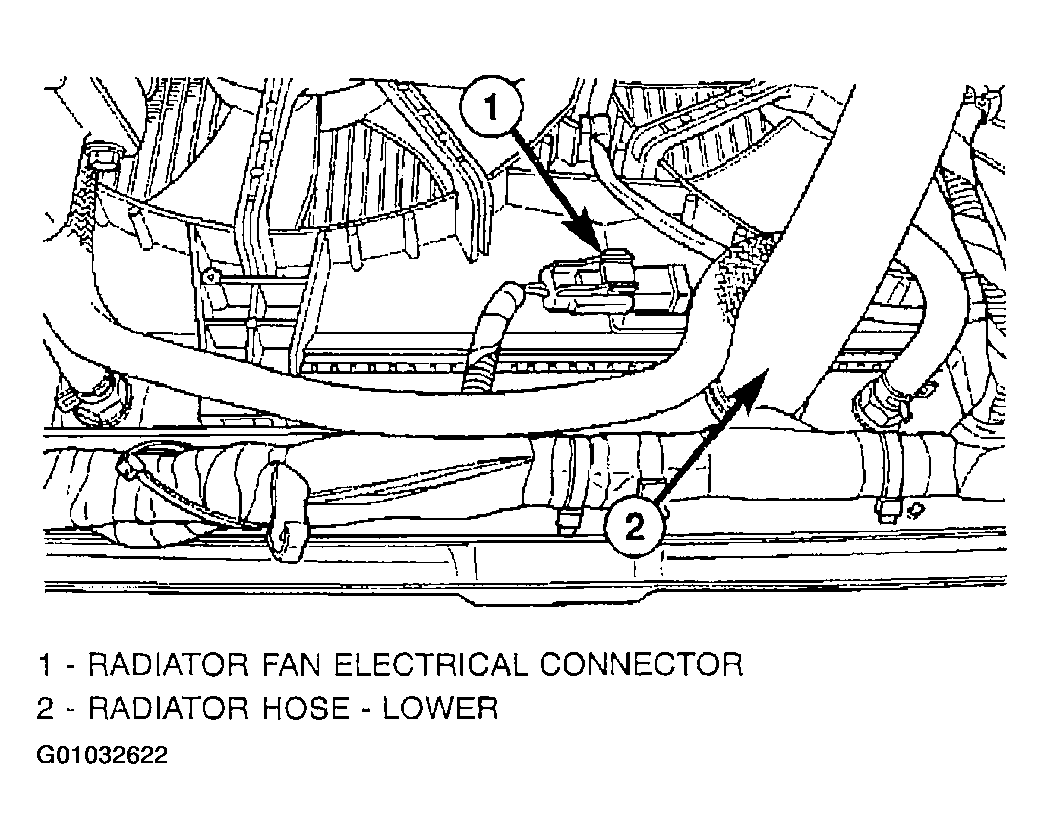

  6. Connect radiator fan electrical connector. (Figure).
  7. Install powertrain control module (PCM).
  8. Lower vehicle.
  9. Install air cleaner housing fasteners.
  10. Install radiator upper hose to radiator. (Figure). Align hose and position clamp to ensure proper clearance with engine or hood.
  11. Fill cooling system. Refer to STANDARD PROCEDURE .
  12. Connect negative battery cable.
