Lower Torque Strut

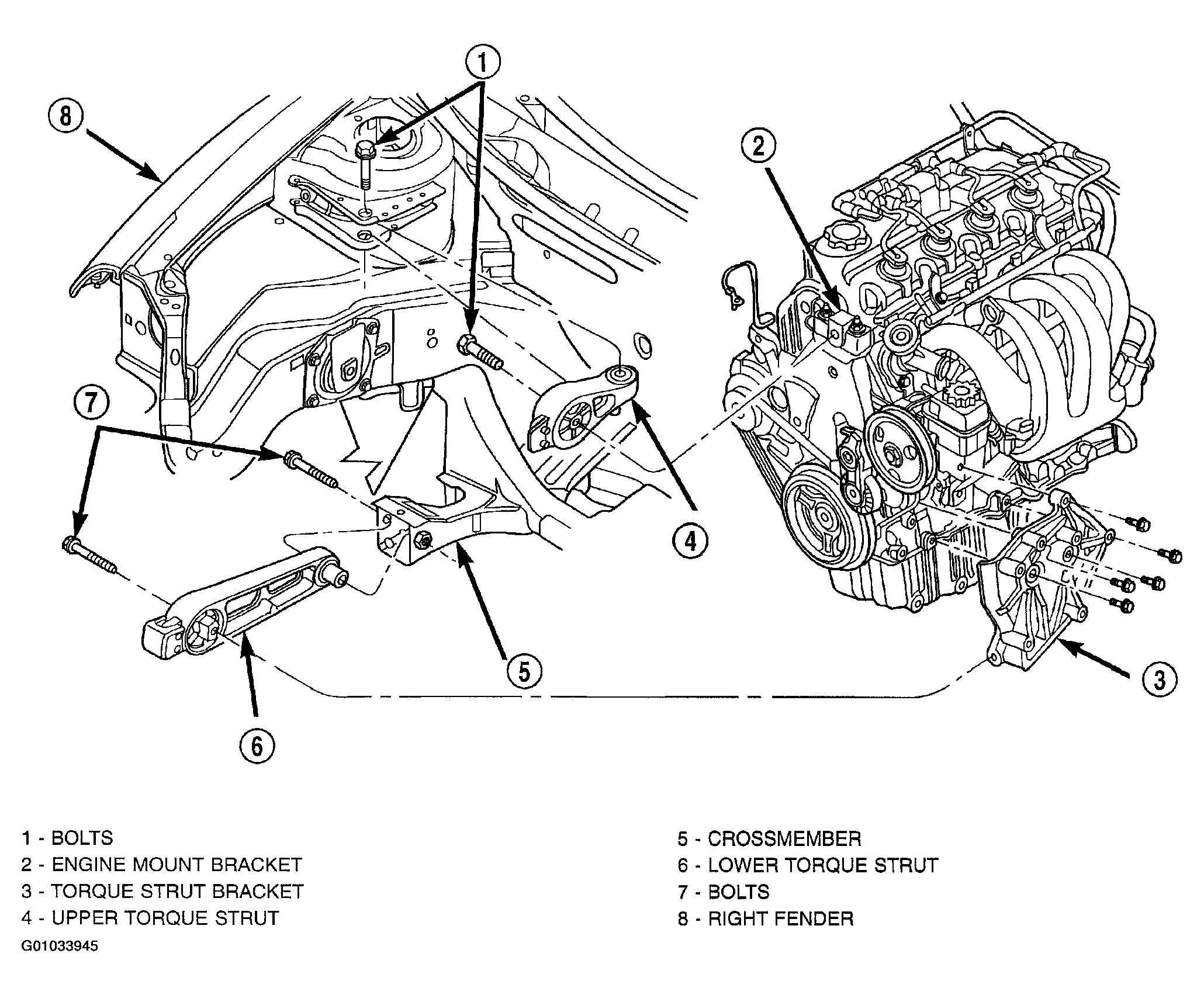

  1. Position lower torque strut into mounting locations. (Figure).
  2. Install mounting bolts and perform torque strut adjustment procedure. (Refer to ENGINE TORQUE STRUT ADJUSTMENT ).

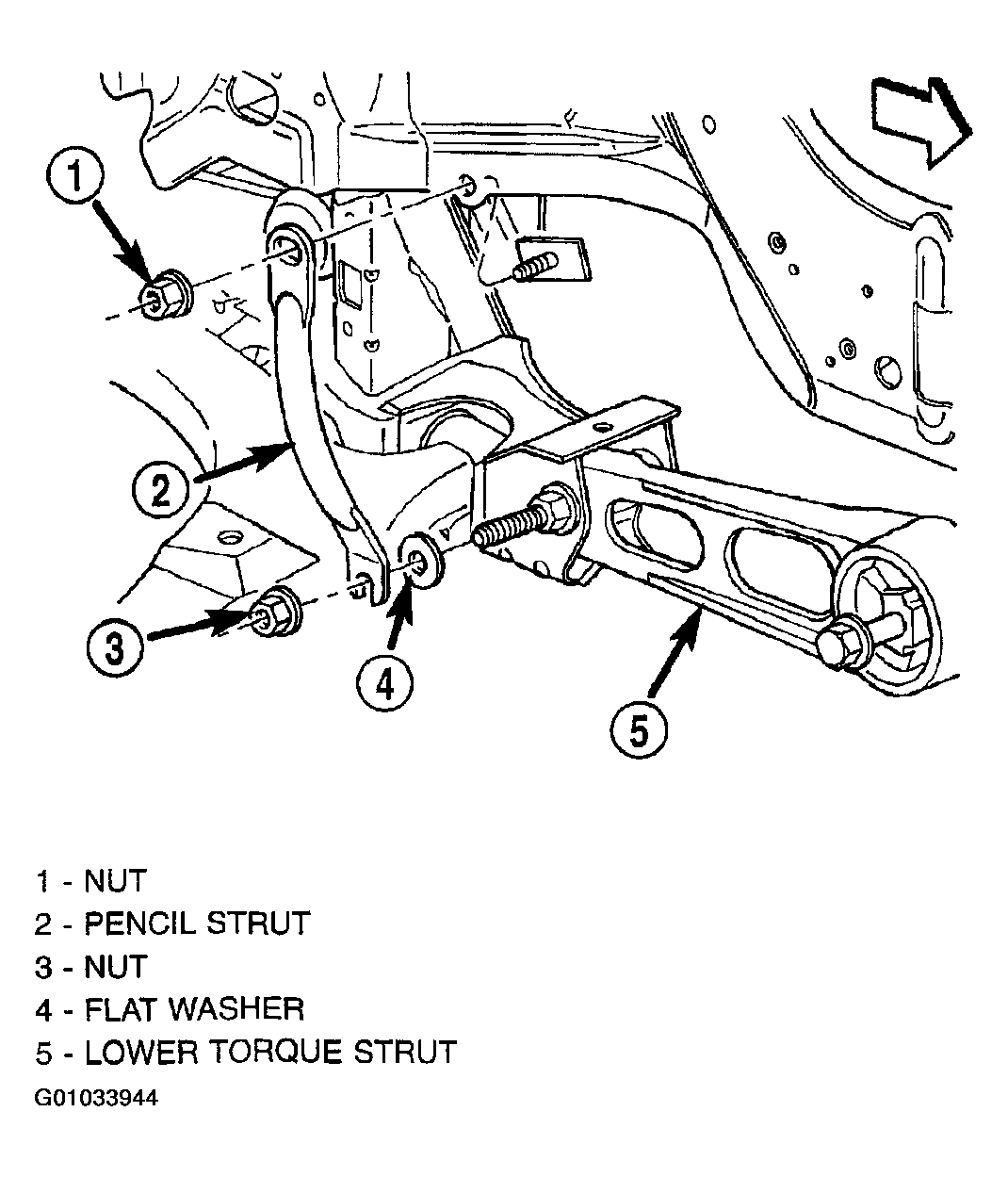

  3. Install pencil strut. (Figure).
  4. Install accessory drive belt splash shield and lower vehicle.
