Front Wheel Speed Sensor: Installation

CAUTION: Proper installation of wheel speed sensor cables is critical to continued system operation. Be sure that cables are installed in retainers. Failure to install cables in retainers as shown in this section may result in contact with moving parts and over extension of cables, resulting in an open circuit.
  1. Connect the front wheel speed sensor cable to the vehicle wiring harness connector. Be sure speed sensor cable connector is fully seated and locked into vehicle wiring harness connector.
  2. Install the bolts attaching the routing clamps to the body of the vehicle. Tighten the bolts to a torque of 14 N.m (125 in. lbs.).
  3. Insert speed sensor cable grommets into intermediate bracket on strut.

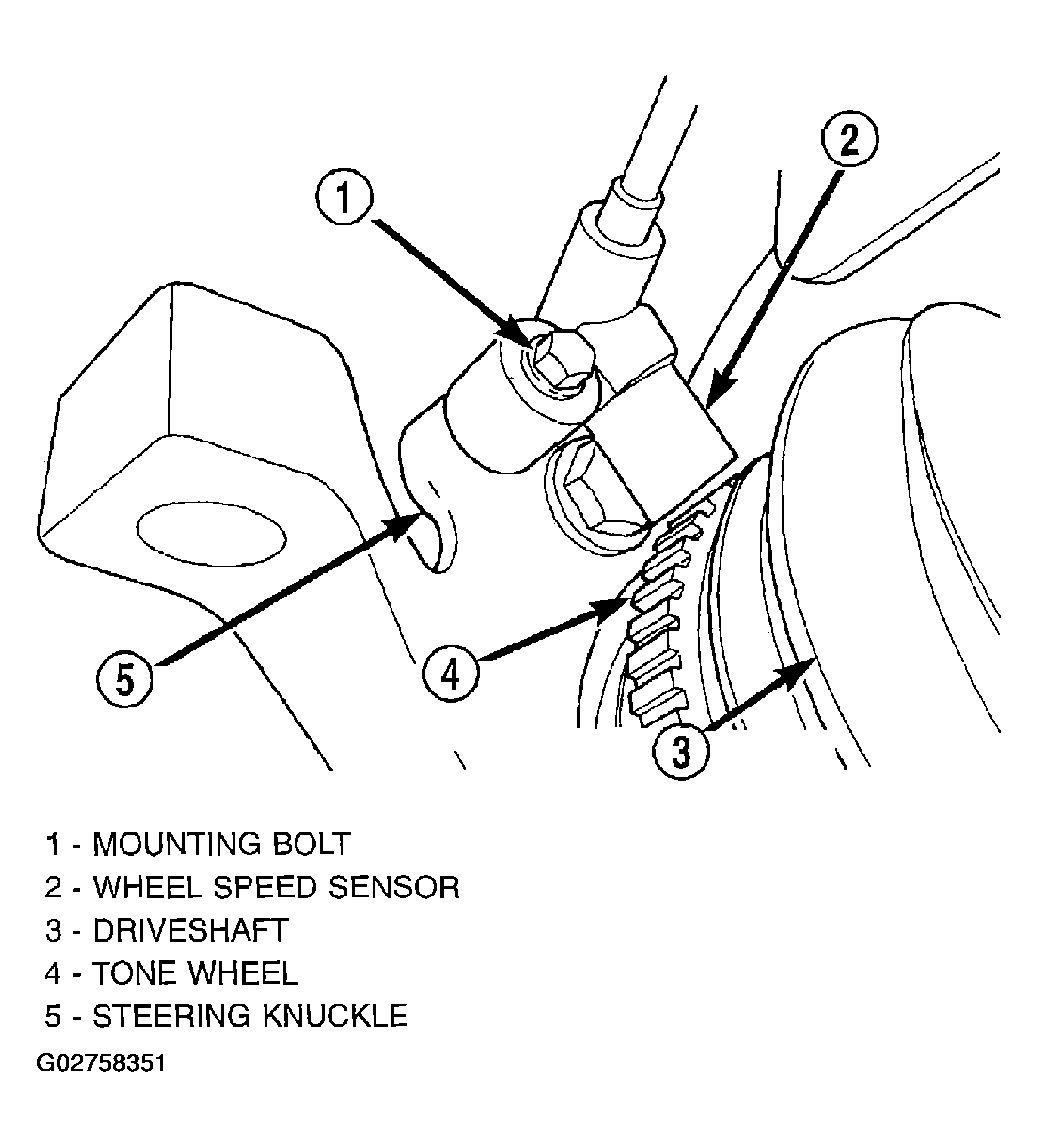

  4. Install the wheel speed sensor head mounting bolt (Figure ). Tighten the bolt to a torque of 13 N.m (115 in. lbs.).
  5. Install the wheel and tire assembly on vehicle.
  6. Lower vehicle.
  7. Road test vehicle to ensure proper operation of the base and ABS brake systems.
