Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| Body Control Module | Behind left side of dash. |
| Controller Anti-Lock Brake | On right side of engine compartment. |
| Driver Heated Seat Module | Below driver's seat. |
| Front Control Module (FCM) | On integrated power module. |
| Fuel Pump Module | Top of fuel tank. |

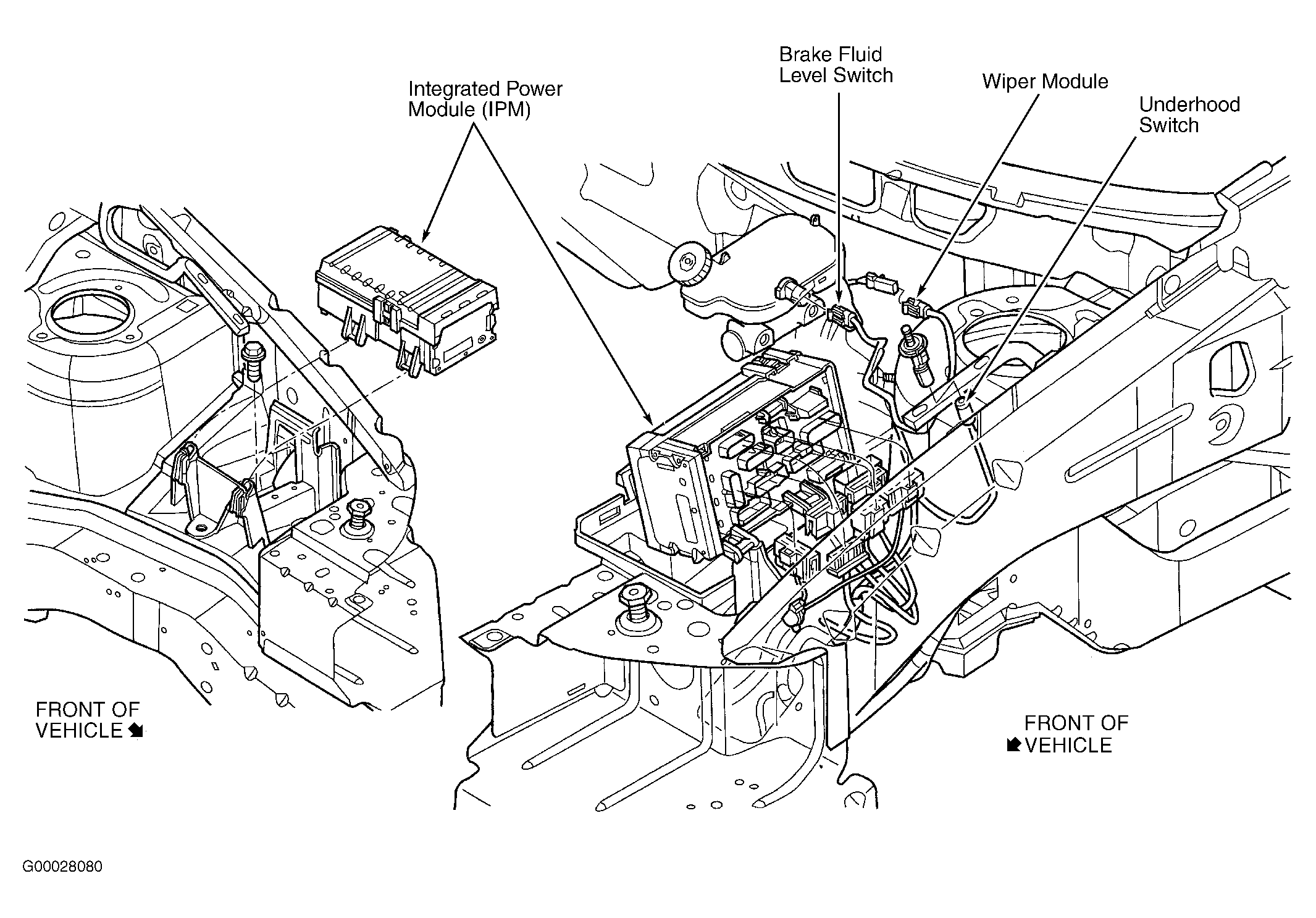

| Integrated Power Module (IPM) | Left side of engine compartment. See Figure. |
| Left Side Impact Air Bag Control Module (SIACM) | On left lower "B" pillar. |
| Left Sliding Door Control Module | In left sliding door, above motor. |
| Memory Seat/Mirror Module | Under driver's seat. |
| Occupant Restraint Controller | Under right side of dash. |
| Passenger Heated Seat Module | Below passenger's seat. |

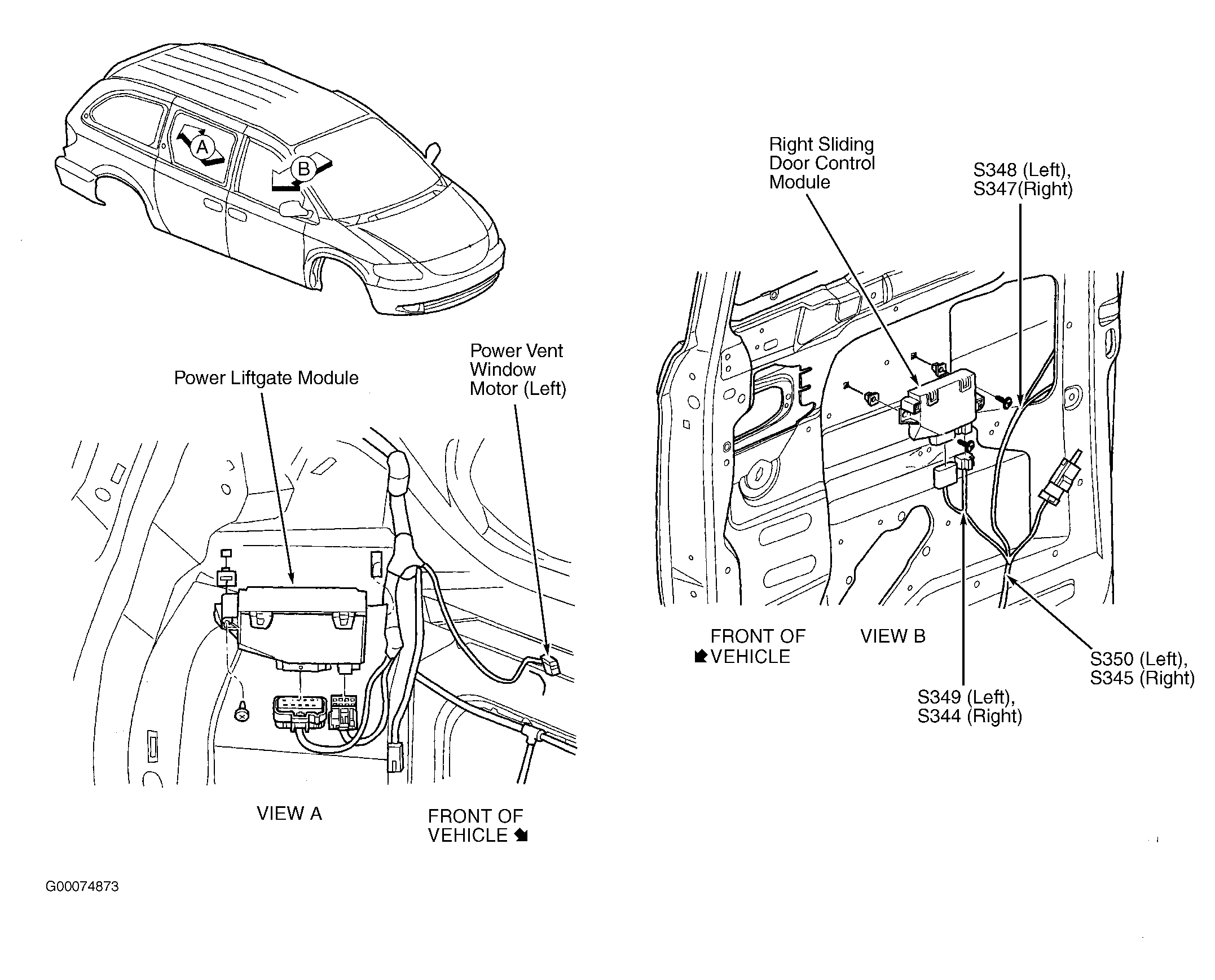

| Power Liftgate Module | Mounted on left "D" pillar. See Figure. |
| Powertrain Control Module | Left side of engine compartment. |
| Remote Keyless Entry Module | Under left side of dash top cover. |
| Right Side Impact Air Bag Control Module (SIACM) | On right lower "B" pillar. |
| Right Sliding Door Control Module | In right sliding door, above motor. See Figure. |
| Transmission Control Module (2.4L) | On left side of transaxle. |
| Transmission Control Module (3.3L) | Behind liner, in left front wheelwell. See Figure. |
| Transmission Control Module (3.8L) | Behind liner, in left front wheelwell. See Figure. |
| Wiper Module | Left rear of engine compartment. See Figure. |
