Rear Window Antenna Module: Description

The integrated rear window antenna incorporates the rear window defogger and a electronic module to receive radio signals. The module is located in the right C-pillar behind the trim panel (Fig 1 ).

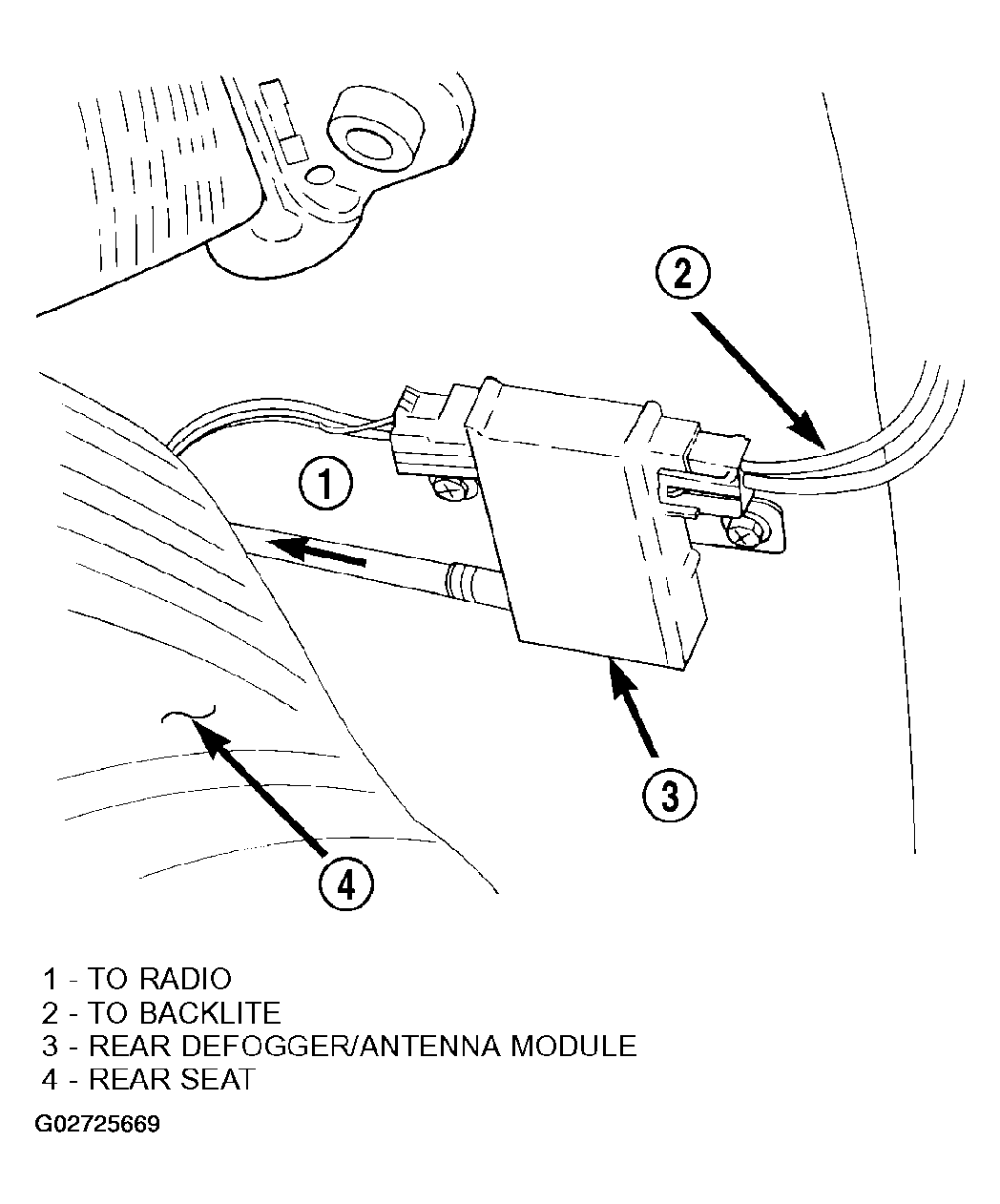

Fig 1: Identifying Rear Defogger/Antenna Module
G02725669Courtesy of DAIMLERCHRYSLER CORP.
