Clutch System: Clutch: Description: Notes

The typical clutch hydraulic system (Fig 1 ) (Fig 2 ) consists of a clutch master cylinder and integral reservoir, a clutch slave cylinder, and an interconnecting fluid line. LHD models have an adjustable pedal pushrod.

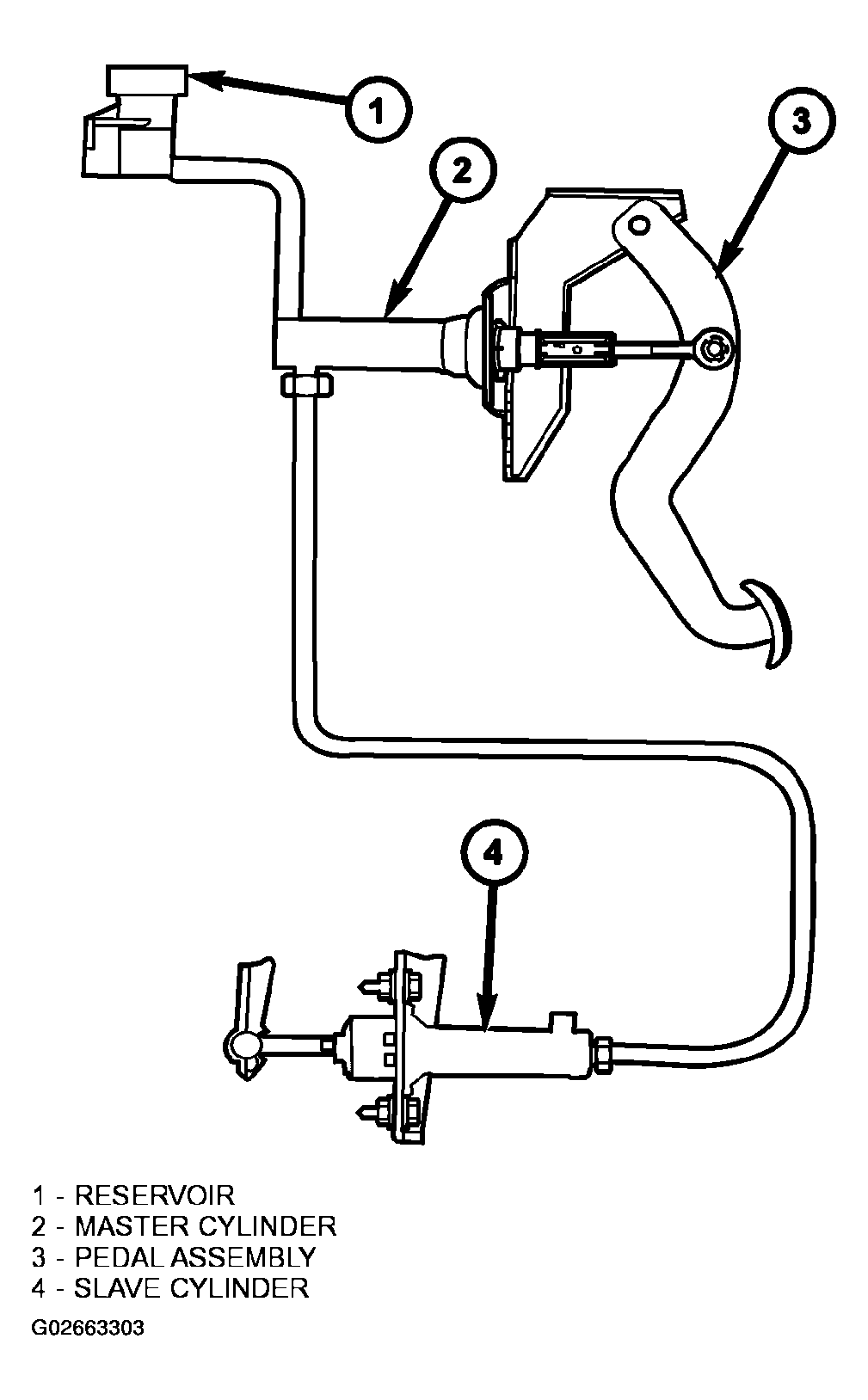

Fig 1: Identifying LHD Clutch Hydraulic System - Typical

Courtesy of DAIMLERCHRYSLER CORP.

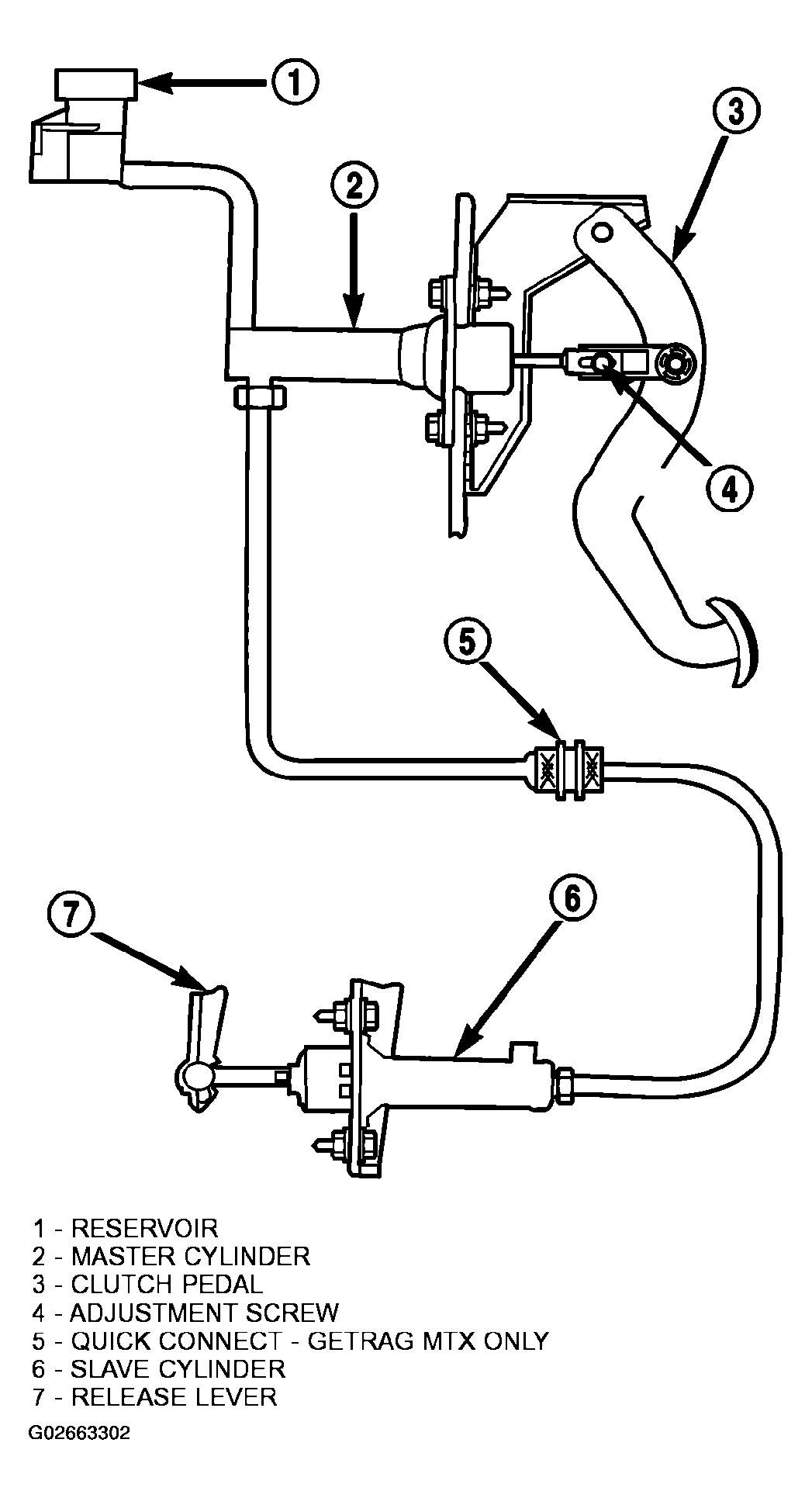

Fig 2: Identifying RHD Clutch Hydraulic System - Typical

Courtesy of DAIMLERCHRYSLER CORP.
