Modular Clutch: Installation
- 2.4L Turbo models:

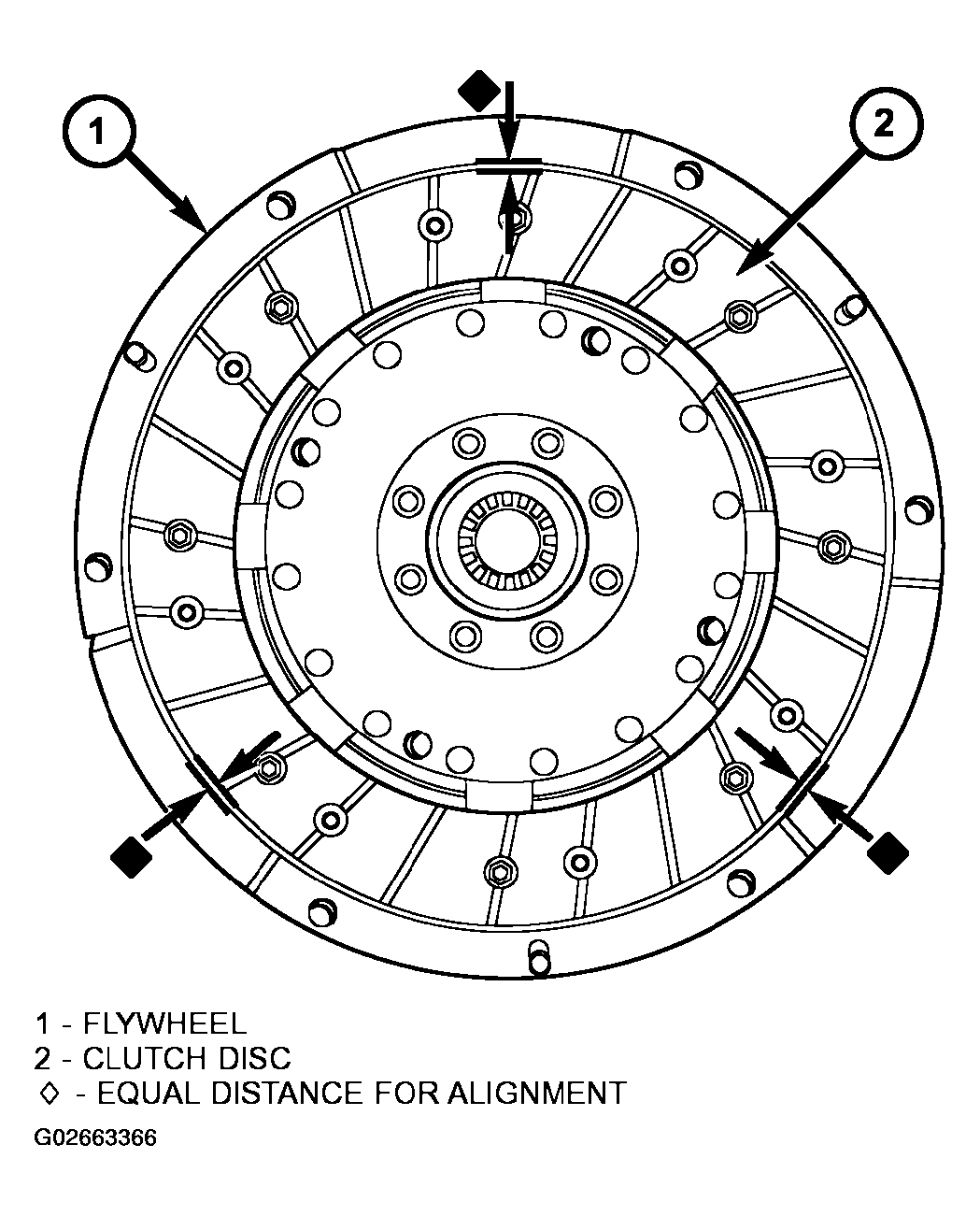

Install clutch disc to flywheel with "Flywheel Side" oriented towards flywheel. Align clutch disc to flywheel by ensuring equal distance between disc and flywheel lip exists in three places as shown in (Fig 1

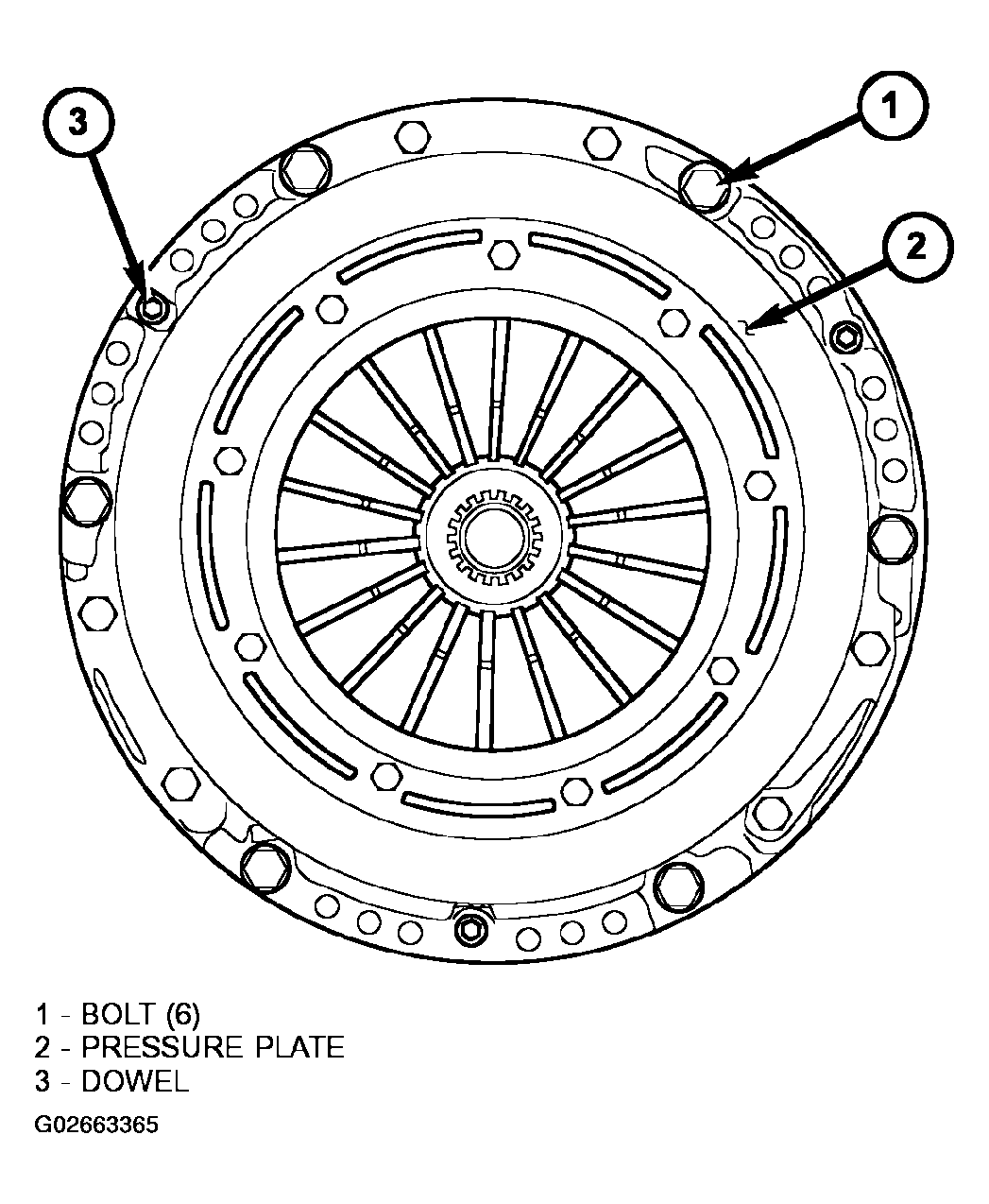

). Install pressure plate to flywheel, locating on dowels (Figure
) and making sure not to disturb clutch disc. Install and torque six (6) pressure plate-to-flywheel bolts to 28 N.m (250 in. lbs.). Visually verify clutch disc alignment.
Courtesy of DAIMLERCHRYSLER CORP.
- All models:

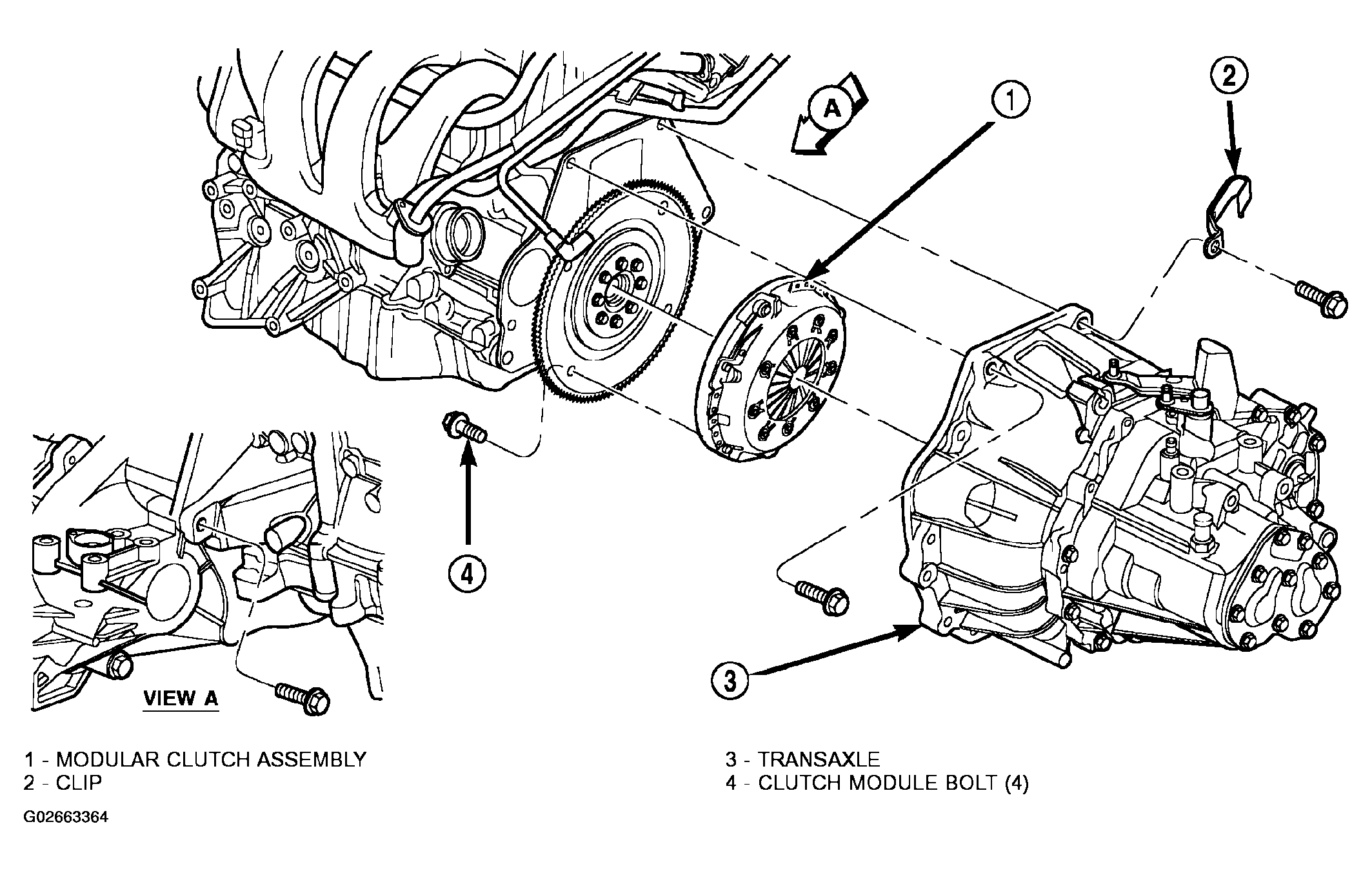

Install clutch module (Figure
) onto input shaft.
- Install transaxle into vehicle. (Refer to
TRANSMISSION/TRANSAXLE/MANUAL - INSTALLATION
).
