Repair and Diagnosis: Electrical: Gauges: Clock: Installation

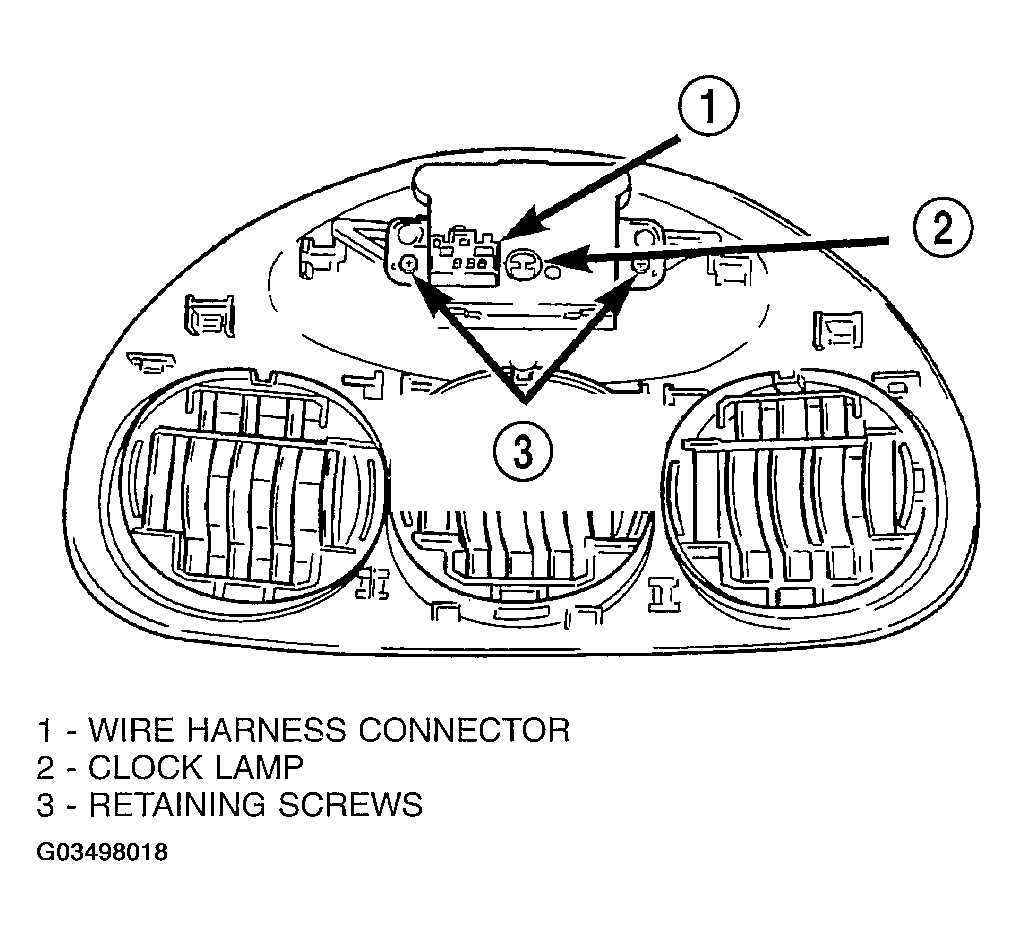

- On the bench, place the clock into place on the bezel and install the two retaining screws to analog clock (Figure ).
- Connect the one wire connector to the clock.
- Place bezel into place and firmly snap into place.
- Connect and isolate the negative battery remote cable to the remote terminal.
- Close hood.
