Home >> Chrysler >> 2004 >> Intrepid SXT >> Repair and Diagnosis >> Body & Frame >> Windows >> Heated Glass >> Rear Window Defogger Relay >> Removal

Rear Window Defogger Relay: Removal

  1. Disconnect the battery negative remote cable from the remote ground post (Fig 1 ).

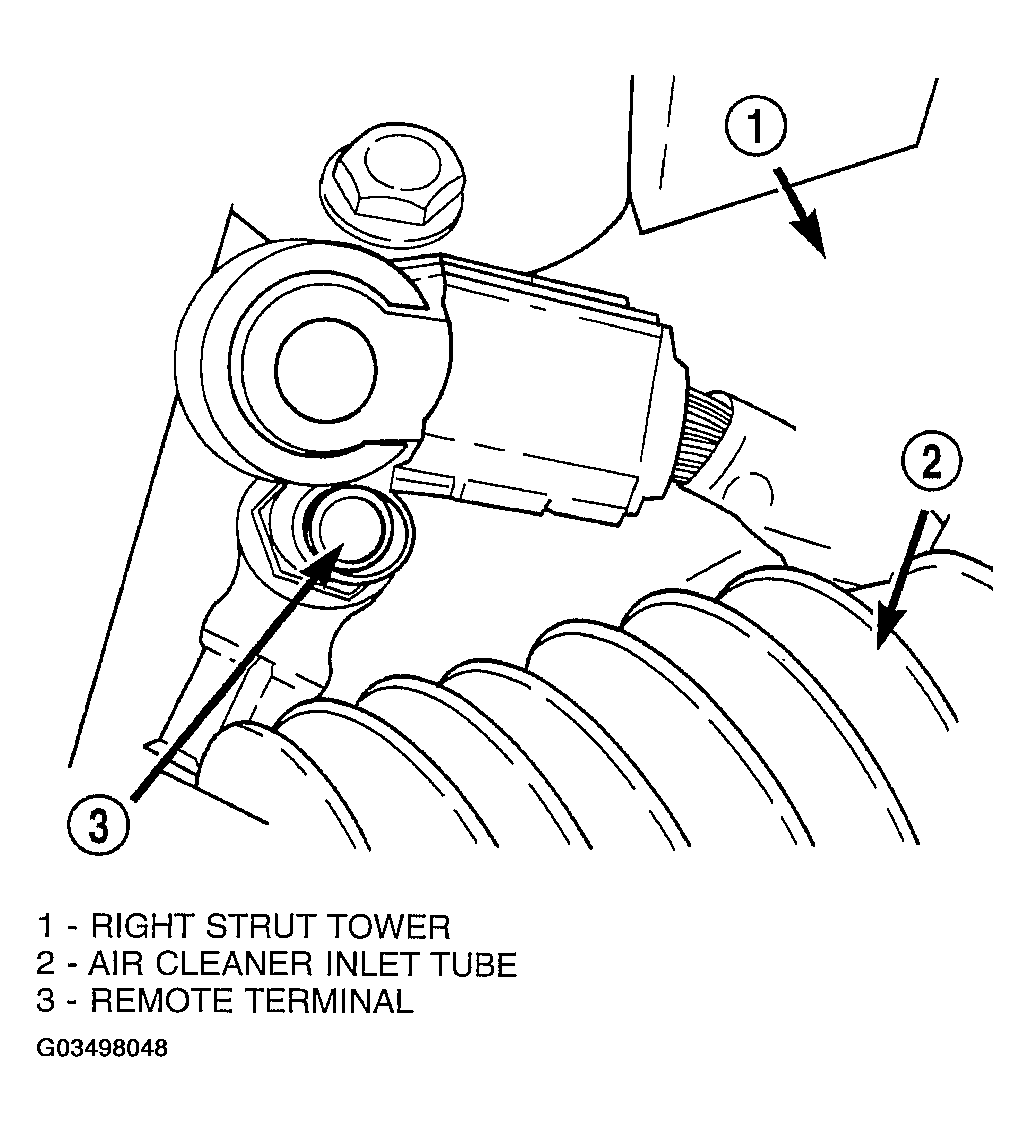

    Fig 1: Negative Battery Cable Remote Terminal
    G03498048Courtesy of DAIMLERCHRYSLER CORP.
  2. Open the trunk. Remove the carpeting fasteners from the right rear panel and pull the trunk carpeting away:
  3. Remove the relay fastener screw and unplug the relay.
  4. Remove the relay from vehicle.
