Instrument Panel End Cap: Installation

  1. Pull body mounted weatherstrip form fence { along the side of the instrument panel.

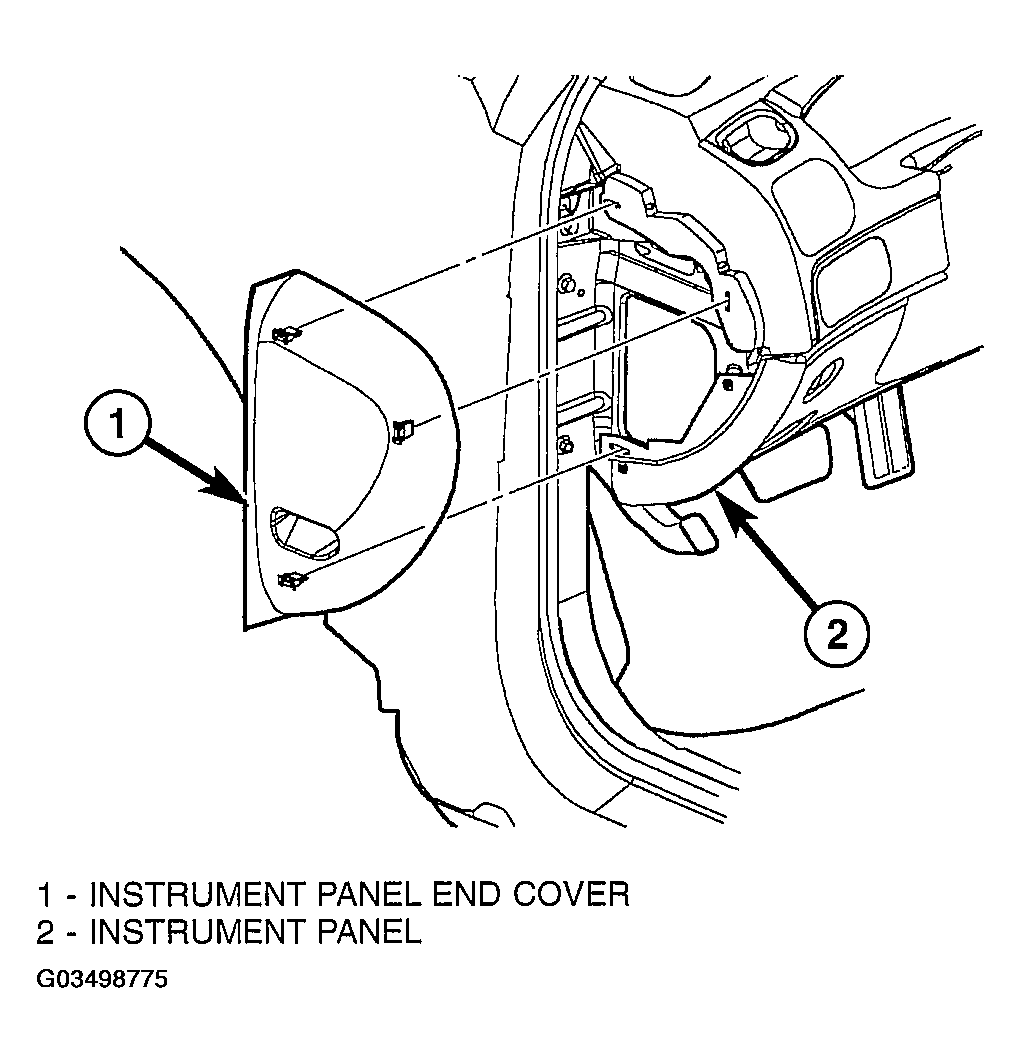

  2. Align the end cap with the retaining slots in instrument panel and firmly' snap into place (Figure ).
  3. Engage weatherstrip along the header and down the A-pillar.
  4. Verify weatherstrip sealing.
  5. Close door.
