Installation - 1.6L

  1. Make sure that the manifold is clean.

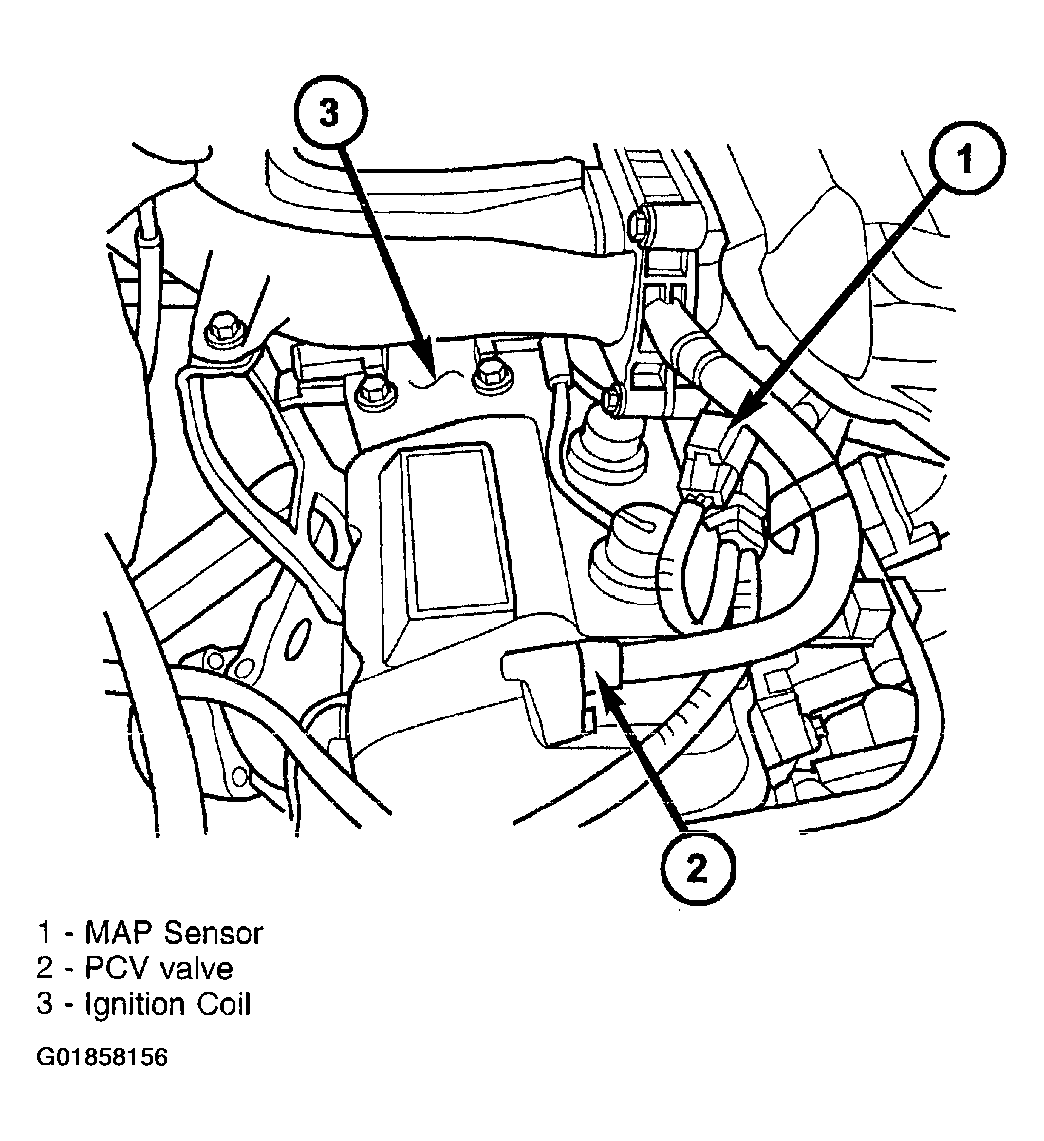

  2. Install sensor to manifold. See Figure.
  3. Tighten screws.
  4. Connect the electrical connector to the sensor.
  5. Connect the negative battery cable
  6. Install the air cleaner cover.
