Window Regulator: Installation

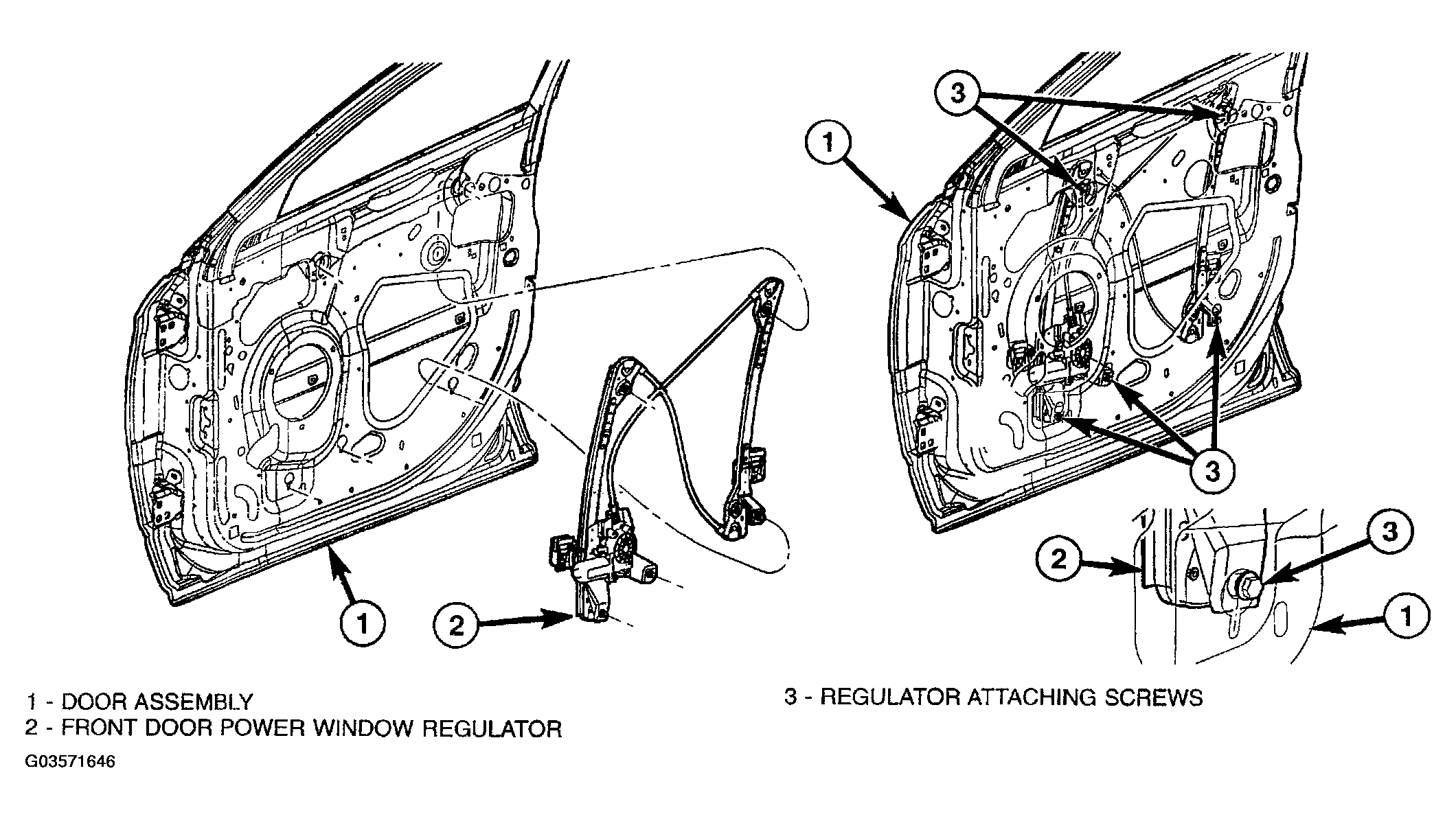

- Insert front guide rail through front access hole (Figure
).
- Insert rear guide rail through rear access hole.
- Place window regulator in position on inner door panel.
Courtesy of DAIMLERCHRYSLER CORP.
- Place screw heads on guide rails in position through key hole slots in inner door panel.
- Tighten screws to attach front and rear guide rails to inner door panel to 9 N.m (80 in. lbs.).
- Tighten screws to attach motor/housing to inner door panel to 3 N.m (27 in. lbs.).

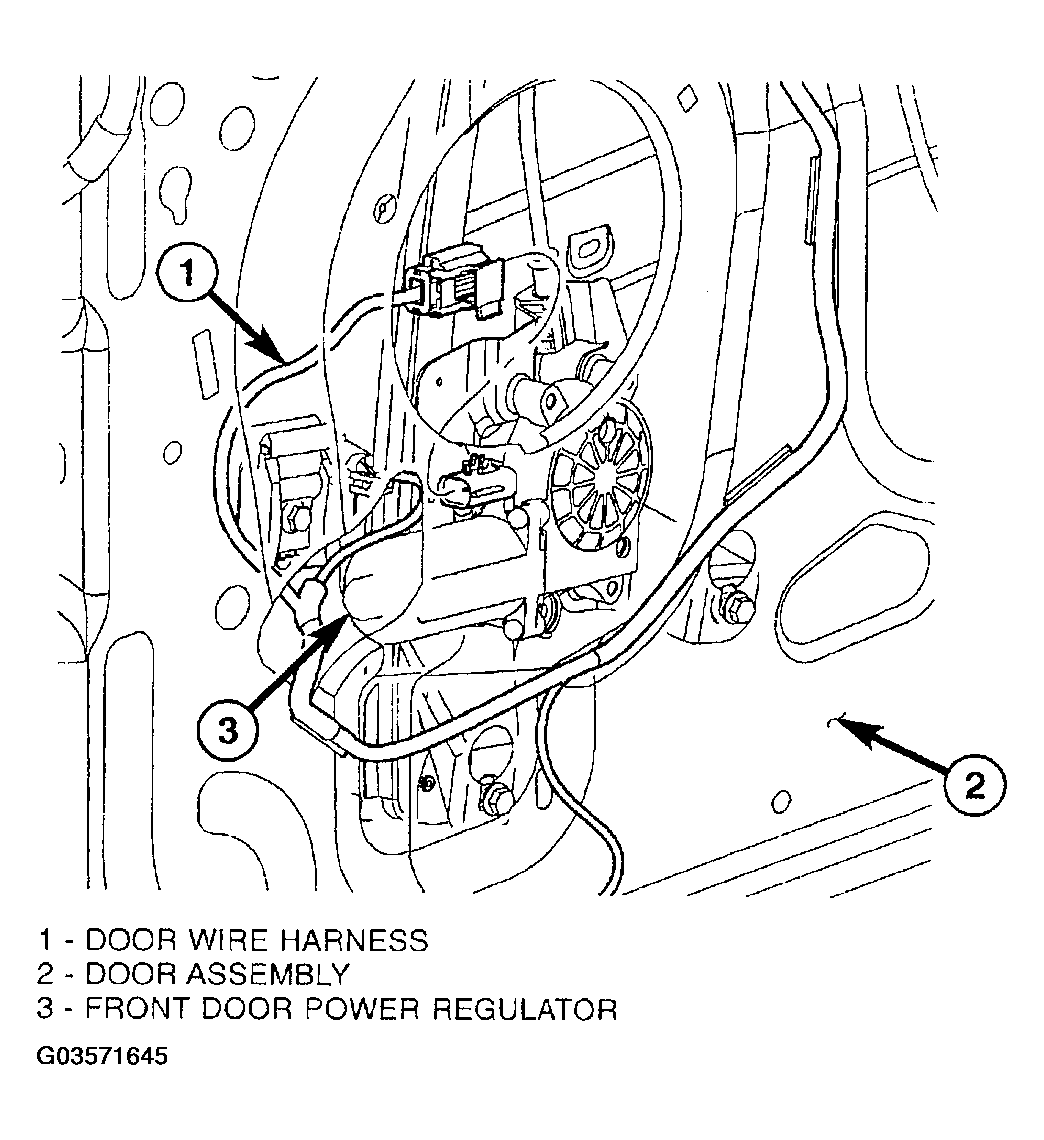

- Connect wire connector into power window motor (Fig 1
).
- Install door glass. (Refer to INSTALLATION
).
- Verify door glass alignment and operation.
- Install inner belt molding. (Refer to FRONT INNER BELT MOLDING WEATHERSTRIP
).
- Install watershield. (Refer to INSTALLATION
).
- Install door trim panel. (Refer to INSTALLATION
).
