Repair and Diagnosis: Electrical: Gauges: Clock: Description

The Analog Clock is located in the Instrument Panel Switch Pod within the instrument cluster bezel, just to the right of the instrument cluster (Fig 1 ). It is of analog type and has one adjustment button that will forward the clocks hand position.

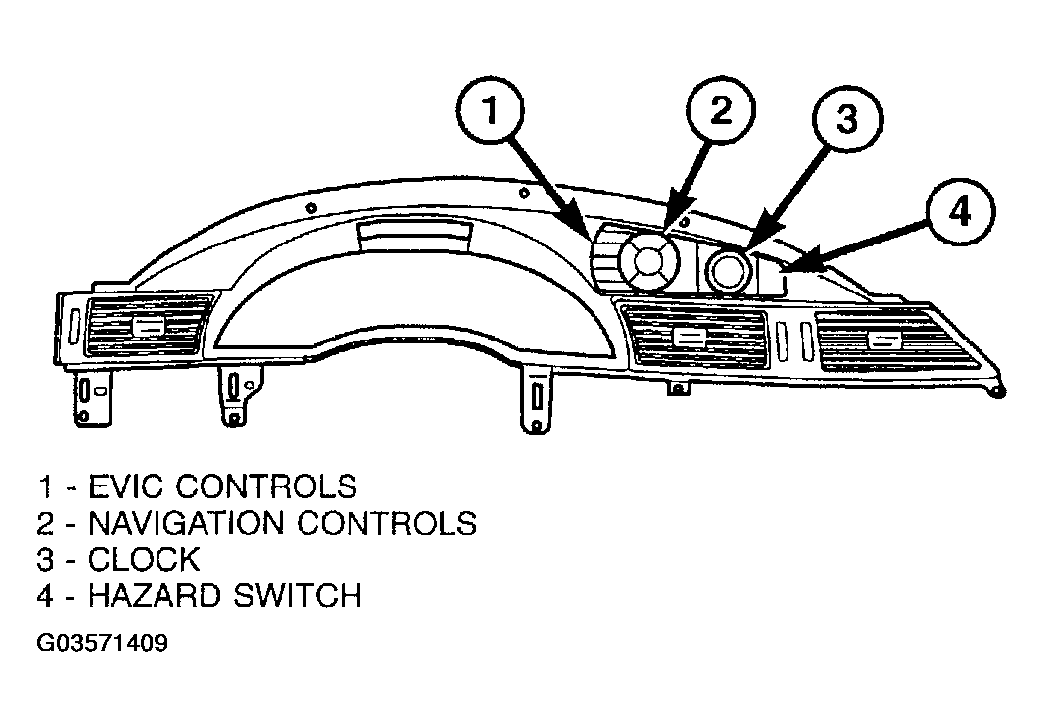

Fig 1: Locating Clock

Courtesy of DAIMLERCHRYSLER CORP.

The clock is not serviced separately from the instrument panel switch pod. If found defective, the entire switch assembly must be replaced (Refer to INSTRUMENT PANEL SWITCH POD ).
