Input Speed Sensor: Installation

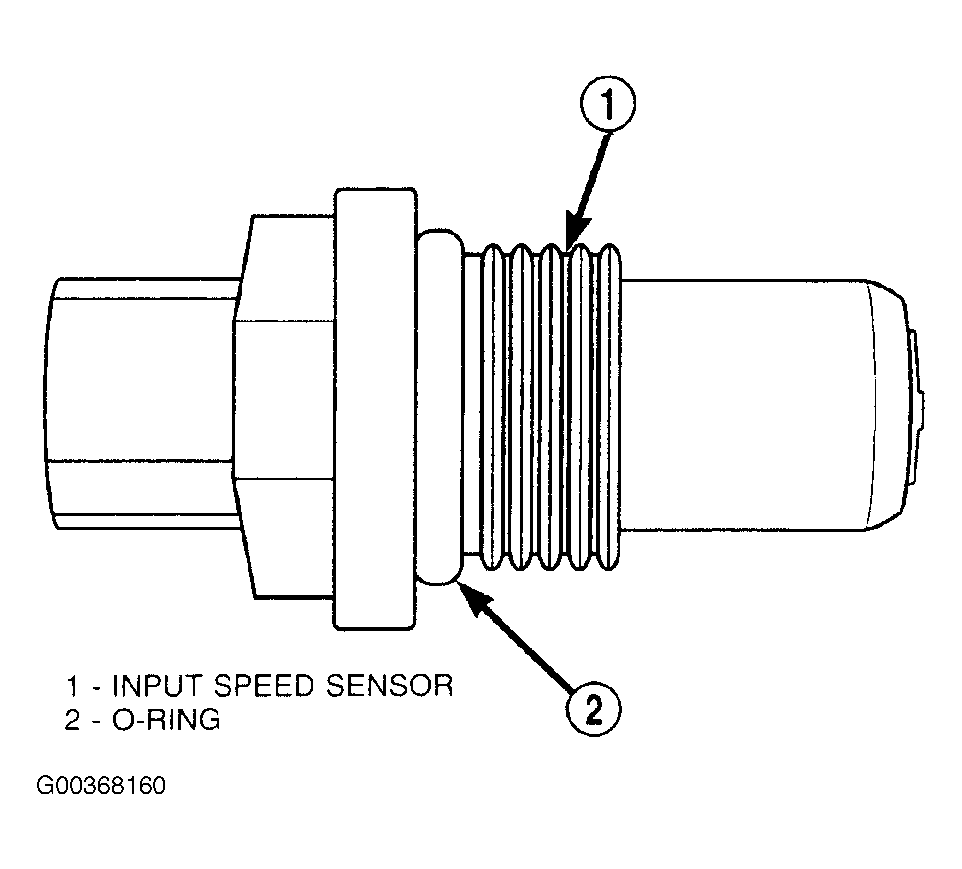

  1. Verify O-ring is installed into position. See Figure .

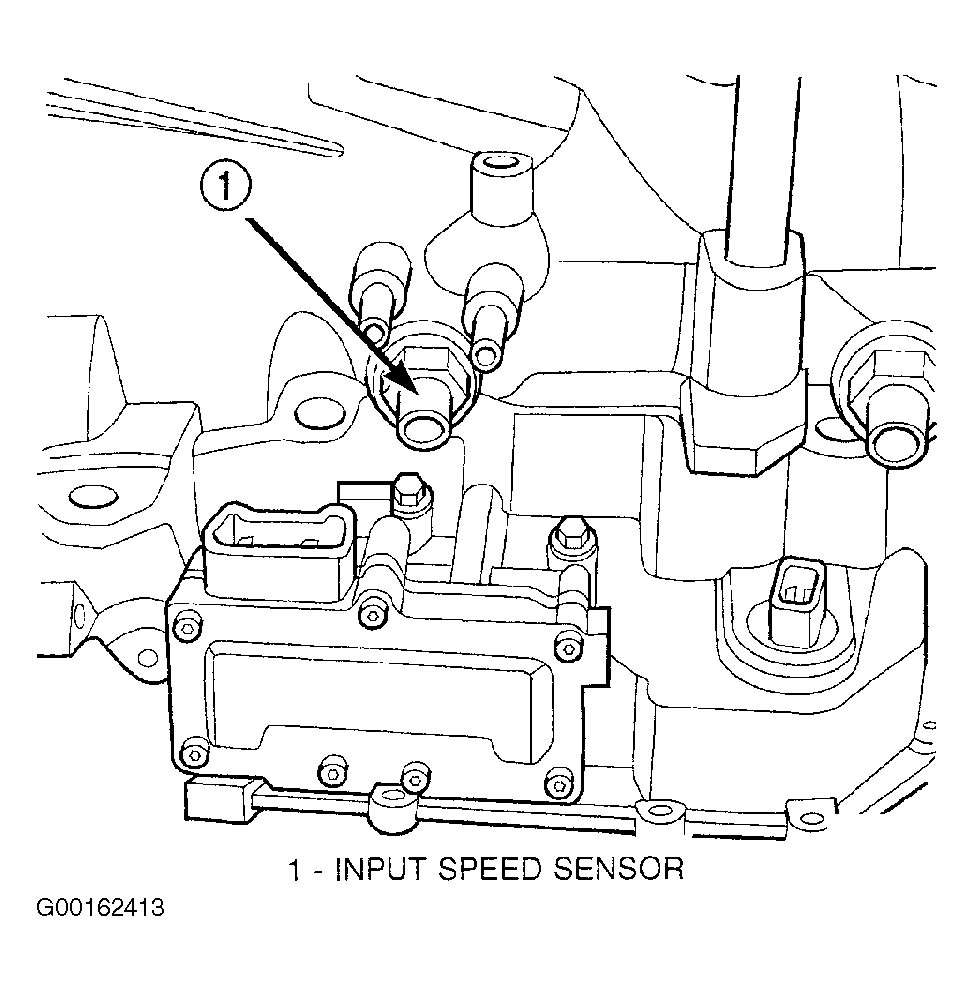

  2. Install and tighten input speed sensor to 20 ft. lbs. (27 N.m). See Figure .

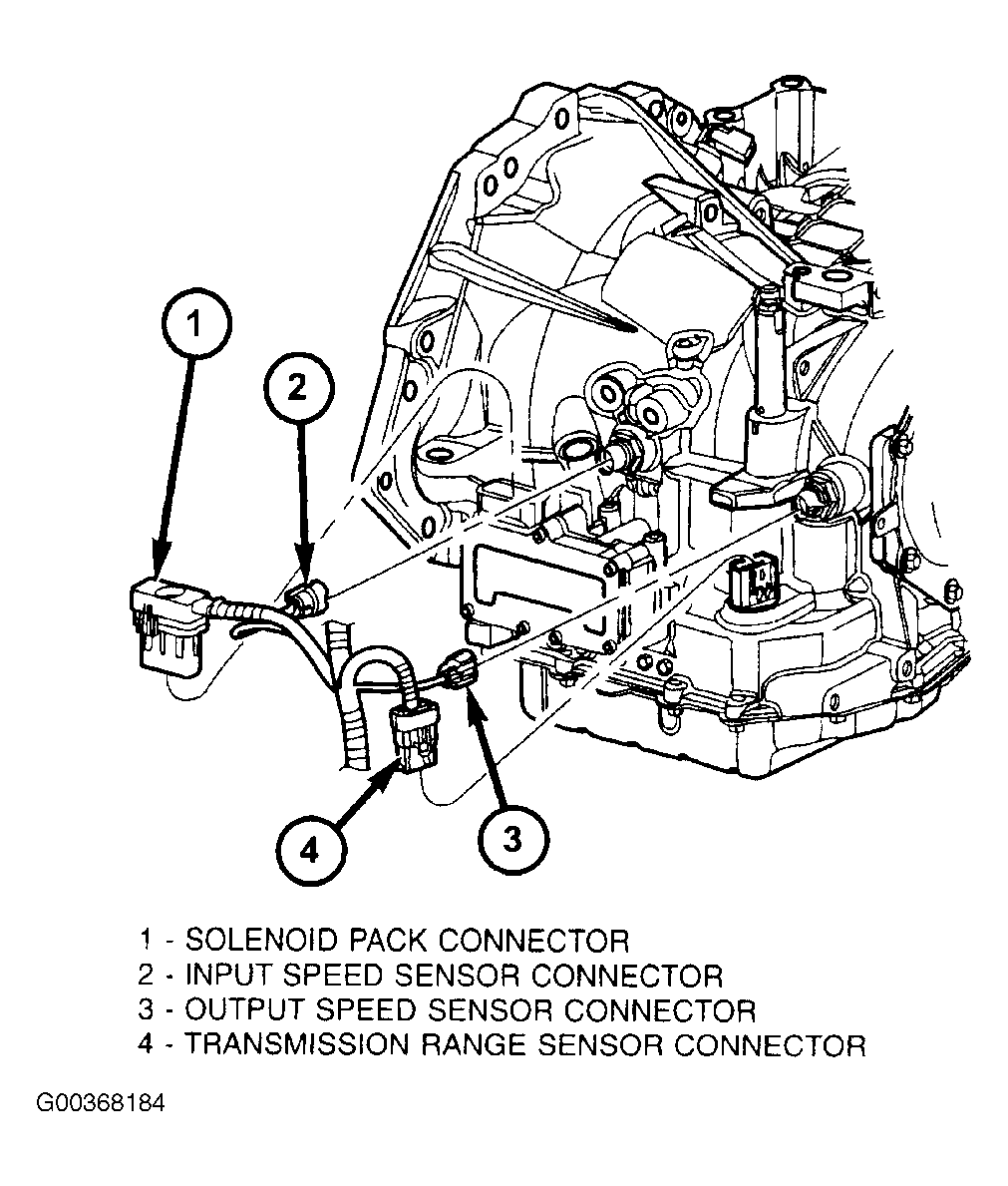

  3. Connect speed sensor connector. See Figure
  4. Connect battery negative cable.
